12.3" Capacitive Touch IPS LCD - 1920x720, HDMI, Toughened Glass

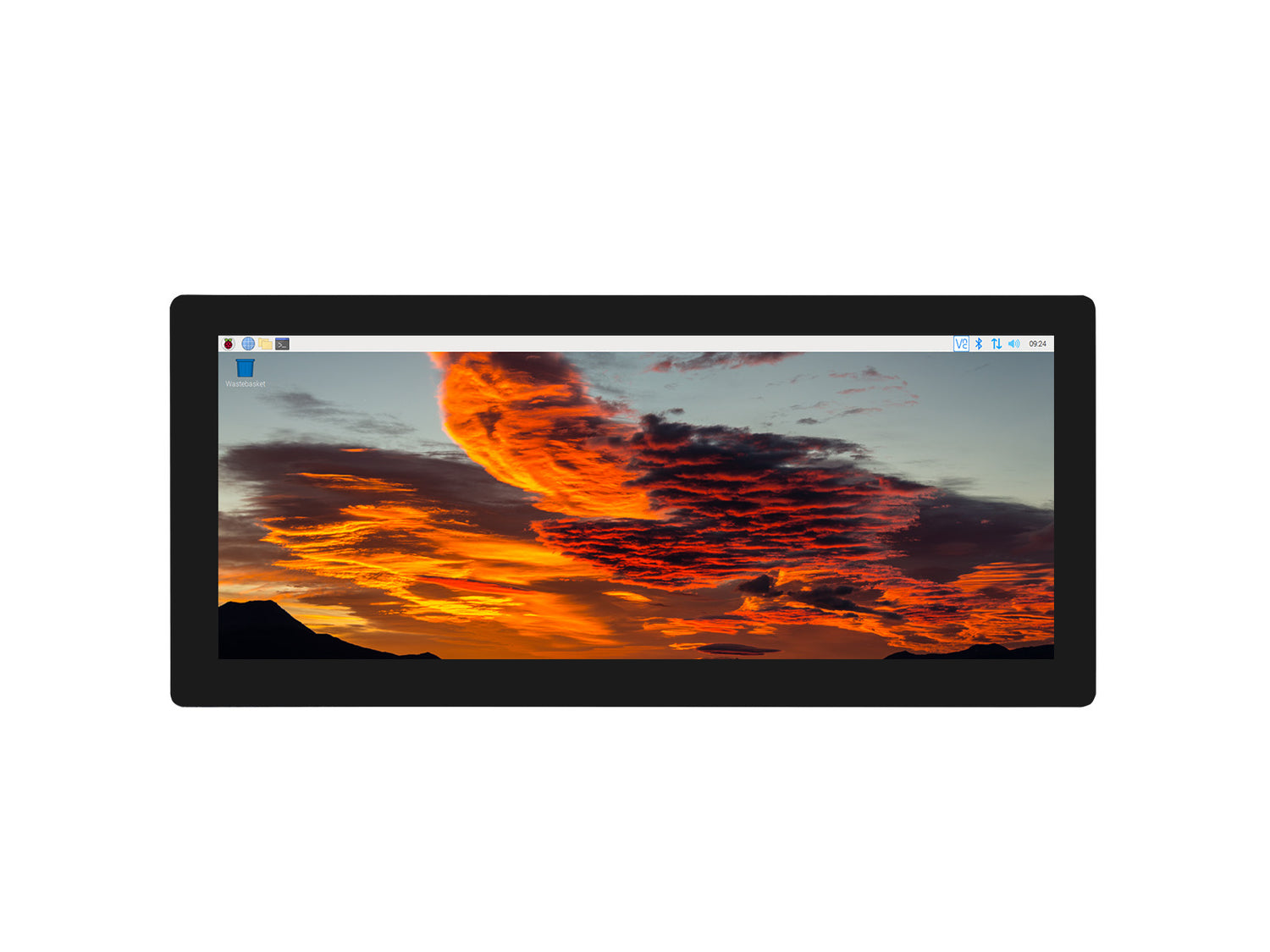

A wide-format 12.3" IPS touchscreen with 1920×720 resolution, ideal for dashboard displays, automotive projects, and panoramic interfaces. Features 10-point capacitive touch with optically bonded 6H toughened glass for durability and enhanced visibility.
The high-brightness 600 cd/m² panel remains clearly visible even in well-lit environments. Works plug-and-play with Raspberry Pi, Jetson Nano, and Windows PCs via HDMI connection with USB touch interface.
Key Features
- Wide Format Display – 1920×720 resolution perfect for dashboard-style interfaces
- High Brightness – 600 cd/m² for visibility in bright conditions
- 10-Point Capacitive Touch – Responsive multi-touch with 6H hardness glass
- Optical Bonding – Enhanced contrast and dustproof seal
- IPS Panel – 178° viewing angles with vivid colour reproduction
- Wide Temperature Range – Operates from -20°C to 70°C
- Dual Audio Output – 3.5mm jack and 24-pin header
- OSD Controls – Adjust brightness and contrast settings
Compatibility

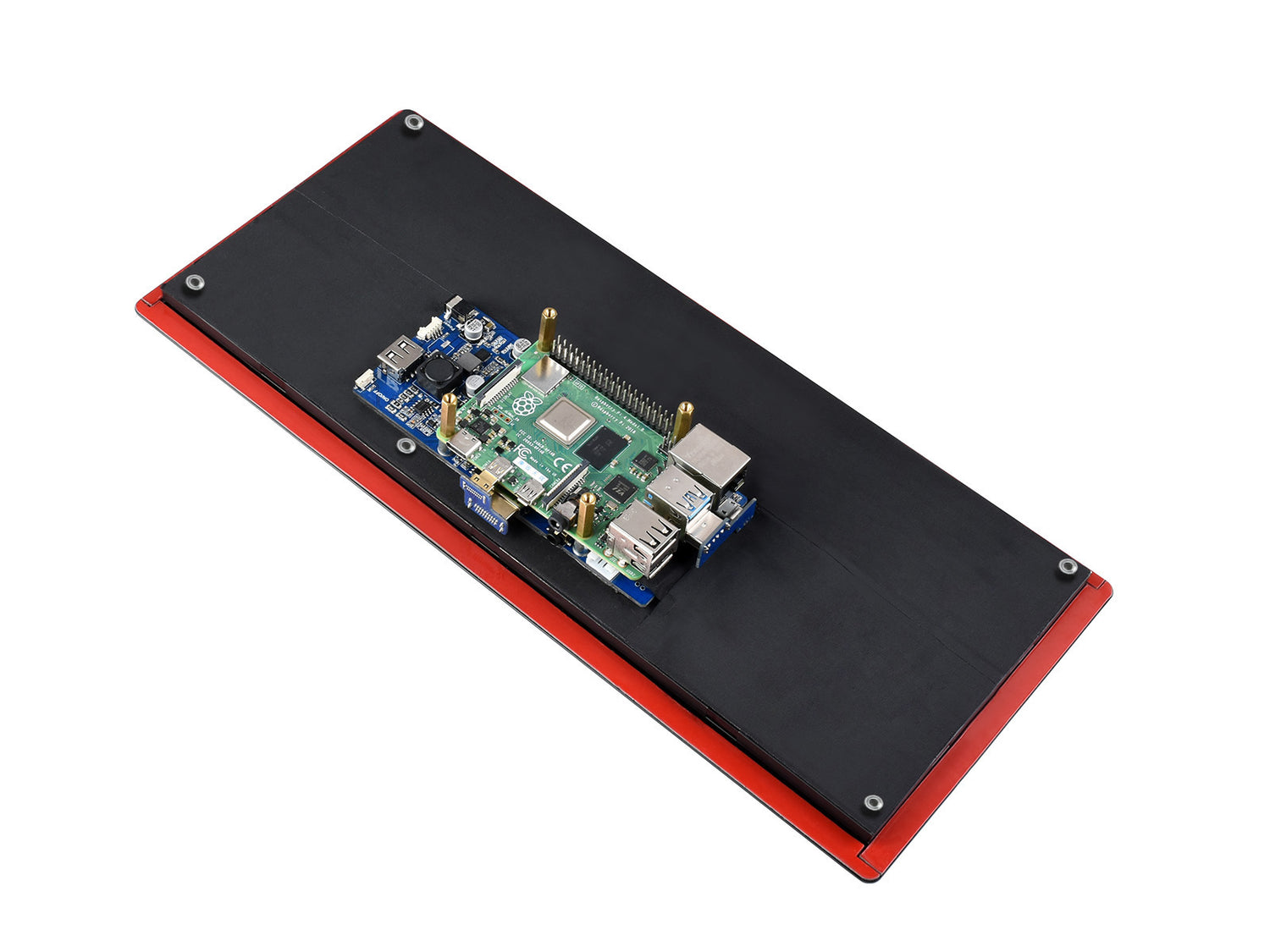

- Raspberry Pi: All models – Raspberry Pi OS (driver-free)
- Jetson: Nano, TX2, Xavier NX, Orin series
- Operating Systems: Ubuntu, Kali, WIN10 IoT, Retropie
- Windows PC: Plug and play
Ideal For
- Car infotainment and dashboard displays
- Industrial HMI panels
- Wide-format kiosks
- Panoramic status displays
Specifications
- Screen Size: 12.3" diagonal
- Resolution: 1920×720
- Panel Type: IPS
- Brightness: 600 cd/m²
- Viewing Angle: 178°
- Touch: 10-point capacitive

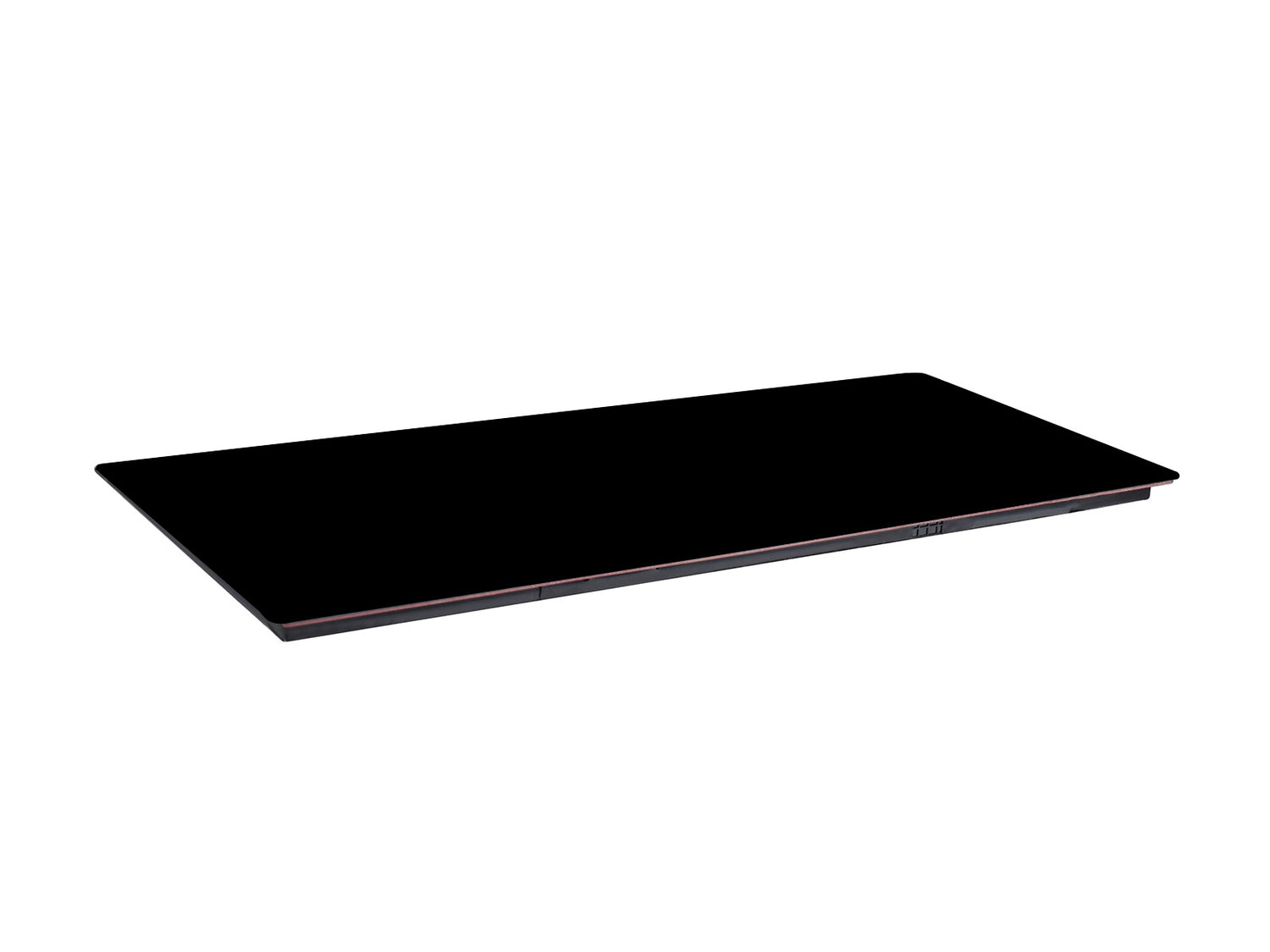

- Touch Panel: 6H toughened glass, optically bonded
- Video Input: HDMI
- Touch Interface: USB
- Audio Output: 3.5mm jack, 24-pin header
- Operating Temperature: -20°C to 70°C
- Weight: 1.223 kg
Package Contents
- 1× 12.3" HDMI LCD
- 1× HDMI cable
- 1× USB-A to Micro-B cable
- 1× HDMI and USB adapters
- 1× Button board for OSD
- 1× 12V 3A power adapter - US PLUG
- 1× Screw pack
