Pi Australia  |  SKU: AF-1774

2.8 TFT Display with Resistive Touchscreen

$35.01
Tax included Shipping calculated at checkout.
Essentials for 2.8 TFT Display with Resistive Touchscreen

Call us on 1300 240 817 between 10 AM and 4 PM on weekdays or email team@littlebird.com.au .

The Fastest Shipping

We ship faster because we built our own shipping 🤖 robot.

Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.

You can view shipping options and pricing at checkout without logging in.

For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.

We deliver across Australia, and here are the options (based on your location; view them on the cart page):

  • Standard Post: Starting at $7 (6+ business days, with tracking)
  • Express Post: Starting at $11 (2+ business days, with tracking)
  • Same Day Delivery: Available for Sydney orders.
  • Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.

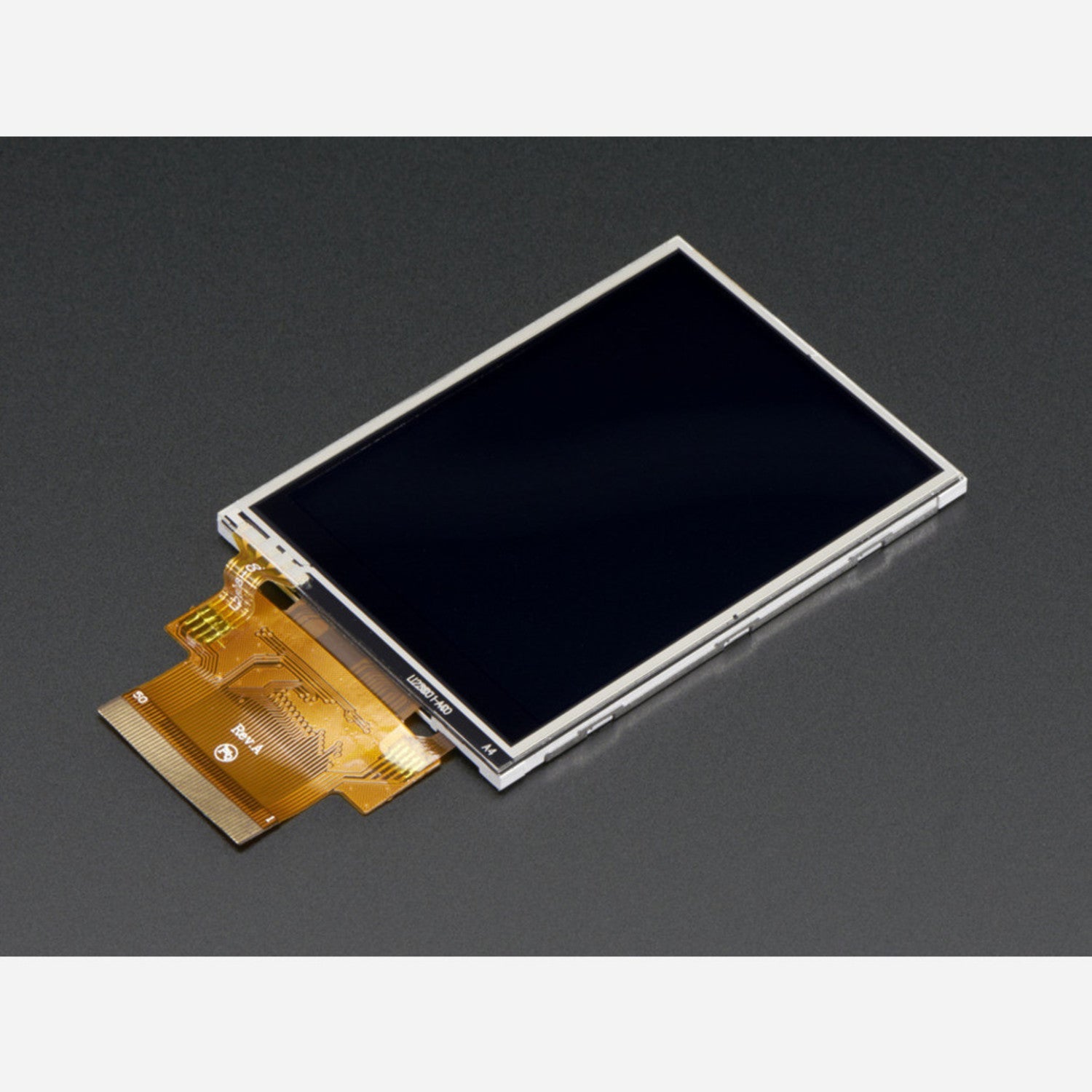

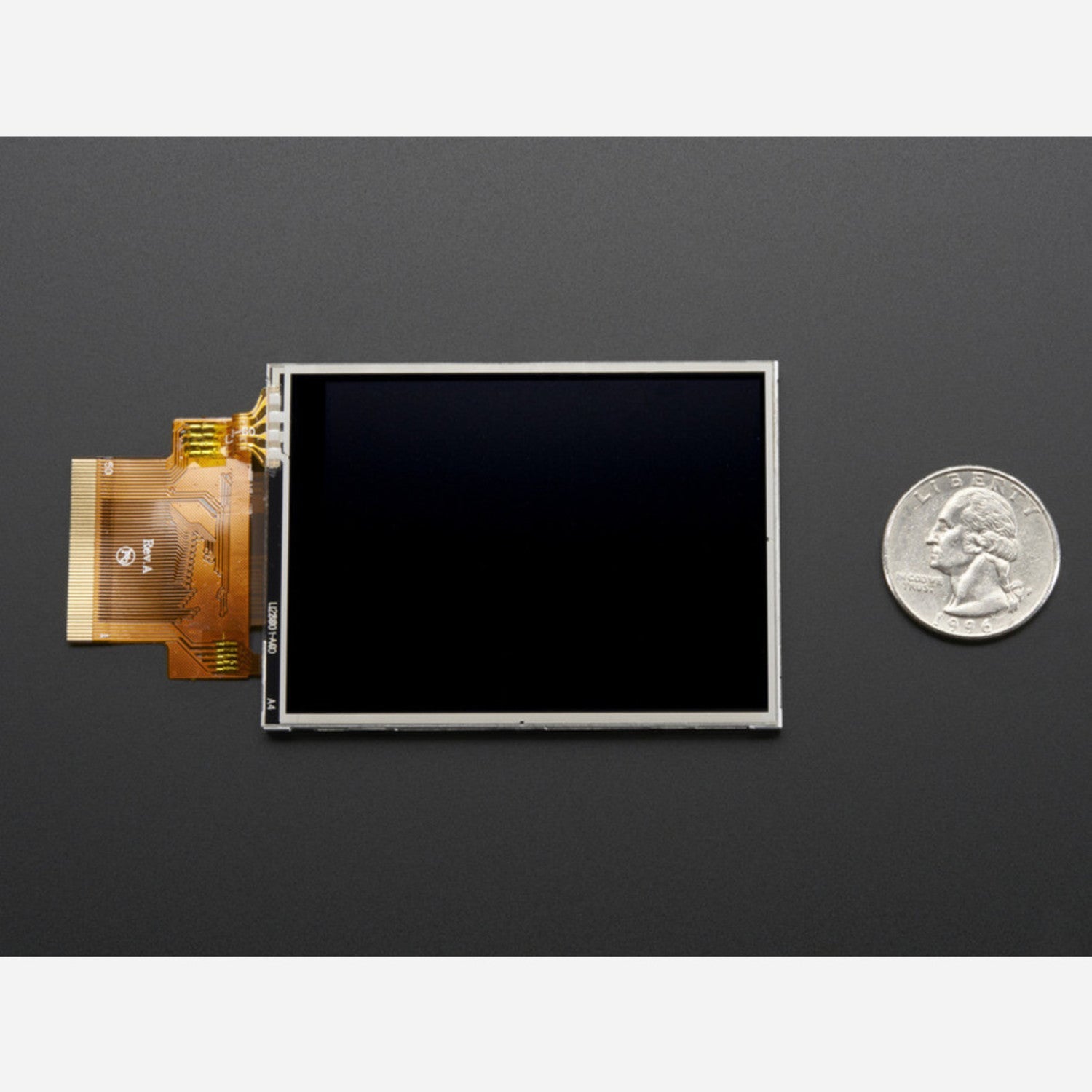

A 2.8-inch TFT LCD display with resistive touchscreen, featuring 320×240 pixel resolution and ILI9341 controller. This bare display module offers flexible interfacing options including SPI, 8-bit parallel, and 16-bit parallel modes for integration into custom projects.

Designed for experienced makers—requires a 50-pin FPC connector and appropriate breakout board or custom PCB for integration.

Key Features

  • 2.8" TFT Display – 320×240 pixel colour display
  • Resistive Touchscreen – Analog touch input overlay
  • ILI9341 Controller – Well-documented, widely supported
  • Multiple Interfaces – SPI (3 or 4 wire), 8-bit parallel, 16-bit parallel, or dot clock mode
  • Compact Form Factor – Lightweight at 26g

Specifications

  • Display Size – 2.8 inches diagonal
  • Resolution – 320 × 240 pixels
  • Controller – ILI9341
  • Touch Type – Analog resistive

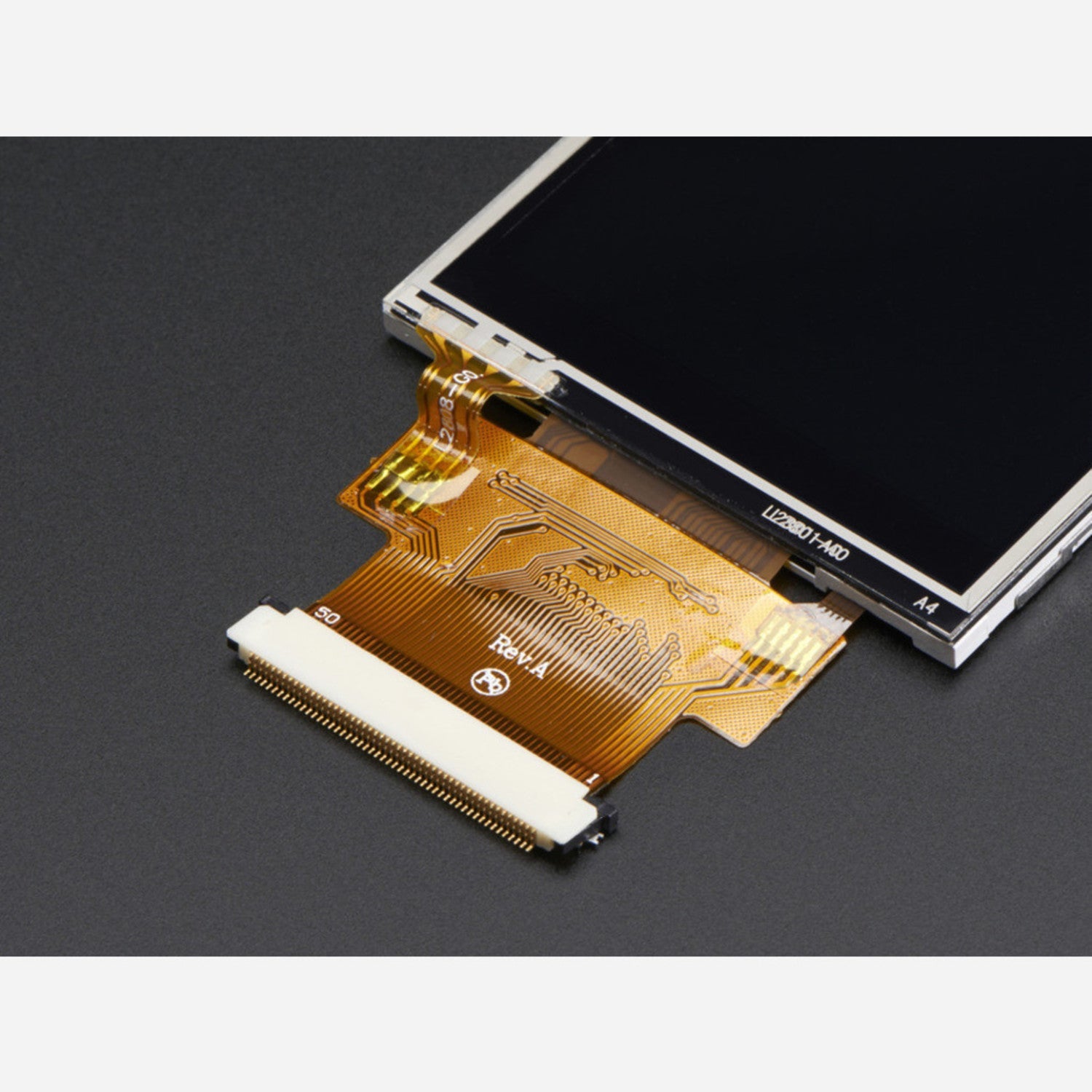

  • Connector – 50-pin, 0.5mm pitch FPC
  • Weight – 26g

Ideal For

  • Custom embedded projects
  • Handheld device builds
  • Industrial control panels
  • DIY portable gaming devices
Note: This is a bare display module without a PCB. Requires a 50-pin FPC connector (sold separately) and either a microcontroller with analog inputs or a separate touch controller for touchscreen functionality. Beginners may prefer a breakout board version with mounting holes and level shifting.
