Pi Australia | SKU: AF-1547

30mm Dots - 12V Digital RGB LED Pixels (Strand of 20) [WS2801]

Name: 30mm Dots - 12V Digital RGB LED Pixels (Strand of 20) [WS2801]
Brand: Pi Australia
SKU: AF-1547
Price: 97.45 AUD
Availability: OutOfStock

$97.45

Tax included Shipping calculated at checkout.

Call us on 1300 240 817 between 10 AM and 4 PM on weekdays or email team@littlebird.com.au .

The Fastest Shipping

We ship faster because we built our own shipping 🤖 robot.

Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.

You can view shipping options and pricing at checkout without logging in.

For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.

We deliver across Australia, and here are the options (based on your location; view them on the cart page):

Standard Post: Starting at $7 (6+ business days, with tracking)
Express Post: Starting at $11 (2+ business days, with tracking)
Same Day Delivery: Available for Sydney orders.
Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.

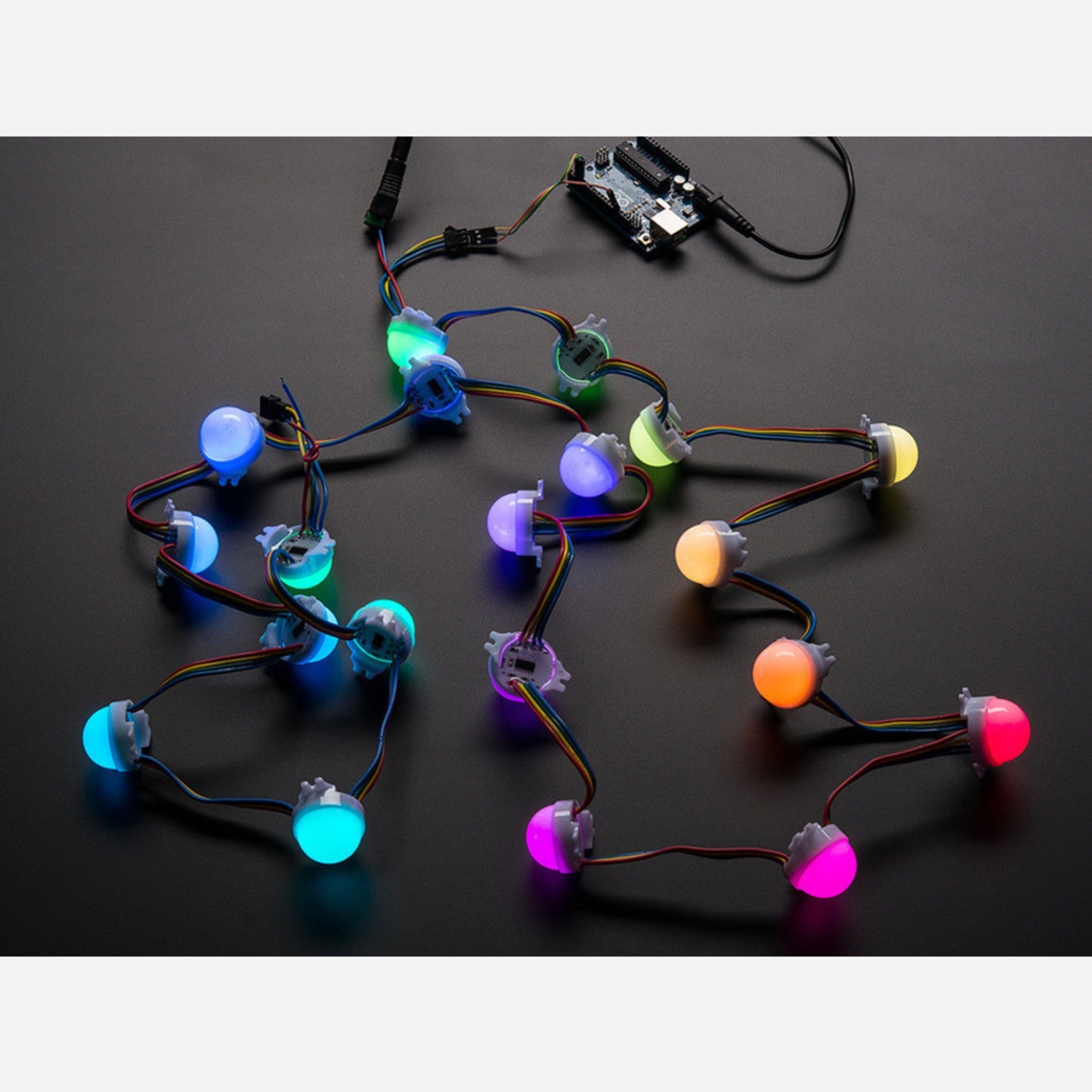

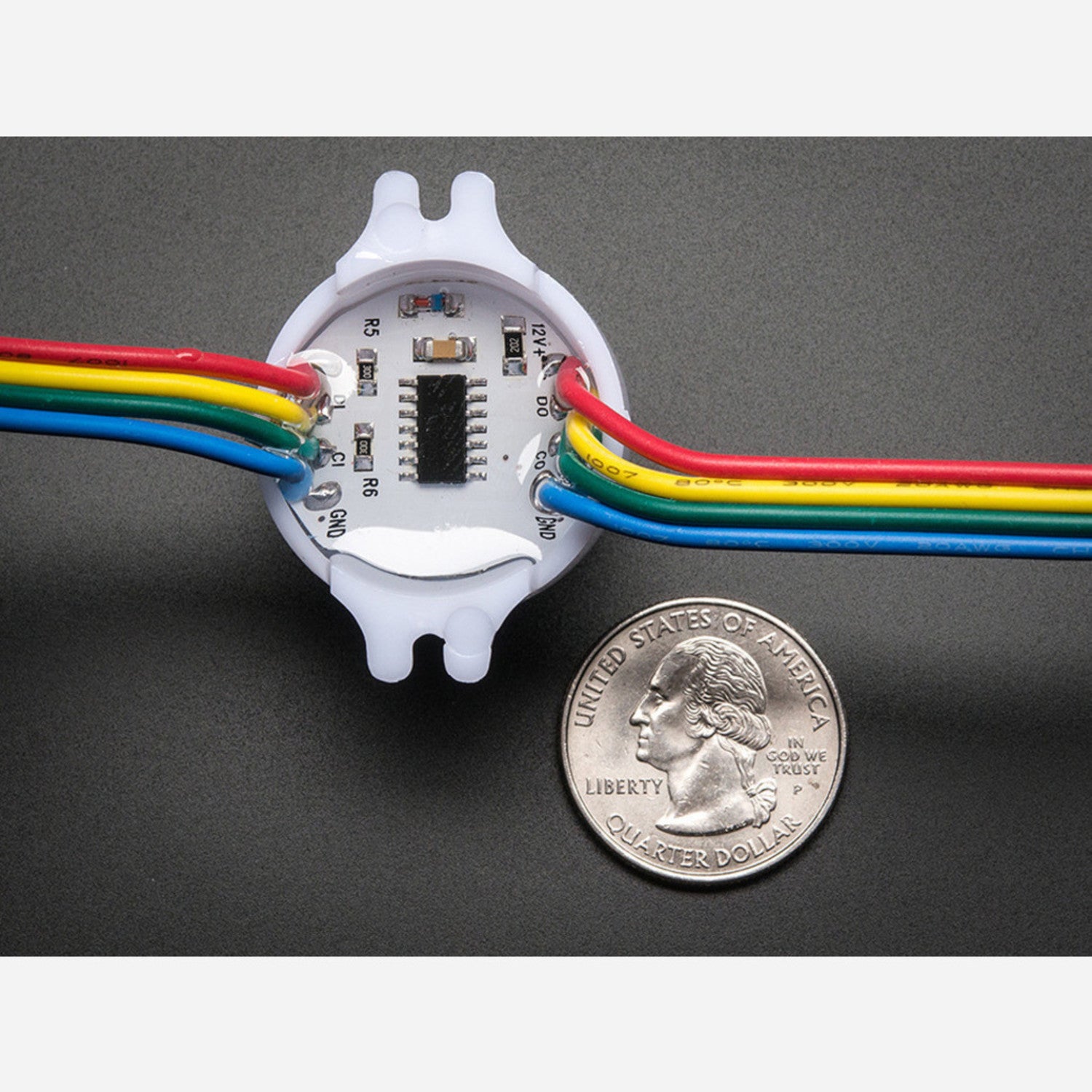

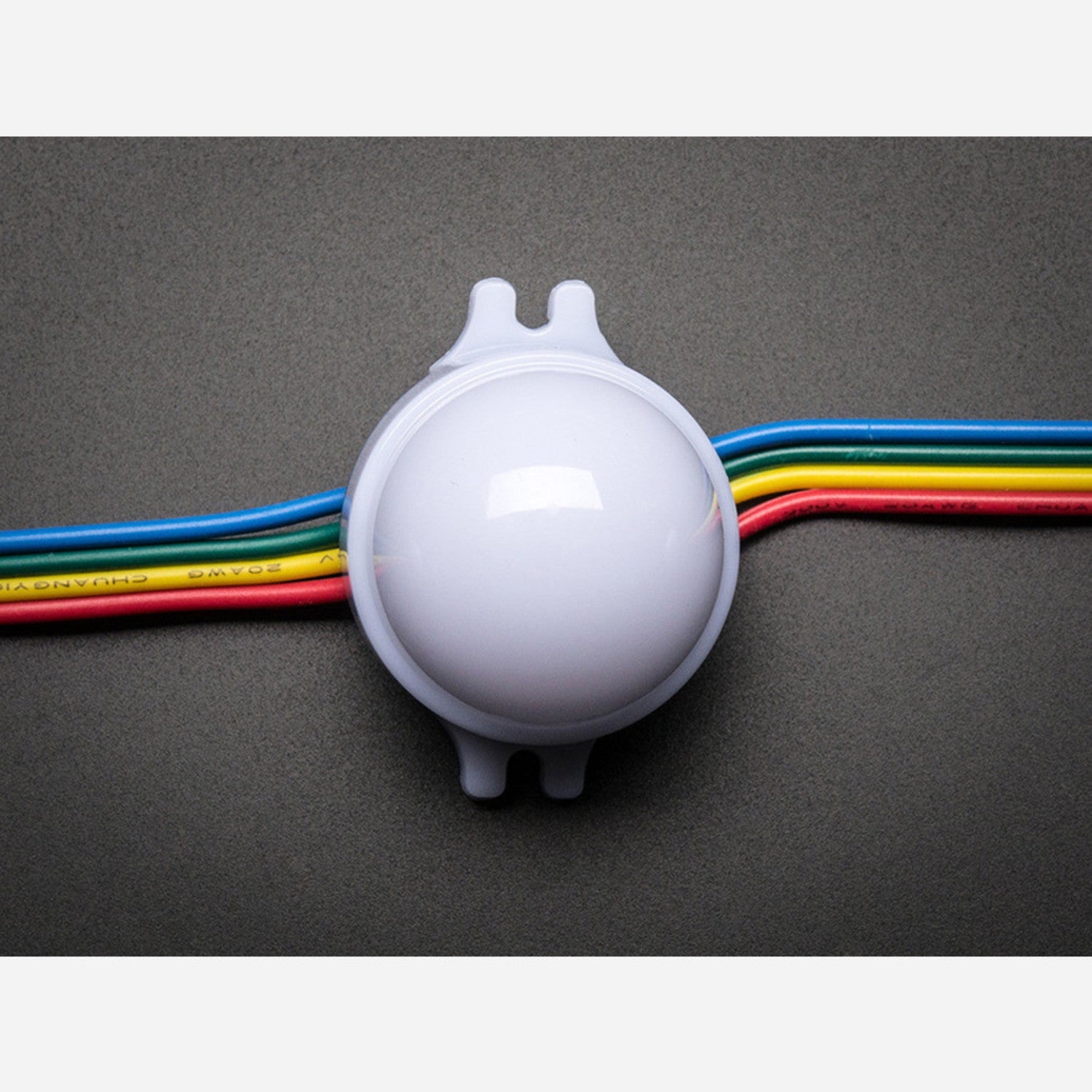

Create stunning outdoor LED signs and displays with these large, bright RGB pixel dots. Each 30mm translucent white dot contains 3 RGB LEDs and a WS2801 controller chip, individually addressable for 16 million colour combinations and smooth animations.

The weatherproof enclosure and mounting flanges make these ideal for outdoor installations. Connect multiple strands in series—data shifts through each pixel automatically, so you can extend or cut strands as needed.

Key Features

WS2801 Controller – 8-bit PWM driver for 24-bit colour (16 million shades)
3× 5050 RGB LEDs Per Dot – Approximately 4000mcd total brightness
180° Colour Spread – Translucent dome diffuses light evenly
Weatherproof Design – Sealed enclosure for outdoor use
Easy Mounting – Two plastic flanges on each pixel
Chainable – JST SM connectors allow linking multiple strands
Constant-Current Driven – Even colours throughout the strand

Specifications

Pixel Size: 30mm diameter
LEDs Per Pixel: 3× 5050 RGB
Controller: WS2801
Voltage: 12V DC
Pixels Per Strand: 20
Interface: 4-wire (12V, GND, Data, Clock)
Connectors: JST SM 3-pin (data), separate power wires

Ideal For

Outdoor LED signs and displays
Architectural lighting
Festival and event decorations
Large-scale LED installations

Package Contents

1× Strand of 20 RGB LED Pixels (30mm dots)

Tip: Use a 12V/5A power supply to drive 2+ strands. A 2.1mm DC terminal block adapter makes wiring easier.

Resources

Adafruit WS2801 Arduino Library
