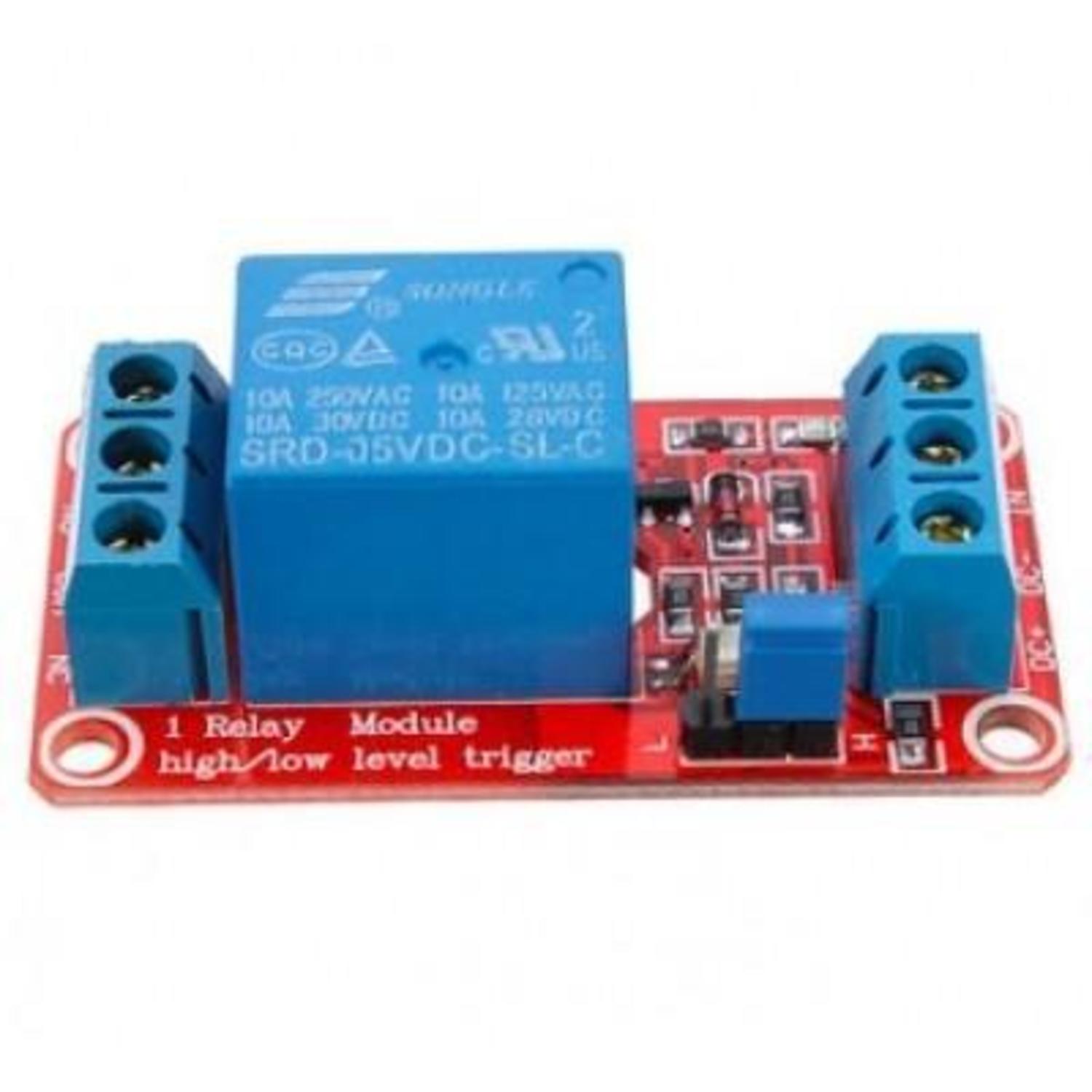

5V 1 Channel H/L Level Trigger Optocoupler Relay Module For Arduino
Control high-power AC and DC loads from your Arduino or Raspberry Pi with this optocoupler-isolated relay module. The jumper-selectable high/low level trigger gives you flexibility, while optical isolation protects your microcontroller from electrical noise and back-EMF.
Features fail-safe design—if the control line is disconnected, the relay stays off. Status LEDs show power and relay state at a glance.
Key Features
- Optocoupler Isolated – Protects your microcontroller from relay noise
- Selectable Trigger Level – Jumper to choose high or low level activation
- Fail-Safe Design – Relay won't activate if control line breaks
- Status LEDs – Green for power, red for relay state
- Screw Terminals – Easy connection for loads
- Mounting Holes – Four 3.1mm holes for secure installation
Specifications
- Operating Voltage: 5V DC
- Trigger Current: 5mA
- Max AC Load: 250V / 10A
- Max DC Load: 30V / 10A
- Channels: 1
- Dimensions: 50 × 26 × 18.5mm
Pin Configuration
- DC+: Power supply positive (VCC)
- DC-: Power supply negative (GND)
- IN: Control signal input
- NO: Normally Open contact
- COM: Common contact
- NC: Normally Closed contact
Ideal For
- Home automation
- Appliance control
- Lighting control systems
- Motor switching
- Arduino and Raspberry Pi projects
Package Contents
- 1× 5V 1-Channel Optocoupler Relay Module
