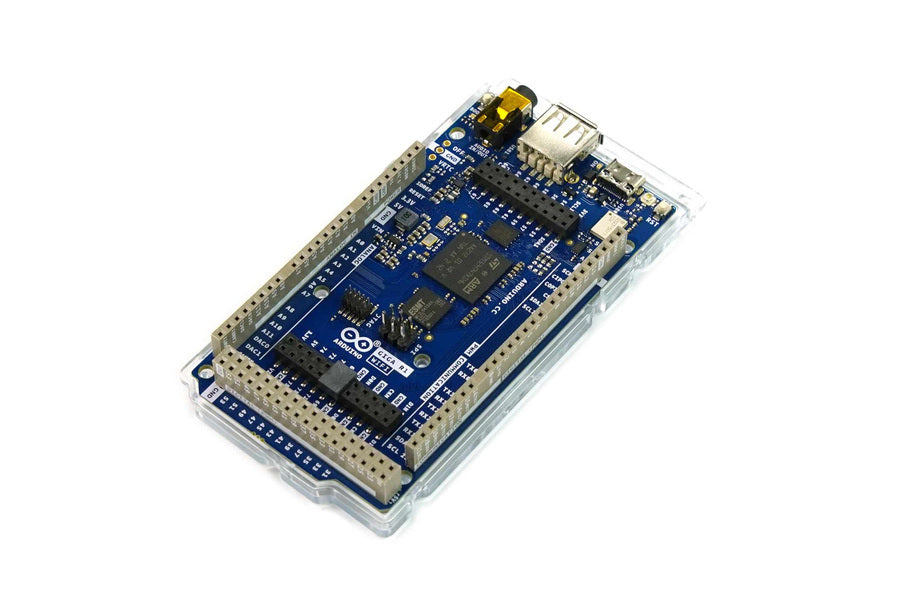

Arduino GIGA R1 WiFi Development Board
The Arduino GIGA R1 WiFi is a powerful development board featuring a dual-core STM32H747XI processor (Cortex-M7 at 480 MHz + Cortex-M4 at 240 MHz). With 76 GPIO pins, WiFi/Bluetooth connectivity, and compatibility with the Mega/Due form factor, it's designed for advanced IoT, robotics, and automation projects.
Run two programs simultaneously—for example, MicroPython on one core and Arduino on the other. The USB-C port handles programming and HID functions, while the USB-A port hosts keyboards, mice, or storage devices.
Key Features
- Dual-Core Processor – Cortex-M7 @ 480 MHz + Cortex-M4 @ 240 MHz
- 76 GPIO Pins – 12 analog, 12 PWM, 4 UART, 3 I2C, 2 SPI
- WiFi & Bluetooth 5.1 – Via Murata 1DX with external antenna
- 8MB SDRAM + 16MB Flash – Plus 2MB on-chip flash, 1MB RAM
- USB-C + USB-A Ports – Programming, HID, and host support
- 3.5mm Audio Jack – Input/output audio
- Camera Connector – 20-pin Arducam compatible
- Wide Voltage Input – 6-24V supported
Specifications
- MCU: STM32H747XI (Cortex-M7 + M4)
- System Memory: 8MB SDRAM
- Flash: 16MB QSPI NOR
- Wireless: 2.4GHz WiFi 802.11b/g/n, Bluetooth 5.1
- Operating Voltage: 3.3V (I/O: 8mA per pin)
- Dimensions: 101 × 53mm
Ideal For
- IoT devices and Arduino Cloud integration
- Robotics and automation
- Smart home systems
- Industrial applications
- Audio and display projects
Package Contents
- 1× Arduino GIGA R1 WiFi Development Board
