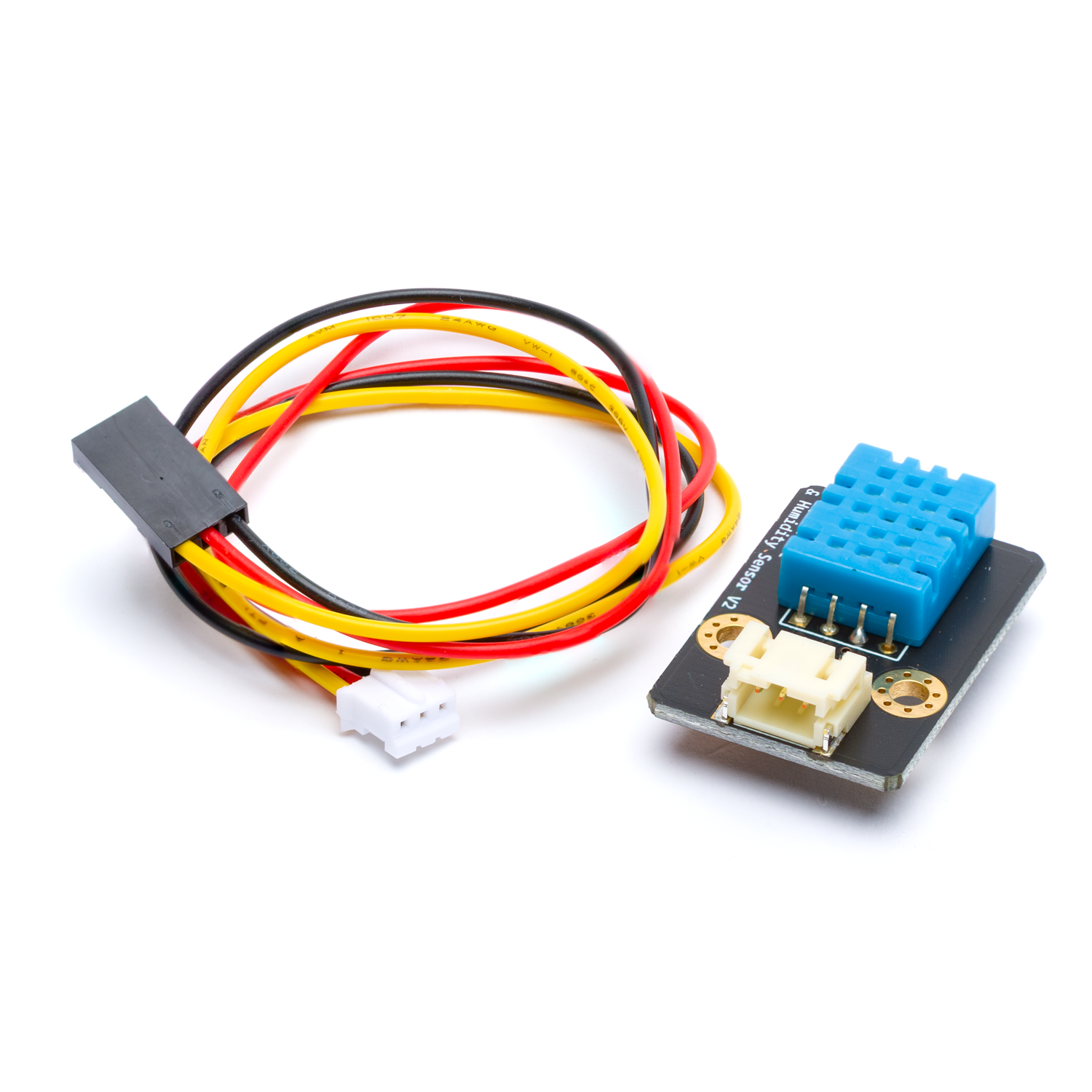

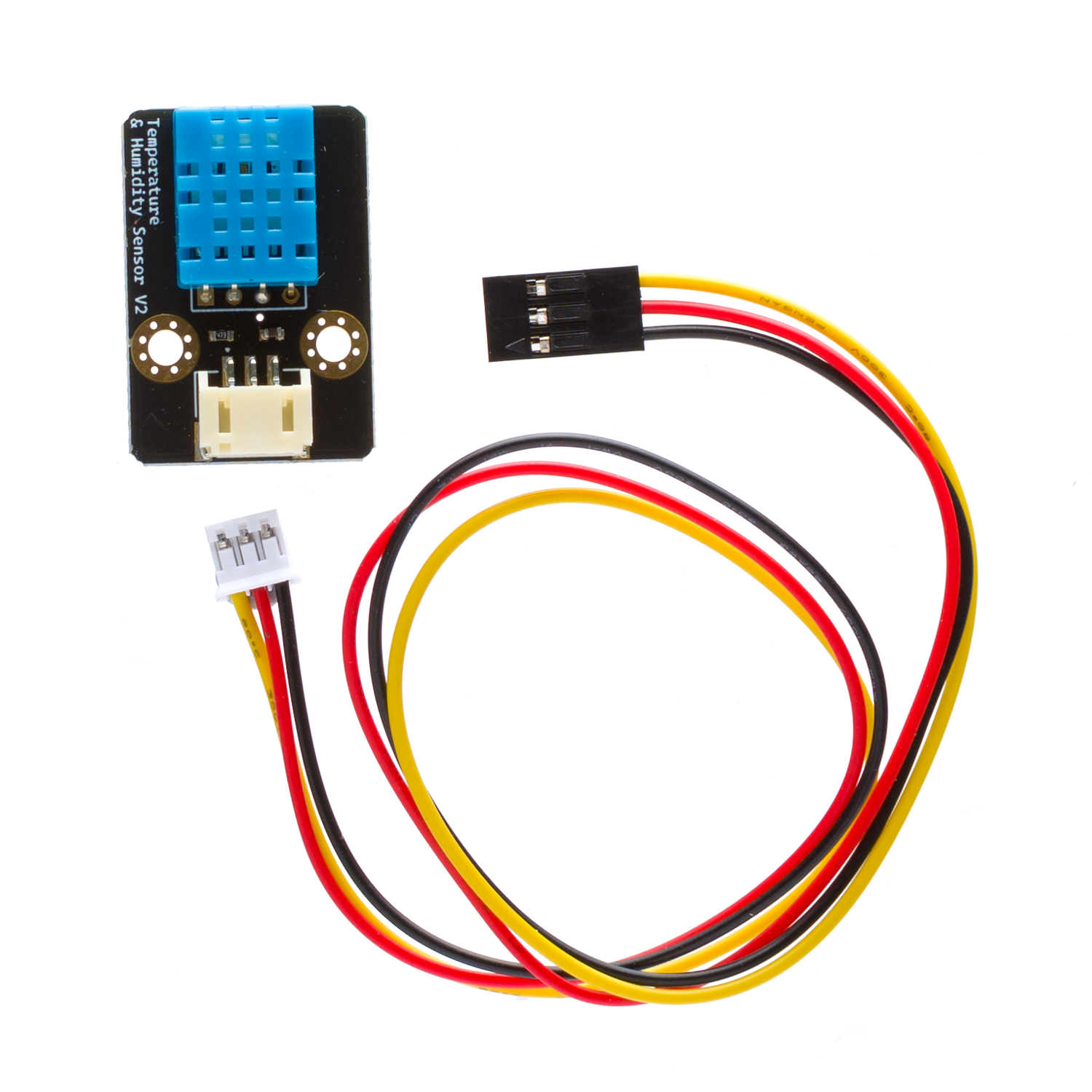

DHT11 Temperature and Humidity Sensor Module
A pre-calibrated digital temperature and humidity sensor module designed for easy integration with Arduino, Raspberry Pi, Micro:bit, and other microcontrollers. The DHT11 provides accurate readings via a single-wire digital interface with no additional components required.
This module features an integrated 8-bit microcontroller with factory-calibrated coefficients stored in OTP memory for reliable measurements. Low power consumption makes it ideal for battery-powered and IoT applications.
Key Features
- Pre-Calibrated – Ready to use out of the box, no calibration needed
- Digital Output – Single-wire interface for easy connection
- Wide Voltage Range – Works with 3.3V and 5V systems
- Low Power – Only 40-50µA in standby mode
- Long-Term Stability – Calibration coefficients stored in OTP memory
- Includes Wiring Cable – Ready to connect
Specifications
- Operating Voltage: 3.3-6V DC
- Measuring Current: 1-1.5mA
- Standby Current: 40-50µA
- Humidity Range: 0-100% RH
- Humidity Accuracy: ±2% RH
- Temperature Range: -40°C to 80°C
- Temperature Accuracy: ±0.5°C
- Interface: Single-wire digital
Compatibility
- Arduino (all models)
- Raspberry Pi
- Micro:bit
- ESP8266 / ESP32
- Intel Edison, Joule, Curie
- Any 3.3V or 5V microcontroller
Ideal For
- Weather stations
- HVAC monitoring
- IoT environmental sensors
- Home automation
- Data logging projects
Package Contents
- 1× DHT11 Sensor Module
- 1× Wire with Header
