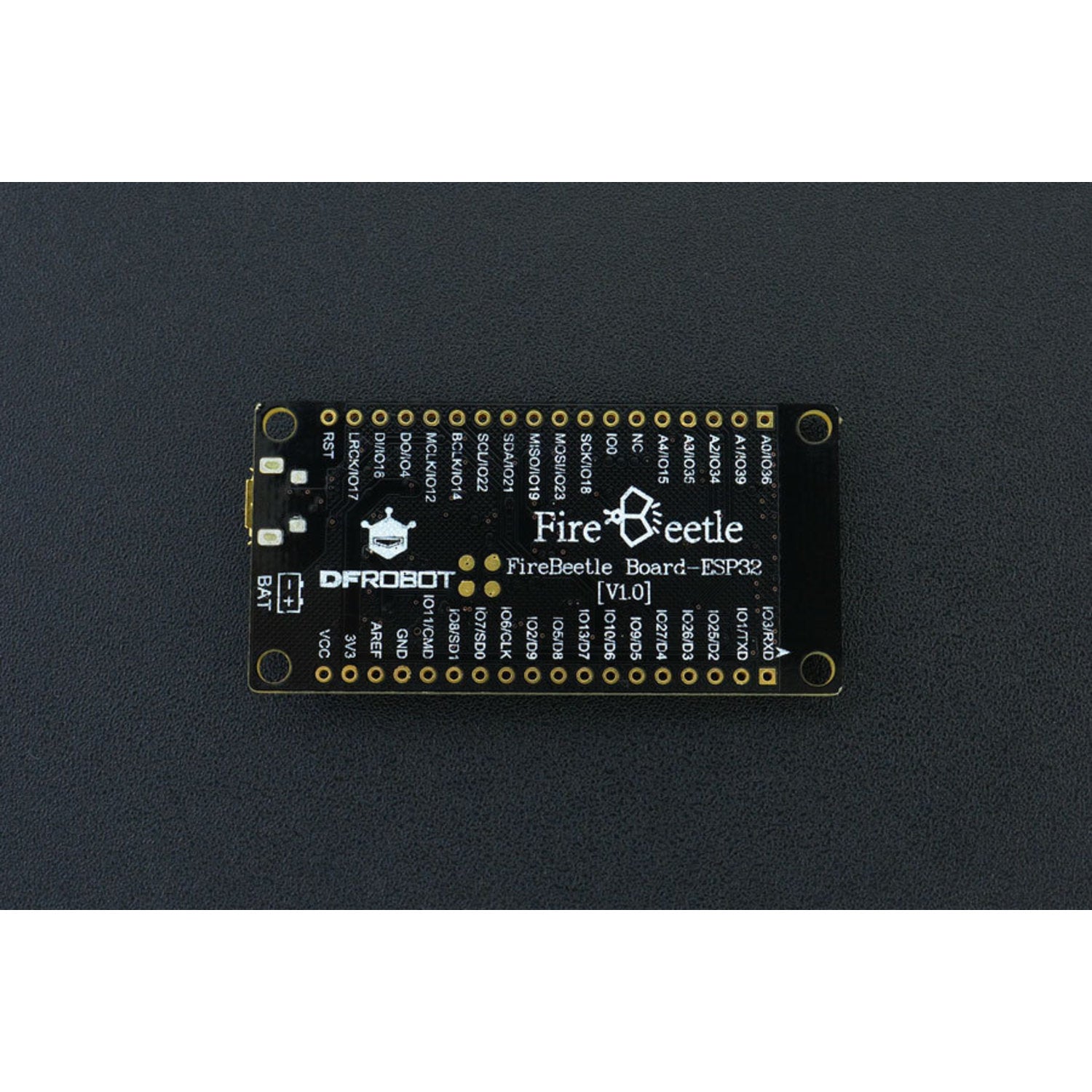

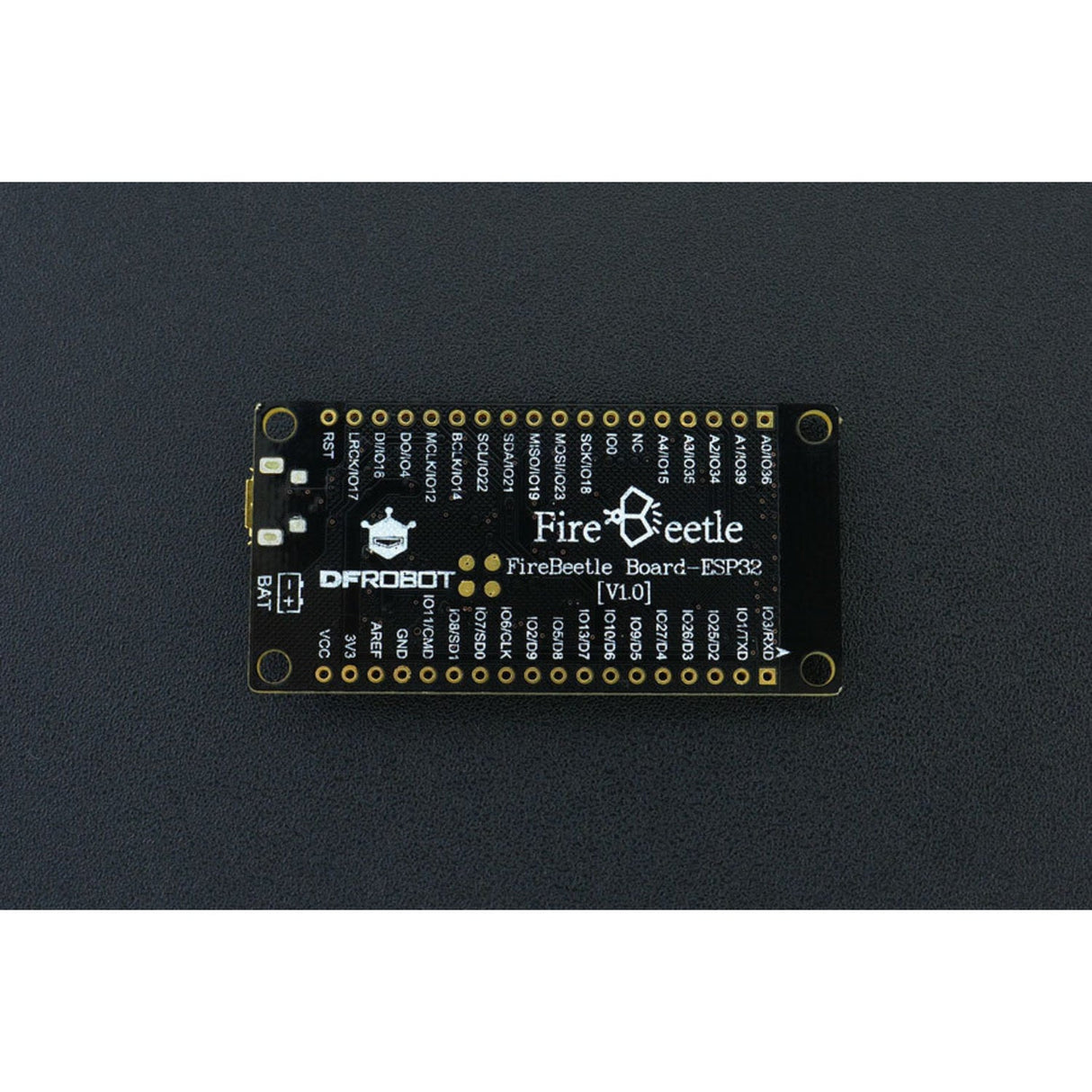

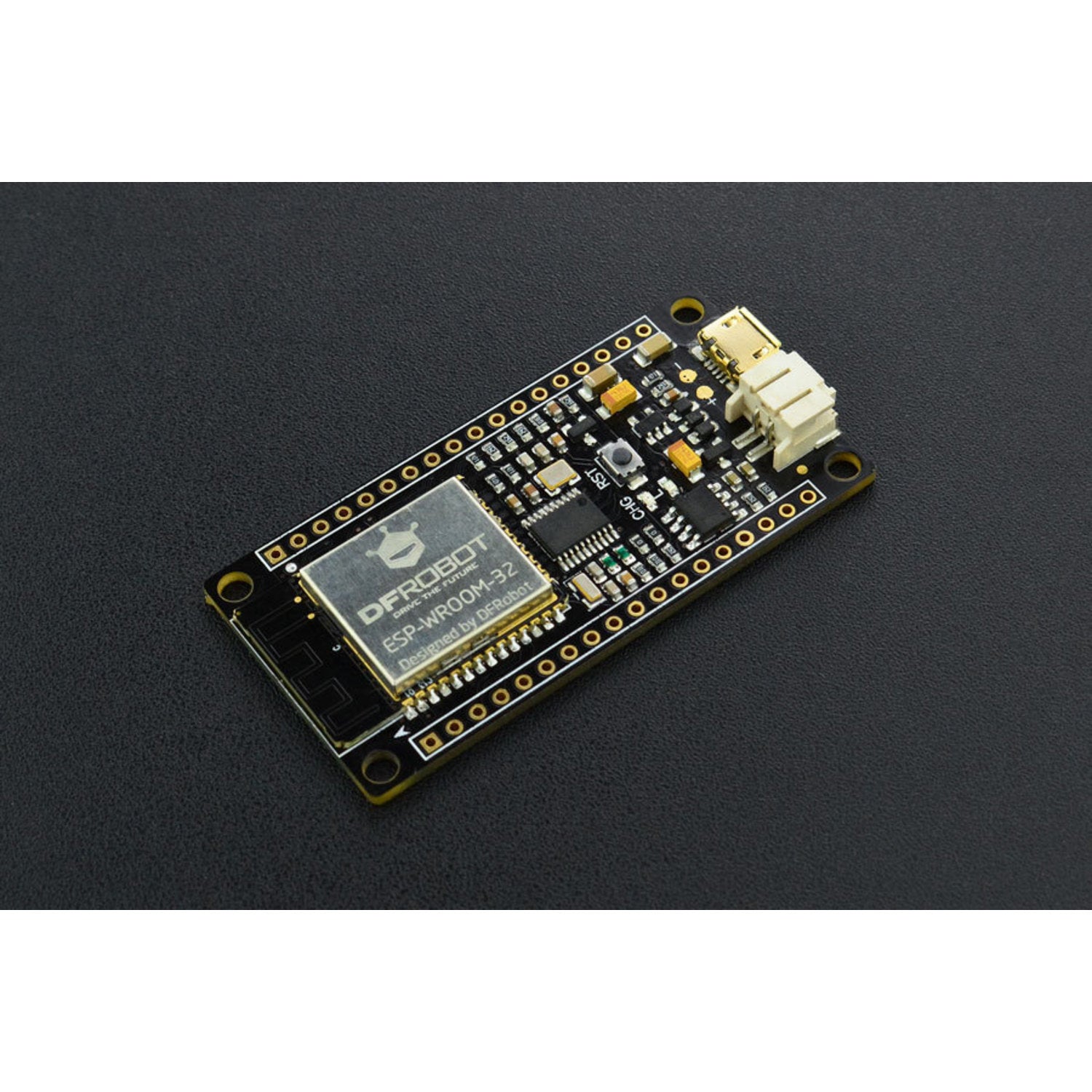

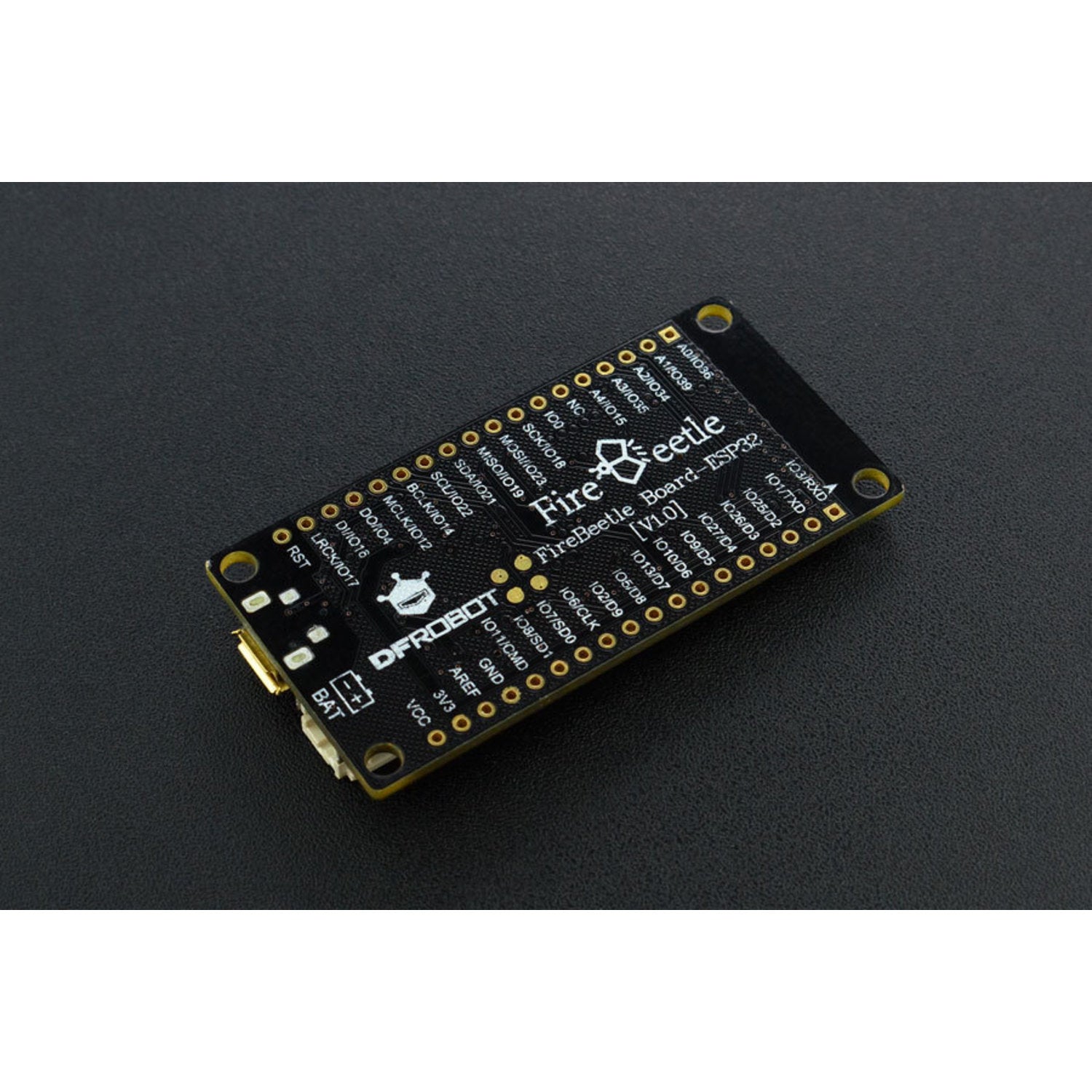

FireBeetle ESP32 IOT Microcontroller (Supports Wi-Fi & Bluetooth
The FireBeetle ESP32 is a compact, low-power IoT development board featuring dual-core processing, WiFi, and Bluetooth connectivity. With just 10µA deep-sleep current, it's ideal for battery-powered projects that need wireless connectivity.
Compatible with Arduino IDE, ESP-IDF, and MicroPython, the board uses Arduino UNO-compatible pin mapping for easy migration of existing projects. Powers from USB or 3.7V LiPo battery with built-in charging.
Key Features

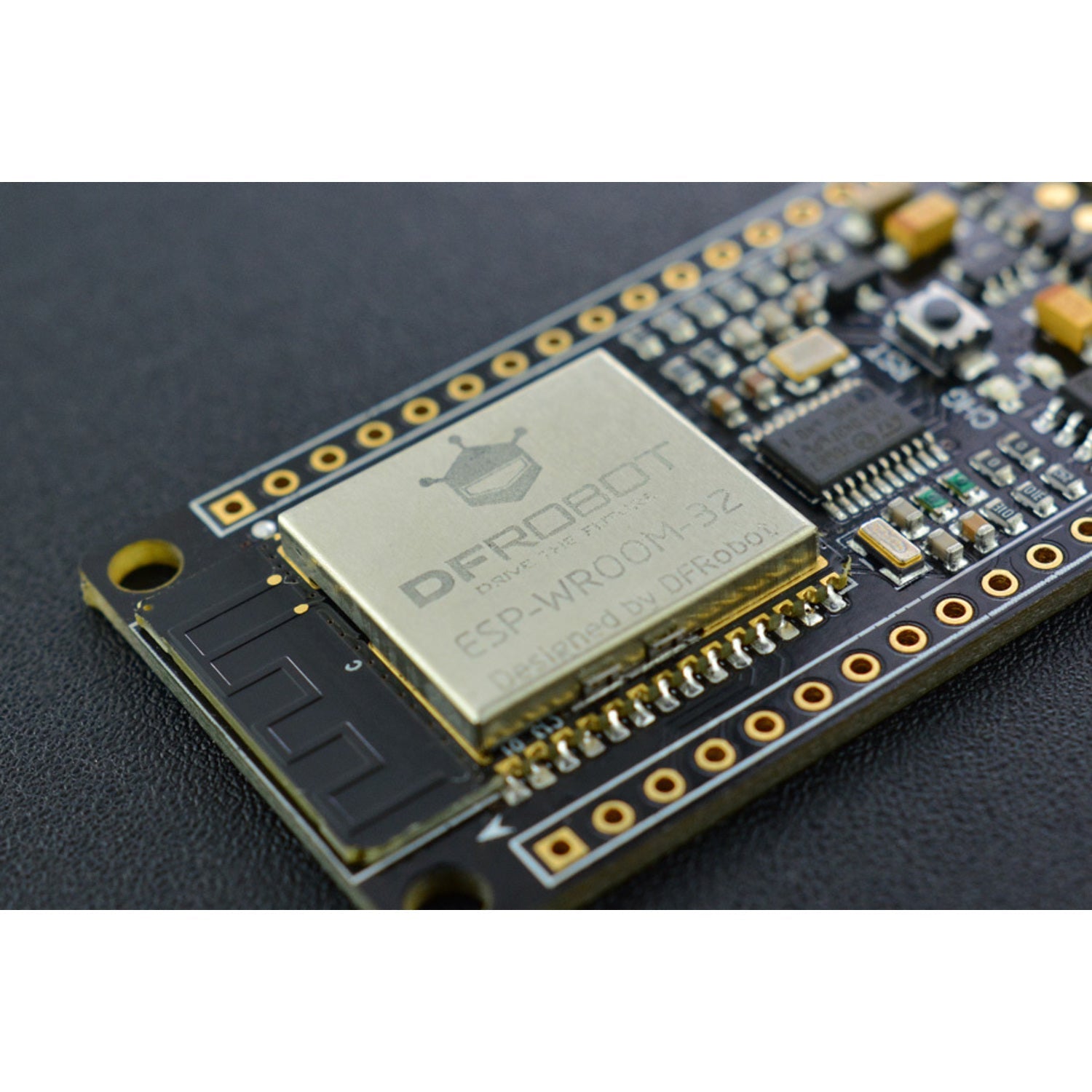

- ESP-WROOM-32 Module – Dual-core Tensilica LX6 at 240MHz
- WiFi 802.11n – Up to 150Mbps connectivity
- Bluetooth 4.2 – Classic and BLE support
- Ultra-Low Power – Just 10µA in deep-sleep mode

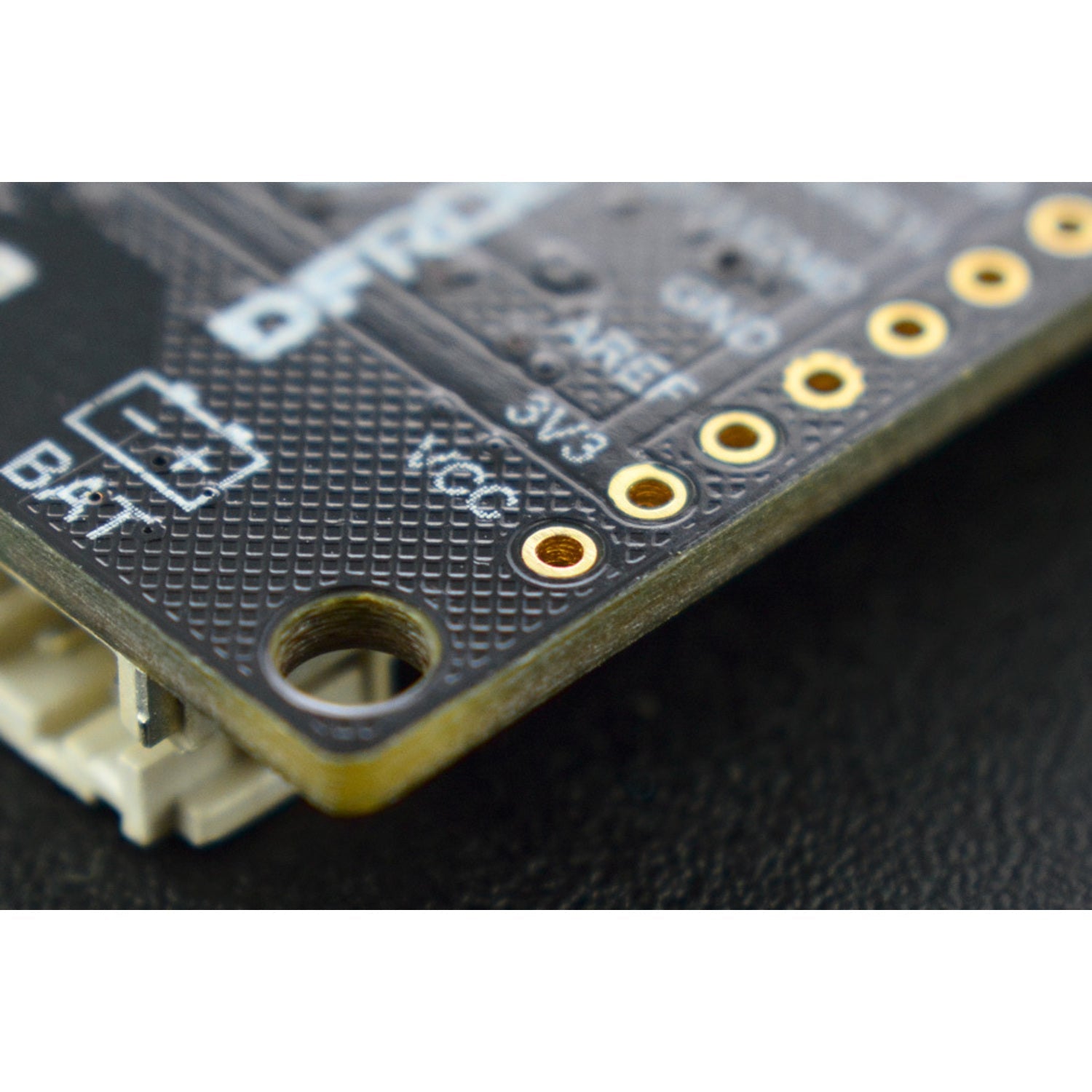

- LiPo Battery Support – 3.7V with built-in charging
- Arduino Compatible – UNO-style pin mapping

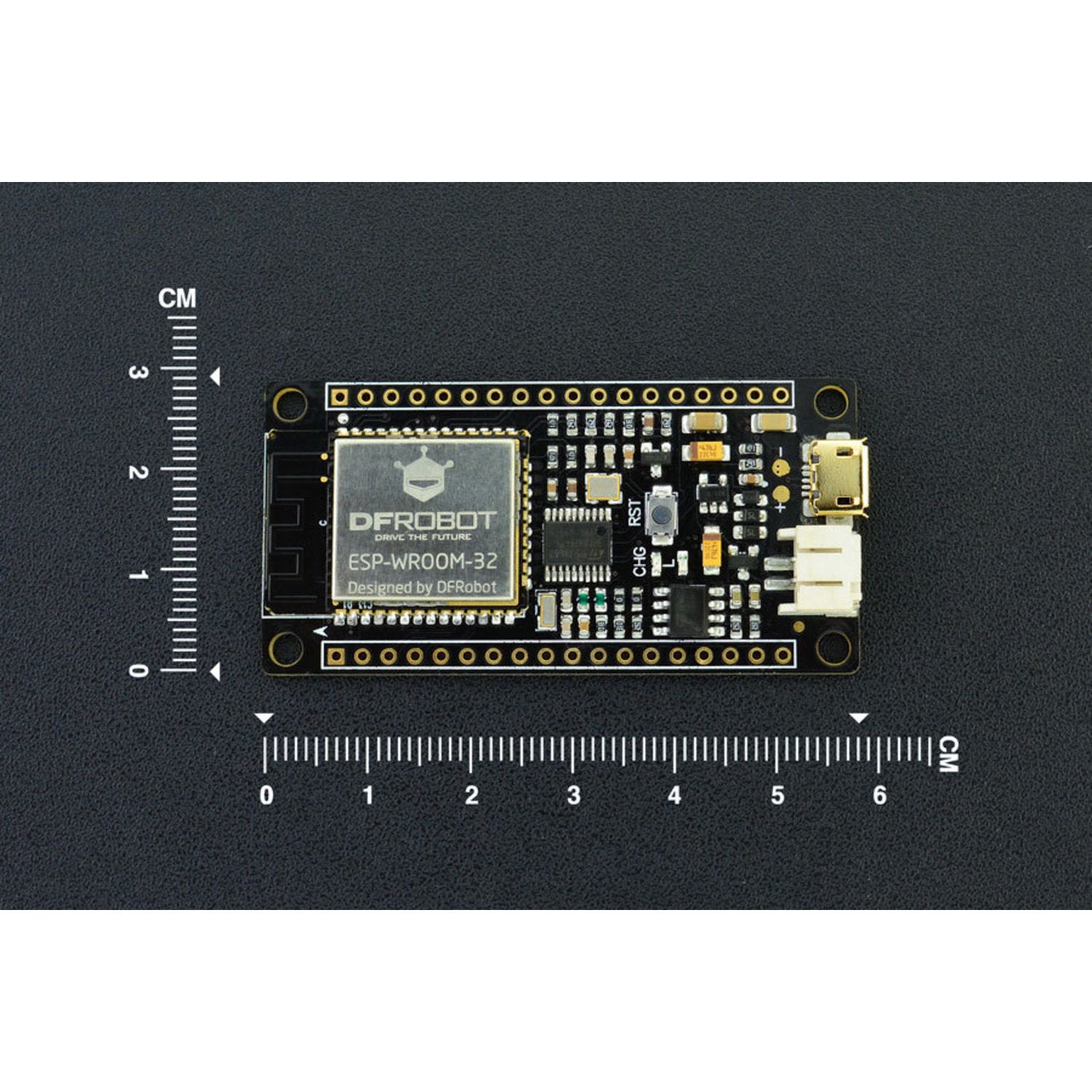

- Compact Size – 24mm × 53mm
- FireBeetle Ecosystem – Compatible with DFRobot shields
Specifications
- Processor – Dual-core 240MHz
- Memory – 520KB SRAM, 16Mbit Flash
- Operating Voltage – 3.3V (input 3.3-5V)
- Digital I/O – 10 pins
- Analog Inputs – 5 pins
- Interfaces – SPI, I2C, I2S
- Max Discharge – 600mA
- Operating Temp – -40°C to +85°C
Ideal For
- Battery-powered IoT devices
- WiFi sensor nodes
- Bluetooth peripherals
- Smart home projects
- Wearable electronics
Package Contents
- 1× FireBeetle ESP32 board
