FTDI compatible FT232RL USB to TTL Serial Converter Adapter Module ...

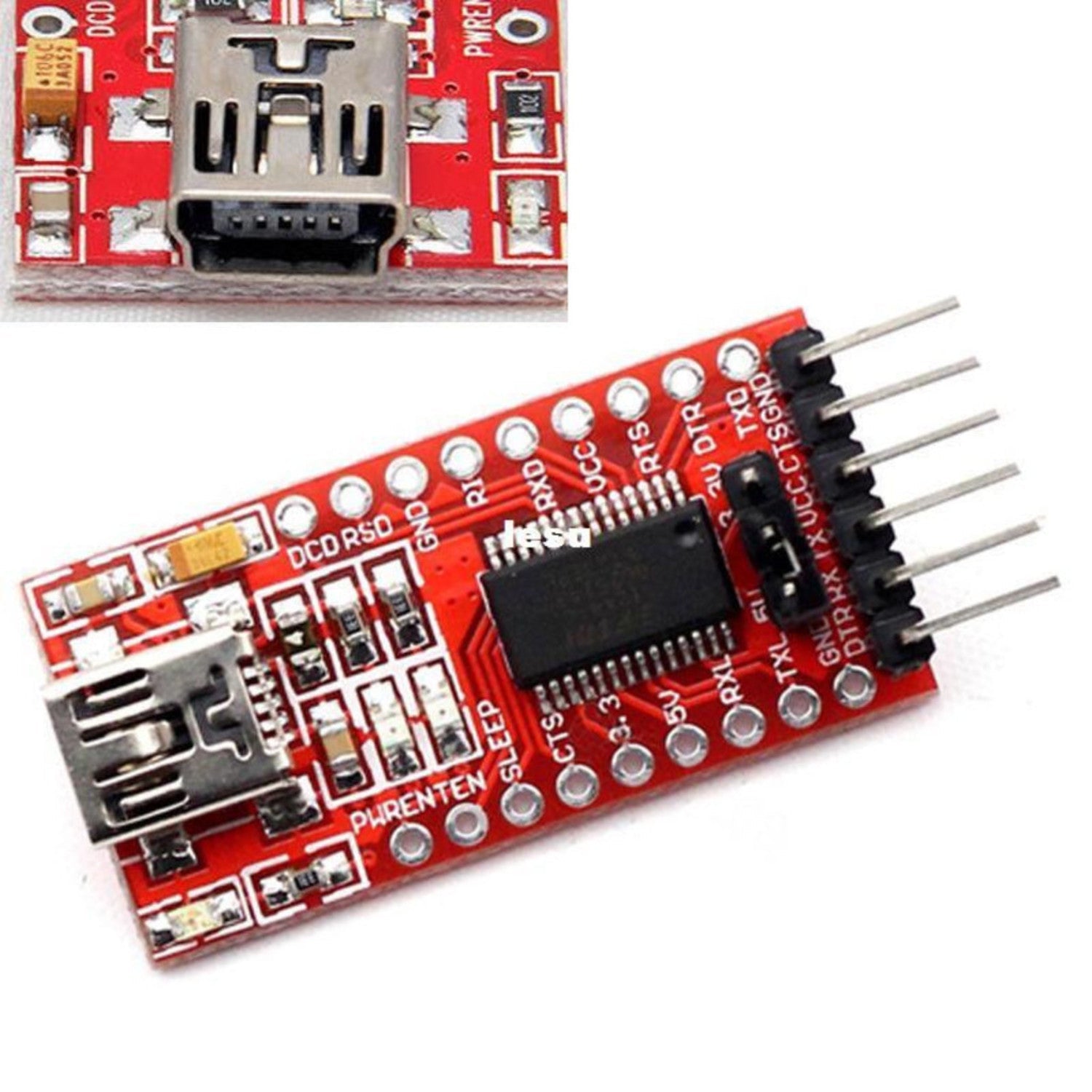

A USB to TTL serial converter based on the FT232RL compatible chip. Provides a simple way to connect microcontrollers, single-board computers, and other devices with TTL serial interfaces to your computer via USB.
Features selectable 5V or 3.3V logic levels via jumper, making it compatible with a wide range of devices. Includes TX/RX LEDs for monitoring communication and overcurrent protection.
Key Features
- FT232RL Compatible – Works with standard FTDI drivers
- Selectable Voltage – Jumper-selectable 5V or 3.3V logic levels
- TX/RX Indicators – LED indicators for communication activity
- Overcurrent Protection – 500mA self-resetting fuse
- Full Pinout – All FT232RL signals exposed
Specifications
- Chip: FT232RL compatible
- Interface: Mini USB
- Logic Levels: 5V or 3.3V (jumper selectable)
- Pin Pitch: 2.54mm
- Pinout: DTR, RXD, TXD, VCC, CTS, GND
- Dimensions: 33 × 17mm
Ideal For
- Arduino and microcontroller programming
- Raspberry Pi serial console access
- ESP8266/ESP32 flashing
- General TTL serial communication
Package Contents
- 1× FT232RL USB to serial adapter module
