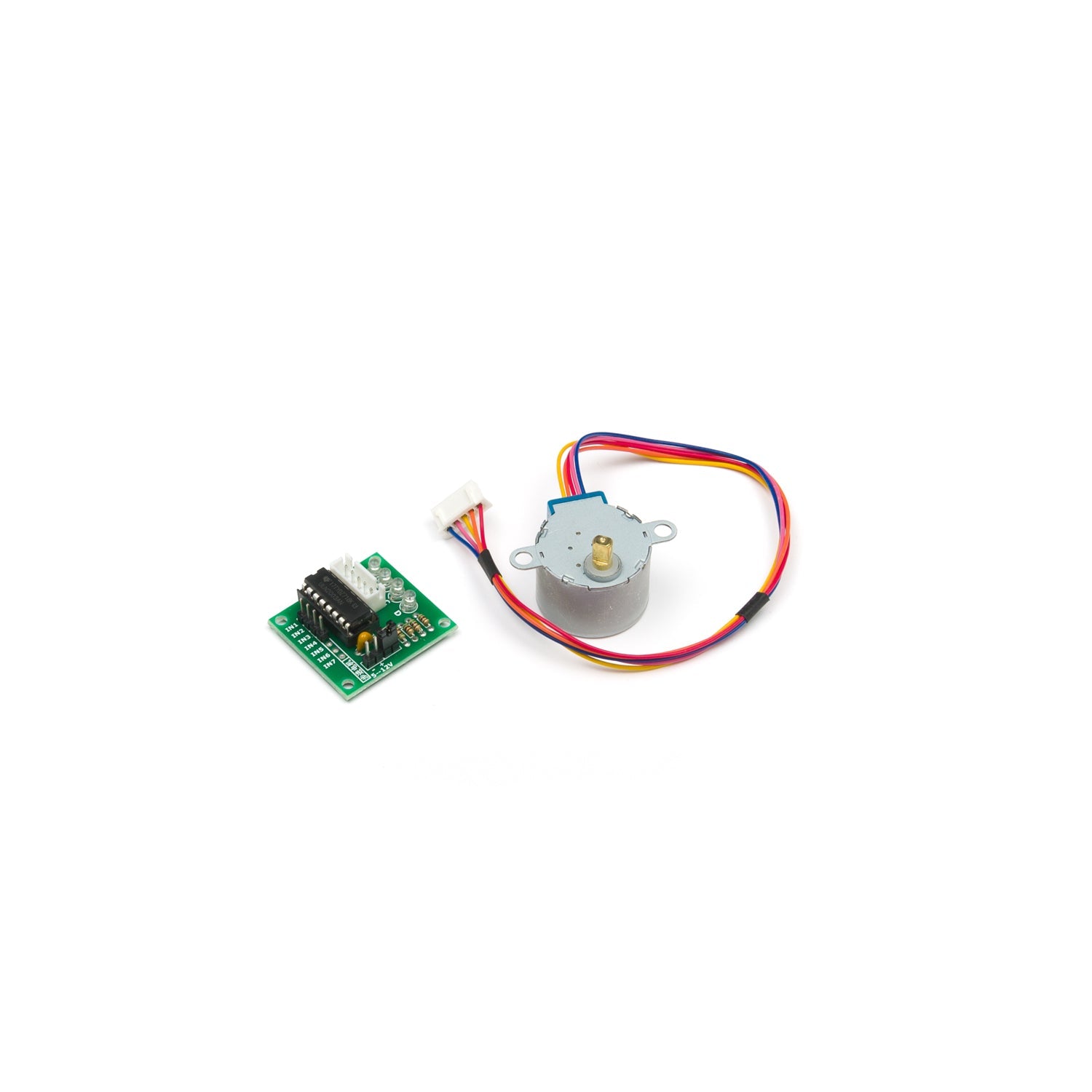

The popular 28BYJ-48 geared stepper motor with ULN2003 driver board. This 5V stepper motor features a 1:64 gear reduction, providing high torque output suitable for robotics, automation, and hobby projects.

Easy to control with Arduino, Raspberry Pi, or other microcontrollers. The included driver board simplifies wiring and provides the current handling needed to drive the motor.

Key Features

  • Geared Output – 1:64 reduction ratio for high torque
  • 5V Operation – Compatible with Arduino and most microcontrollers
  • Driver Included – ULN2003 driver board for easy connection
  • 4-Phase Motor – Supports 4-step and 8-step sequences

Specifications

  • Model: 28BYJ-48
  • Voltage: 5V DC
  • Phases: 4
  • Current: 160mA per winding (250mA stopped, 200mA running)
  • Resistance: 31Ω per coil
  • Step Angle (internal): 5.625° (8-step) / 11.25° (4-step)
  • Gear Ratio: 1:64
  • Steps per Revolution: 4096 (8-step) / 2048 (4-step)
  • Pull-In Torque: ≥78.4mN.m
  • Weight: 30g

Wiring

  • Blue: Phase A
  • Pink: Phase B
  • Yellow: Phase C
  • Orange: Phase D
  • Red: Common (mid-point)

Package Contents

  • 1× 28BYJ-48 stepper motor
  • 1× ULN2003 driver board
Tip: The Arduino Stepper library runs in 4-step mode (2048 steps per revolution).
