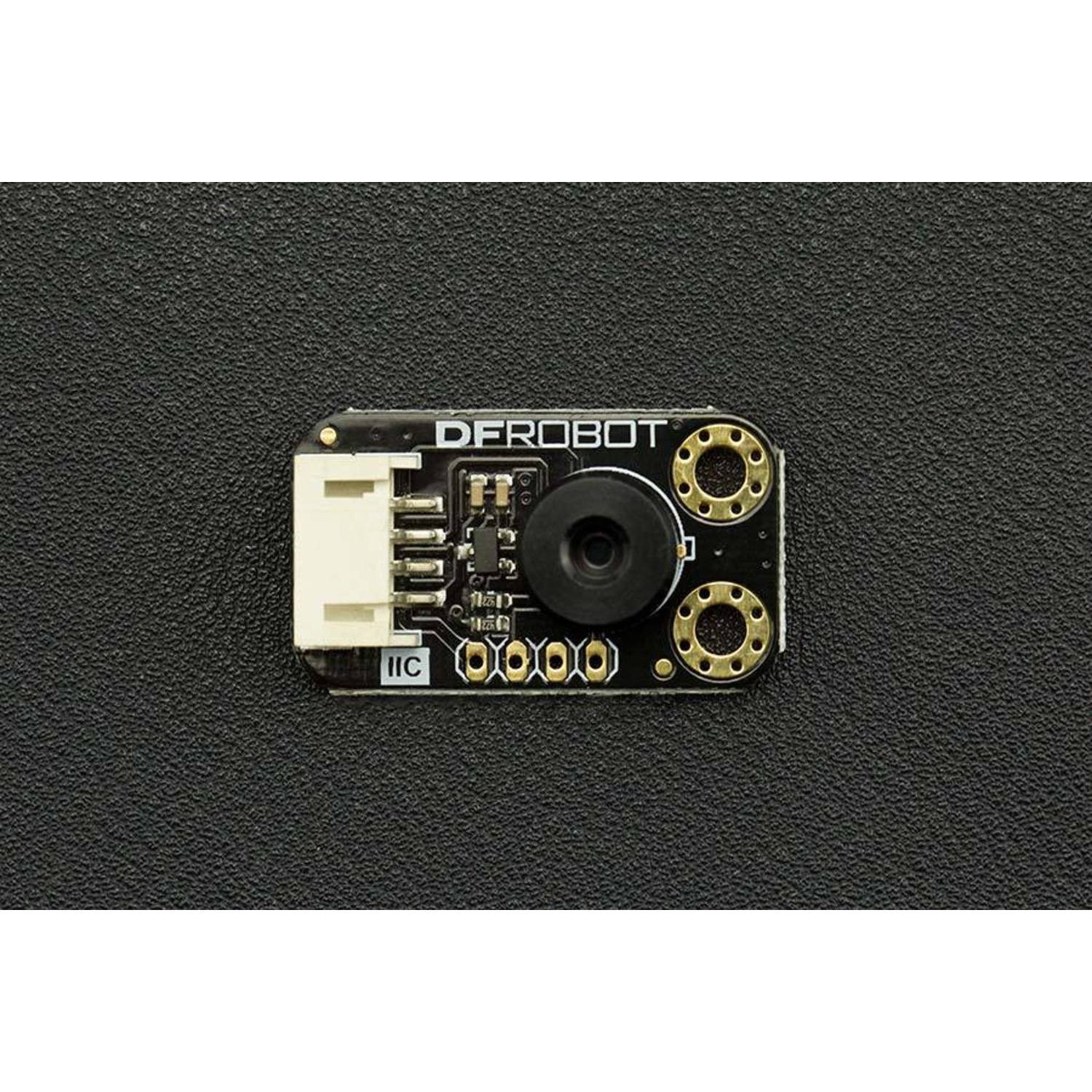

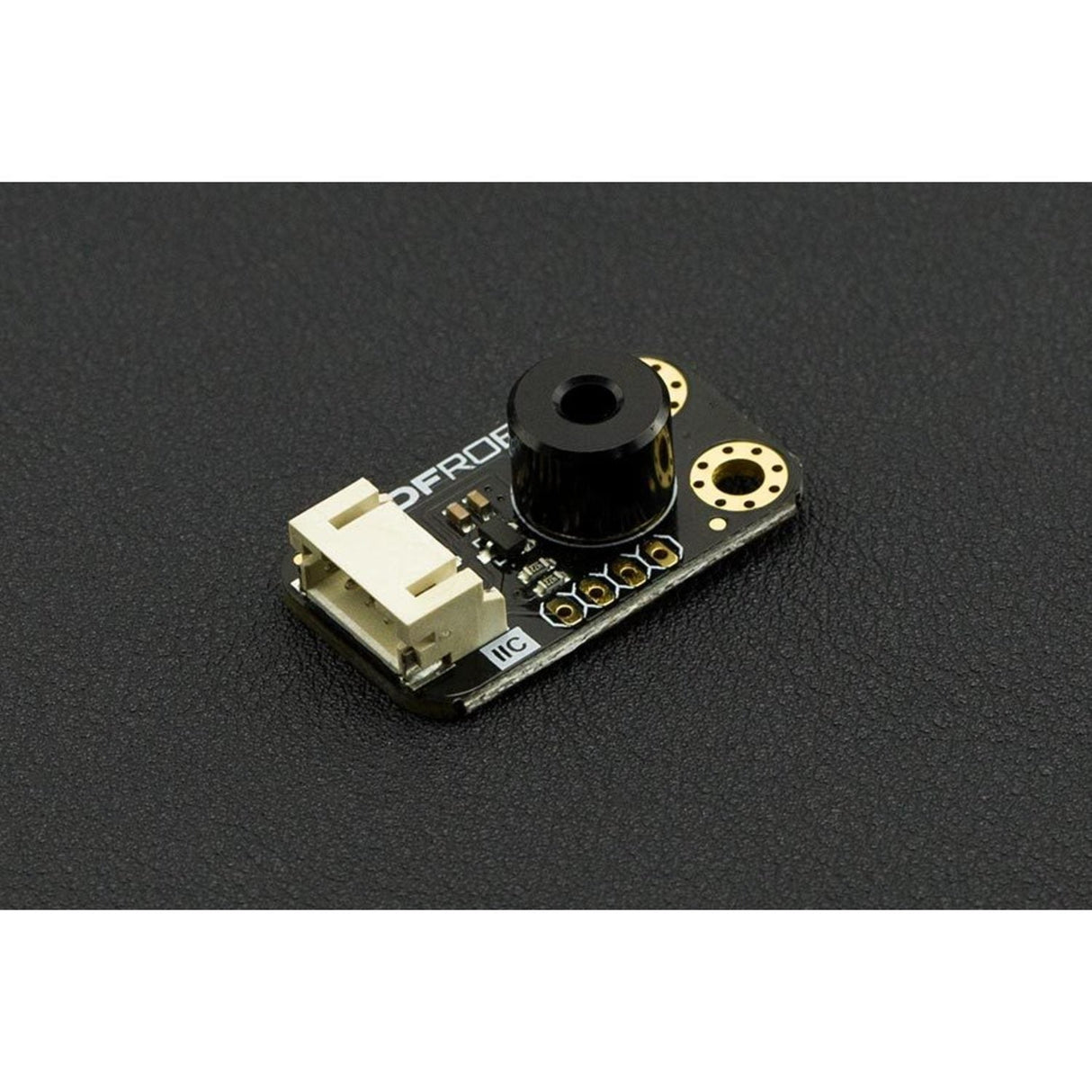

A non-contact infrared temperature sensor based on the MLX90614, allowing you to measure surface temperature without physical contact. The sensor detects infrared radiation to provide fast, accurate readings unaffected by ambient temperature.
Features a self-calibrating design with integrated low-noise amplifier and 17-bit ADC for precise measurements. Compatible with Arduino and other microcontrollers via I2C interface.
Key Features
- Non-Contact Measurement – No physical touch required
- Wide Temperature Range – -70°C to +382°C
- High Resolution – 0.01°C
- Self-Calibrating – Factory calibrated for accuracy
- I2C Interface – Easy connection to microcontrollers
- Gravity Connector – Plug-and-play with DFRobot boards
Specifications
- Sensor: MLX90614
- Operating Voltage: 3.3–5V
- Operating Current: 1.2mA
- Temperature Range: -70.01°C to +382.19°C
- Resolution: 0.01°C

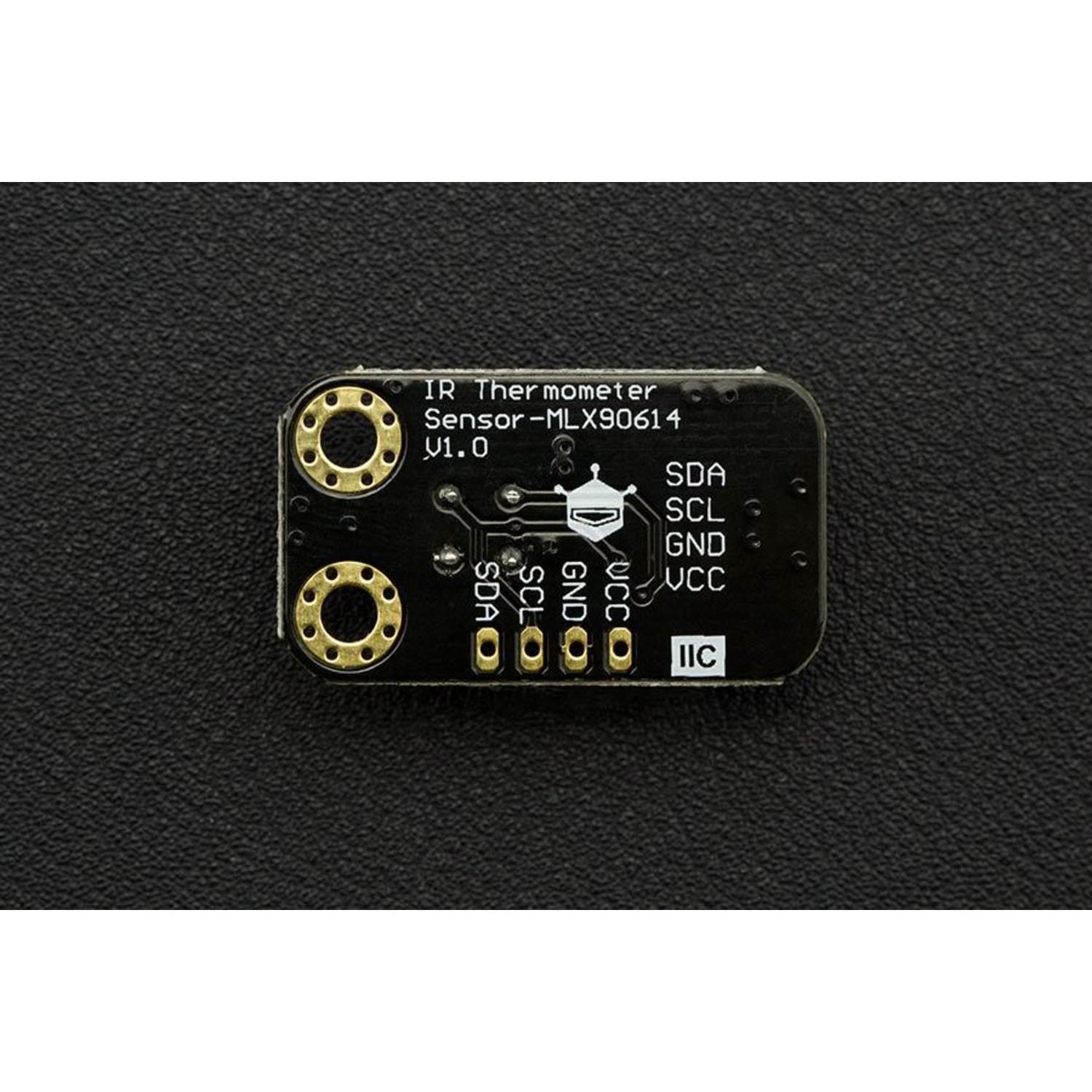

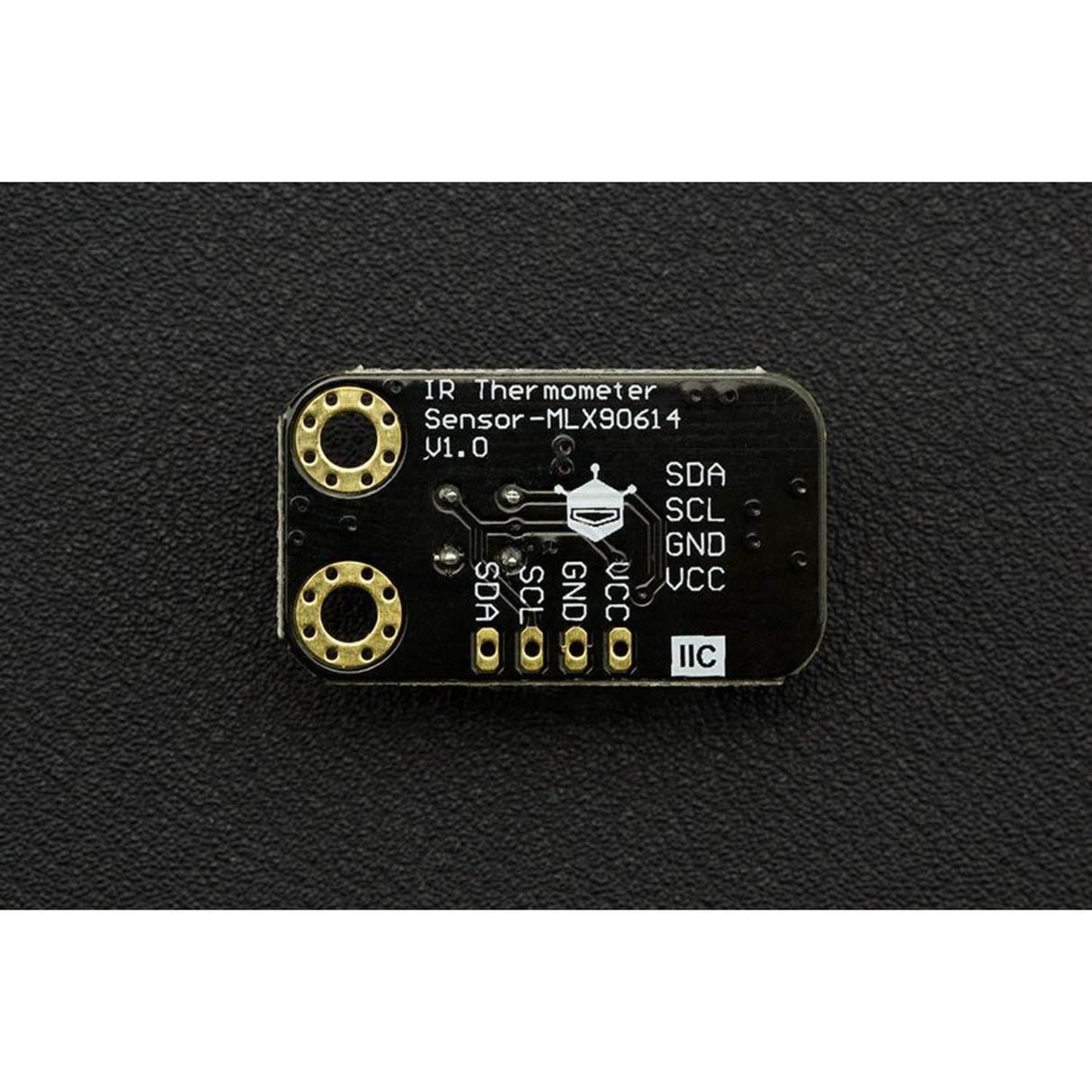

- Interface: I2C (VCC, GND, SCL, SDA)
- Dimensions: 31.5 × 18mm
- Weight: 15g

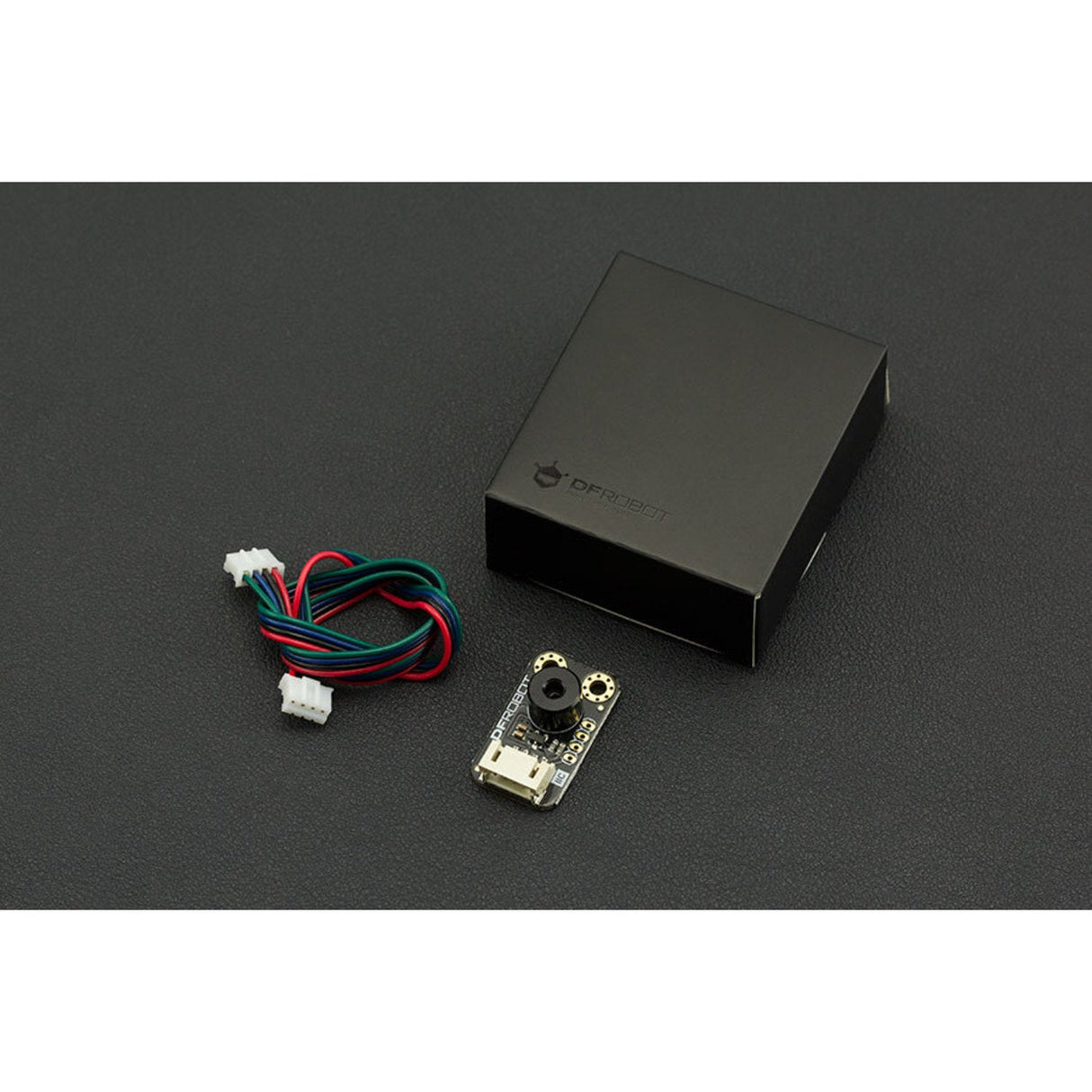

Package Contents
- 1× Non-contact IR thermometer sensor
- 1× JST PH2.0 4-pin cable
Ideal For
- Medical temperature monitoring
- Environmental sensing
- Home automation
- Industrial temperature measurement
