IMX219 Camera Module For Raspberry Pi 5, 8MP, MIPI-CSI Interface, F...

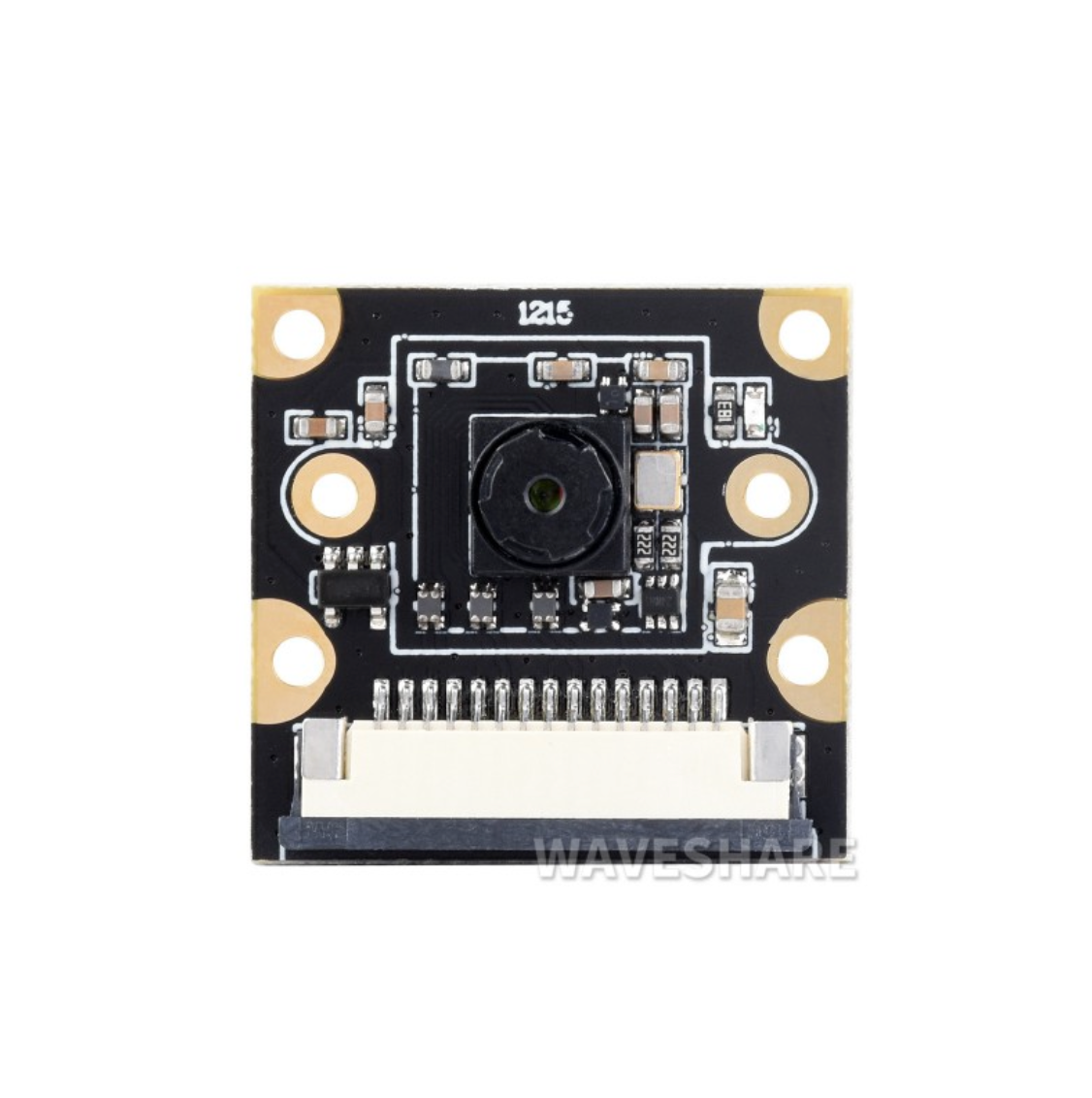

Capture high-quality images and videos with this 8MP camera module designed specifically for Raspberry Pi 5. Featuring the Sony IMX219 sensor and MIPI-CSI interface, this module delivers crisp 3280×2464 resolution with a 79.3° field of view.

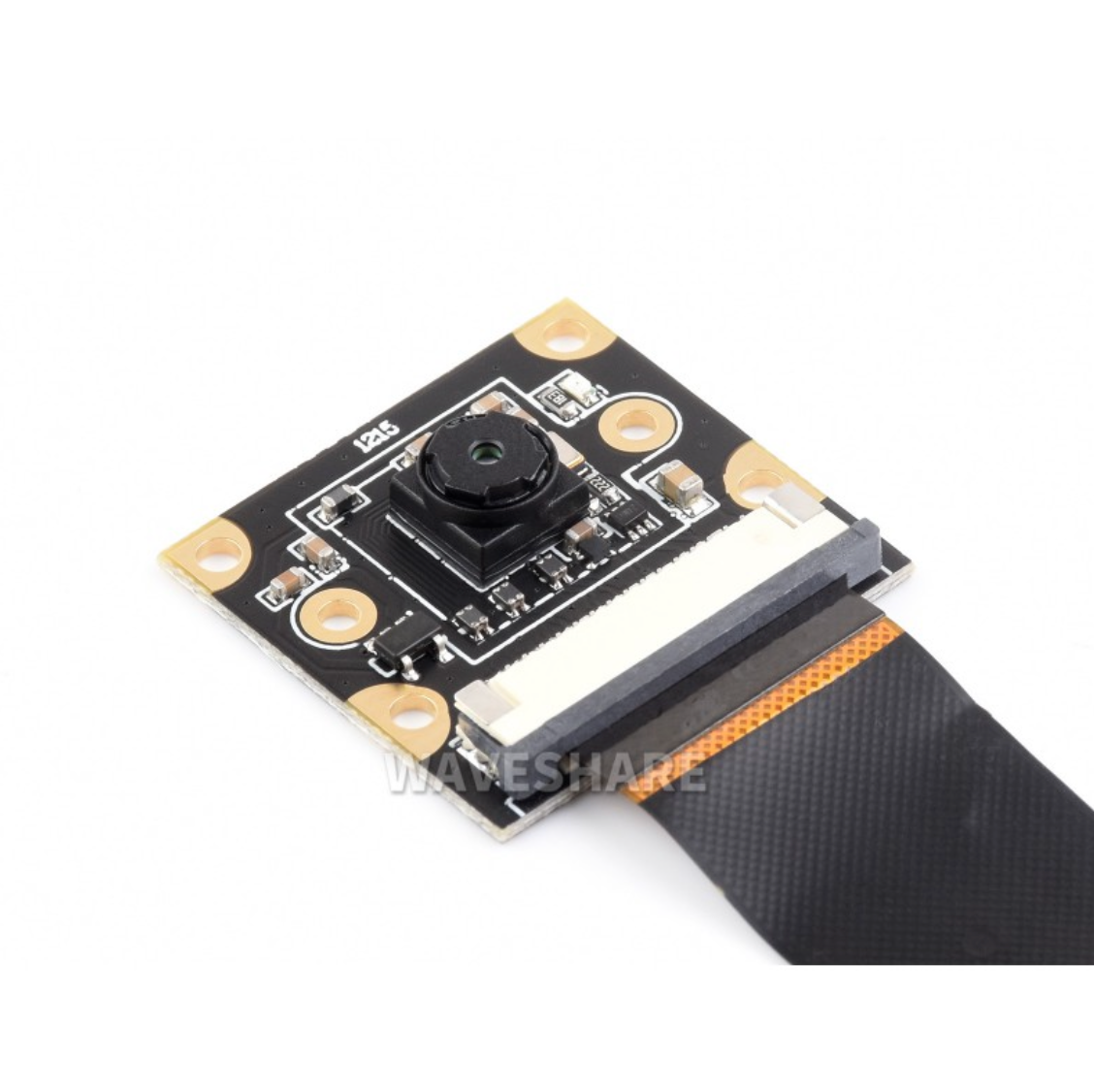

The compact design includes four mounting holes and comes with a 200mm CSI flexible cable for easy integration with your Raspberry Pi 5 projects.
Key Features
- 8MP Resolution – Captures images at 3280×2464 pixels
- Sony IMX219 Sensor – 1/4 inch CMOS for quality imaging
- 79.3° Field of View – Wide angle coverage with less than 1% distortion
- F2.0 Aperture – Good low-light performance
- 2.85mm Focal Length – Optimised for general-purpose imaging
- MIPI-CSI Interface – Direct connection to Pi 5 camera port
- Compact Design – 25×24mm board with 6.5×6.5mm lens
Specifications
- Pixels: 8MP
- Sensor: IMX219
- Resolution: 3280×2464
- CMOS Size: 1/4 inch
- Aperture: F2.0
- Focal Length: 2.85mm
- Field of View: 79.3°
- Distortion: <1%
- Lens Dimensions: 6.5×6.5mm
- Board Dimensions: 25×24mm
- Mounting: 4× screw holes with 3.3V power output
Ideal For
- Raspberry Pi 5 camera projects
- Time-lapse photography
- Computer vision applications
- Surveillance and monitoring systems
- Educational projects
Package Contents
- 1× IMX219 Camera Module
- 1× CSI Flexible Cable (200mm)
