Industrial Grade CAN/CAN FD Bus Data Analyzer, USB To CAN FD Adapter, CAN/CAN FD Bus Communication Interface Card
Industrial Grade CAN/CAN FD Bus Data Analyzer, USB To CAN FD Adapter, CAN/CAN FD Bus Communication Interface Card is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Call us on 1300 240 817 between 10 AM and 4 PM on weekdays or email team@littlebird.com.au .
The Fastest Shipping
The Fastest Shipping
We ship faster because we built our own shipping 🤖 robot.
Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.
You can view shipping options and pricing at checkout without logging in.
For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.
We deliver across Australia, and here are the options (based on your location; view them on the cart page):
- Standard Post: Starting at $7 (6+ business days, with tracking)
- Express Post: Starting at $11 (2+ business days, with tracking)
- Same Day Delivery: Available for Sydney orders.
- Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.

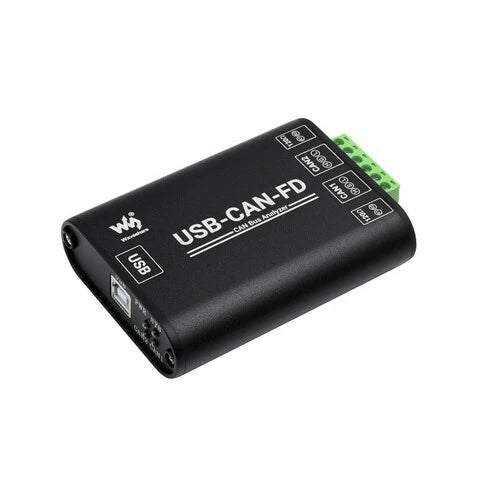

An industrial-grade USB to CAN FD adapter for data analysis, debugging, and integration. Features dual independent CAN FD interfaces with electrical isolation for secure, stable communication with automotive and industrial CAN networks.
Supports CAN 2.0A/B and CAN FD protocols with configurable baud rates up to 5 Mbps. Includes Windows drivers, analysis software, and development examples for C#, VC, Delphi, Qt, LabVIEW, and Python.
Key Features
- Dual CAN FD Channels – Two independent interfaces that work without interference
- Full Electrical Isolation – USB, CAN1, and CAN2 fully isolated for safety
- CAN FD Support – High-speed data rates up to 5 Mbps
- Protocol Support – CAN 2.0A, CAN 2.0B, ISO11898-1, CAN FD V1.0
- Auto Baud Detection – Automatic detection and configuration
- Multi-Device Support – Connect up to 128 adapters to one PC
- Industrial Protection – DC-DC isolation and surge protection
Development Support
- Windows XP/7/8/10/11 drivers included
- CAN FD Tools analysis software
- Examples for C#, VC, Delphi, Qt, LabVIEW, Python/python-can
- Secondary development tutorials
Ideal For
- Automotive CAN bus development and testing
- Industrial automation and control
- CAN network monitoring and debugging
- Data logging and analysis
- Protocol conversion projects
Specifications
- Model: USB-CAN-FD
- Interface: USB 2.0 High-Speed
- CAN Channels: 2× independent CAN FD
- Protocols: CAN 2.0A, CAN 2.0B, CAN FD
- Baud Rate: 100 Kbps – 5 Mbps (configurable)
- Frame Types: Standard and Extended
- Controller: Microchip 32-bit MIPS M4K @ 80MHz
- Isolation: High-speed signal isolators, DC-DC power isolation
- OS Support: Windows XP/7/8/10/11
Package Contents
- 1× USB-CAN-FD adapter
- 1× USB Type-A to Type-B cable
- 1× 4-pin cable
- 1× Screwdriver
