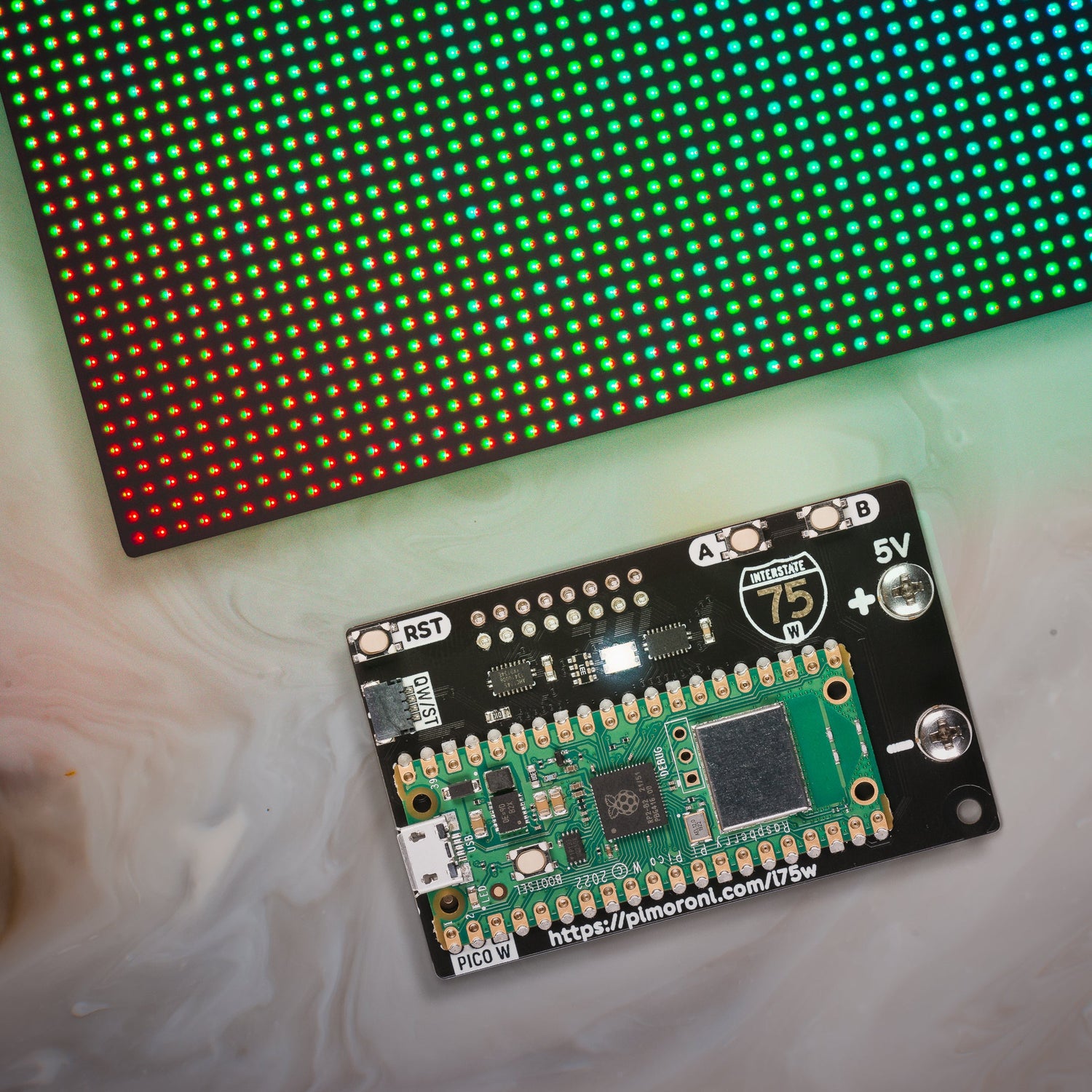

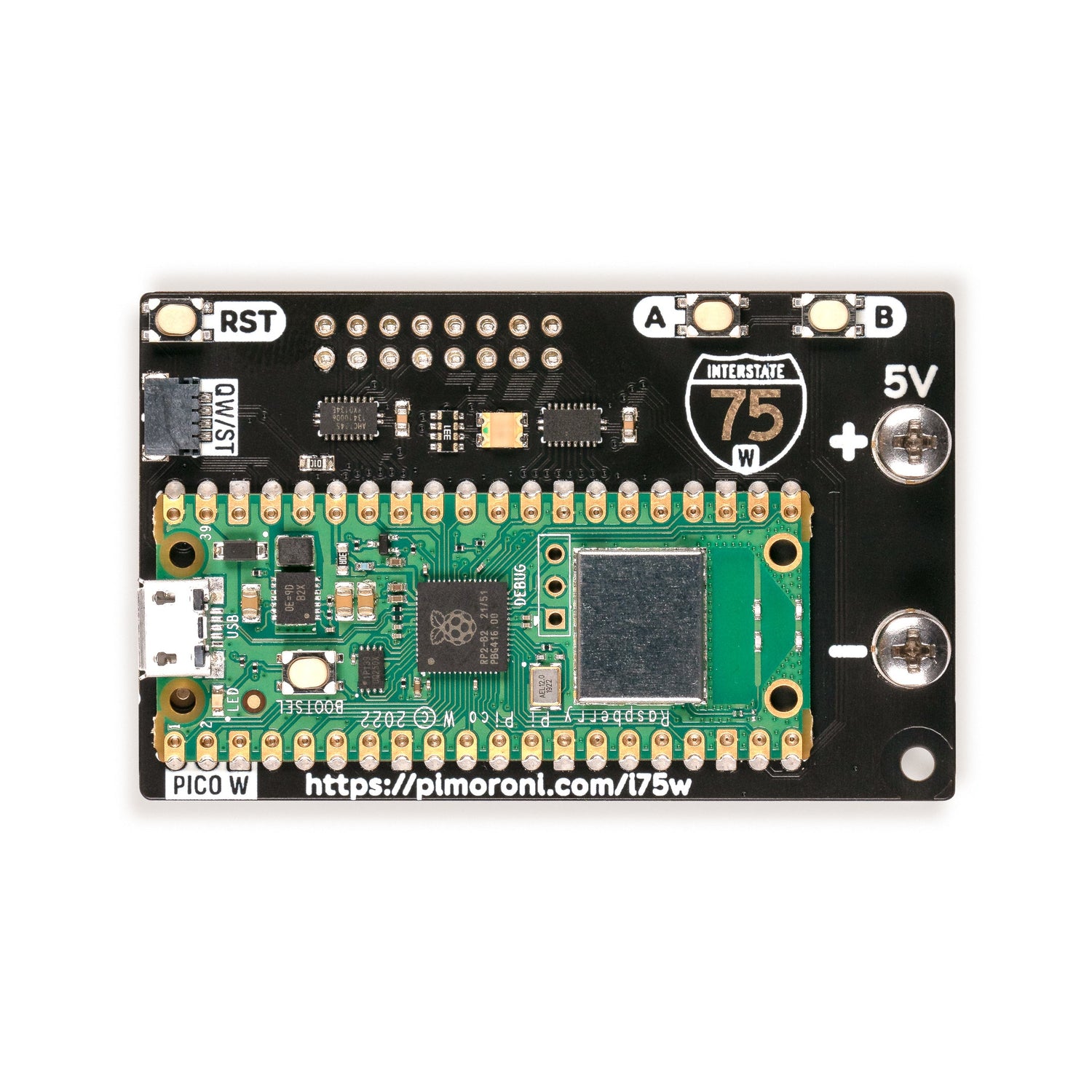

A Pico W-powered controller board for HUB75 LED matrix panels. Plugs directly into the back of LED panels for quick setup of scrolling signage, sensor displays, and internet-connected information boards with wireless connectivity.
Powered via the Pico W's micro-USB port, which can also power connected panels at moderate brightness. Features two user buttons, reset button, onboard RGB LED, and a Qw/ST connector for adding Qwiic/STEMMA QT breakouts.
Key Features
- Pico W Built-in – RP2040 dual-core processor with 2.4GHz WiFi
- HUB75 Compatible – Works with 32×32, 32×64, and 64×64 LED matrices
- Screw Terminals – Sturdy connections for panel power
- Qw/ST Connector – Easy connection for Qwiic/STEMMA QT breakouts
- User Controls – Two buttons plus reset
- Onboard RGB LED – Status indicator
- Fully Assembled – No soldering required
Ideal For
- Scrolling signage and message boards
- Transit and traffic information displays
- Sensor data visualisation
- Retro-style pixel art displays
- IoT dashboards with live data
Supported Panel Arrangements
When chaining panels with PicoGraphics:
- 32×32, 64×32, 96×32, 128×32
- 64×64, 128×64, 192×64, 256×64
Pico W Specifications
- Processor: Dual ARM Cortex M0+ @ 133MHz
- RAM: 264KB SRAM
- Flash: 2MB QSPI
- Wireless: 2.4GHz WiFi
- Programming: USB Micro-B
Board Specifications
- LED Matrix Support: HUB75 (32×32, 32×64, 64×64)
- Colour Depth: 10-bit gamma corrected
- Connectors: HUB75, screw terminals, Qw/ST
- Dimensions: 64.3 × 40 × 18mm
Package Contents
- 1× Interstate 75 W (with Pico W aboard)
Resources
