Interstate 75 W (RP2350) - RGB LED Matrix Driver

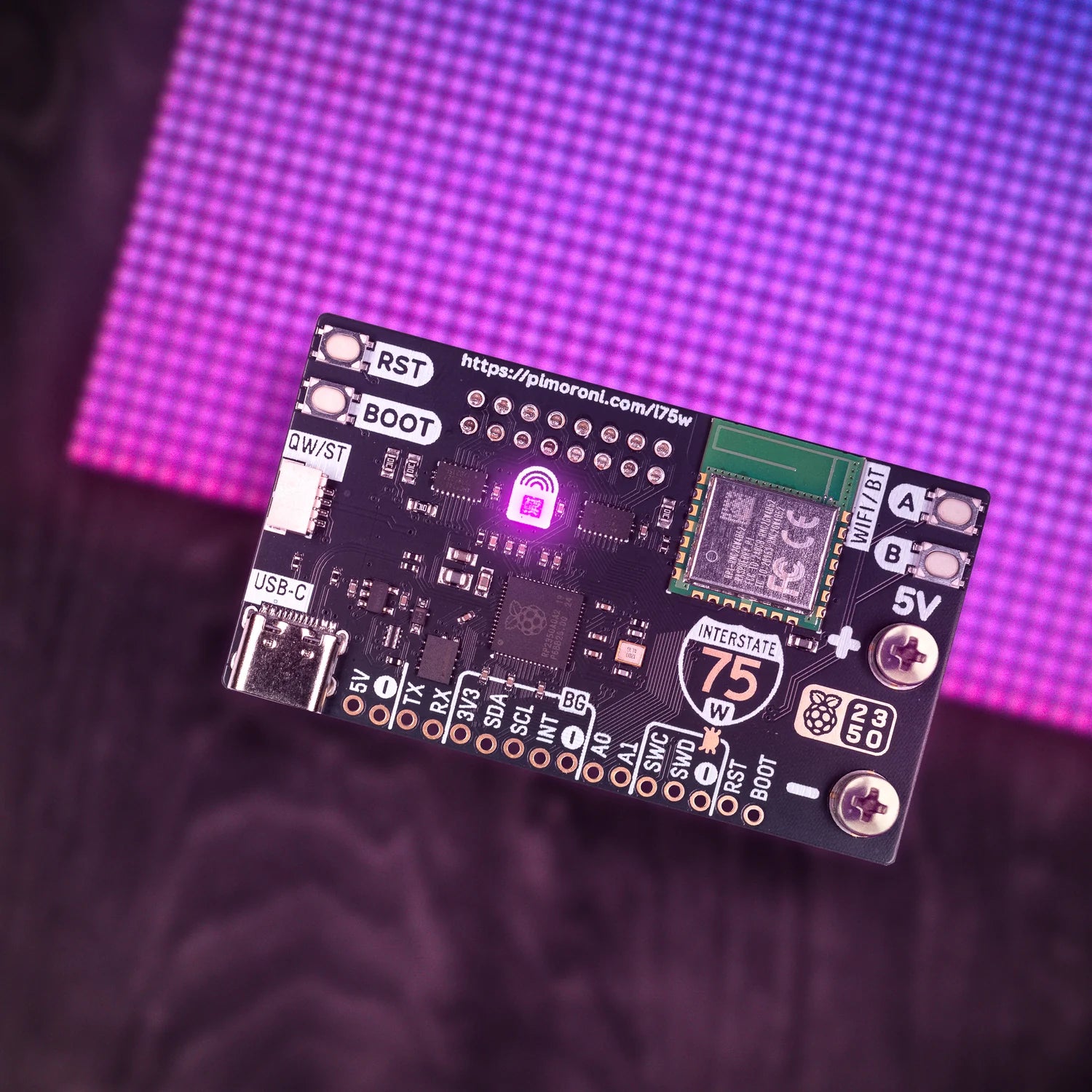

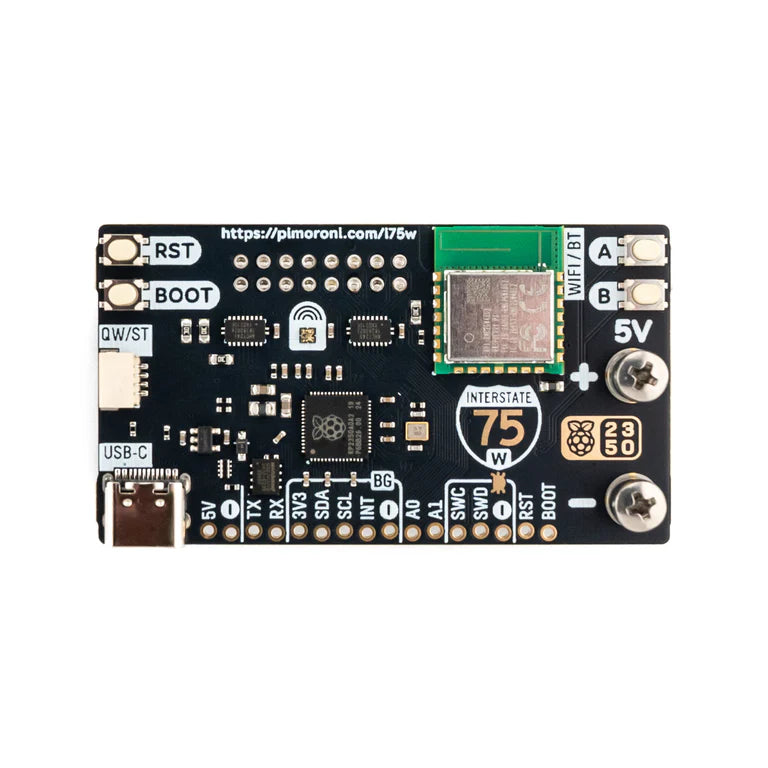

An RP2350-powered controller board for HUB75 LED matrix panels, featuring the faster dual-core Cortex M33 processor with WiFi and Bluetooth connectivity. Plugs directly into LED panels for scrolling signage, sensor displays, and internet-connected information boards.
Powered via USB-C which can also power connected panels at moderate brightness. Features three user buttons (A, B, and BOOT), reset button, onboard RGB LED, and a Qw/ST connector for adding Qwiic/STEMMA QT breakouts.
Key Features
- RP2350A Processor – Dual ARM Cortex M33 @ 150MHz with 520KB SRAM
- WiFi + Bluetooth – RM2 module with 802.11 b/g/n and Bluetooth
- HUB75 Compatible – Works with 32×32, 32×64, 64×64, and 128×64 LED matrices
- USB-C – Modern connector for power and programming
- Screw Terminals – Sturdy connections for panel power
- Qw/ST Connector – Easy connection for Qwiic/STEMMA QT breakouts
- User Controls – Three buttons (A, B, BOOT) plus reset
- Onboard RGB LED – Status indicator
- Fully Assembled – No soldering required
Ideal For
- Scrolling signage and message boards
- Transit and traffic information displays
- Sensor data visualisation
- Large video wall installations
- IoT dashboards with live data
Specifications
- Processor: RP2350A dual ARM Cortex M33 @ 150MHz
- RAM: 520KB SRAM
- Flash: 4MB QSPI
- Wireless: IEEE 802.11 b/g/n WiFi, Bluetooth (CYW43439)
- LED Matrix Support: HUB75 (32×32, 32×64, 64×64, 128×64)
- Power: USB-C
- Connectors: HUB75, screw terminals, Qw/ST, USB-C
Starter Kit Contents
The Starter Kit includes everything for a 128×128 or 256×64 display:
- 1× Interstate 75 W (RP2350)
- 2× 128×64 RGB LED matrix panels
- 1× Power and data cables
- 8× Magnetic feet with screw threads
- 1× USB cable
