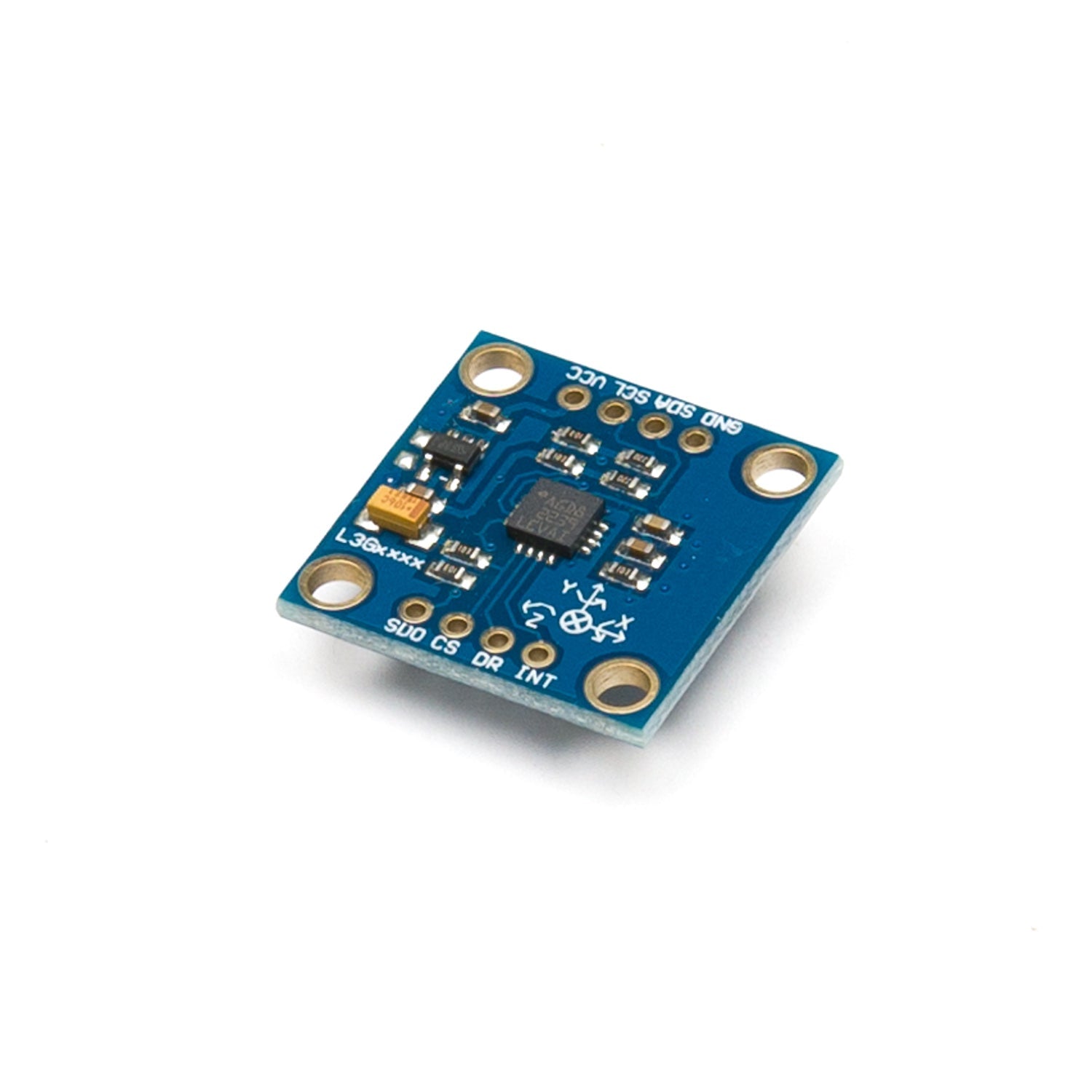

Little Bird L3G4200D based 3 Axis Gyro
A low-power 3-axis angular rate sensor based on the L3G4200D gyroscope. Measures rotation rate on X, Y, and Z axes with three selectable full-scale ranges, plus includes an embedded temperature sensor for compensation.
Features both I²C and SPI digital interfaces for flexible integration with microcontrollers. The compact SIP package includes a mounting hole for easy installation in your projects.
Key Features
- 3-Axis Gyroscope – Measures angular rate on X, Y, Z axes
- Selectable Full Scale – 250/500/2000 degrees per second
- Dual Interface – I²C (up to 400kHz) or SPI (10MHz)
- 16-bit Output – High-resolution rate data
- Temperature Sensor – 8-bit embedded temperature output
- Embedded FIFO – Buffer for data management
- Low Power – Sleep and power-down modes
- Wide Voltage Range – 2.4V to 5V supply
Specifications
- Sensor: L3G4200D
- Axes: 3 (X, Y, Z)
- Full Scale: ±250/±500/±2000 dps
- Resolution: 16-bit
- Interface: I²C or SPI (4 & 3 wire)
- Supply Voltage: 2.4V–5V
- Operating Temperature: -40°C to +85°C
Ideal For
- Motion sensing projects
- Robotics and drones
- Gaming controllers
- Image stabilisation
- Navigation systems
Package Contents
- 1× L3G4200D 3-Axis Gyroscope Module
