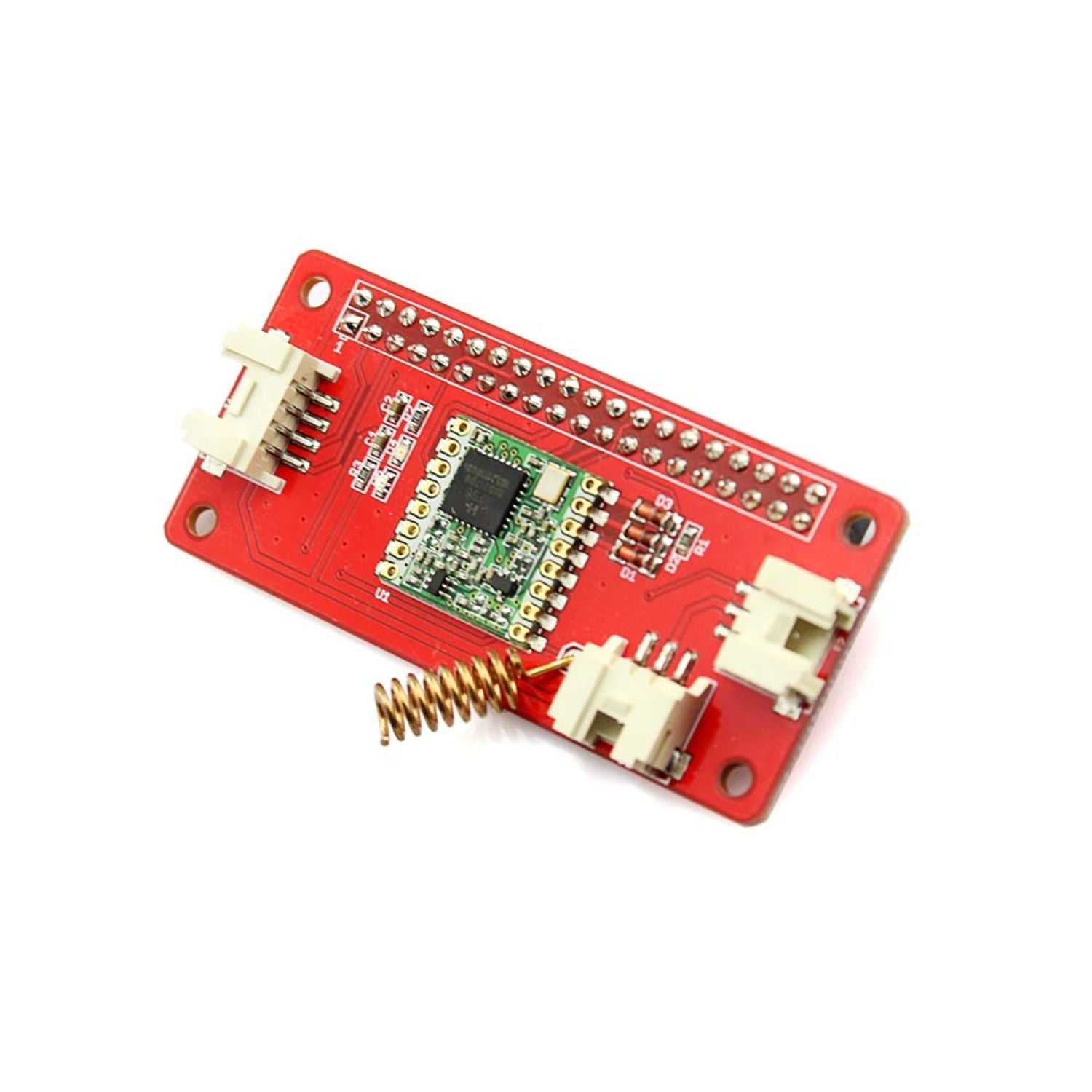

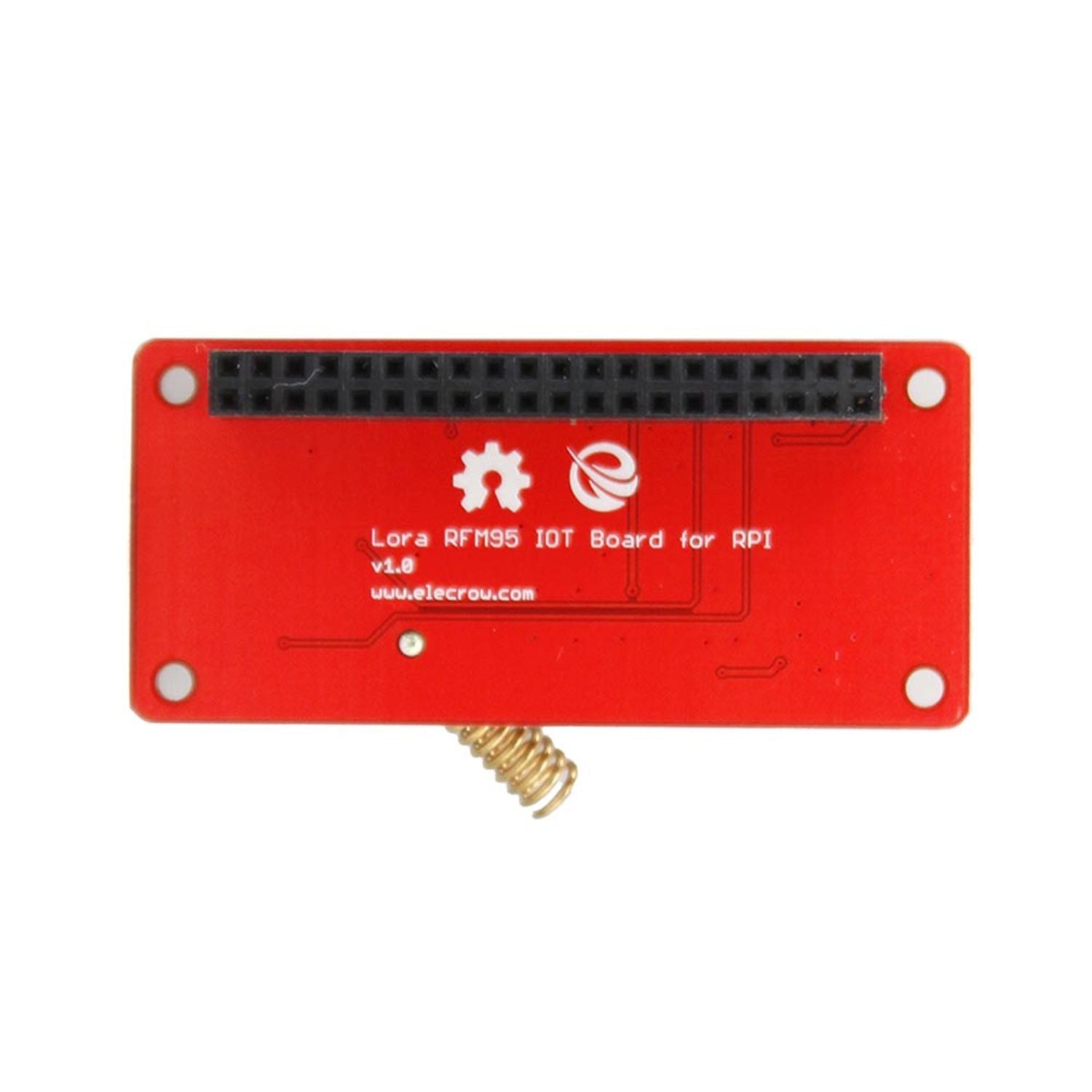

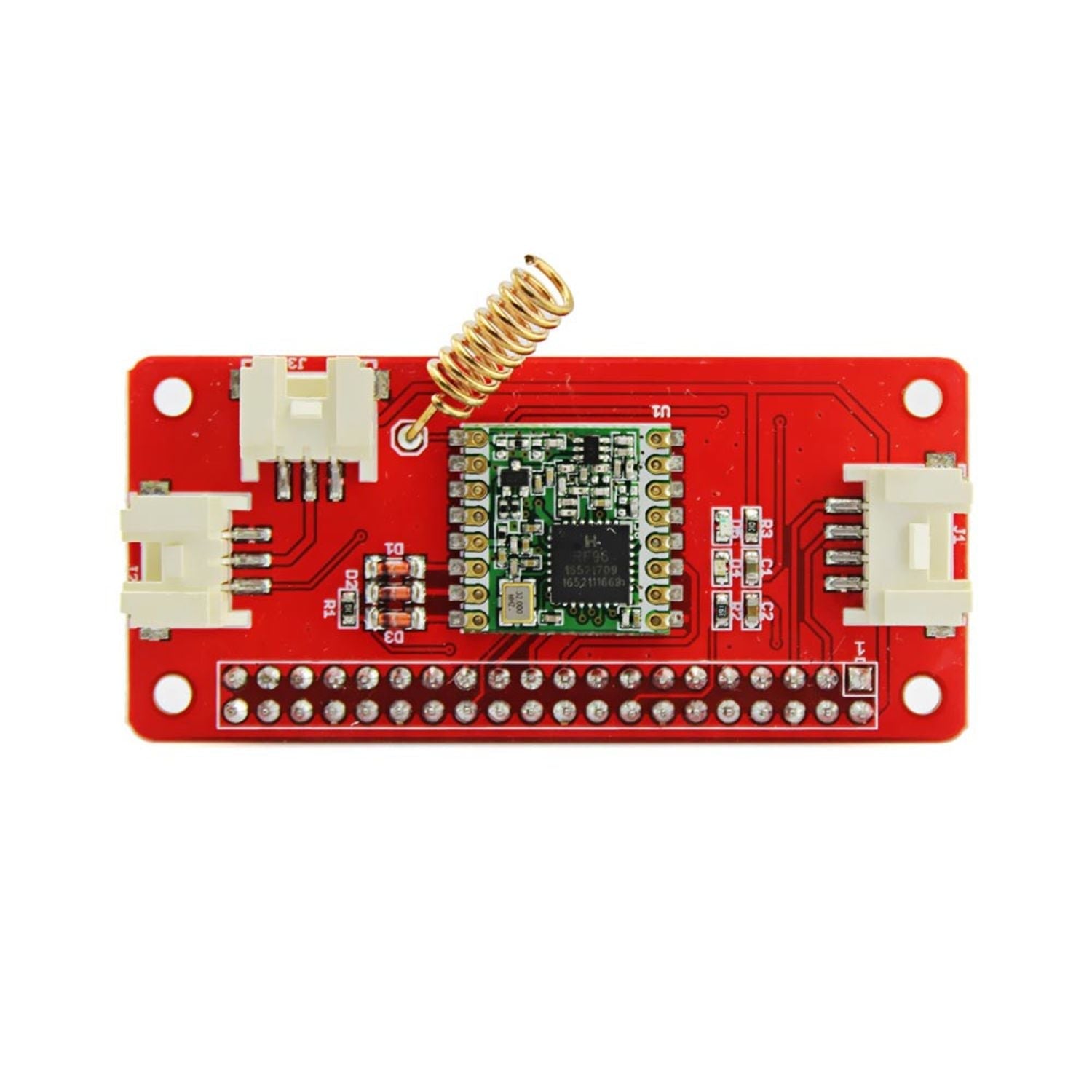

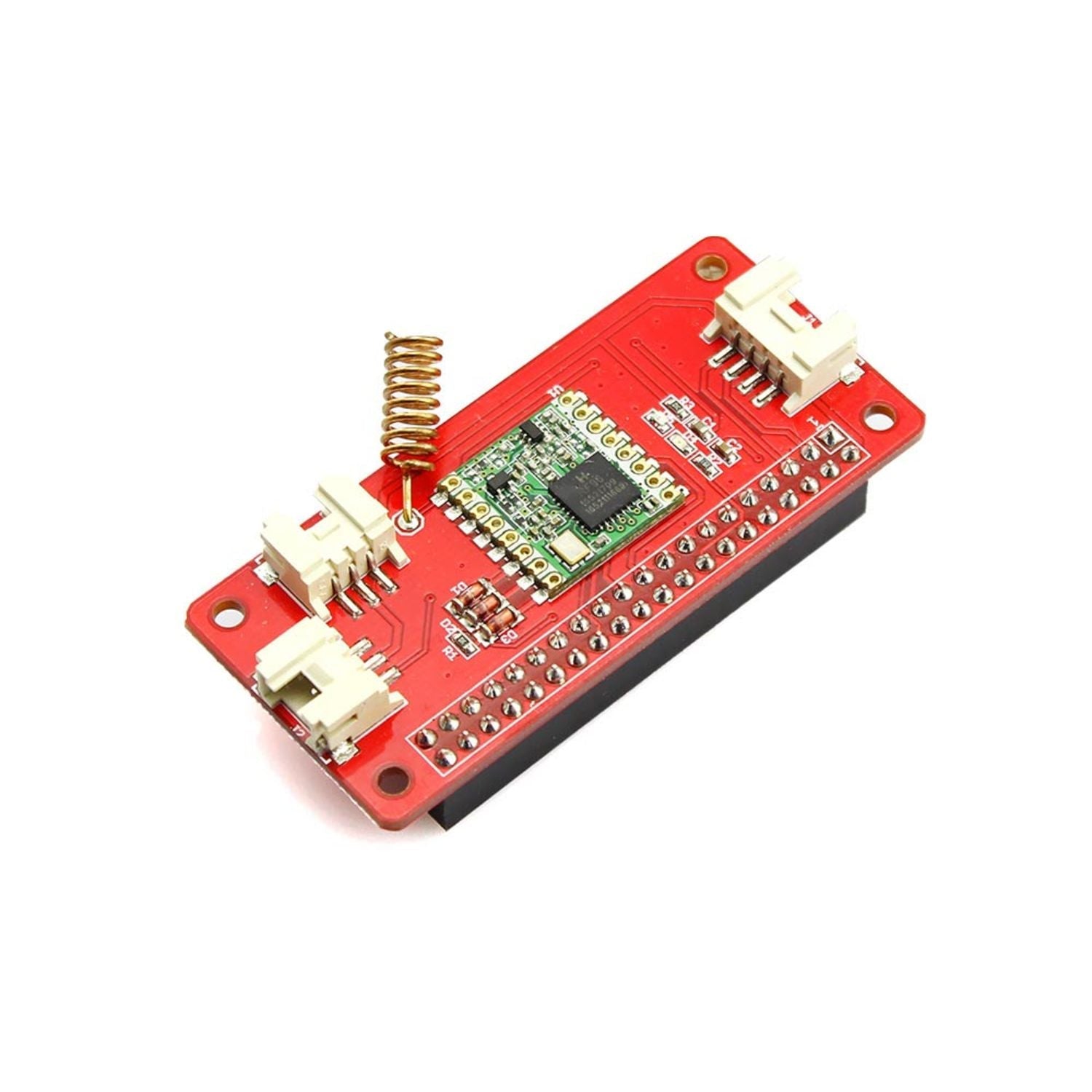

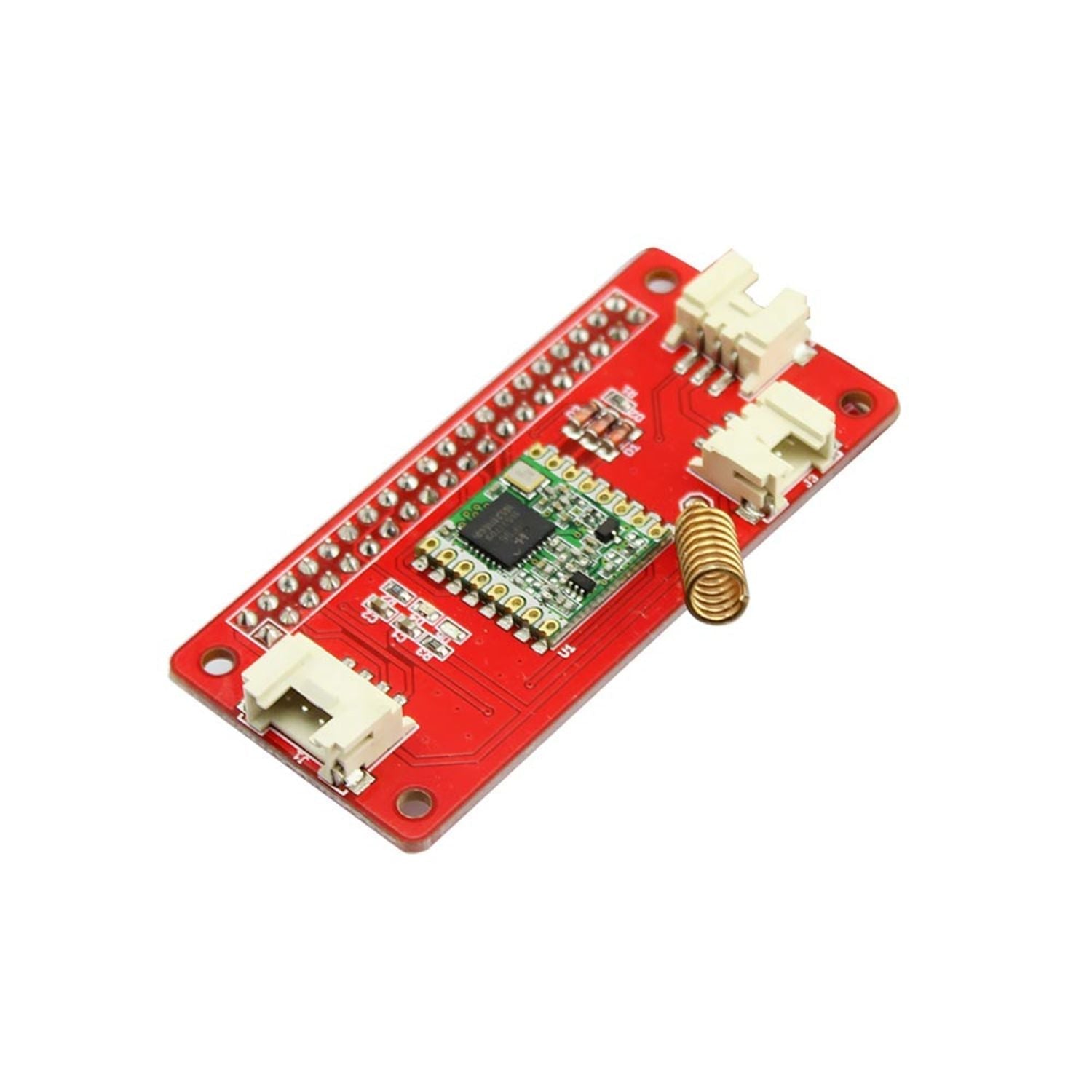

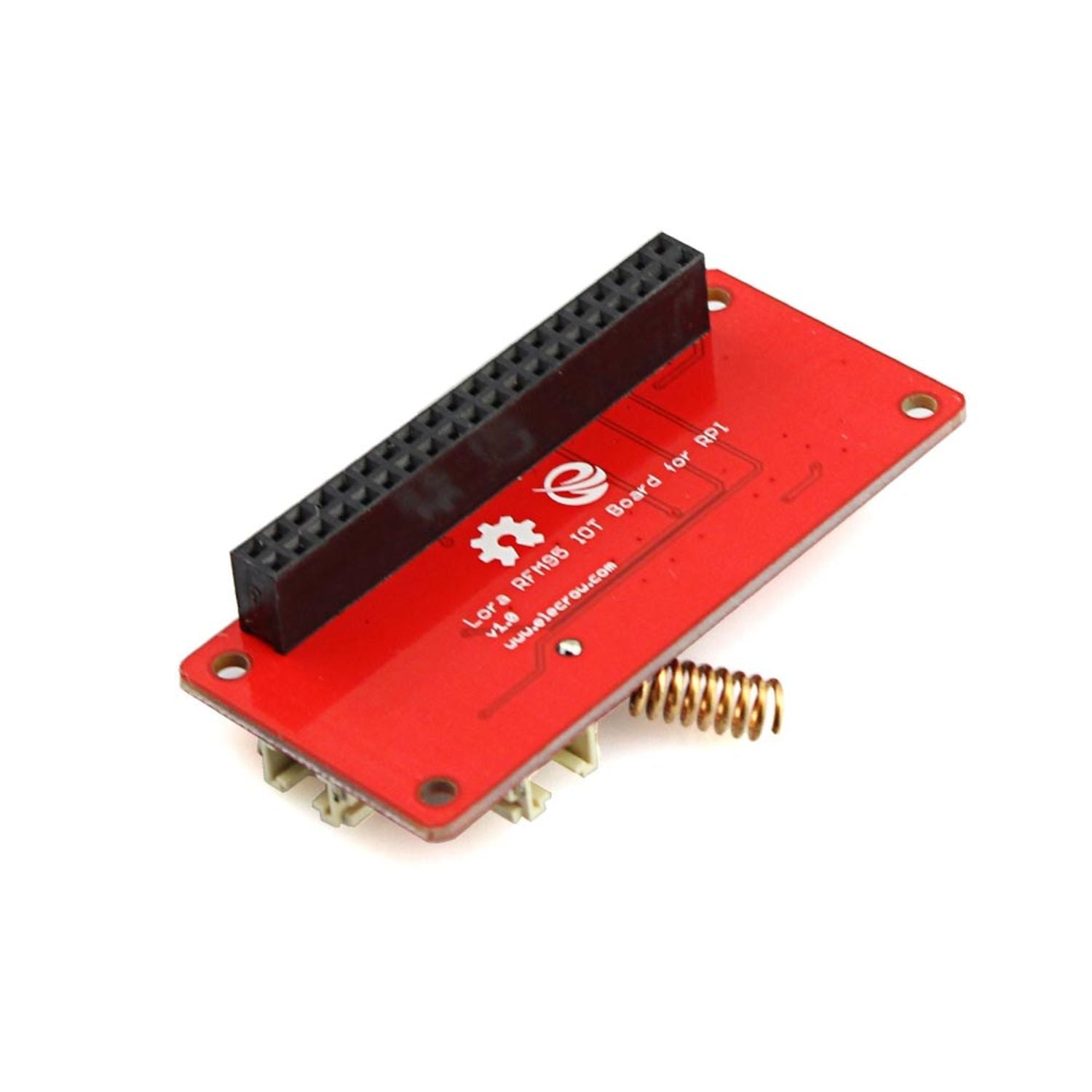

The LoRa RFM95 IoT Board brings long-range wireless communication to your Raspberry Pi projects. Based on the RFM95 LoRa modem, this HAT enables ultra-long-range data transmission with excellent interference resistance, making it ideal for IoT sensors, remote monitoring, and telemetry applications.
Operating at 915MHz (Australian frequency band), the board features a 168dB maximum link budget for exceptional range. Crowtail connector compatibility and I2C support make integration straightforward for a variety of projects.
Key Features
- LoRa Modem – RFM95 with spread spectrum technology for long-range communication
- 168dB Link Budget – Maximum range with excellent wall penetration
- 915MHz Operation – Australian ISM band frequency
- 20dBm Output Power – Strong signal transmission up to +20dBm
- Low Power Modes – 2μA sleep current for battery-powered applications
- Built-in Sensors – Temperature sensor and low battery indicator
- Crowtail Compatible – Easy connection to Crowtail ecosystem modules
Specifications
- Frequency – 915MHz
- Output Power – +20dBm
- Data Rate – Up to 300kbps
- TX Current – 120mA
- RX Current – 12mA
- Sleep Current – 2μA
- Supply Voltage – 3.7V to 5V
Ideal For
- Long-range IoT sensor networks
- Remote monitoring and telemetry
- Agricultural and environmental sensing
- Building automation systems
- Robotics remote control
Package Contents
- 1× LoRa RFM95 IoT Board for Raspberry Pi
