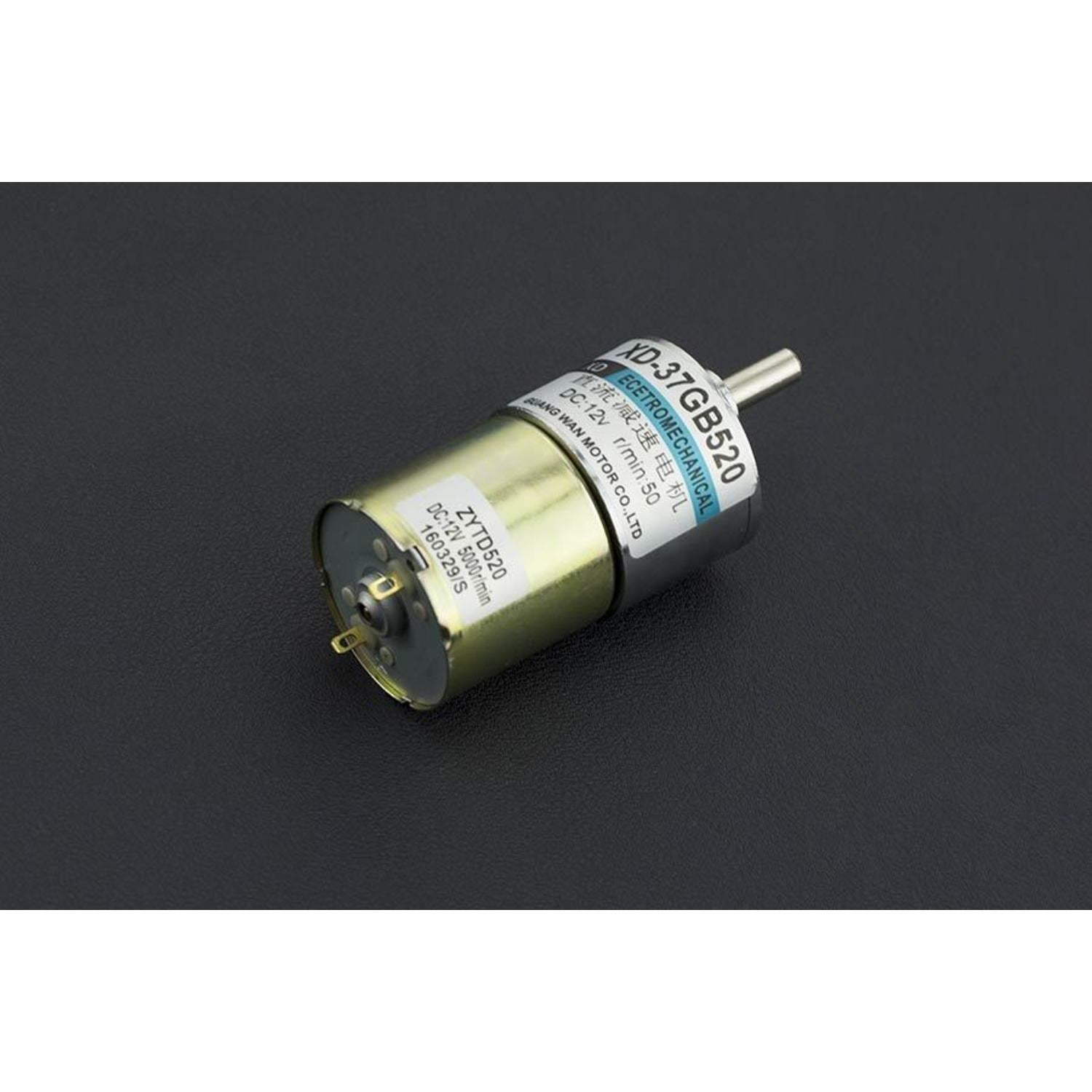

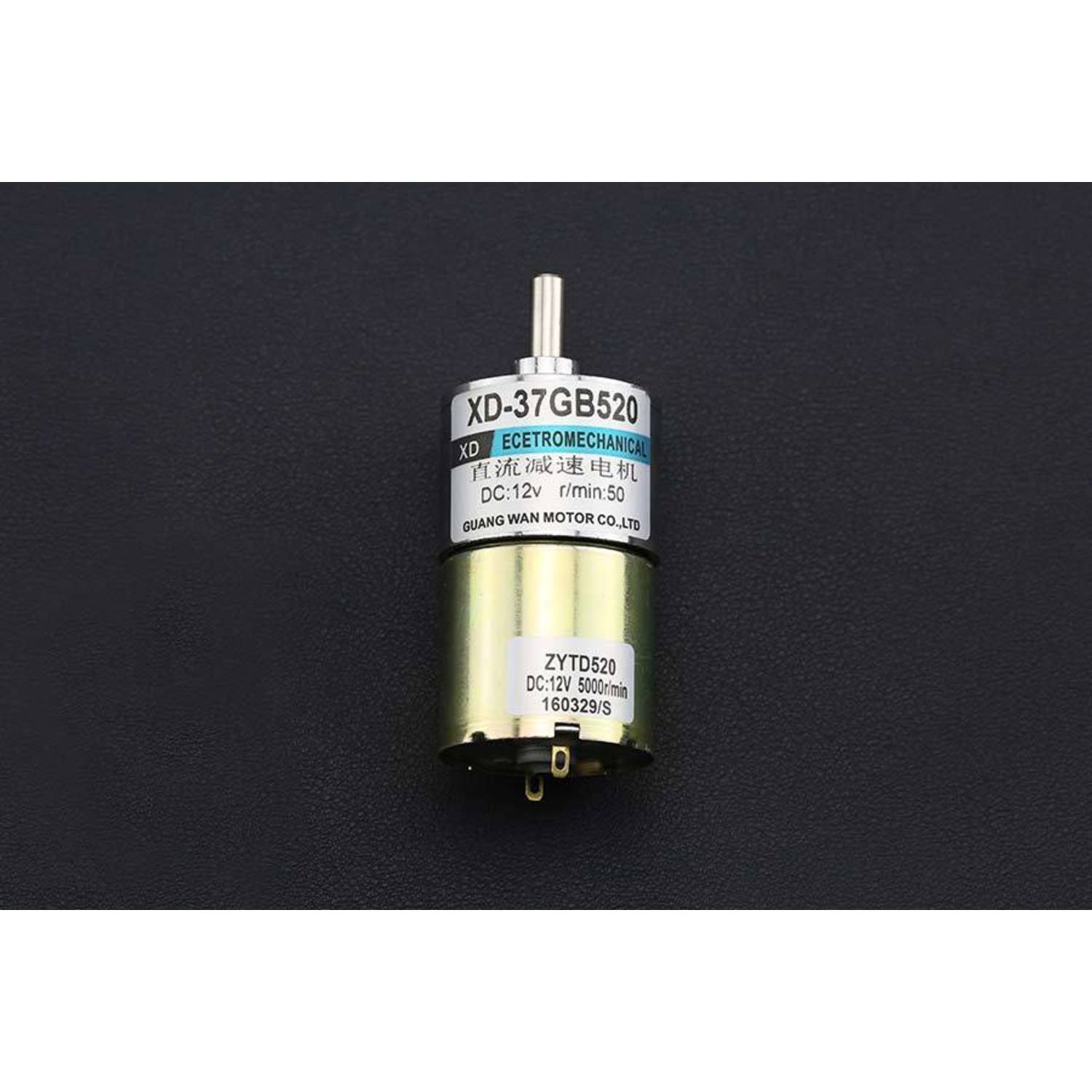

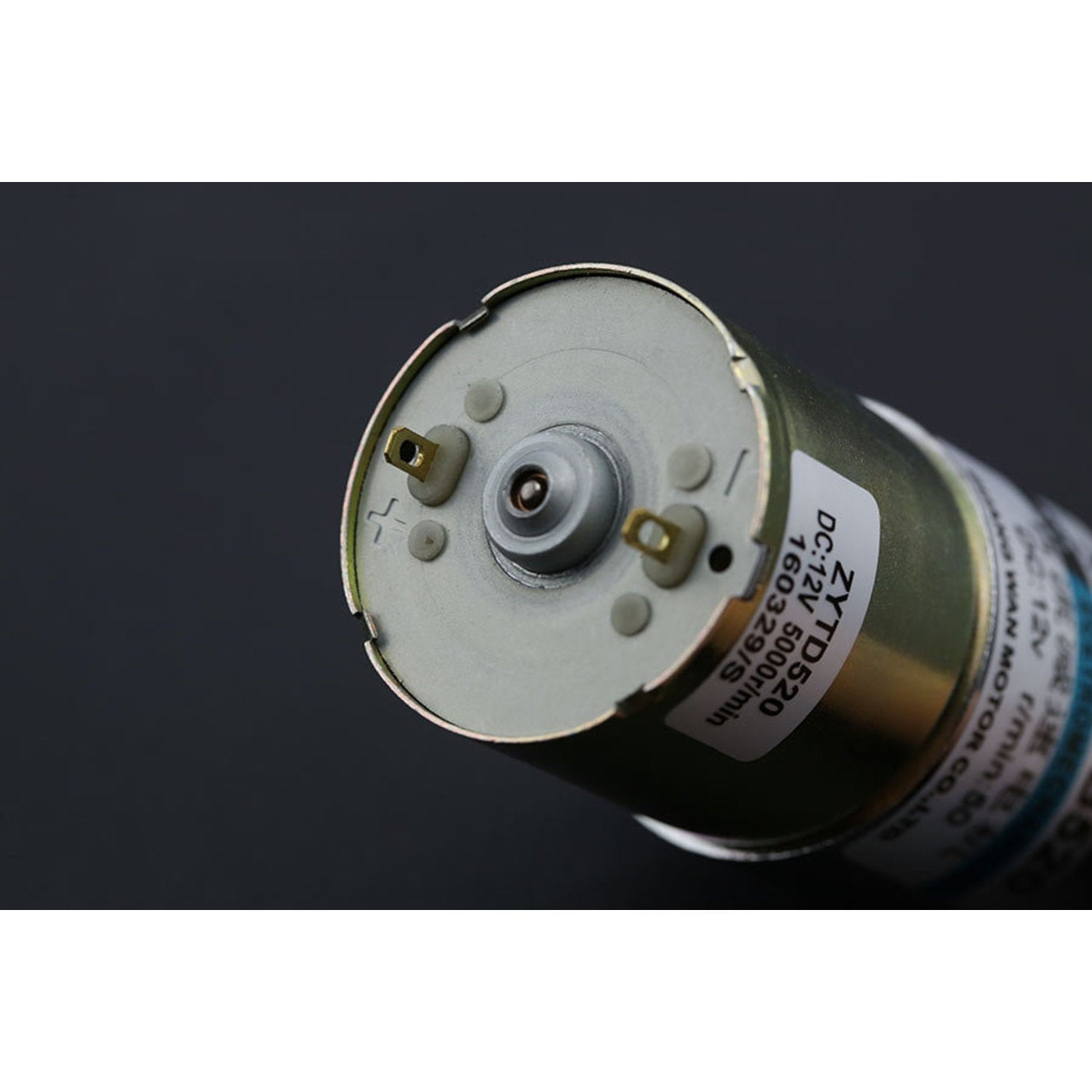

A high-torque metal DC geared motor with 100:1 reduction ratio, delivering up to 50 kg·cm of stall torque. Built with pure copper coils and an all-metal gearbox for durability and reliability in demanding applications.
The compact design and D-shaped 6mm output shaft make it easy to integrate into robots, automation projects, and mechanical systems requiring strong, controlled motion.
Key Features
- High Torque – Up to 50 kg·cm stall torque
- Metal Gearbox – 100:1 reduction ratio for durability
- Pure Copper Coils – Efficient power transfer

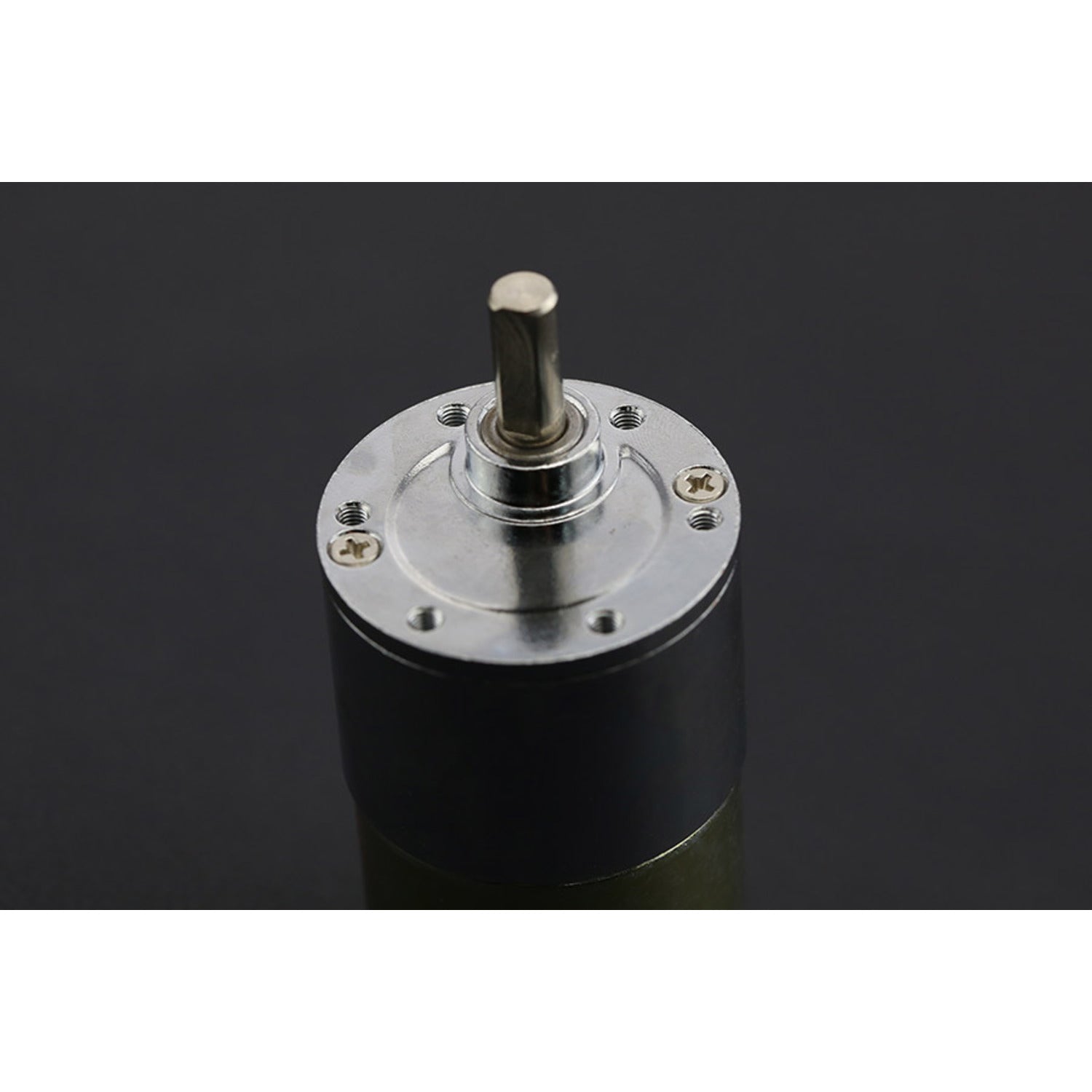

- D-Shaft Output – 6mm diameter for easy mounting
- Compact Size – High power density
Ideal For
- Robotics and automation
- Conveyor systems
- Gate and door mechanisms
- Pan/tilt systems
- Heavy-duty mechanical projects
Specifications
- Rated Voltage: 12V DC
- Gear Ratio: 100:1
- No-Load Speed: 50 RPM @ 12V
- Rated Speed: 45 RPM @ 12V
- No-Load Current: 0.17A
- Rated Current: 0.68A
- Rated Torque: 9 kg·cm
- Stall Torque: 50 kg·cm
- Stall Current: 2.19A
- Power: 5W
- Output Shaft: 6mm D-shaft
- Weight: 210g
Package Contents
- 1× Metal DC geared motor (12V 50RPM)
