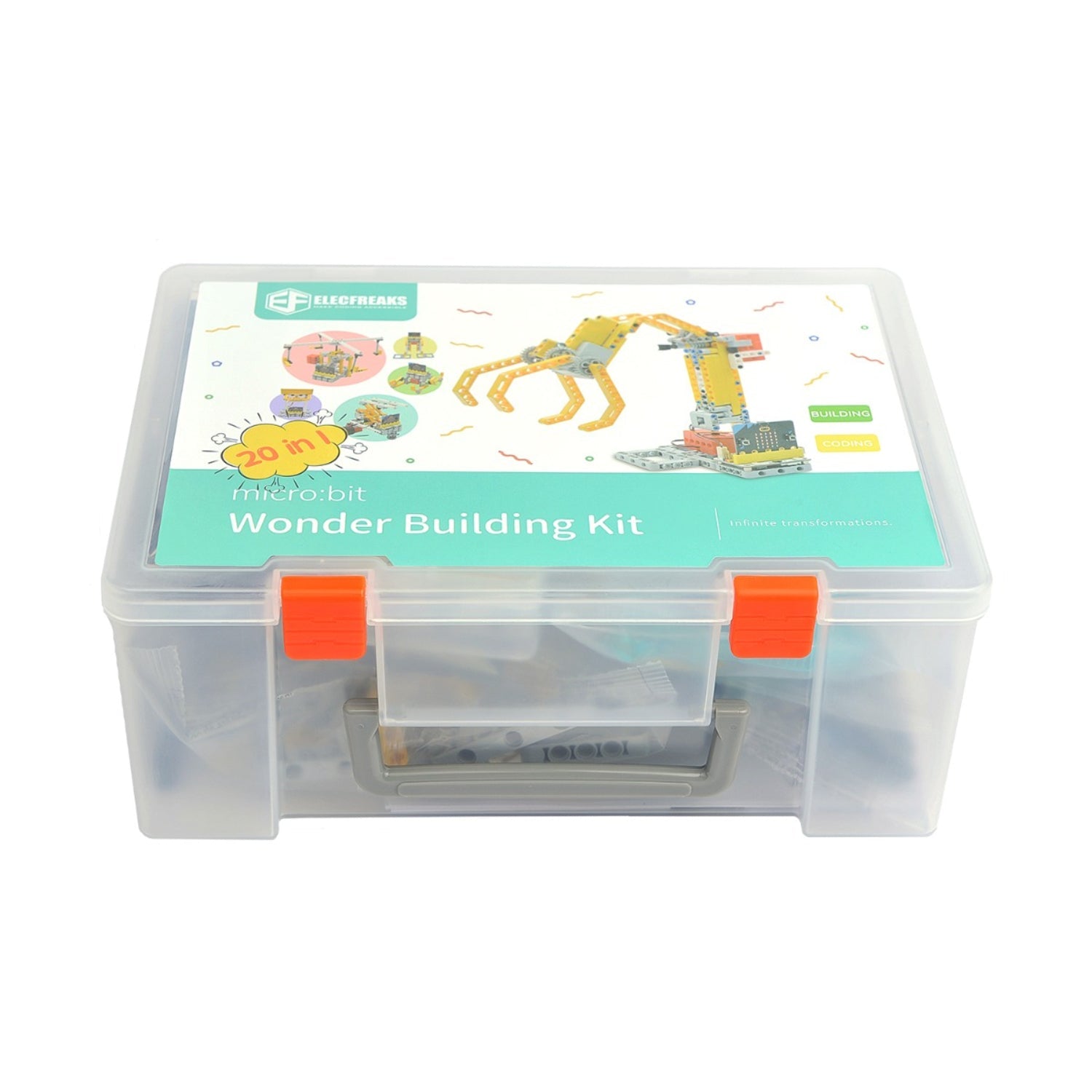

micro:bit Wonder Building Kit(Without micro:bit board)
Build 48 different projects with this comprehensive LEGO-compatible building kit for BBC micro:bit. From robots and vehicles to mechanical systems and interactive gadgets, the Wonder Building Kit combines coding with hands-on construction for engaging STEM learning.
Powered by the Wukong expansion board with built-in rechargeable battery, the kit includes over 400 brick pieces, sensors, motors, and servos. Program with MakeCode's visual blocks to bring your creations to life.
Key Features
- 48 Building Projects – Vehicles, robots, mechanical systems, and interactive gadgets
- Wukong Expansion Board – Compact controller with 400mAh rechargeable battery
- LEGO Compatible – Standard 7×5 baseplate fits LEGO bricks
- Dual Motor Outputs – M1 and M2 for driving wheels and mechanisms
- 8 Servo Outputs – S0-S7 for arms, grippers, and moving parts
- RGB LEDs – 4 programmable rainbow LEDs plus atmosphere lighting
- Line-Tracking Sensor – For building line-following robots
- Sonar:bit Ultrasonic – Distance sensing for obstacle avoidance
- Water Level Sensor – For liquid detection projects

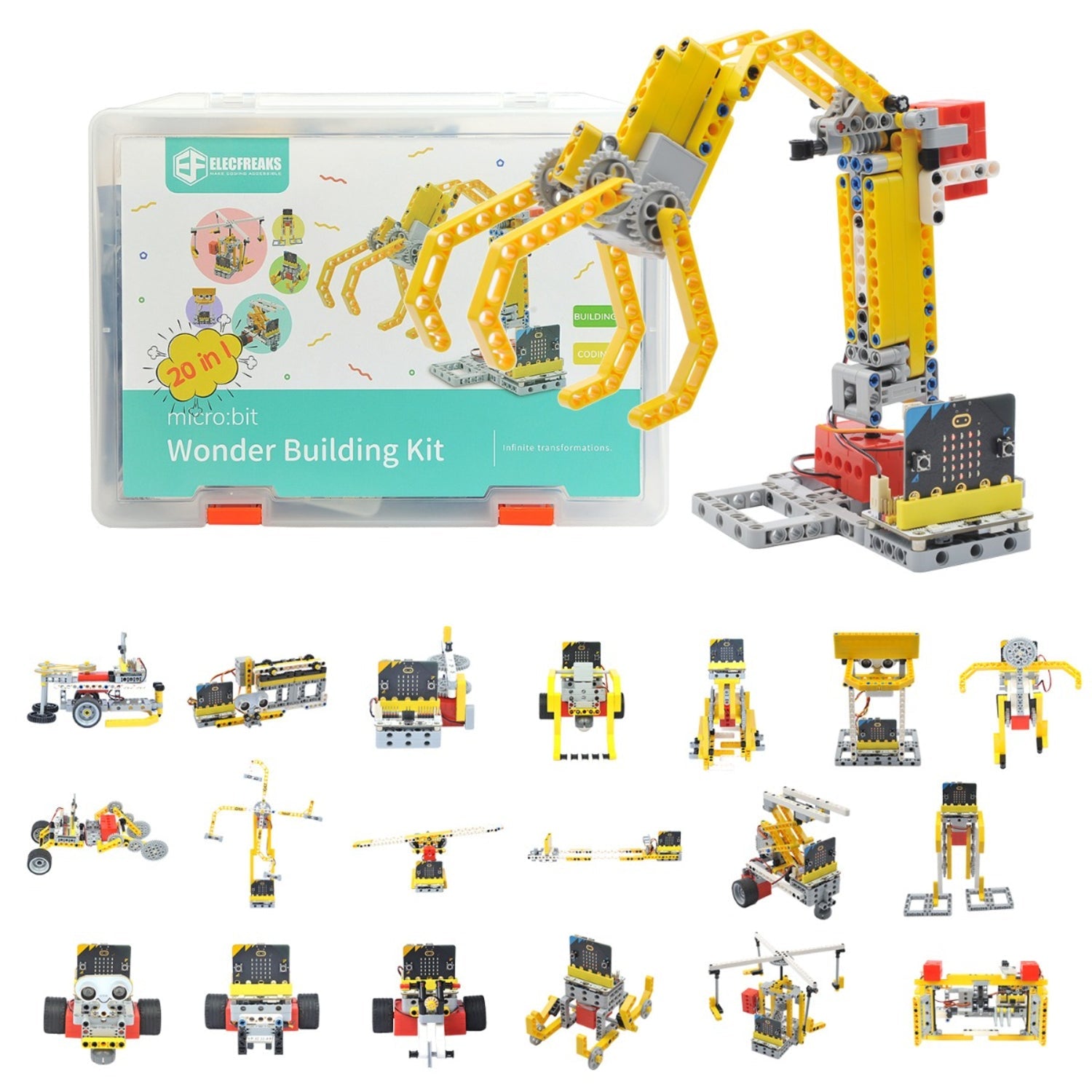

Example Projects
- Vehicles: Line-following car, crawler, road sweeper, motorcycle
- Robots: Walking robot, robot arm, robot dog, cricket robot
- Mechanical: Forklift, helicopter, seesaw, gyroscope
- Interactive: Basketball counter, smart bin, drawing machine, guitar
Wukong Board Specifications
- Battery: 400mAh lithium polymer (rechargeable)
- Voltage: 3.7V–5V
- Motor Outputs: 2 (M1, M2)
- Servo Outputs: 8 (S0–S7)
- GPIO: P0, P1, P2, P8, P12, P13, P14, P15, I2C
- Size: 40 × 58mm
- Operating Temperature: -20°C to 60°C

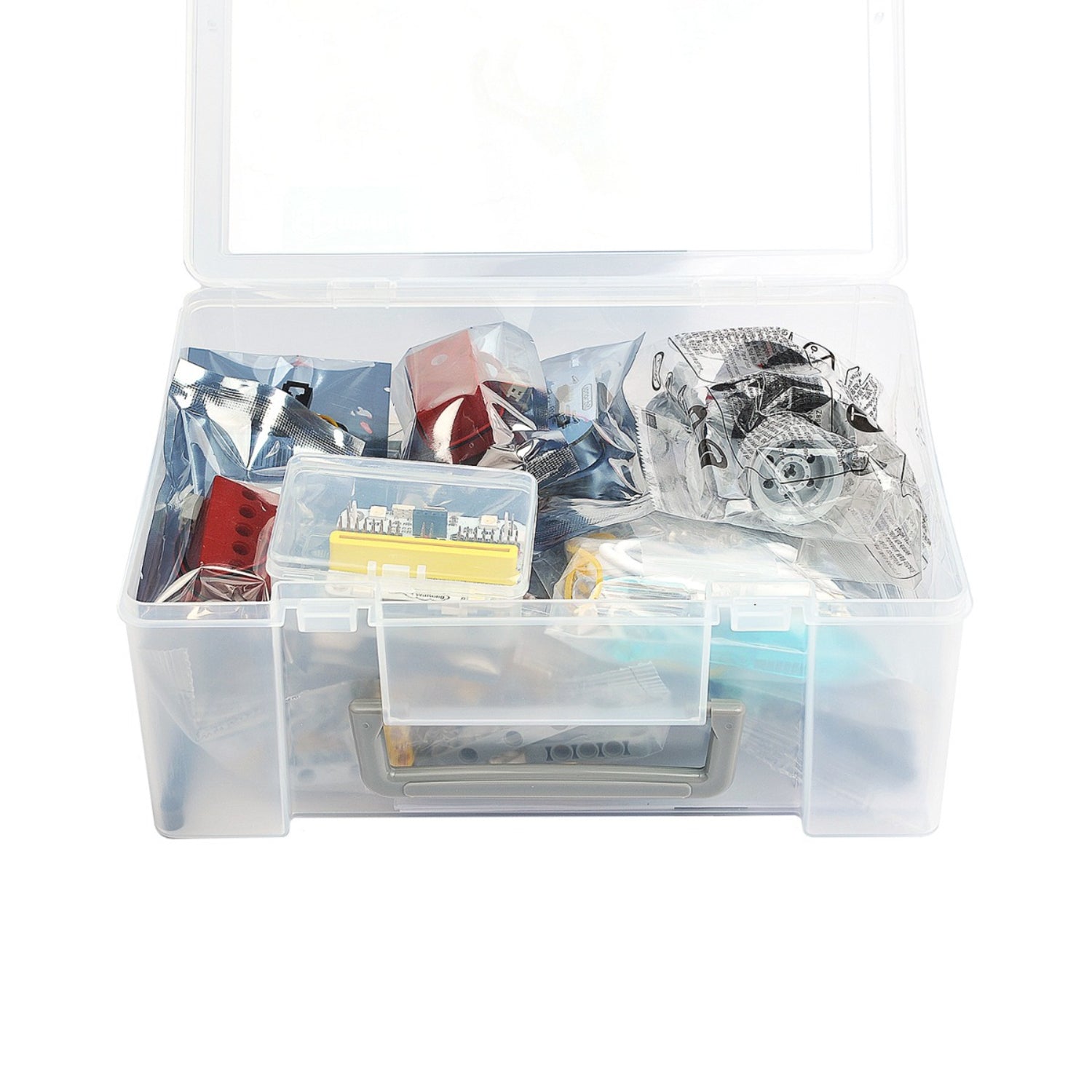

Package Contents
- 1× Wukong expansion board
- 1× Line-tracking sensor
- 1× Sonar:bit ultrasonic sensor
- 1× Water level sensor
- 2× Motors
- 400+ Building brick pieces
