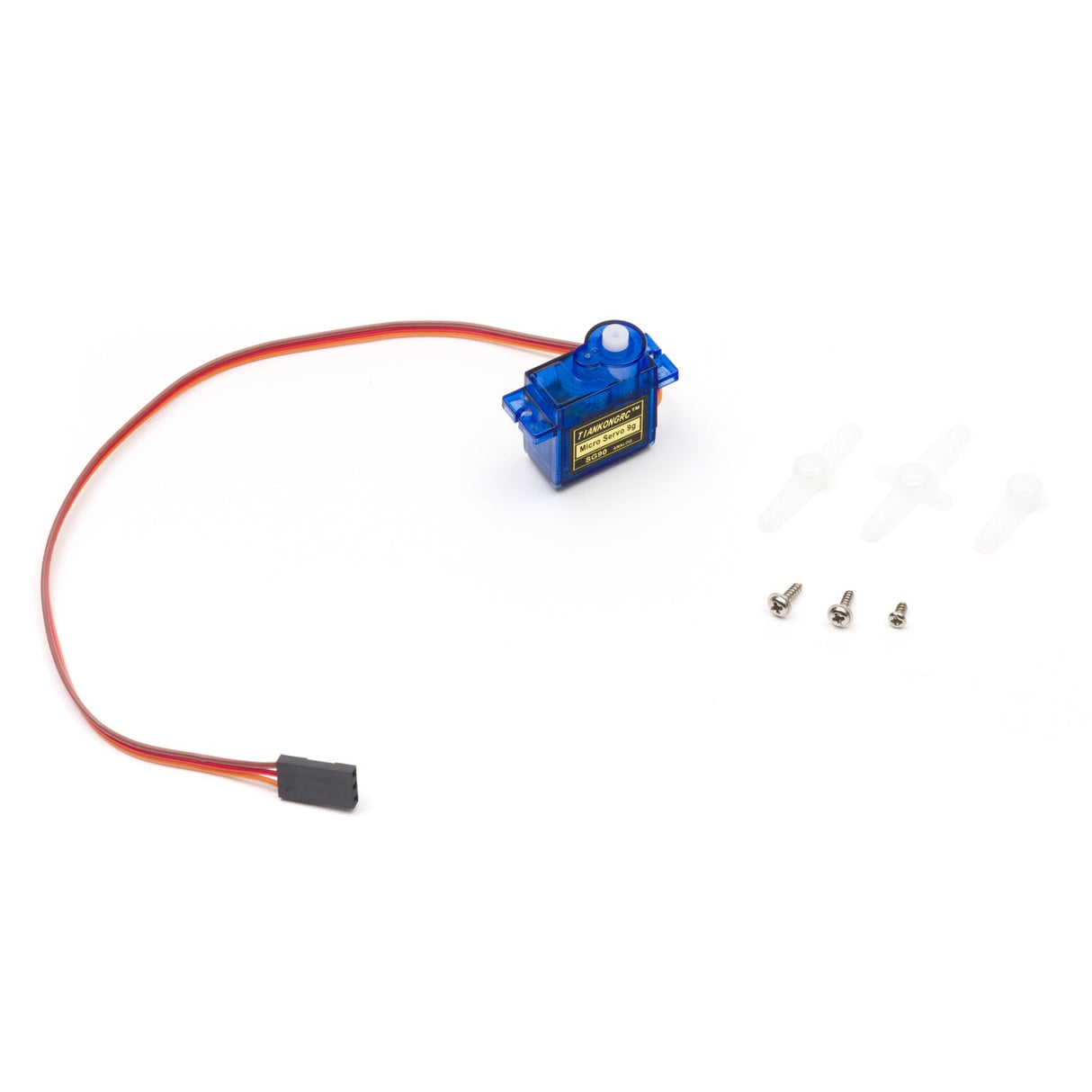

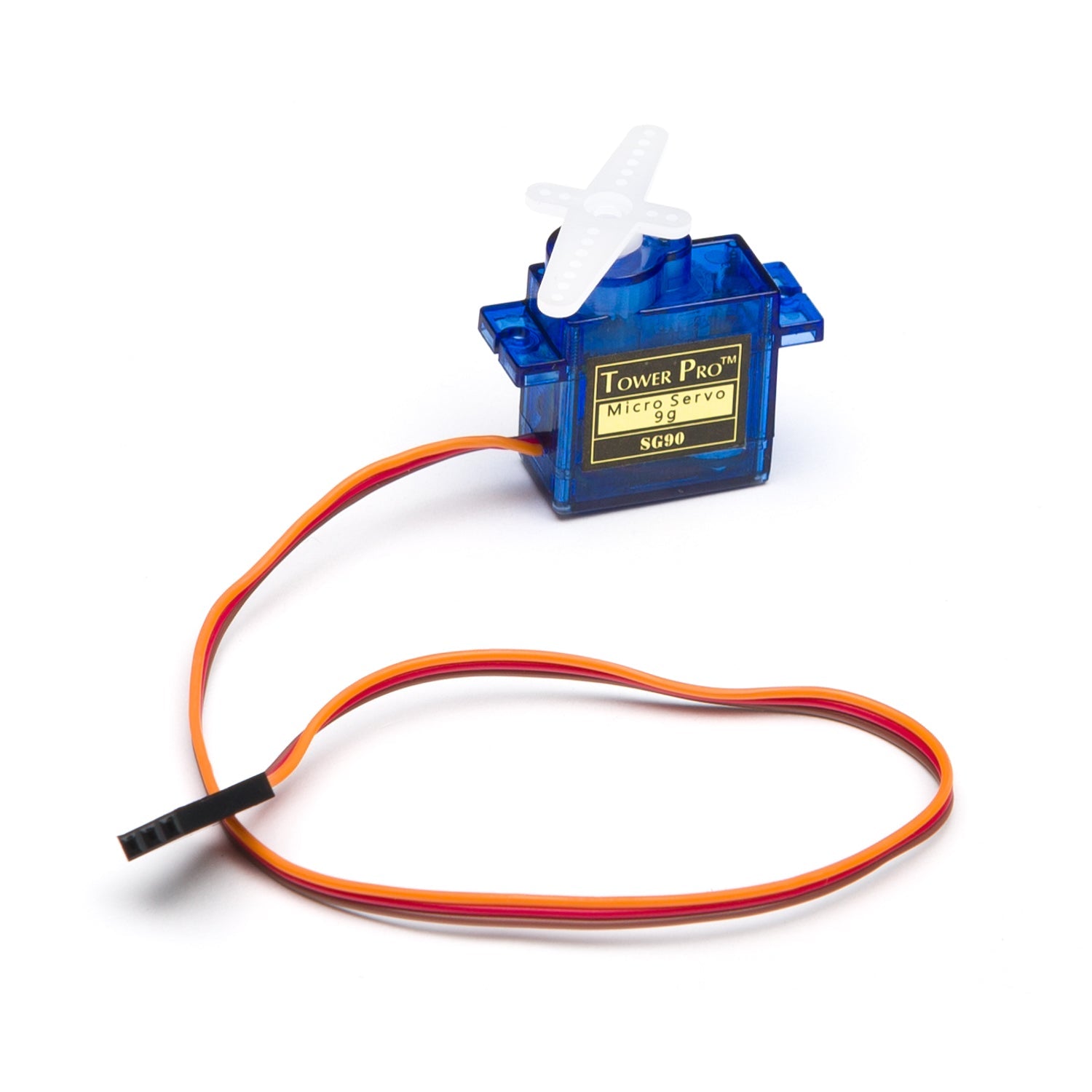

Micro Servo 9g
A compact, affordable micro servo ideal for robotics, RC projects, and mechatronics. Delivers reliable torque in a lightweight 9g package, perfect for small mechanisms, pan/tilt mounts, and micro robots.
Key Features
- Compact Size – Micro form factor, weighs just 9g
- Good Torque – 1.6kg/cm at 6V
- Fast Response – 0.10 sec/60° at 6V
- Wide Rotation – Approximately 160° range
- Nylon Gears – Lightweight and quiet operation
- 3-Pole Ferrite Motor – Reliable performance
Specifications
- Operating Voltage: 4.8V–6.0V
- Torque: 1.6kg/cm (at 6V)
- Speed: 0.10 sec/60° (at 6V)
- Rotation Range: ~160°
- Weight: 9g
- Connector: 3-pin female header (Ground, Power, Signal)
Ideal For
- Robotics projects
- Pan/tilt camera mounts
- RC models and vehicles
- Arduino and micro:bit projects
- Animatronics and mechanisms
Package Contents
- 1× Micro servo (9g)
- 1× Single arm horn
- 1× Double arm horn
- 1× Four-point horn
- 2× Mounting screws
- 1× Horn screw
