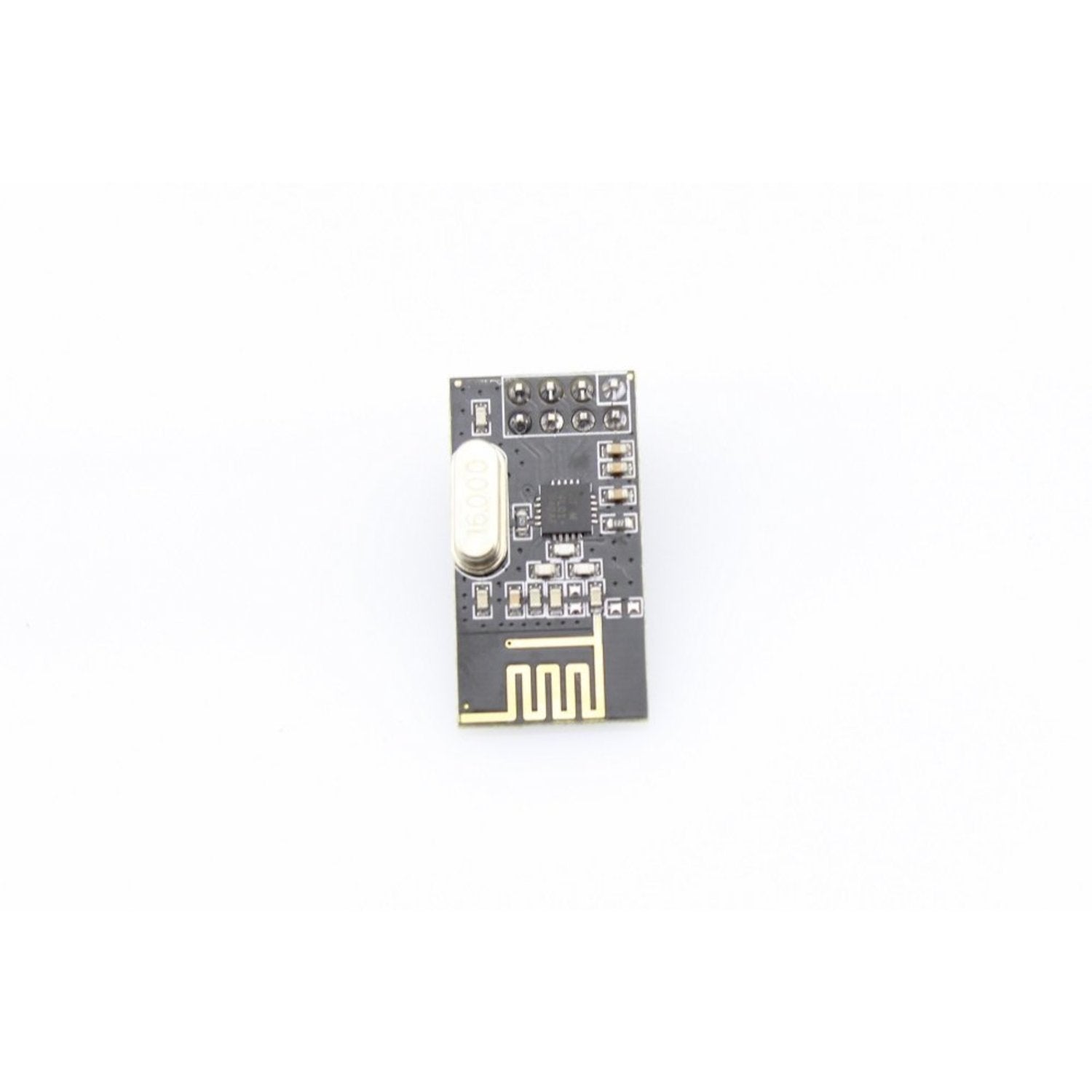

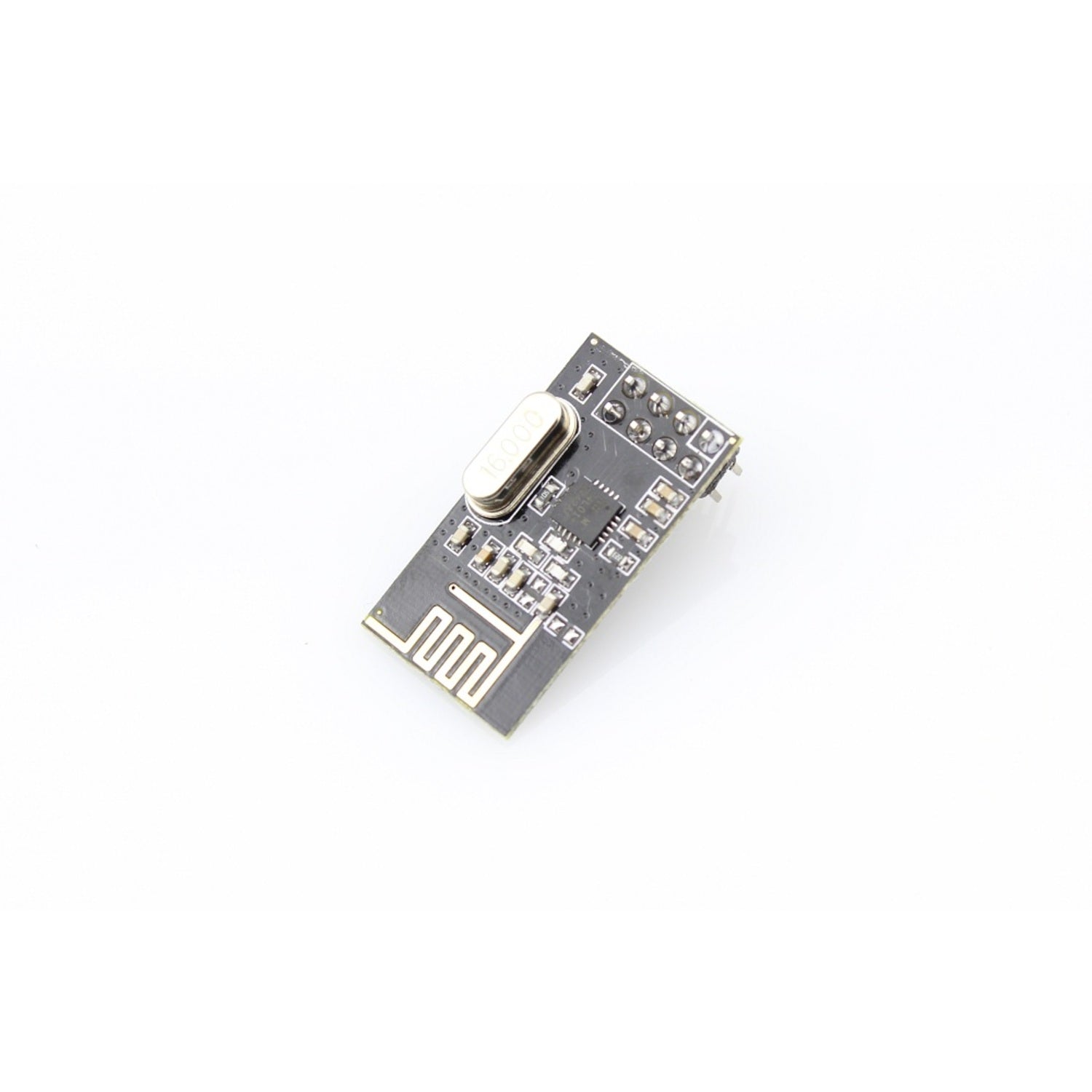

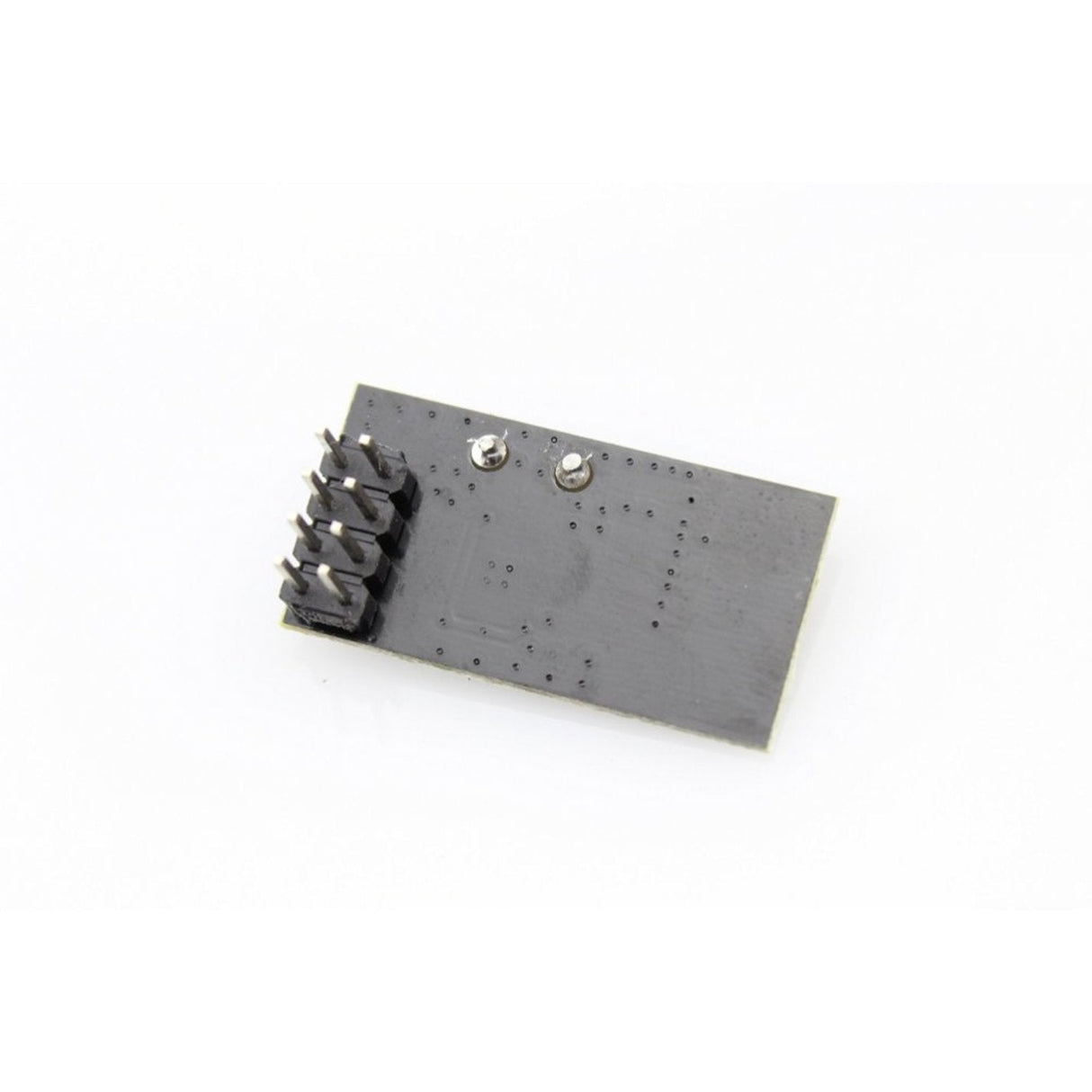

NRF24L01+ Module
The NRF24L01+ is a compact 2.4GHz wireless transceiver module based on Nordic Semiconductor's nRF24L01+ chip. It provides reliable short-range wireless communication for microcontroller projects using a simple SPI interface.
Operating in the license-free 2.4GHz ISM band, this module offers selectable data rates up to 2Mbps and includes Nordic's Enhanced ShockBurst protocol for automatic packet handling and retransmission. The ultra-low power consumption makes it ideal for battery-powered applications.
Key Features
- 2.4GHz ISM Band – License-free worldwide operation
- Multiple Data Rates – 250kbps, 1Mbps, or 2Mbps selectable
- Enhanced ShockBurst – Hardware protocol accelerator with auto-acknowledge and retransmit
- Ultra Low Power – Enables months to years of battery life
- Multi-Pipe Support – Up to 6 data pipes for multi-device networks
- Simple SPI Interface – 8-pin connection to any microcontroller
Specifications
- Chip: nRF24L01+
- Frequency: 2.4GHz ISM band
- Power Supply: 1.9V–3.6V
- IO Voltage: 3.3V (5V tolerant)
- TX Power: +7dBm
- RX Sensitivity: -90dBm
- Range: Up to 250m (open area)
- Dimensions: 15 × 29 mm
Ideal For
- Wireless sensor networks
- Remote control applications
- Arduino and Raspberry Pi wireless projects
- Battery-powered IoT devices
Package Contents
- 1× NRF24L01+ Wireless Module
