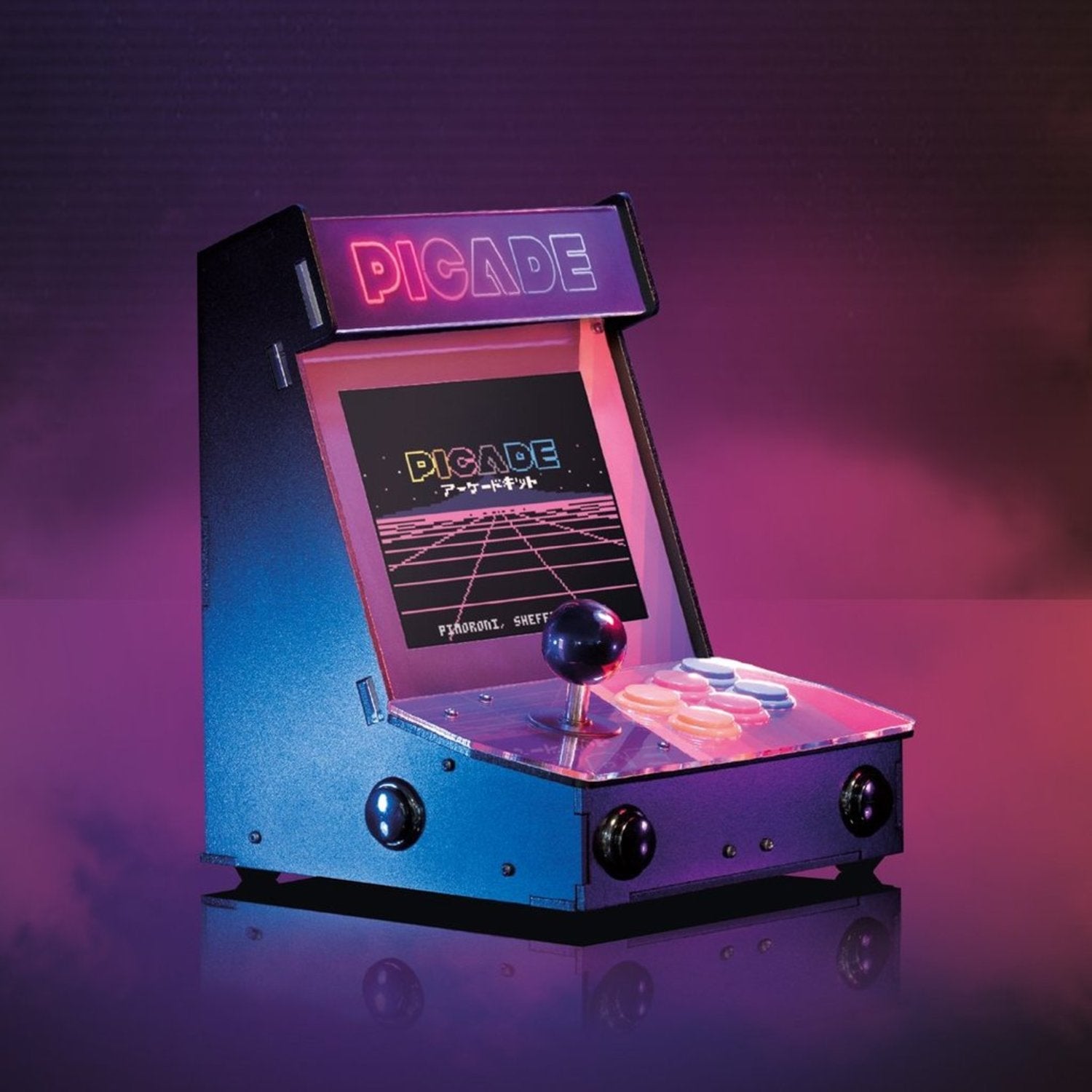

Build your own desktop retro arcade machine with Picade. This complete kit combines an 8-inch 1024×768 IPS display, authentic arcade controls, and a powder-coated MDF cabinet—just add a Raspberry Pi and your favourite retro games.
Featuring the Picade X HAT with I2S audio, USB-C power management, and easy DuPont connectors, assembly takes 2-3 hours with no soldering required.
Key Features
- 8-inch IPS Display – 1024×768 resolution with 4:3 aspect ratio
- Authentic Arcade Controls – Joystick with ball top and push-fit buttons
- Built-in Speaker – 3" 5W speaker for game audio
- Powder-Coated Cabinet – Black MDF construction

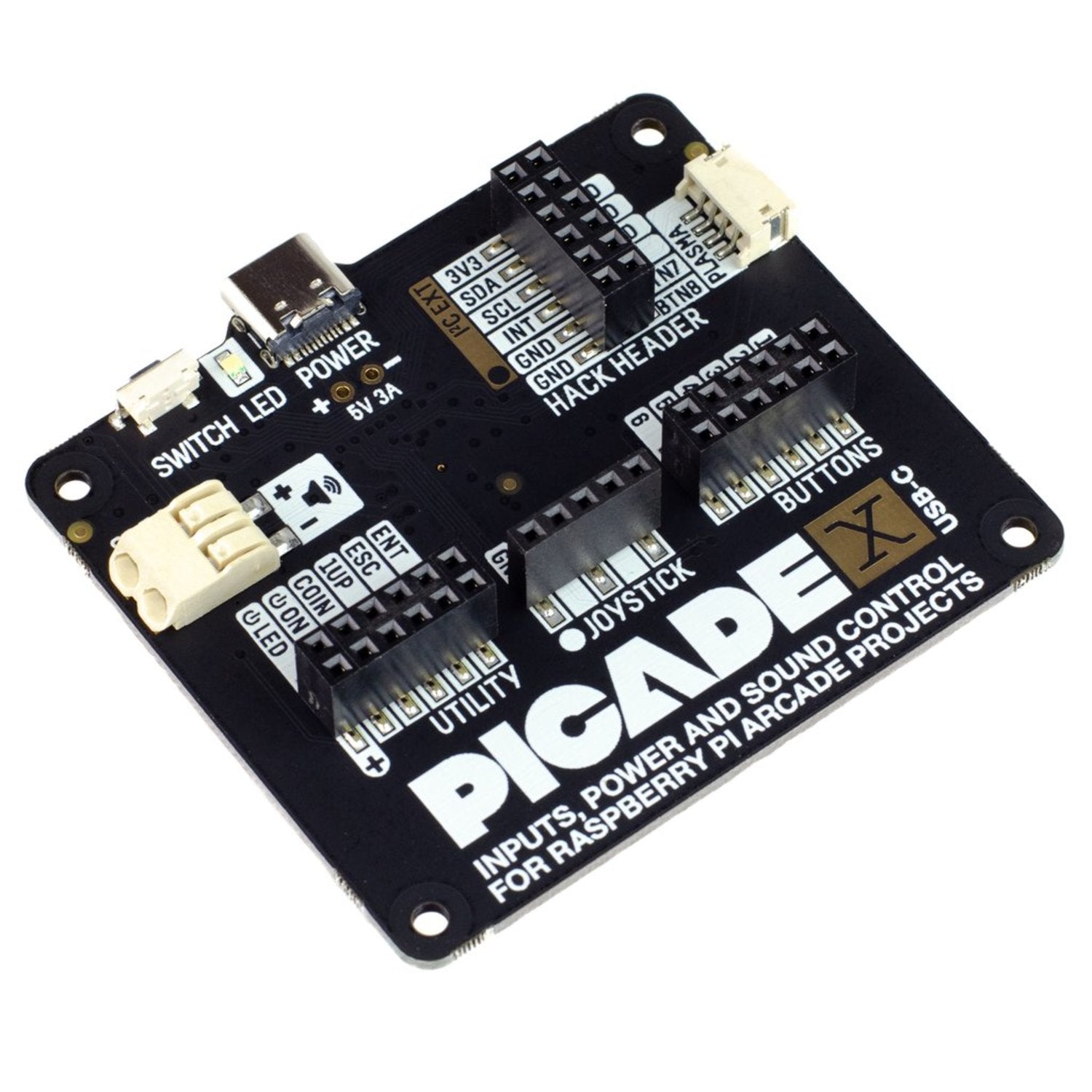

- Picade X HAT – USB-C power, I2S audio DAC, button inputs
- Illuminated Power Button – Clean on/off control
- Easy Access – Removable back panel for Pi access
- No Soldering Required – DuPont connectors throughout
Specifications
- Display – 8" IPS, 1024×768, 4:3 ratio
- Speaker – 3" driver, 5W, 4Ω
- Cabinet Dimensions – 350 × 230 × 210mm
- Inputs – 4-way joystick, 6 player buttons, 4 utility buttons
- Audio – I2S DAC with 3W mono amplifier

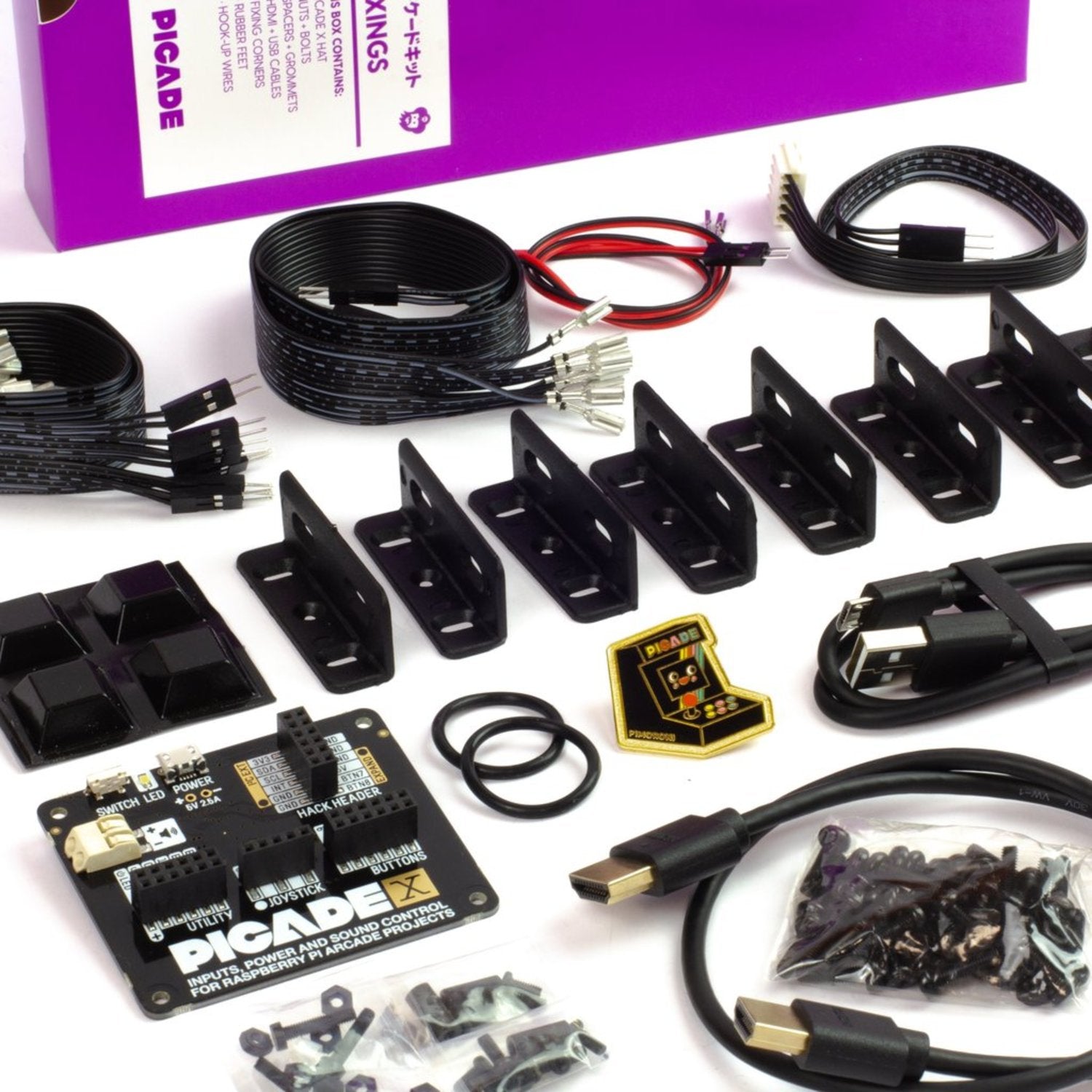

Kit Contents

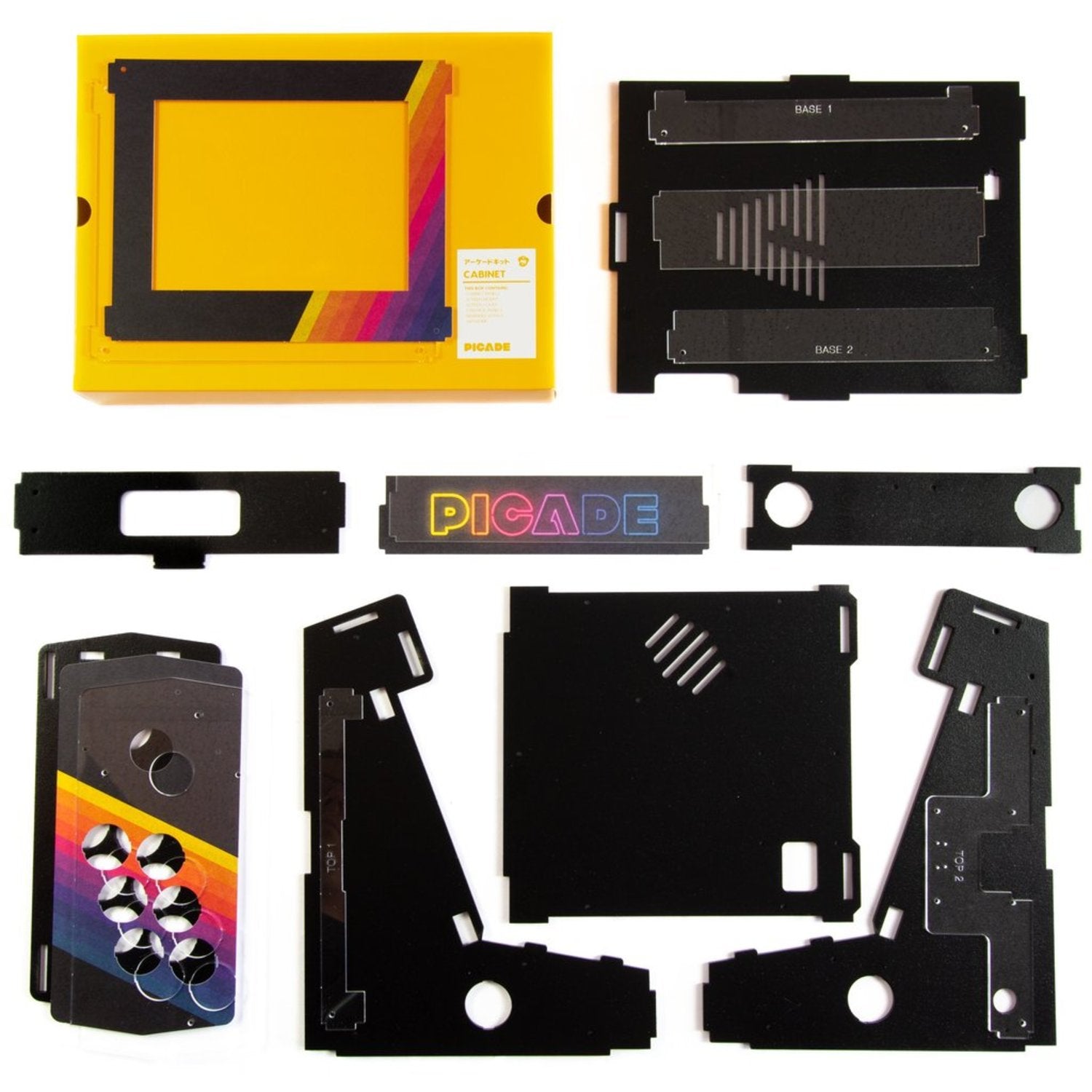

- MDF cabinet panels (powder-coated black)
- 8" IPS display with driver board
- Picade X HAT

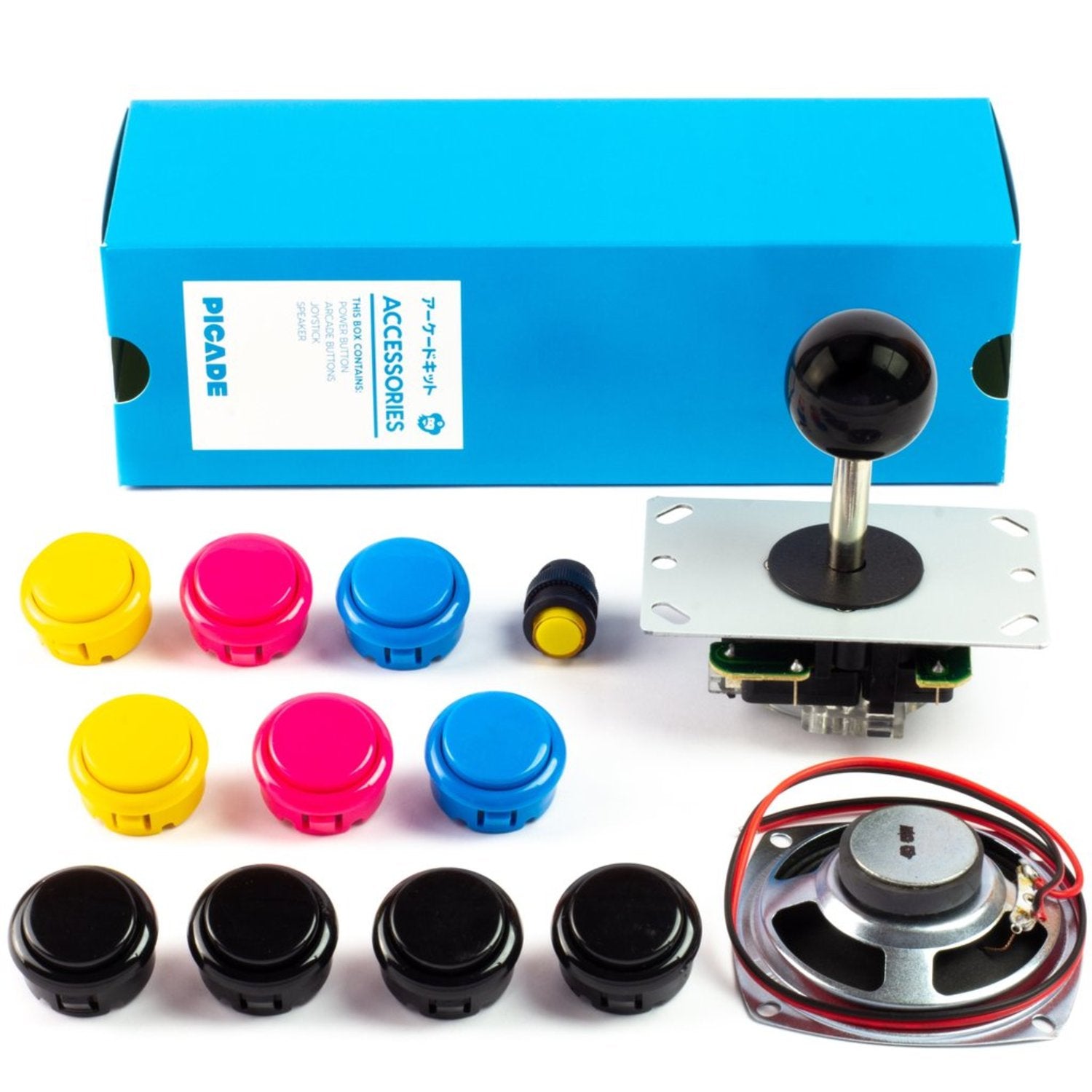

- Joystick with ball top
- Arcade buttons
- 3" speaker
- All cables and hardware
- Enamel pin badge and stickers
- Poster and assembly instructions
Ideal For
- Retro gaming enthusiasts
- RetroPie and Recalbox builds
- Desktop arcade cabinets
- Gifts for gamers
Resources
