Pimoroni Yukon – Yukon Make Anything! Kit

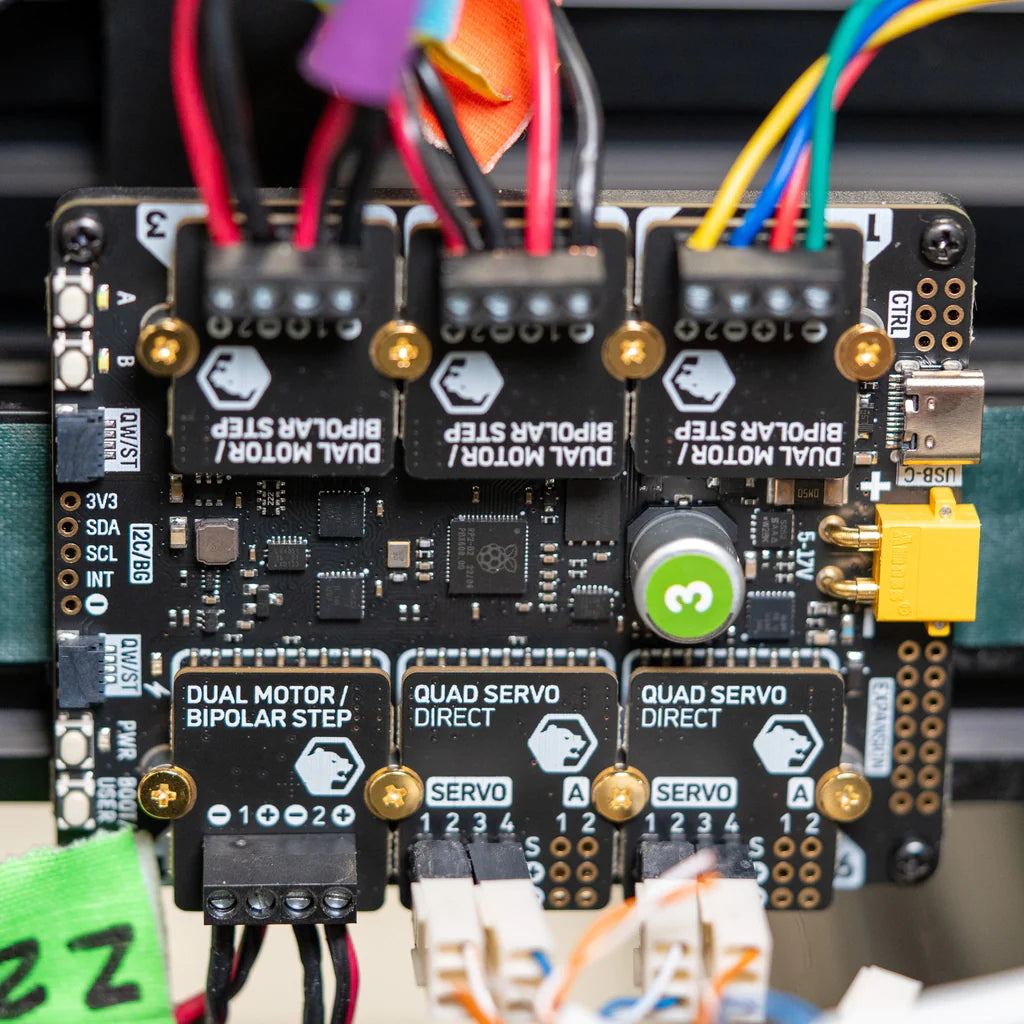

A high-power modular robotics and engineering platform built around RP2040. Yukon can be equipped with up to six interchangeable modules for driving motors, servos, steppers, speakers, LED strips and more – all from a single controller.
Features solderless connectors for quick assembly, an XT30 power connector for 2–4 cell LiPo batteries (5–17V, 15A continuous), and comprehensive MicroPython support with 50+ examples.
Key Features
- 6 Module Slots – Interchangeable high-power modules
- RP2040 Powered – Dual Cortex M0+ @ 133MHz, 16MB flash
- High Power – XT30 connector, 5–17V, 15A continuous
- E-Fuse Protection – 40A overcurrent, 18V overvoltage
- Monitoring – Voltage, current, and temperature sensors
- 2× Qw/ST Connectors – Easy I2C breakout connection
- Solderless Assembly – Screw-down modules

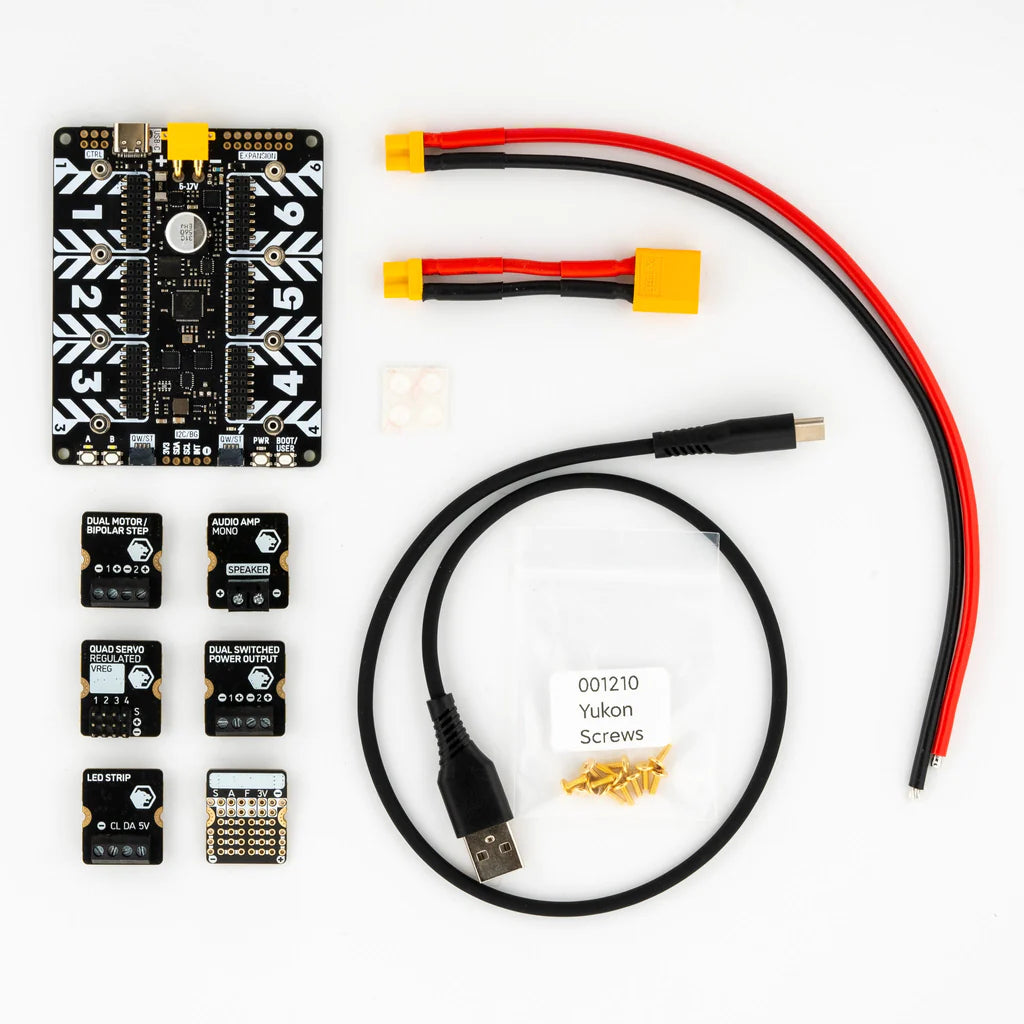

Make Anything! Kit Includes
- 1× Yukon Host Board with screws and feet
- 1× Dual Motor / Bipolar Stepper Module
- 1× Quad Servo [Regulated] Module
- 1× LED Strip Module
- 1× Audio Amp Module
- 1× Dual Switched Power Output Module
- 1× Proto Module
- 1× USB-A to USB-C programming cable
- 1× Loose wire to XT30 power cable
- 1× XT60 to XT30 power cable
- Pimoroni Loot Box storage
Specifications
- Processor: RP2040 (Dual Cortex M0+ @ 133MHz)
- Memory: 264KB SRAM, 16MB Flash
- Power Input: 5–17V via XT30 (15A continuous)
- Module Slots: 6
- Dimensions: 84 × 67 × 14 mm
- Mounting: M2.5 holes, 3mm from edges
