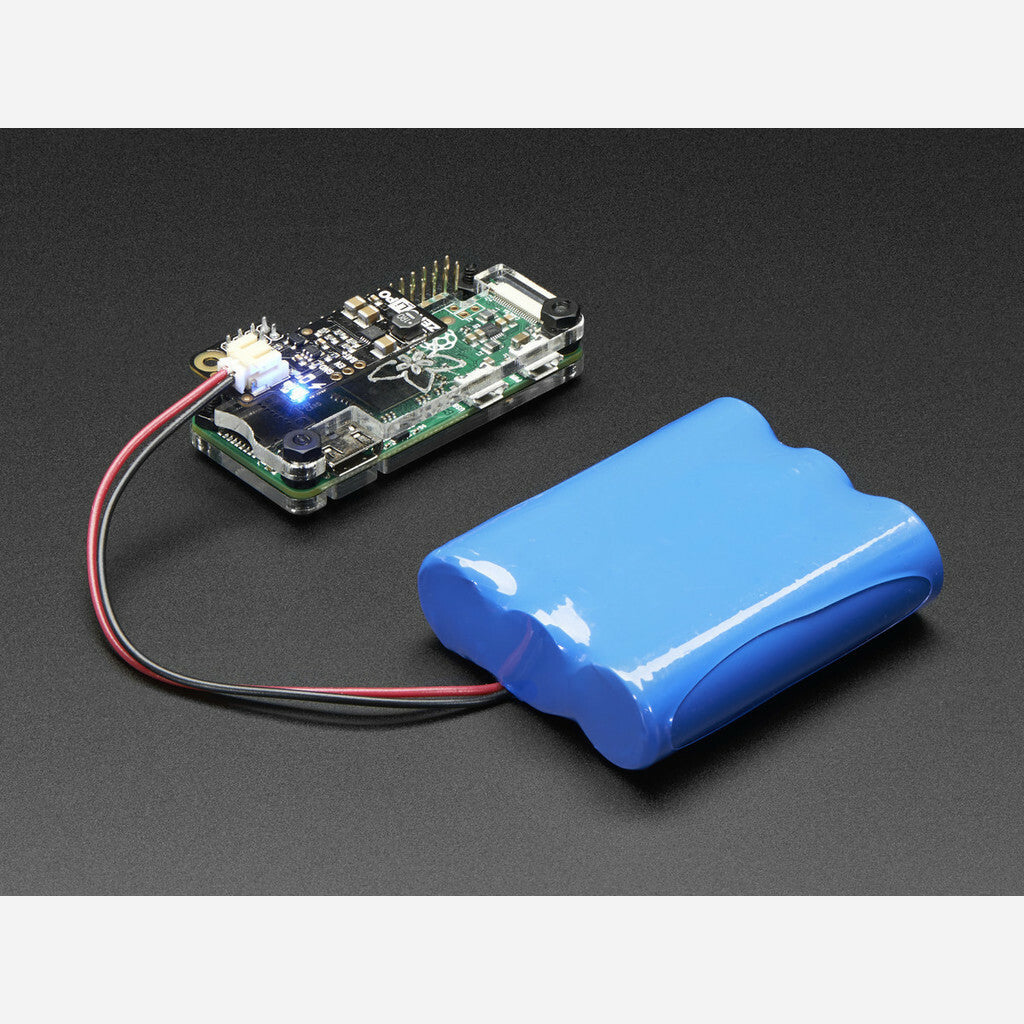

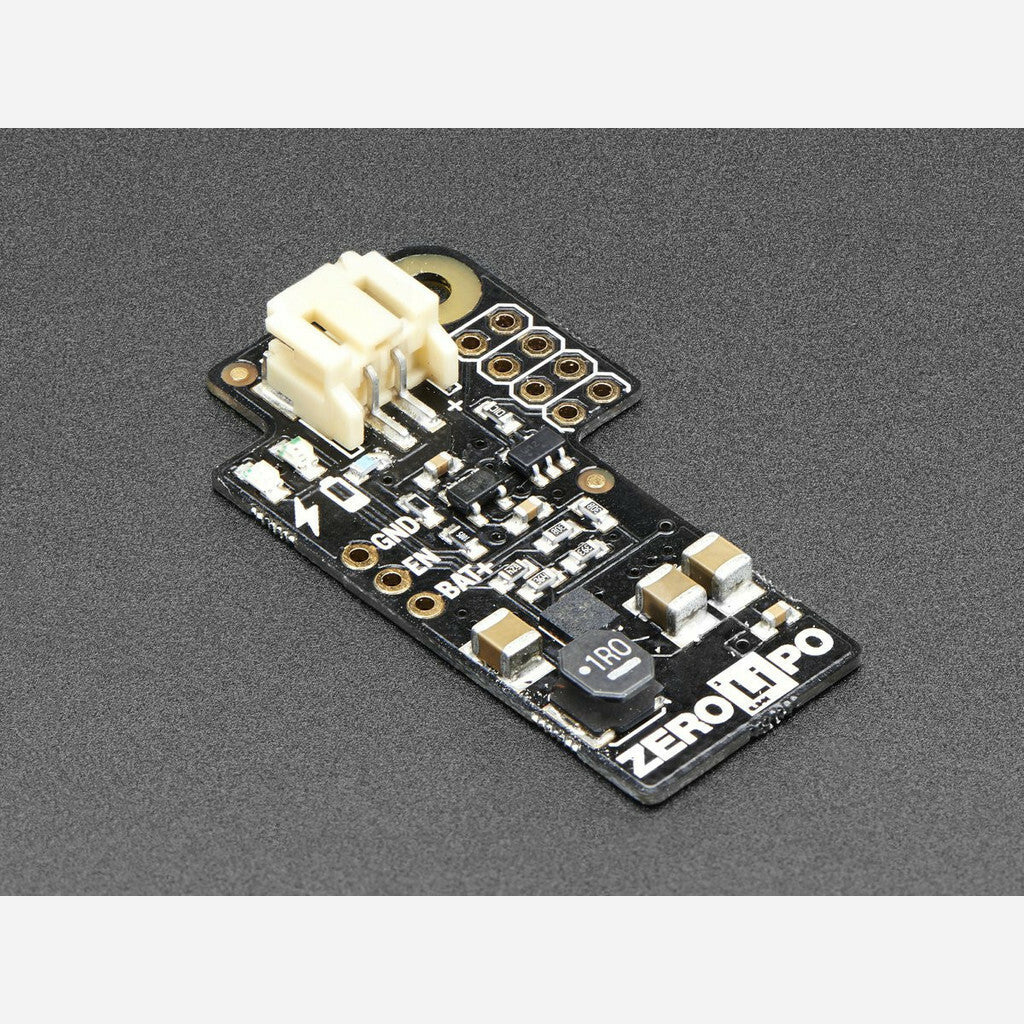

Power your Raspberry Pi from a LiPo or Li-Ion battery with this ultra-compact power supply. The 0.8mm thick PCB can be soldered directly to the GPIO header or attached via the included female header for a removable solution.
Uses the TPS61232 step-up boost converter for up to 96% efficiency. Features automatic shutdown at 3.0V to protect your battery and a low battery warning signal on GPIO 4.
Key Features
- Ultra-Compact – 0.8mm thick PCB, sits low on the Pi
- High Efficiency – Up to 96% with TPS61232 converter
- 1.5A Output – Continuous current for Pi operation
- Battery Protection – Auto shutdown at 3.0V
- Low Battery Warning – GPIO 4 asserts high at 3.4V
- Ultra Low Standby – 15µA quiescent current

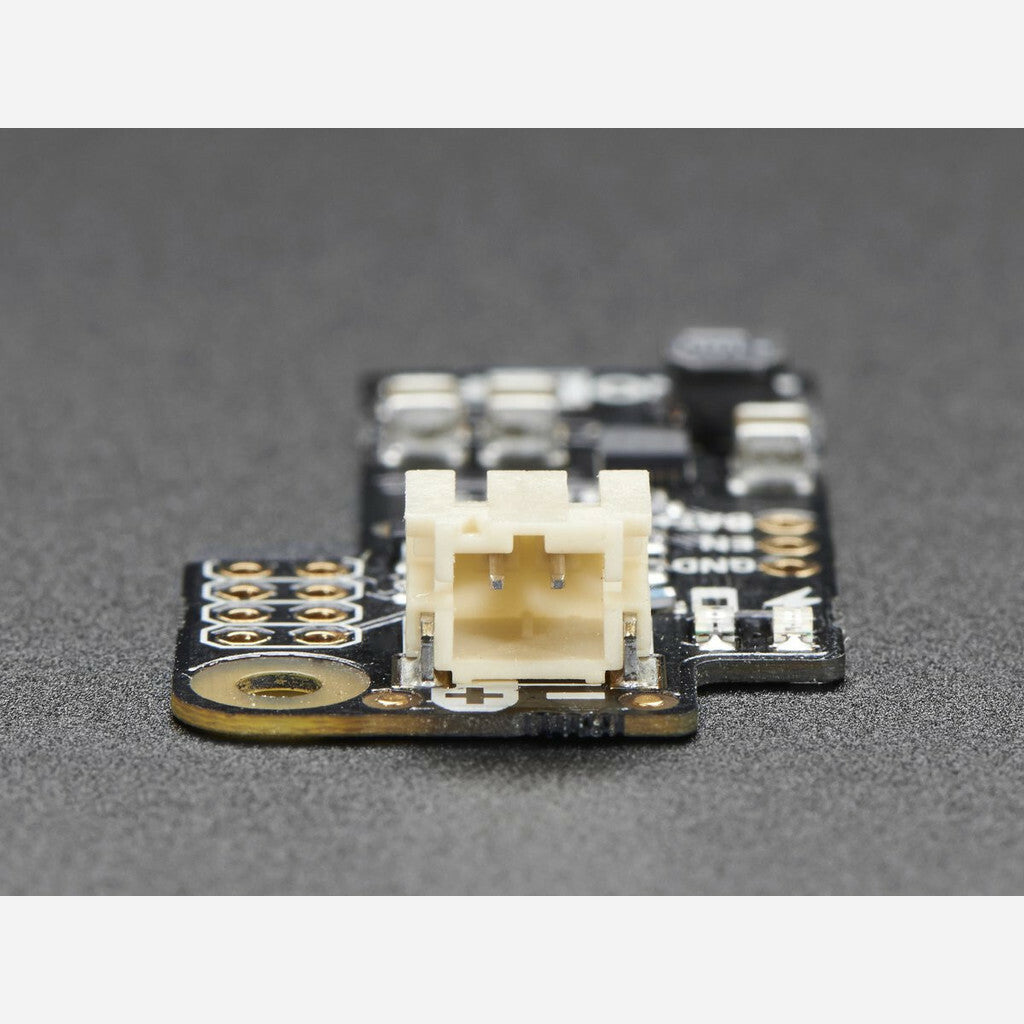

- JST Connector – Standard 2-pole for LiPo/Li-Ion batteries
Specifications
- Converter: TPS61232 Step-Up Boost
- Output Current: Up to 1.5A continuous
- Low Battery Warning: 3.4V (GPIO 4)
- Shutdown Voltage: 3.0V
- Standby Current: 15µA
- PCB Thickness: 0.8mm
- Compatibility: Pi Zero, A+, B+, 2, 3

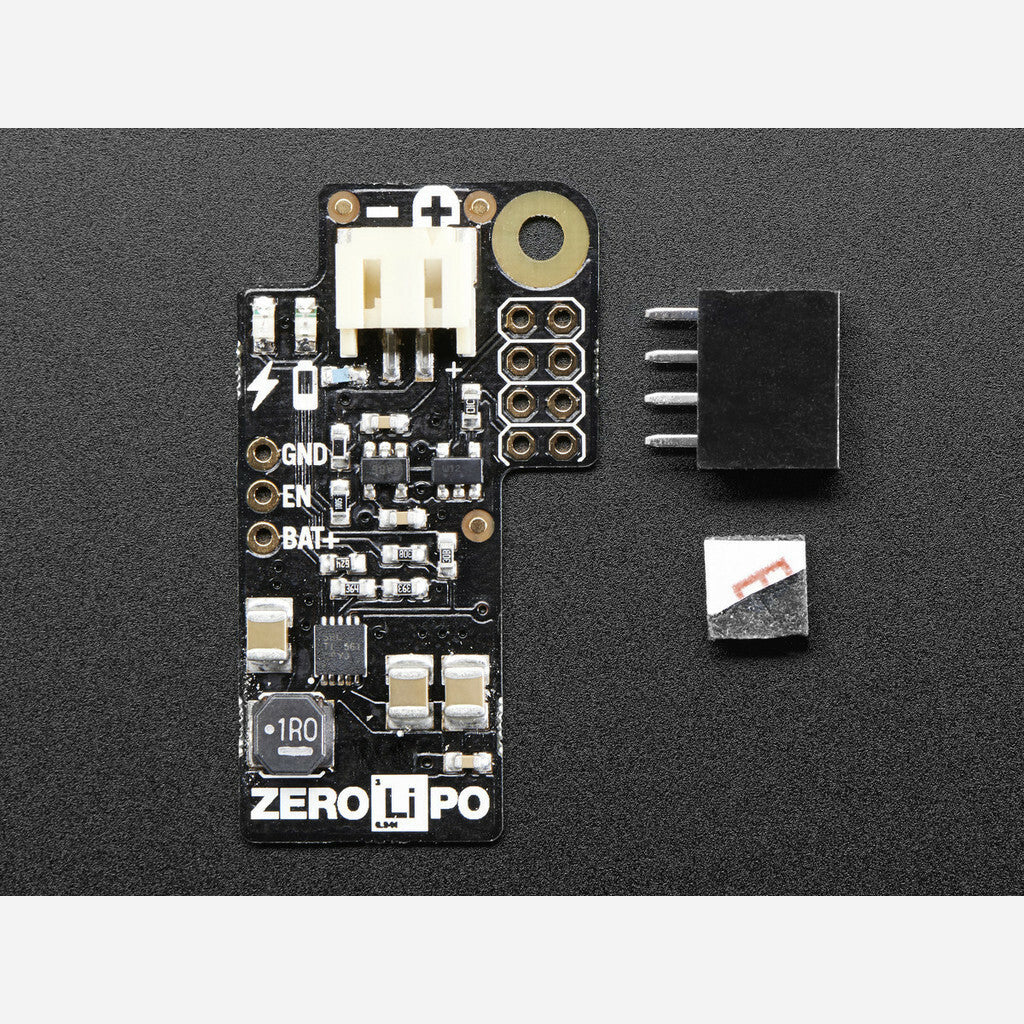

Package Contents
- 1× LiPo SHIM
- 1× 2×6 Female Header
- 1× Rubber Foot
