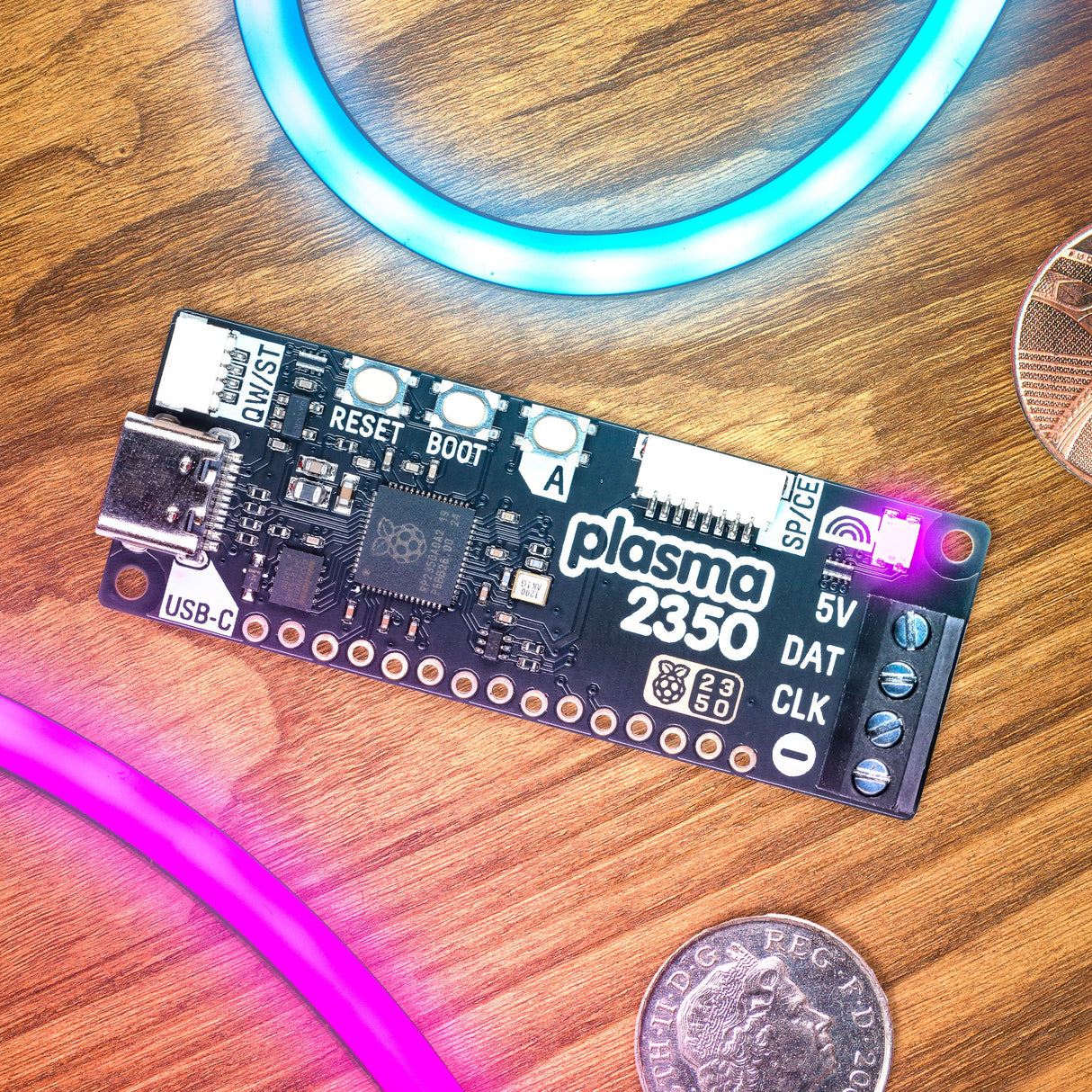

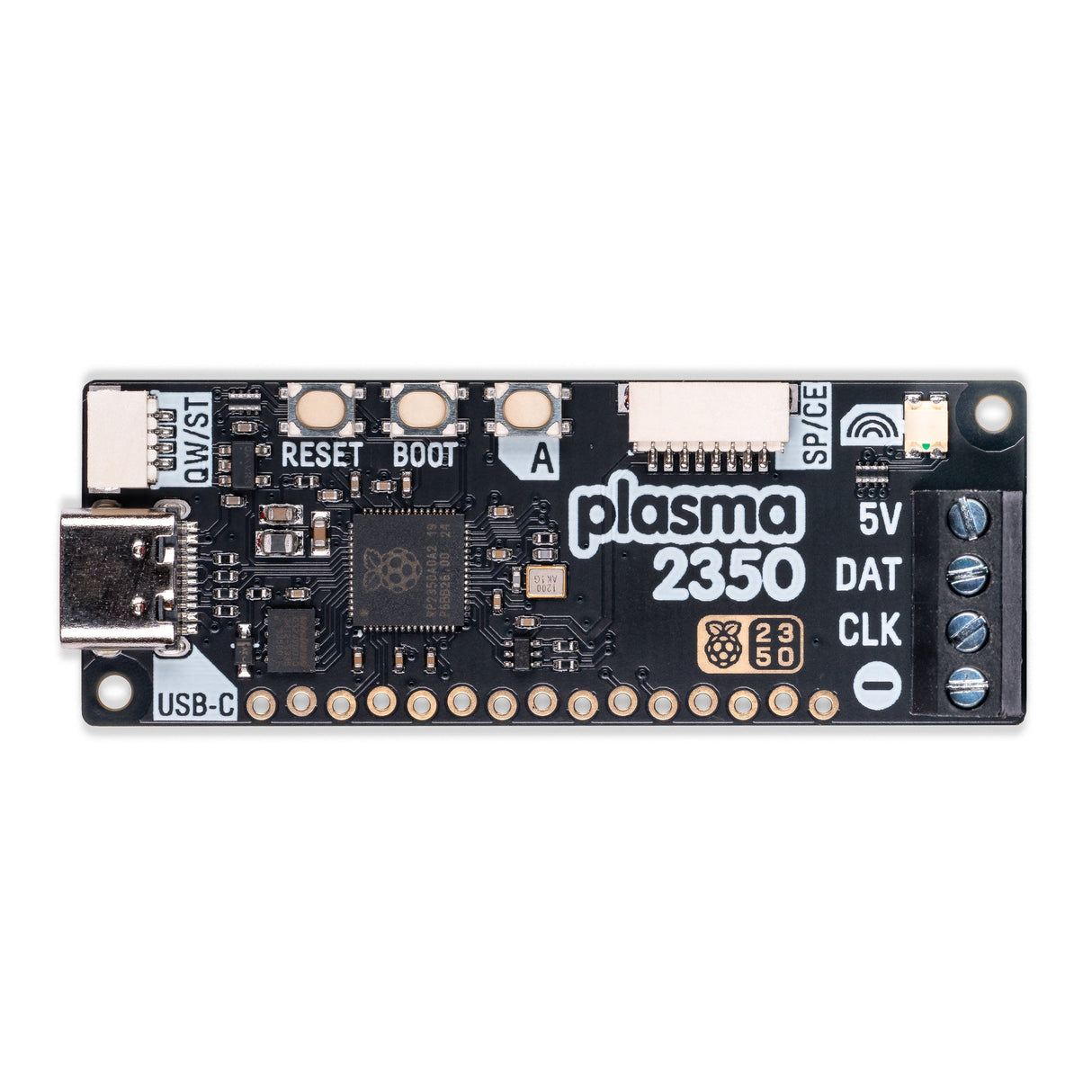

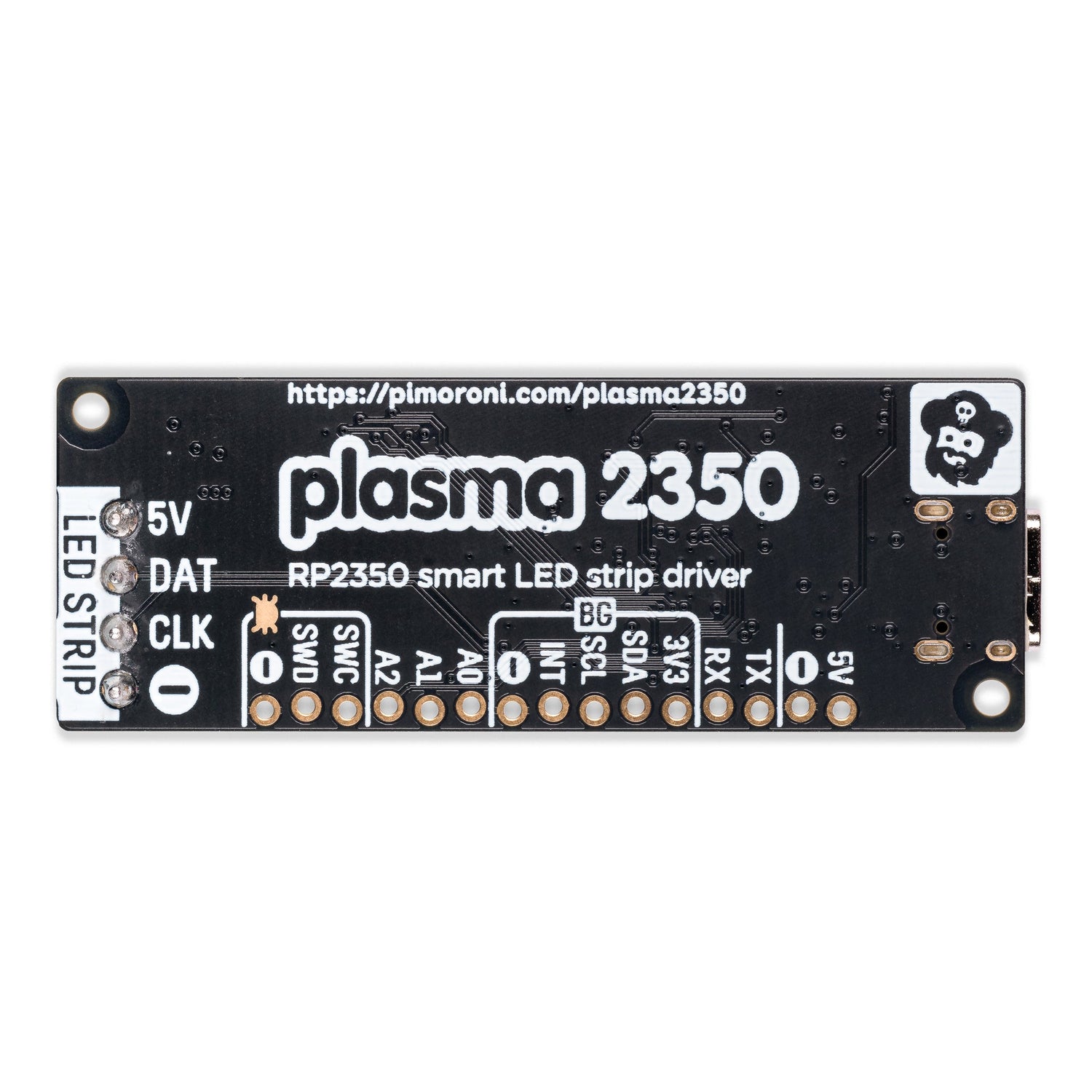

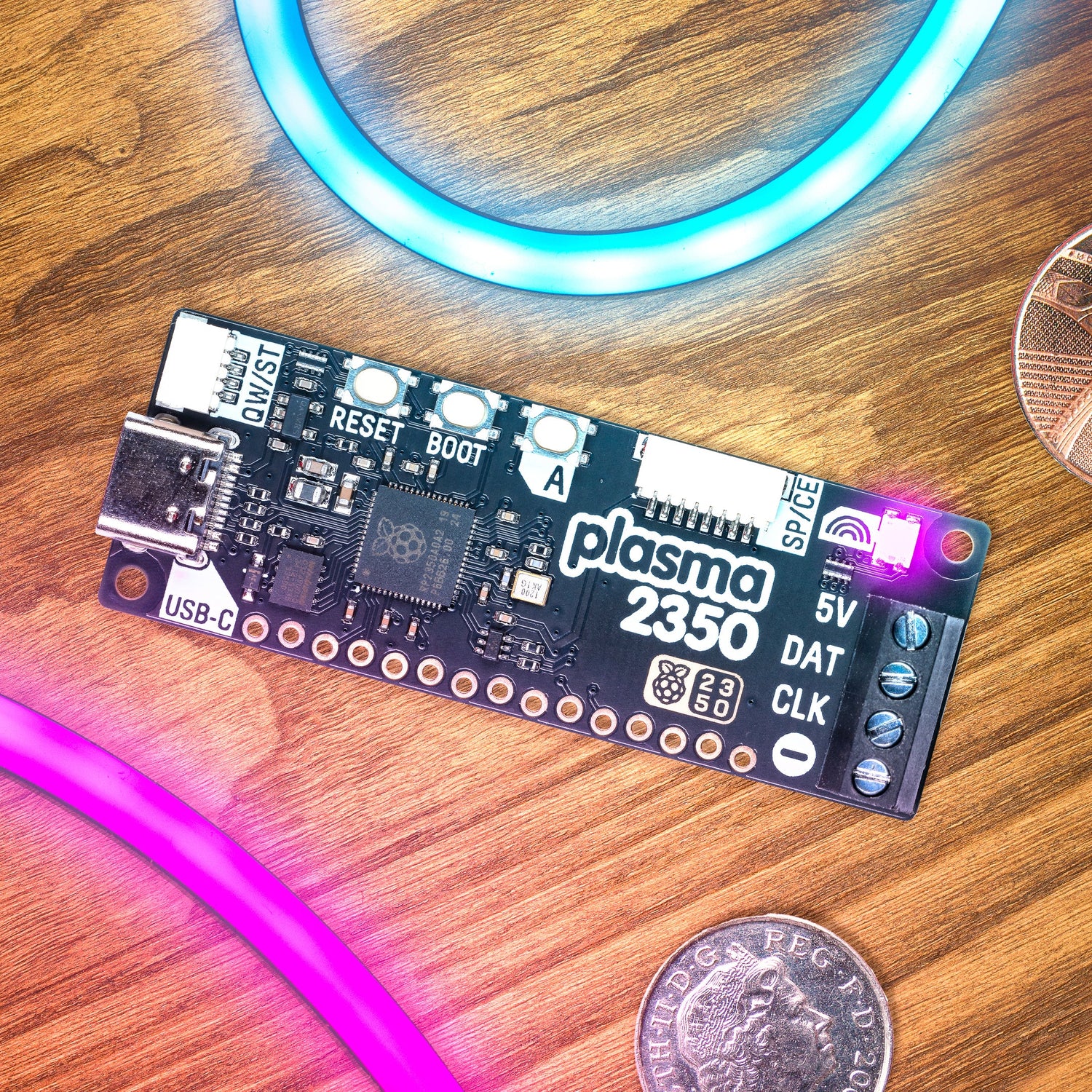

Plasma 2350 is an all-in-one USB-C powered controller for WS2812/Neopixel and APA102/Dotstar addressable LED strips. Powered by the RP2350A microcontroller, it can draw up to 3A via USB-C – enough juice to drive a substantial string of LEDs without a separate power supply.
Fully assembled with screw terminals for easy LED strip connection, plus a QW/ST connector for plugging in Qwiic or STEMMA QT breakouts. Includes a user button for switching effects, an onboard RGB LED, and is programmable with C/C++ or MicroPython.
Key Features
- RP2350A Powered – Dual Arm Cortex M33 at up to 150MHz with 520KB SRAM
- 4MB Flash – QSPI flash with XiP support
- USB-C Power & Programming – Up to 3A for driving LEDs directly
- Screw Terminals – Easy connection for LED strips
- QW/ST Connector – Qwiic/STEMMA QT compatible for I2C breakouts
- User Controls – Dedicated user button plus RGB LED indicator
- Fully Assembled – No soldering required
LED Compatibility
- WS2812 / Neopixel / SK6812 (5V)
- APA102 / Dotstar / SK9822
Specifications
- Microcontroller: RP2350A (Dual Cortex M33, 150MHz)
- Memory: 520KB SRAM, 4MB QSPI Flash
- Power Input: USB-C (up to 3A)
- Connectors: USB-C, QW/ST (Qwiic/STEMMA QT), SP/CE
- Buttons: Reset, BOOT (also usable as user button), User
- Dimensions: 61mm × 22mm × 12mm (approx)
Ideal For
- Addressable LED strip projects
- Decorative lighting installations
- LED art and displays
- Interactive light effects

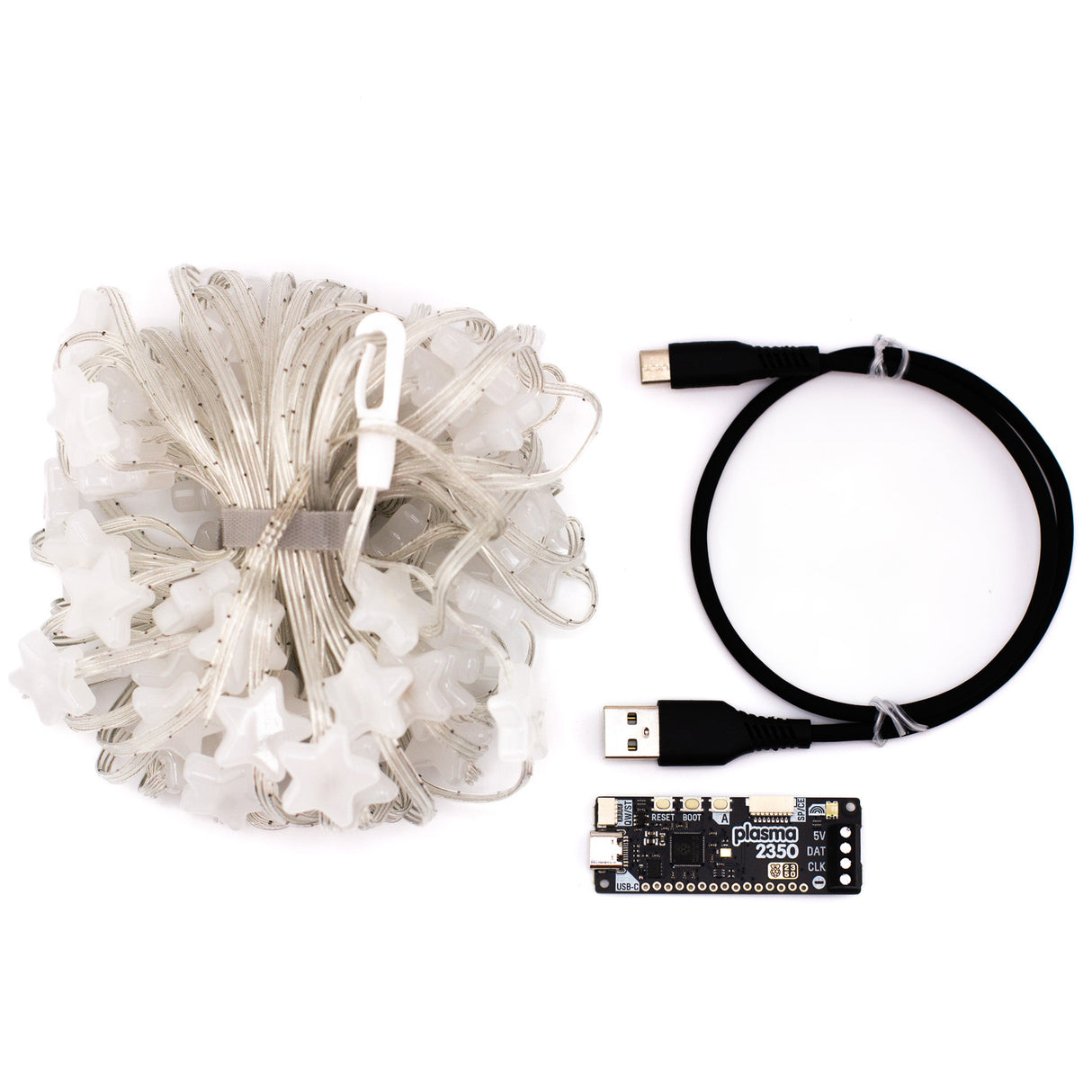

STARter Kit Contents
- 1× Plasma 2350
- 1× USB-C cable
- 1× 10m RGB LED Star Wire
