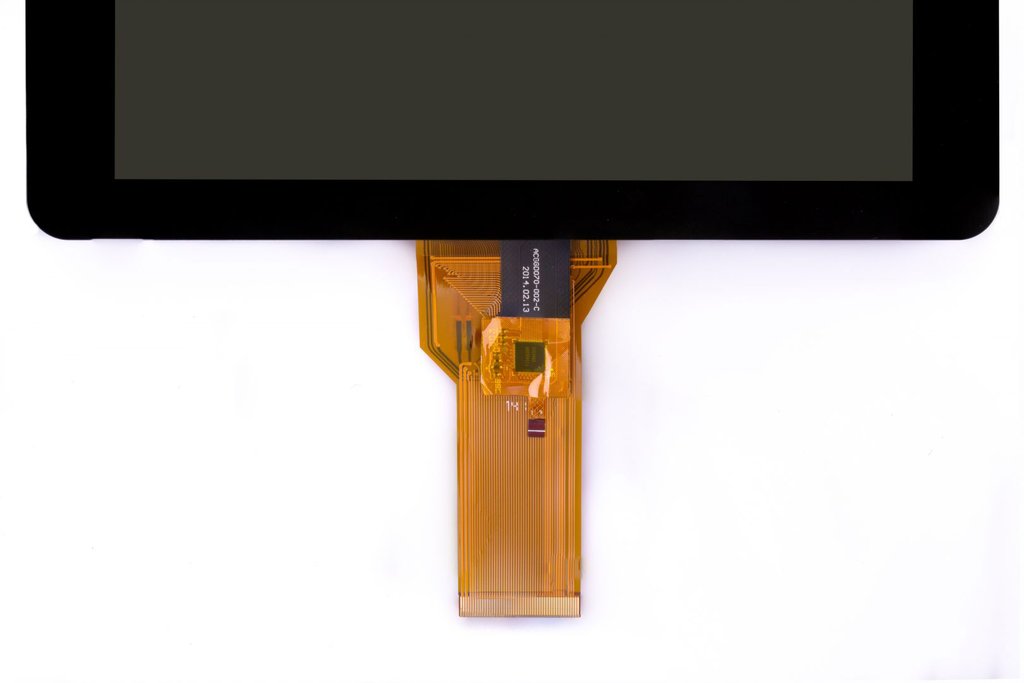

Raspberry Pi 7" Touchscreen Display (Official)
The official Raspberry Pi 7" Touchscreen Display enables all-in-one projects like tablets, infotainment systems, kiosks, and embedded devices. The 800×480 capacitive touchscreen supports 10-finger touch and connects directly to your Pi's DSI port.
With touchscreen drivers built into Raspberry Pi OS, including an on-screen keyboard, you can create fully interactive projects without a physical keyboard or mouse.
Key Features
- 10-Point Capacitive Touch – Multi-touch support for intuitive interaction
- DSI Connection – Direct ribbon cable connection to Pi's display port
- Integrated Power – Powers from Pi's GPIO, single power supply for both
- On-Screen Keyboard – Built into Raspberry Pi OS for keyboard-free operation
- Mounting Hardware – Standoffs included to mount Pi directly to display
Specifications
- Screen Size: 7" diagonal
- Resolution: 800 × 480 pixels
- Touch: 10-finger capacitive
- Screen Dimensions: 194 × 110 × 20mm (with standoffs)
- Viewable Area: 155 × 86mm
- Connection: DSI ribbon cable

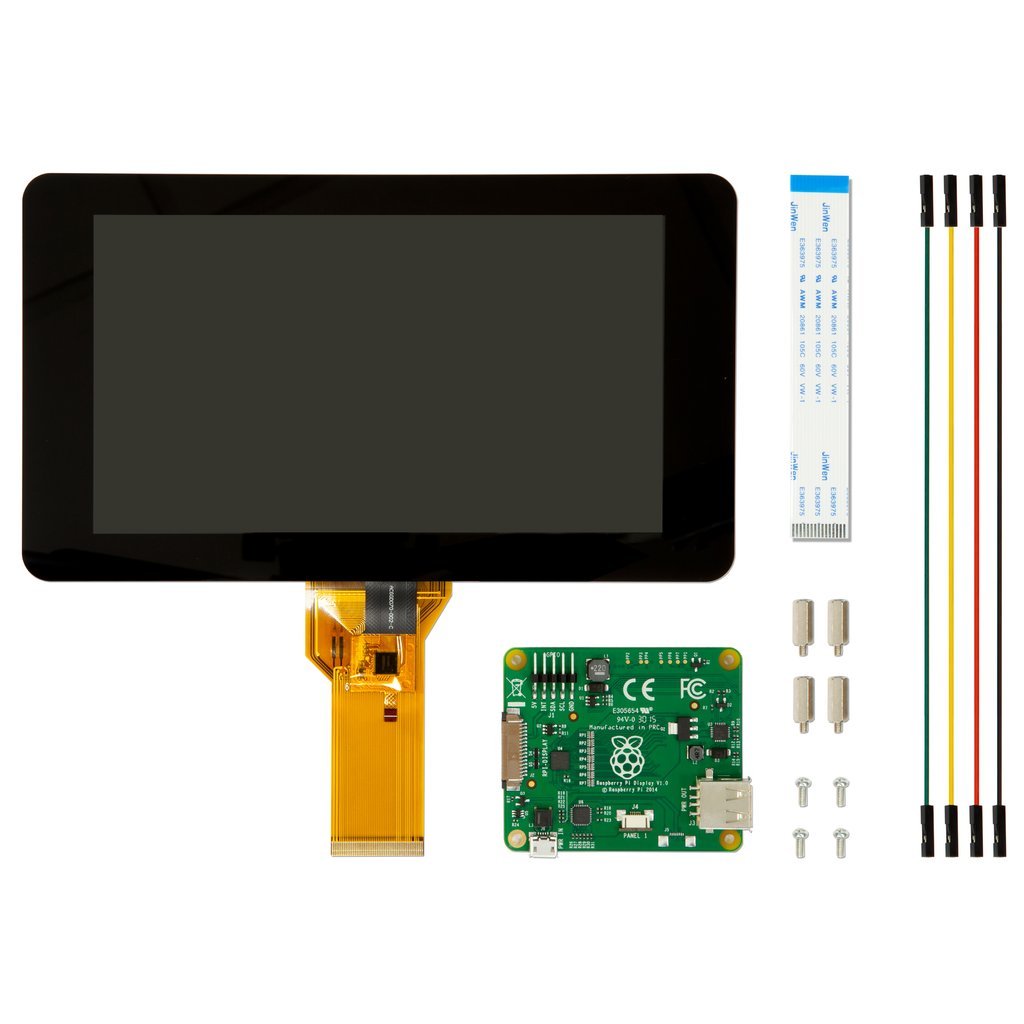

Package Contents
- 1× 7" Touchscreen Display
- 1× Adapter Board
- 1× DSI Ribbon Cable
- 4× Standoffs and Screws
- 4× Jumper Wires (for power connection)
- 1× Perspex Frame
Compatibility
- Raspberry Pi 4 Model B
- Raspberry Pi 3 Model B+
- Raspberry Pi 3 Model A+
- Raspberry Pi 2 Model B
- Raspberry Pi Model B+
- Raspberry Pi Model A+
