Raspberry Pi Touch Display 2

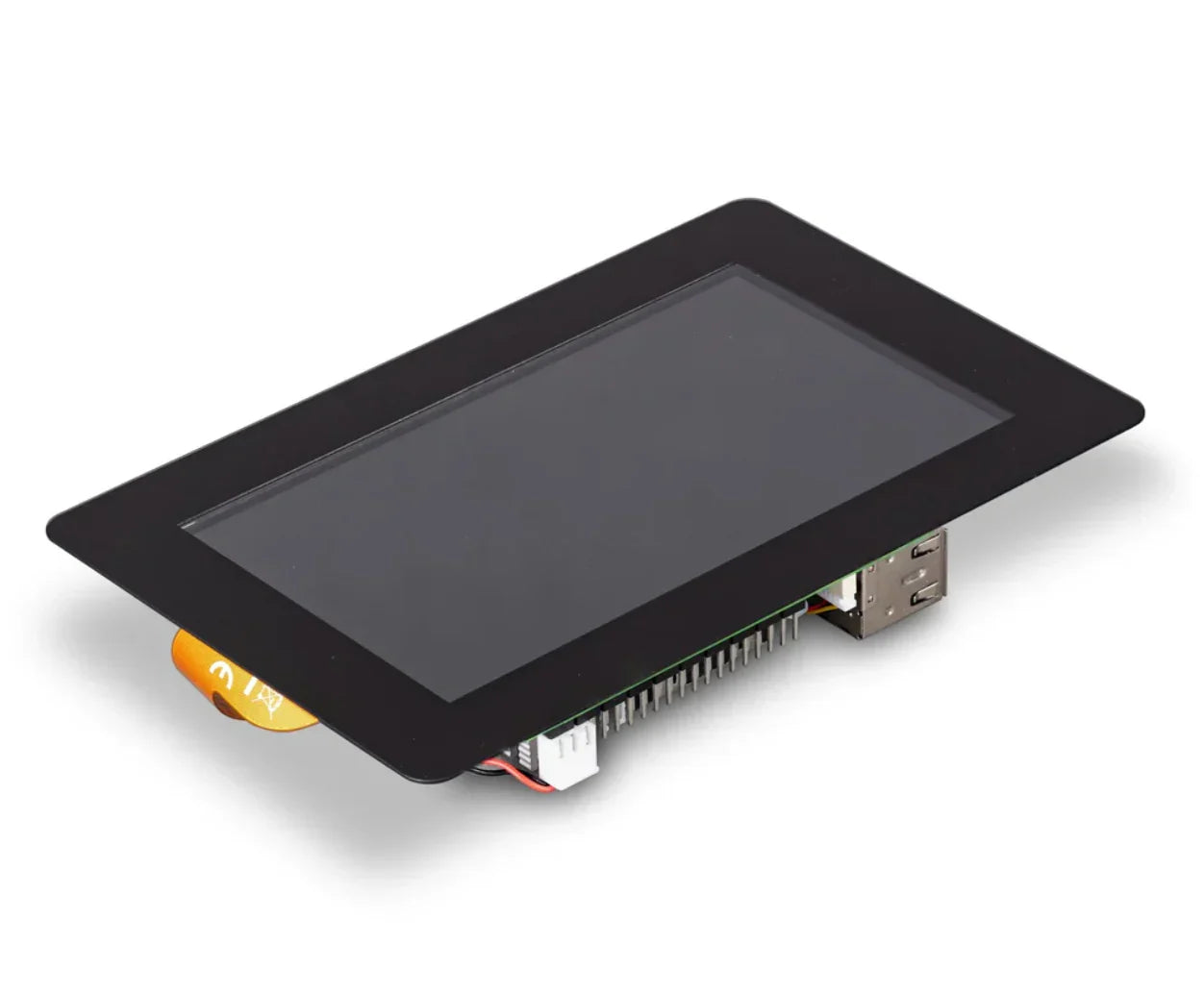

The Raspberry Pi Touch Display 2 is the official touchscreen for Raspberry Pi, available in 5-inch, 7-inch and 10-inch portrait panels. It is ideal for interactive projects, information dashboards, home automation and kiosks — or as a compact desktop monitor for your Pi.

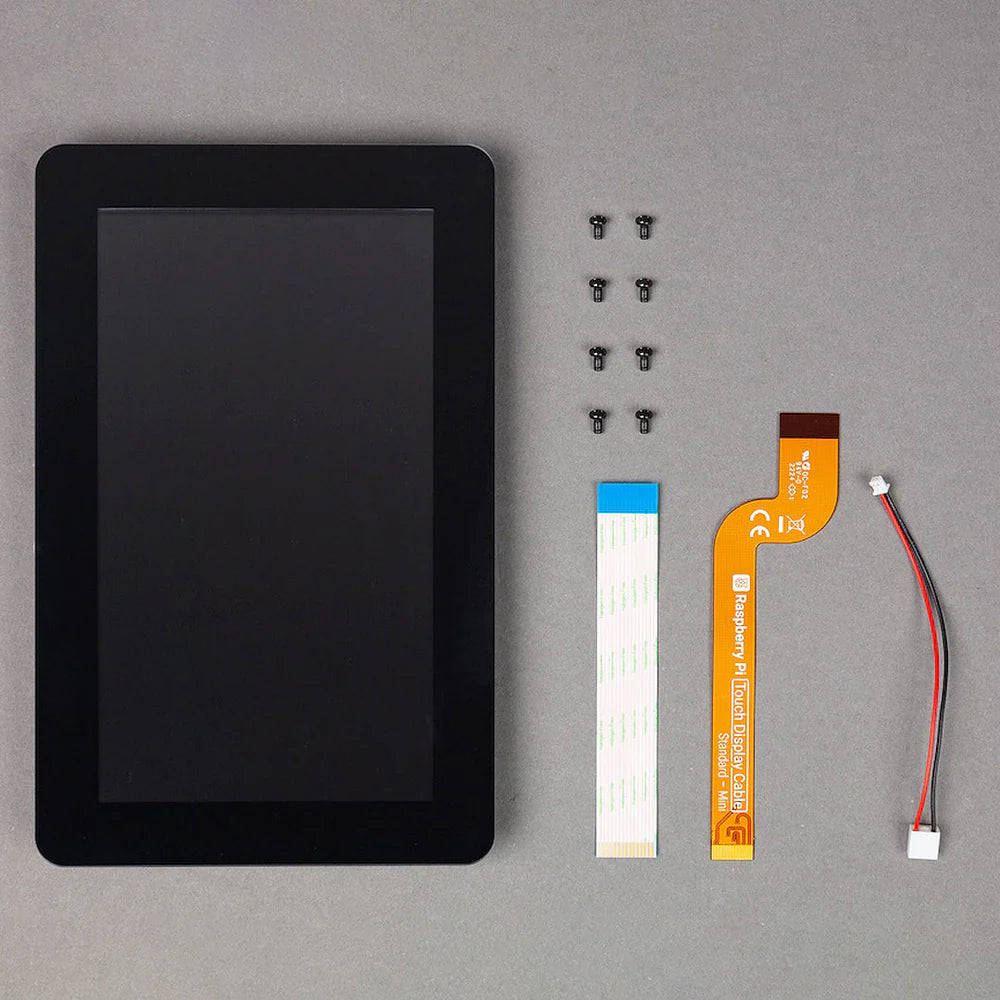

Connecting with just two cables — GPIO power and a DSI ribbon — the display is powered directly by your Raspberry Pi with no separate supply. Raspberry Pi OS includes the touchscreen drivers and an on-screen keyboard, so you get full functionality without a physical keyboard or mouse.
Choosing a Size
- 5-inch – 720 × 1280, five-finger capacitive touch, anti-glare. The compact option where space is tight.
- 7-inch – 720 × 1280, five-finger capacitive touch, anti-glare. The classic size for dashboards and media controllers.
- 10-inch – 1200 × 1920 IPS, ten-finger capacitive touch. The largest and sharpest panel, for tablets and full-size kiosk builds.
Key Features
- Three Sizes – 5", 7" and 10" portrait panels
- True Multi-Touch – five-finger on the 5" and 7", ten-finger on the 10"
- No External Power – powered directly by the Raspberry Pi
- Simple Connection – DSI ribbon cable and GPIO power
- Portrait or Landscape – configurable orientation in software

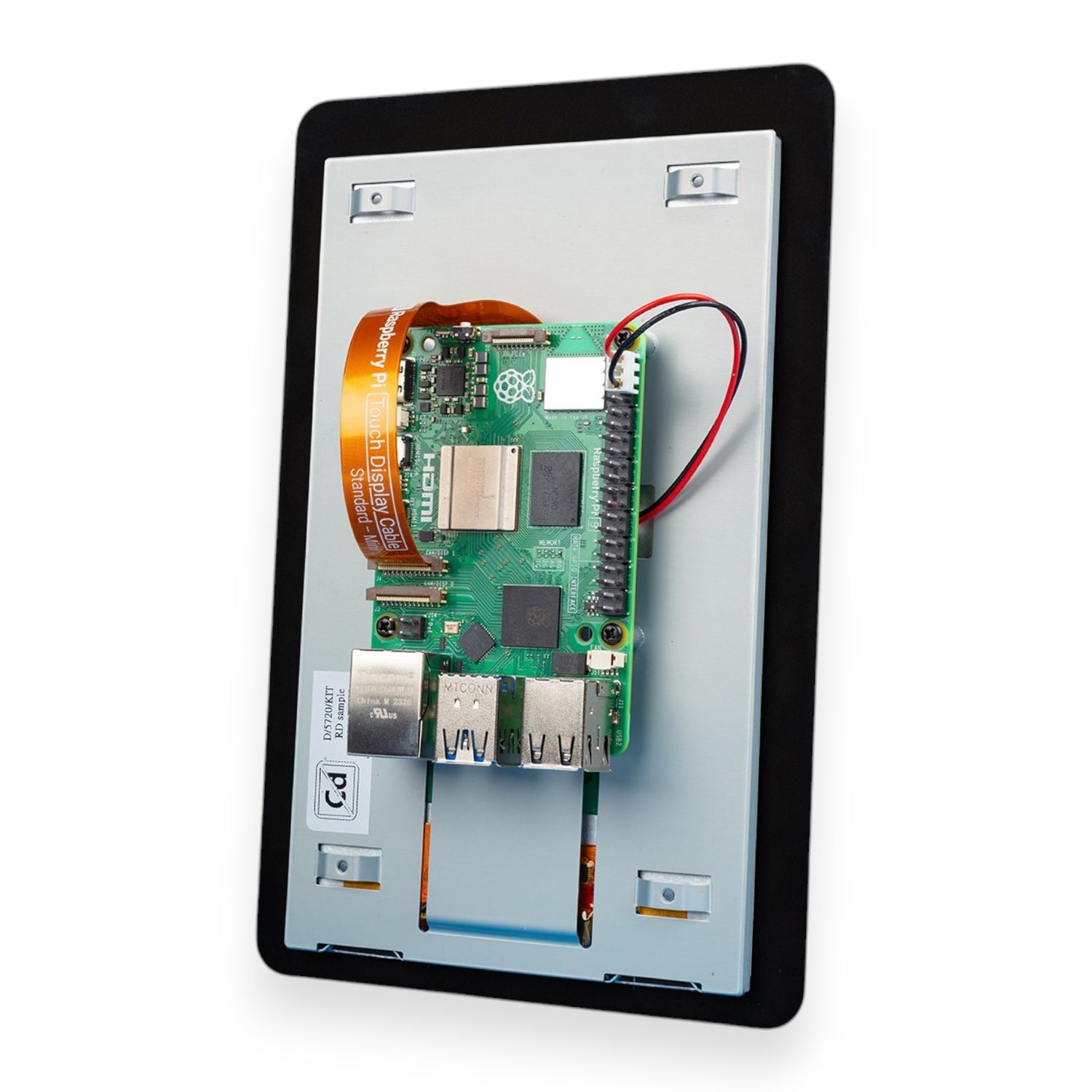

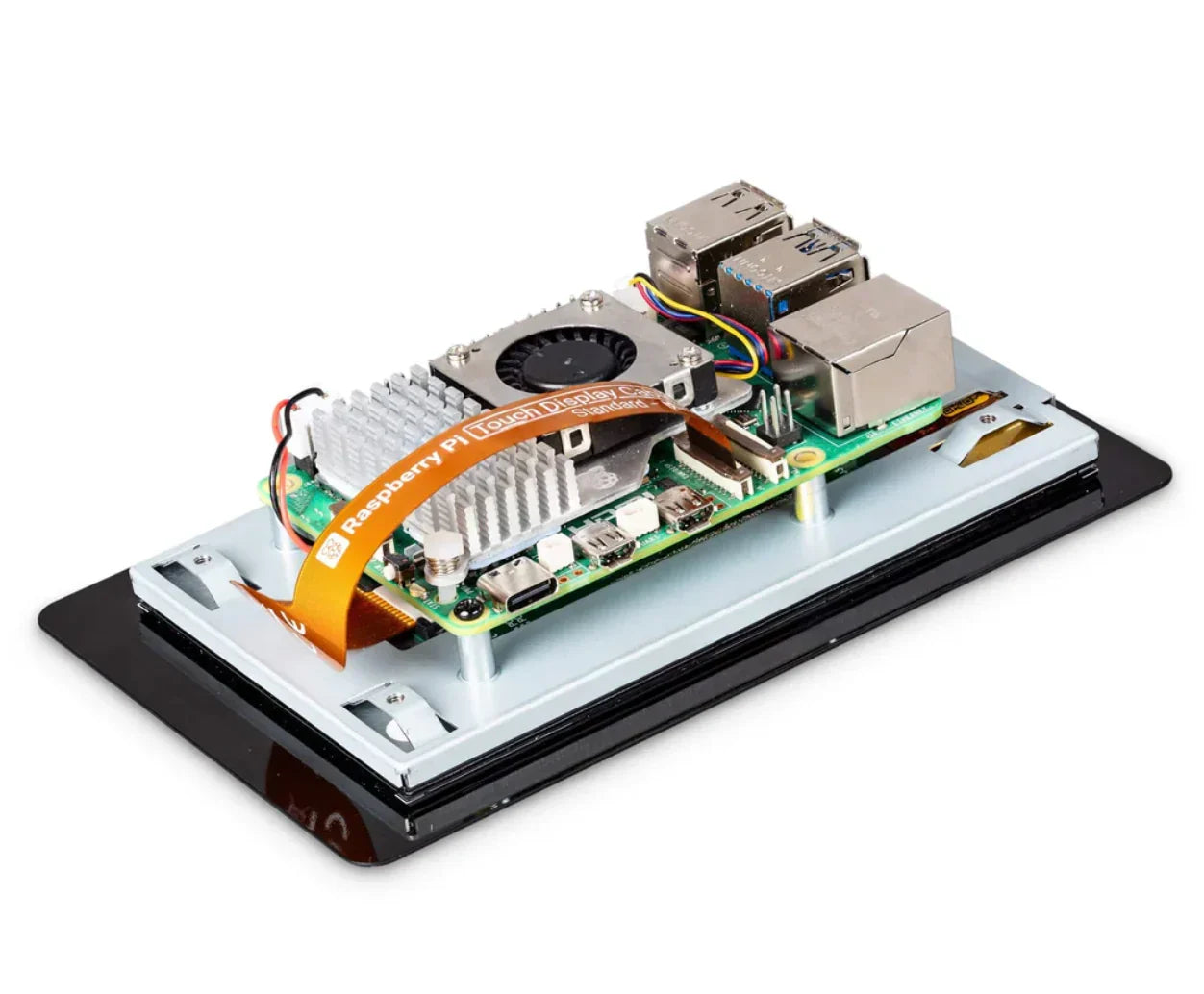

- Rear Mounting Points – built-in mounting for Pi boards (fixings included)
Specifications
- Resolution: 5" and 7" — 24-bit RGB 720 × 1280; 10" — 24-bit RGB 1200 × 1920
- Active Area: 5" — 62.1 × 110.4mm; 7" — 86.94 × 154.56mm; 10" — 135.4 × 216.6mm
- Panel Type: 5" and 7" — LCD TFT, normally black, transmissive, anti-glare; 10" — IPS TFT, normally black, transmissive
- Overall Dimensions: 7" — 189.32 × 120.24mm; 10" — 161.8 × 247.3mm
- Colour: 24-bit RGB
Ideal For
- Information kiosks and dashboards
- Home automation interfaces
- Media centre controllers
- Tablet builds and compact desktop computing
