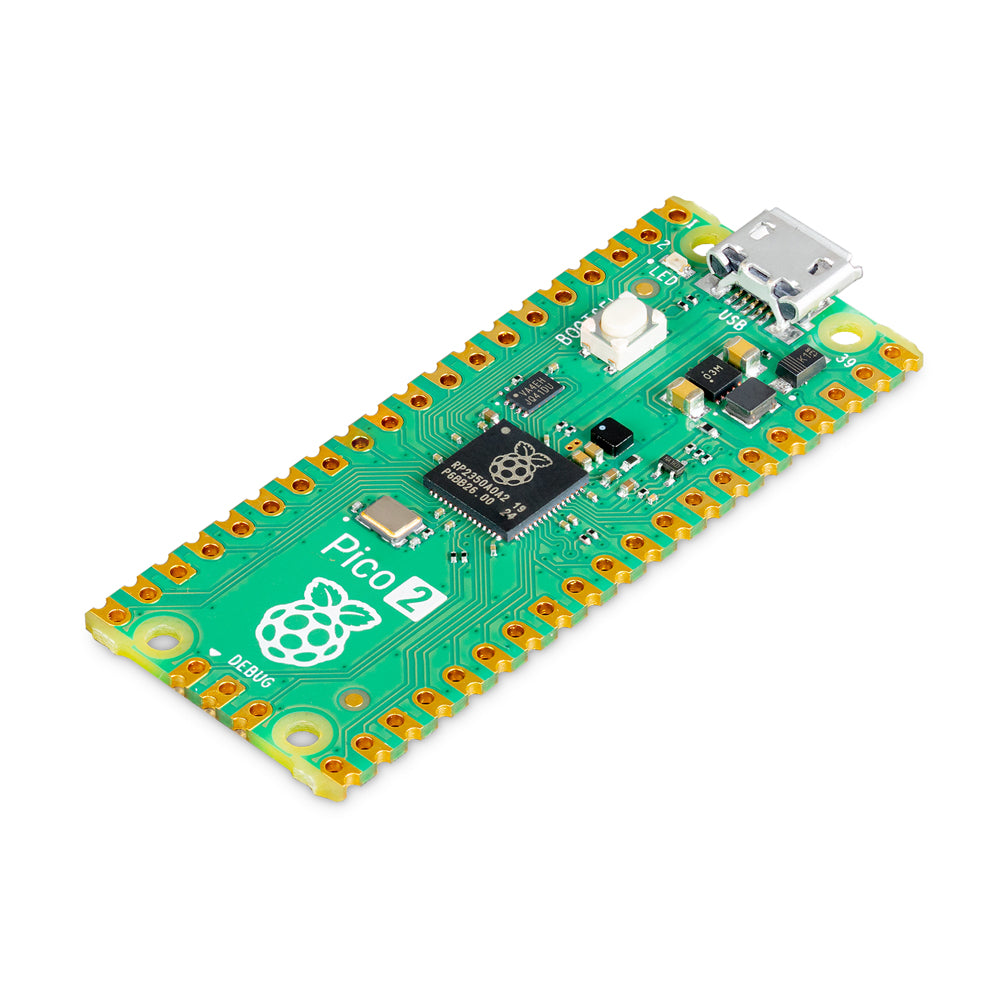

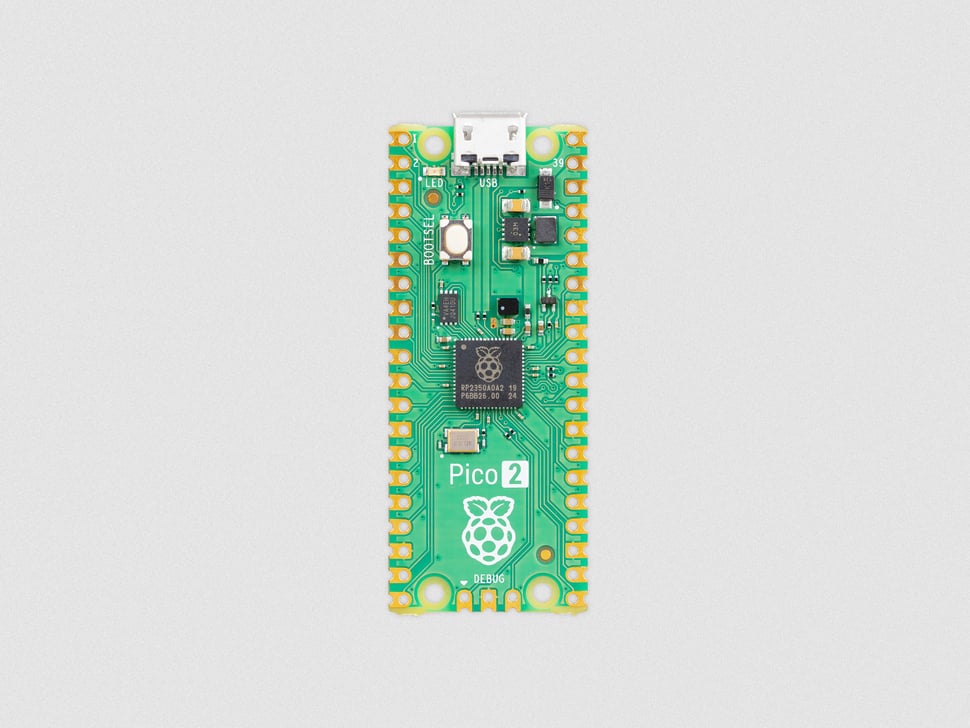

Raspberry Pi Pico 2 - RP2350

The Raspberry Pi Pico 2 is the next-generation microcontroller board featuring the new RP2350 chip. With double the memory, double the storage, faster ARM Cortex-M33 cores, and enhanced security features, it's a significant upgrade while maintaining compatibility with the original Pico.

The RP2350's unique dual-architecture design lets you choose between ARM Cortex-M33 cores or open-source Hazard3 RISC-V cores. The M33 cores deliver approximately twice the performance of the RP2040's M0+ cores, making the Pico 2 ideal for more demanding applications.

Key Features

• RP2350 Microcontroller – Raspberry Pi's next-generation dual-core chip
• Dual Architecture – Switch between ARM Cortex-M33 or RISC-V (Hazard3) cores
• 520KB SRAM – Double the memory of the original Pico
• 4MB Flash – Double the onboard storage
• 3 PIO Blocks – Enhanced programmable I/O (up from 2)
• HSTX Peripheral – High-speed transmit for DVI/video output
• ARM TrustZone – Hardware security isolation
• Signed Boot – Secure boot with cryptographic verification

Specifications

• Processor: Dual-core ARM Cortex-M33 @ 150MHz (or RISC-V Hazard3)
• Memory: 520KB SRAM, 4MB flash
• GPIO: 26 pins (23 digital, 3 ADC-capable)
• ADC: 12-bit, 500ksps
• Peripherals: 2× UART, 2× I2C, 2× SPI, 24× PWM channels
• PIO: 3 blocks with 12 state machines
• Power: Micro-USB or external supply
• Dimensions: 21 × 51mm (Pico form factor)

What's New vs Pico (RP2040)

• 2× faster cores (M33 vs M0+)
• 2× memory (520KB vs 264KB)
• 2× storage (4MB vs 2MB)
• 3× PIO blocks (vs 2)
• HSTX high-speed output peripheral
• Hardware security features
• RISC-V core option

Ideal For

• Advanced embedded projects requiring more performance
• CircuitPython/MicroPython with larger programs
• RISC-V learning and experimentation
• Secure product development
• Video output projects (via HSTX)

Resources

• Pico 2 Documentation
• Pico 2 Datasheet (PDF)
• RP2350 Datasheet (PDF)
