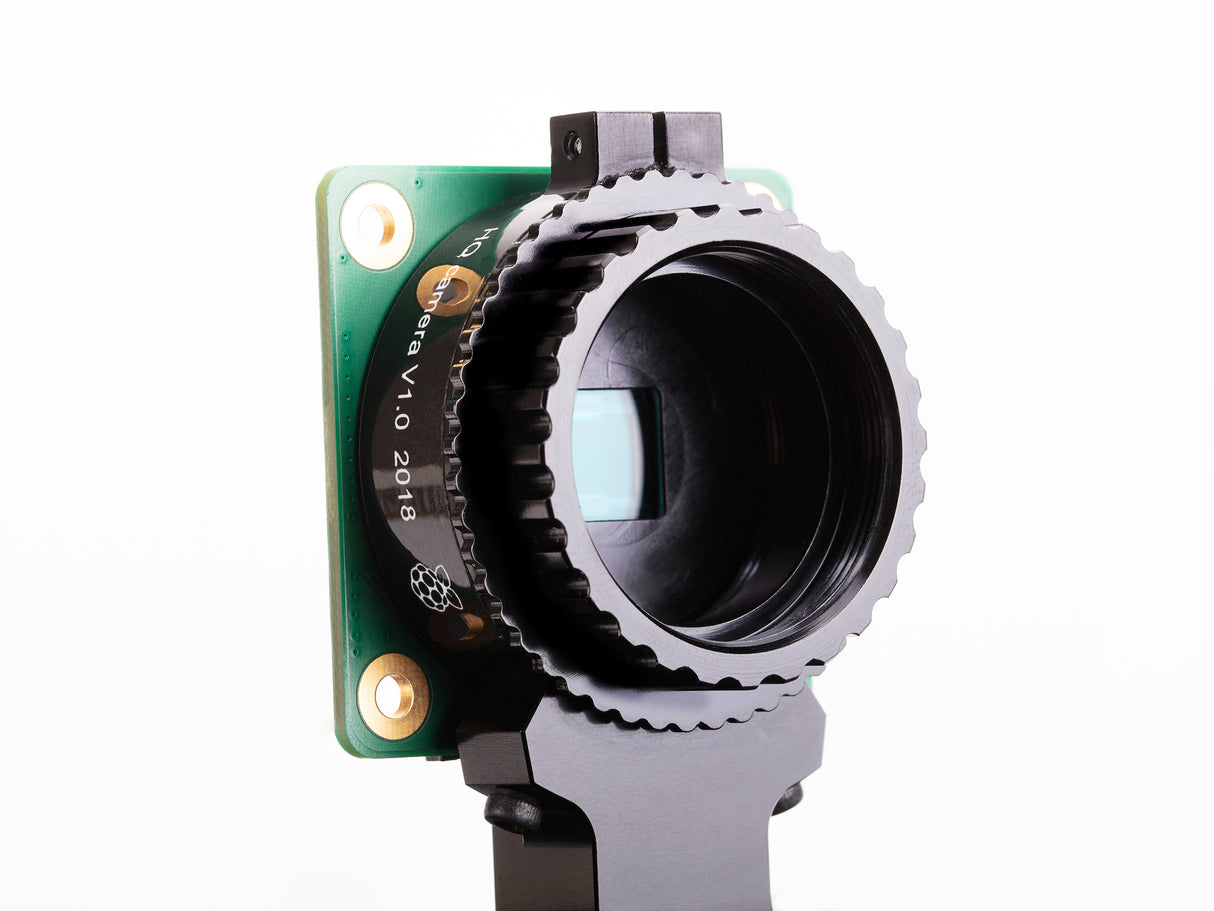

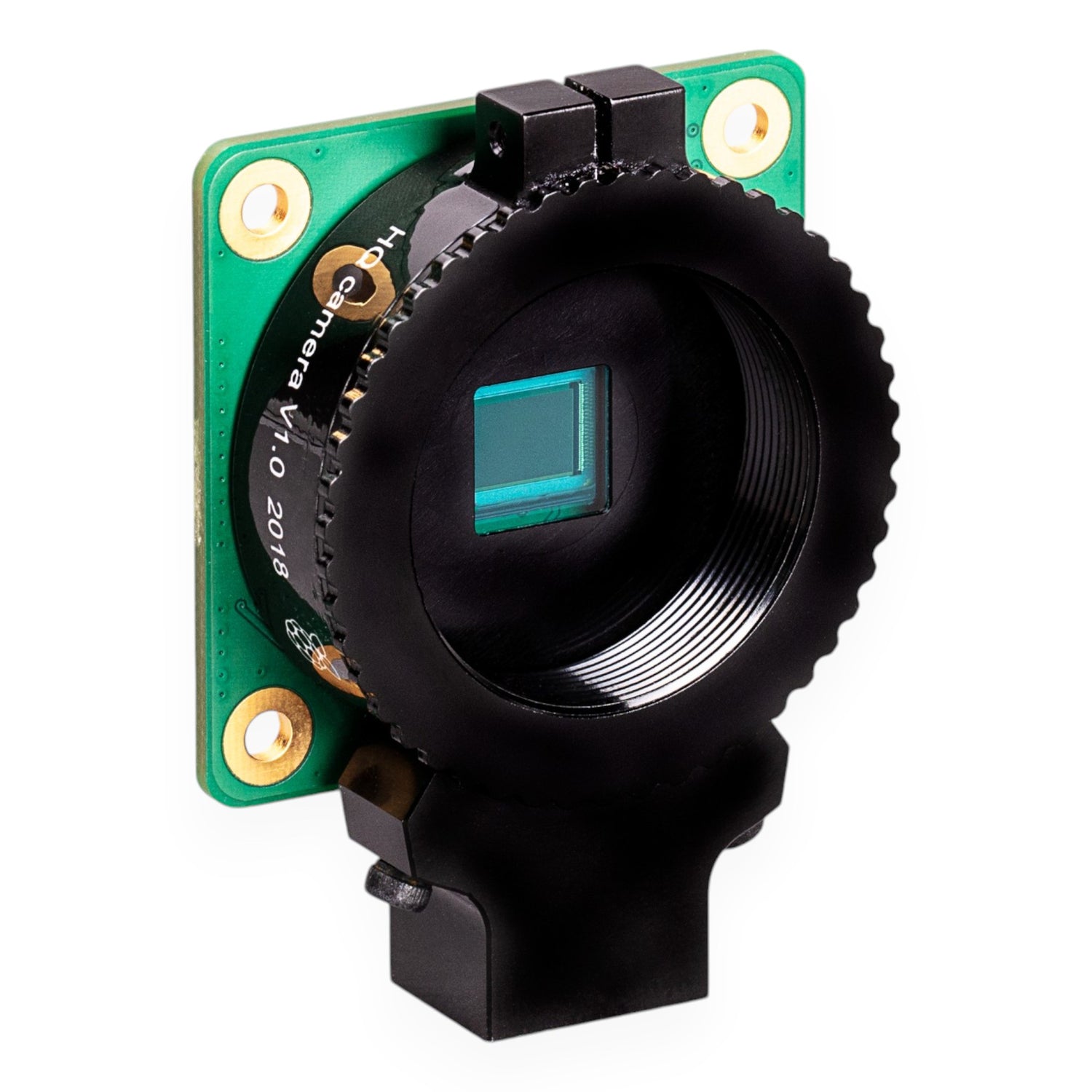

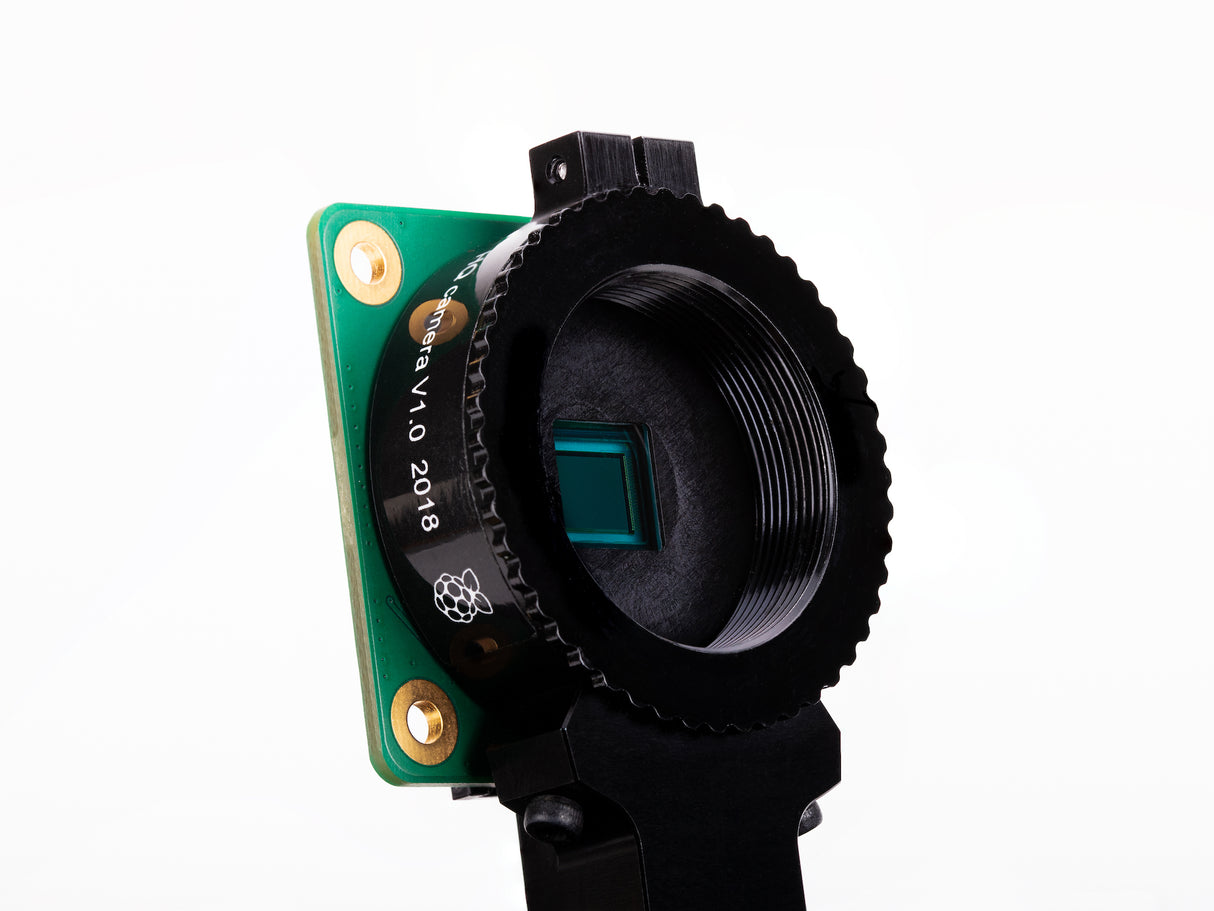

Raspberry Pi High Quality Camera

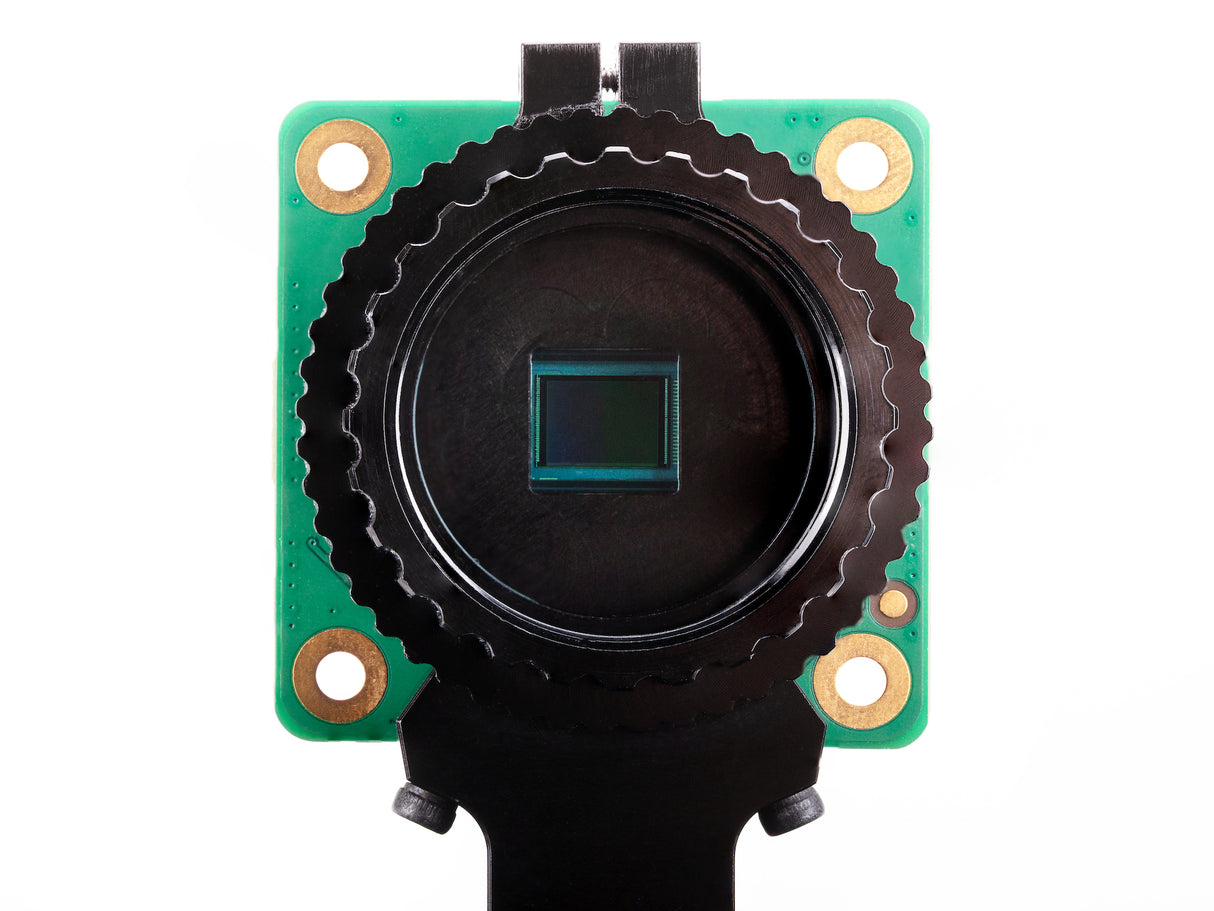

The Raspberry Pi High Quality Camera delivers 12.3-megapixel resolution with a back-illuminated Sony IMX477 sensor, offering significantly improved image quality and low-light performance over the standard Camera Module. Its interchangeable C/CS-mount lens system opens up professional photography and industrial applications.
With approximately 50% greater area per pixel compared to the Camera Module v2, the HQ Camera excels in challenging lighting conditions. The milled aluminium lens mount includes an integrated tripod mount and adjustable focus ring for precise control.
Key Features
- 12.3 Megapixel Sensor – Sony IMX477R stacked, back-illuminated sensor

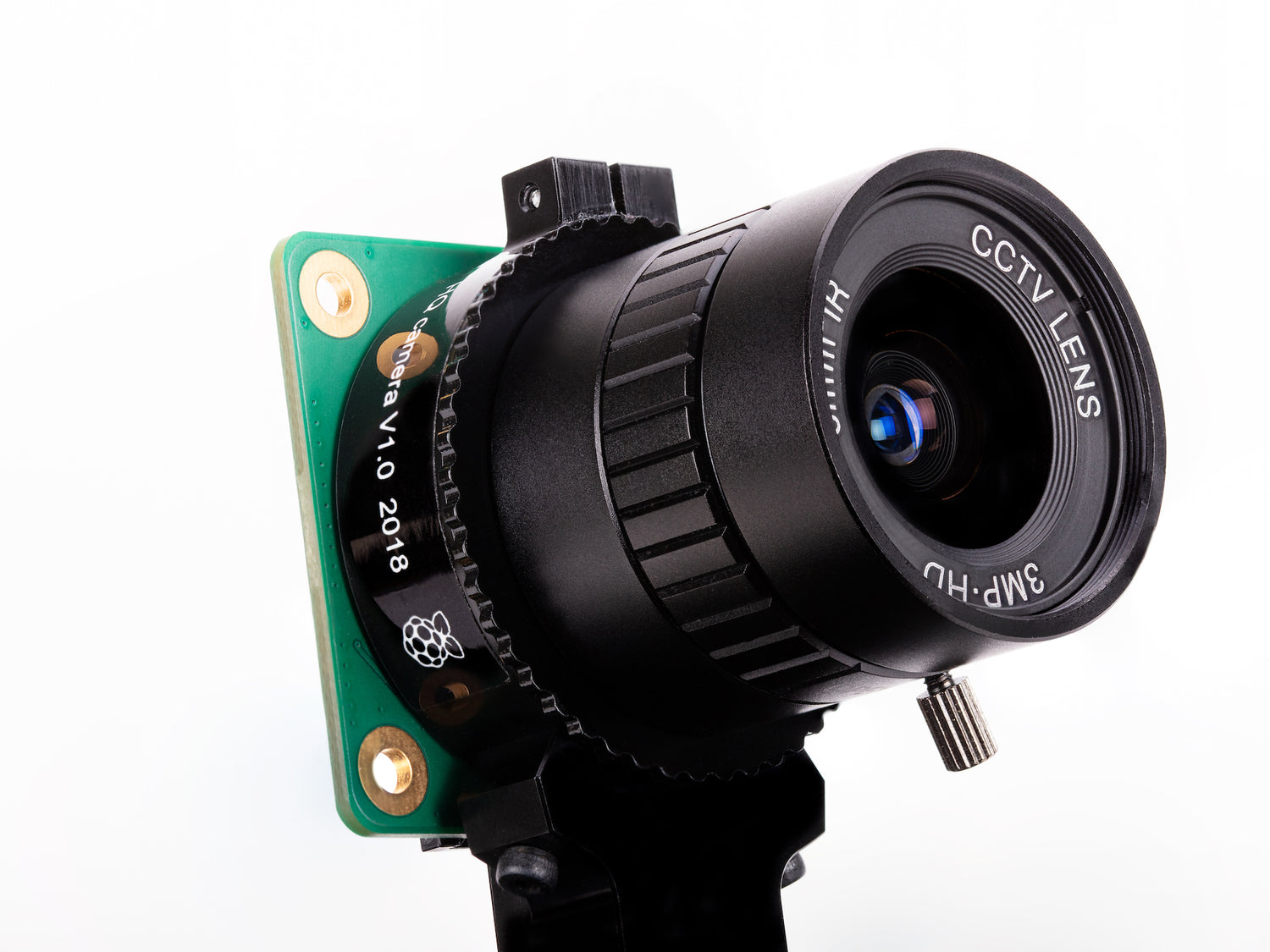

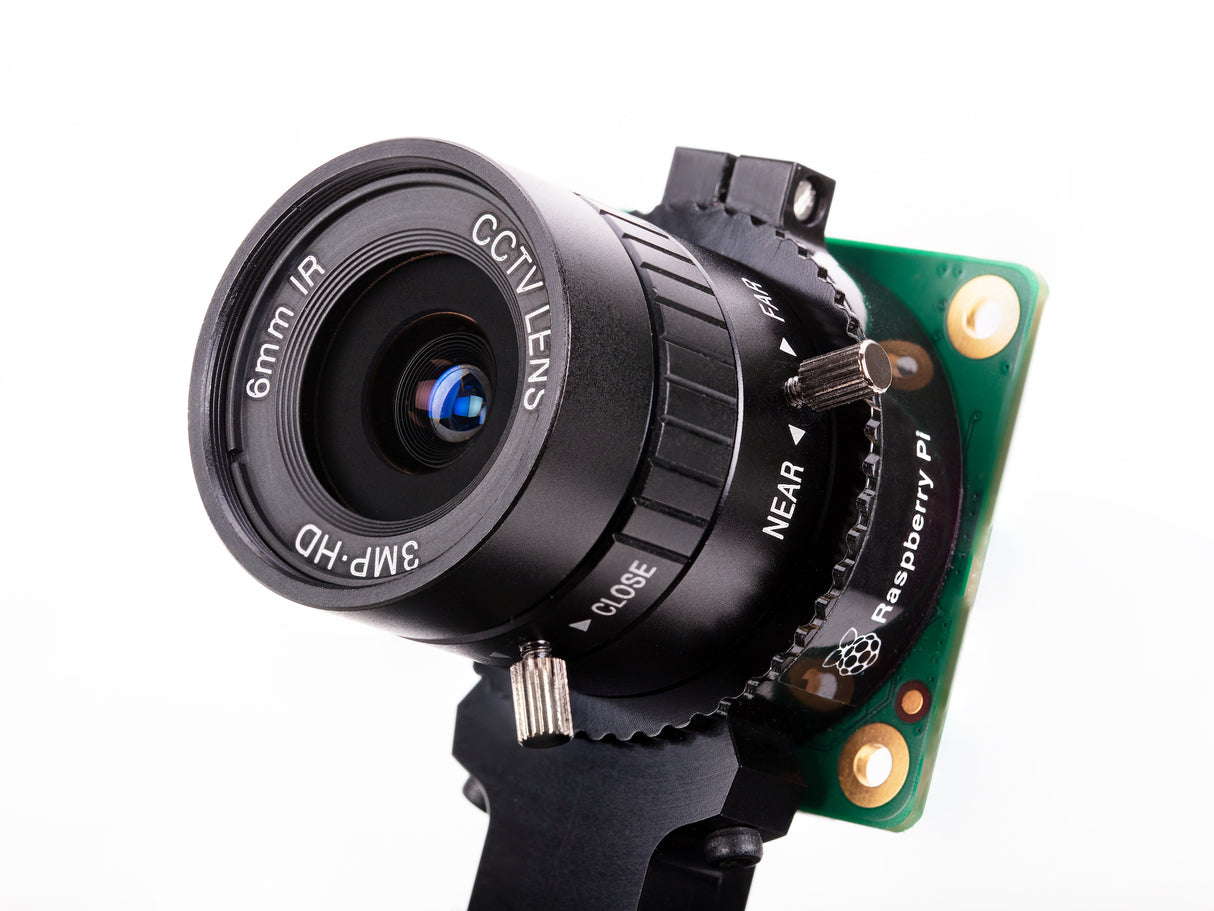

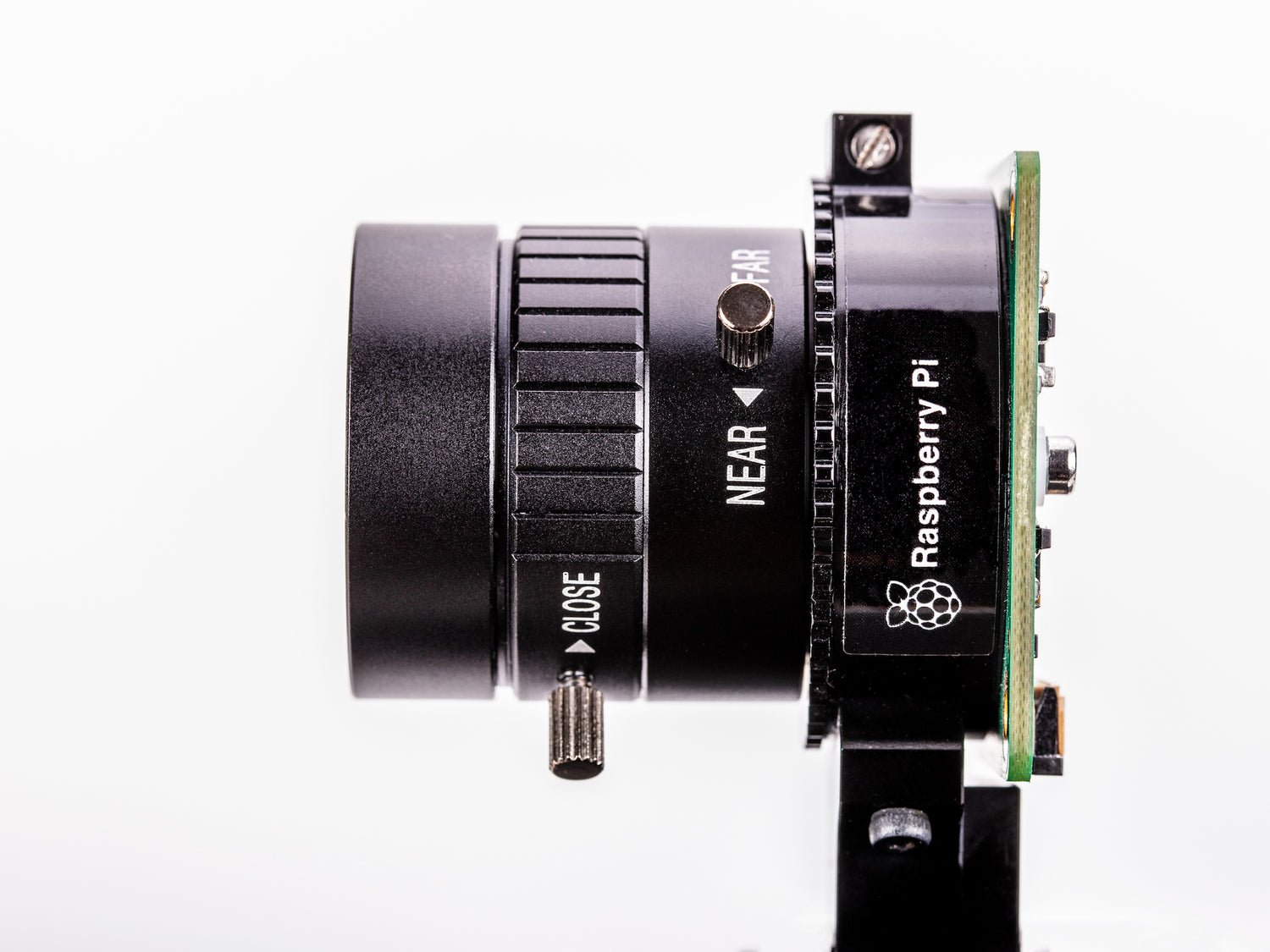

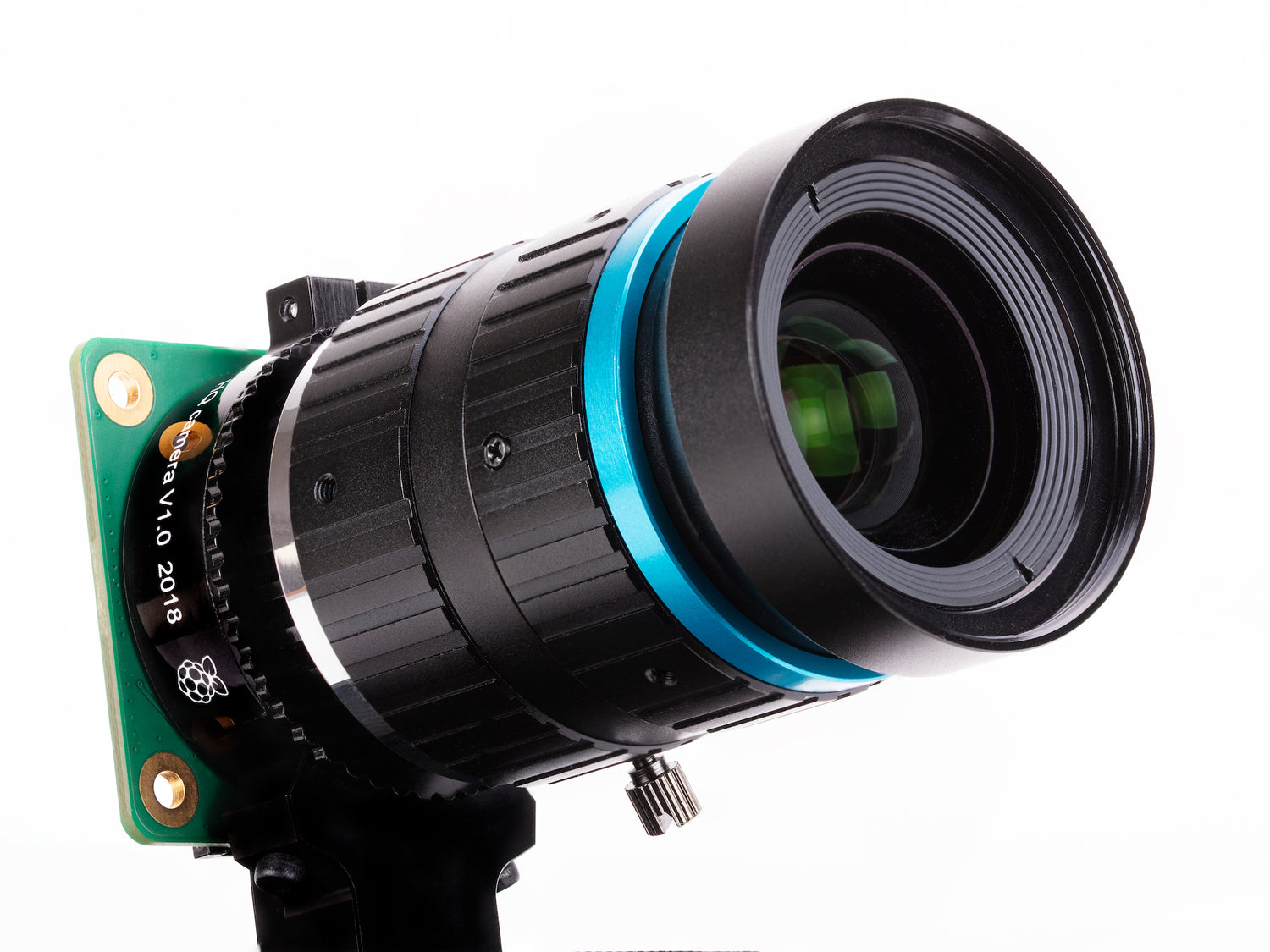

- Interchangeable Lenses – C-mount and CS-mount compatibility
- Superior Low-Light Performance – Larger 1.55μm × 1.55μm pixels
- Adjustable Back Focus – 12.5mm to 22.4mm range for lens compatibility

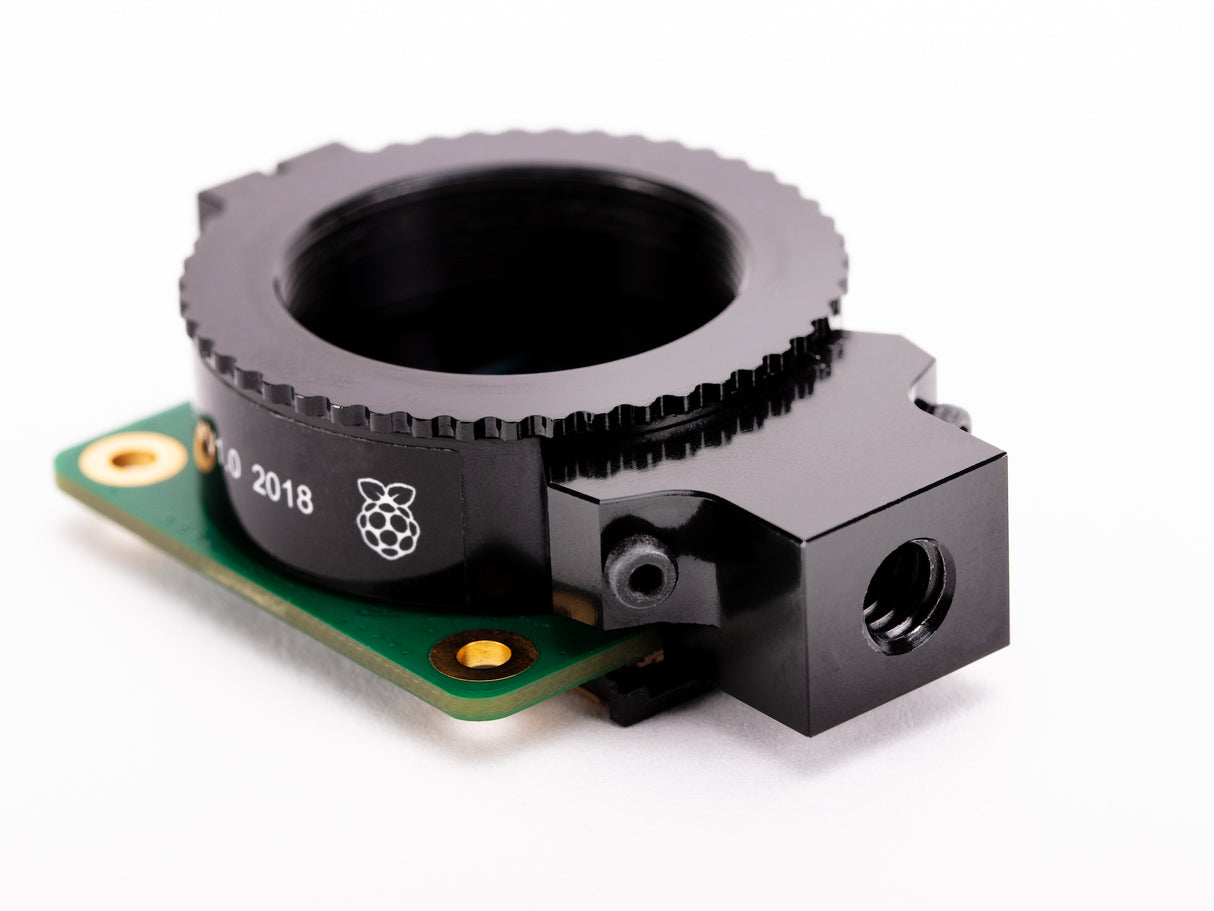

- Tripod Mount – Standard 1/4"-20 thread built into the aluminium housing
- Removable IR Filter – Can be removed for IR sensitivity (irreversible)
Specifications

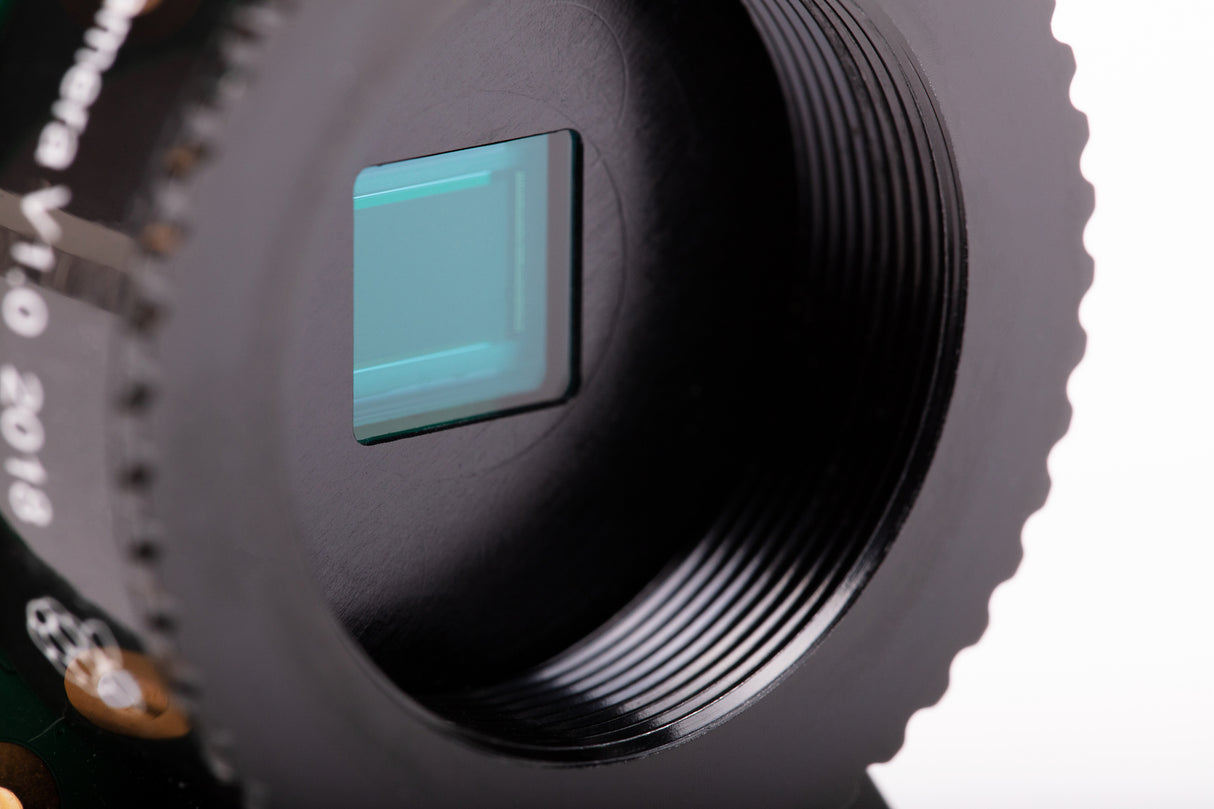

- Sensor: Sony IMX477R, 12.3MP back-illuminated
- Sensor Diagonal: 7.9mm
- Pixel Size: 1.55μm × 1.55μm
- Output: RAW12/10/8, COMP8
- Back Focus: Adjustable (12.5–22.4mm)
- Lens Mount: CS-mount (C-CS adapter included)
- Ribbon Cable: 200mm
- Tripod Mount: 1/4"-20
Package Contents
- 1× Raspberry Pi HQ Camera Module with Sony IMX477 sensor

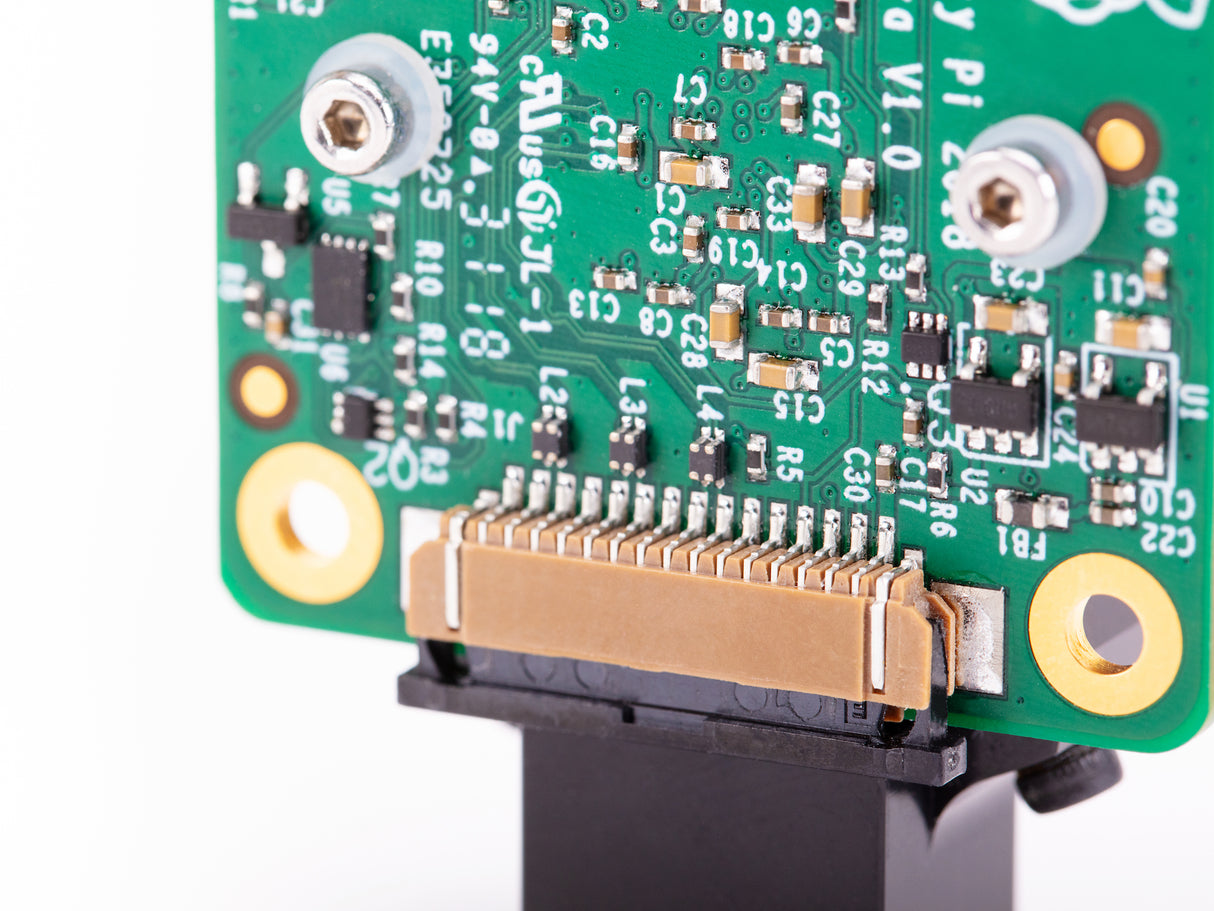

- 1× FPC ribbon cable (200mm)
- 1× Milled aluminium lens mount with tripod mount
- 1× Focus adjustment ring
- 1× C-CS mount adapter
Ideal For
- Professional photography projects
- Machine vision and industrial applications
- Security camera systems
- Scientific imaging and microscopy
