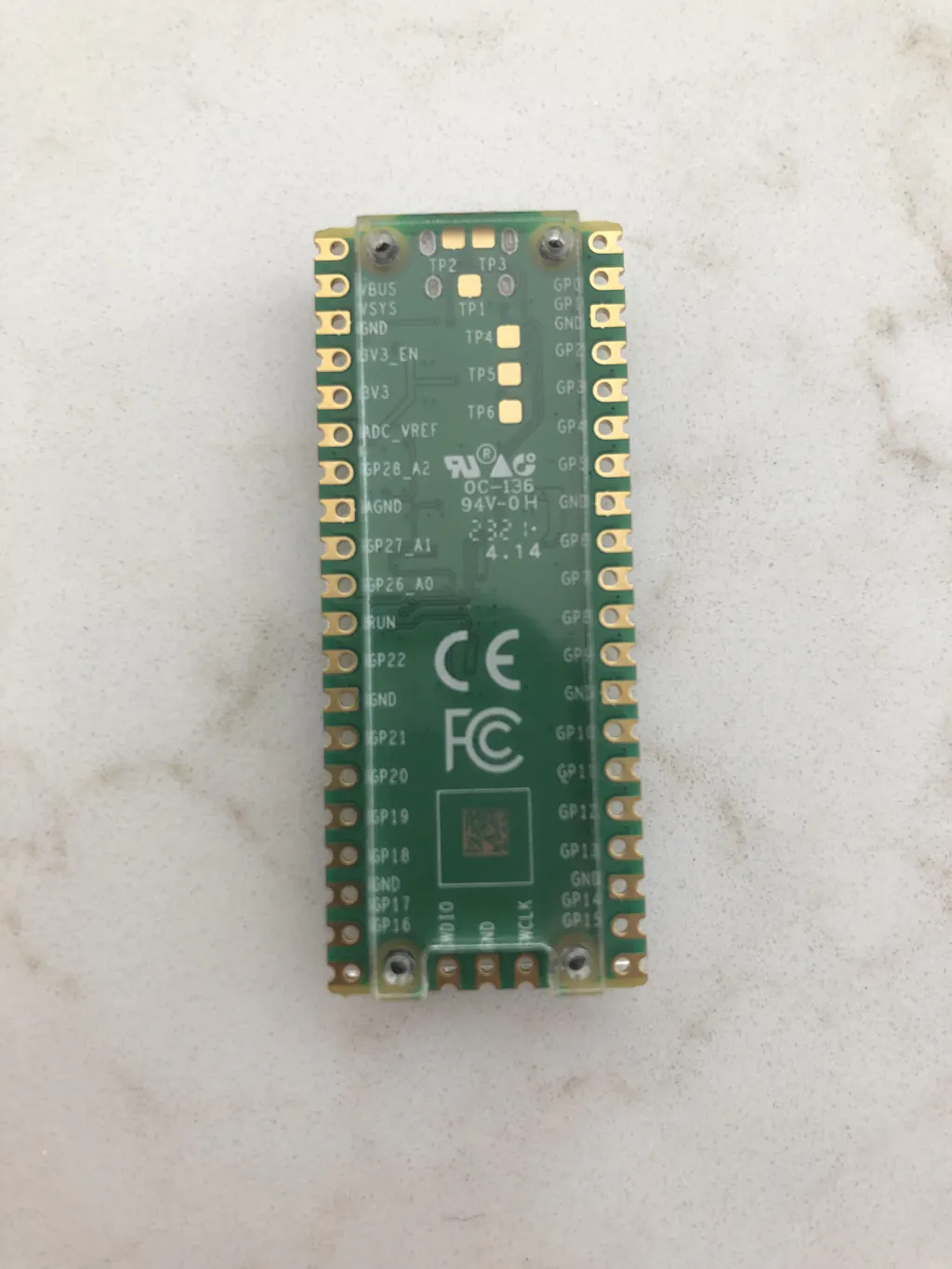

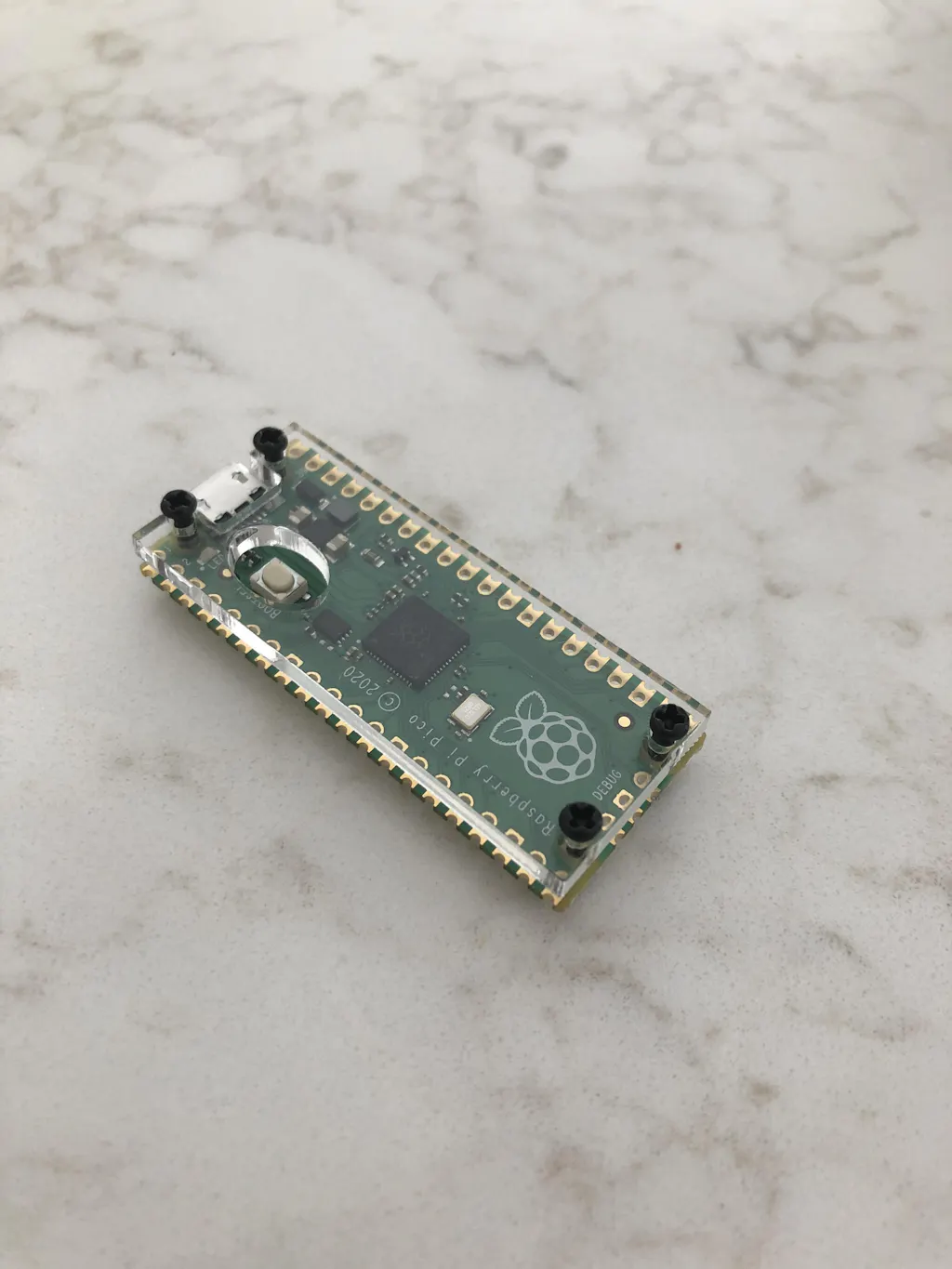

Raspberry Pi Pico

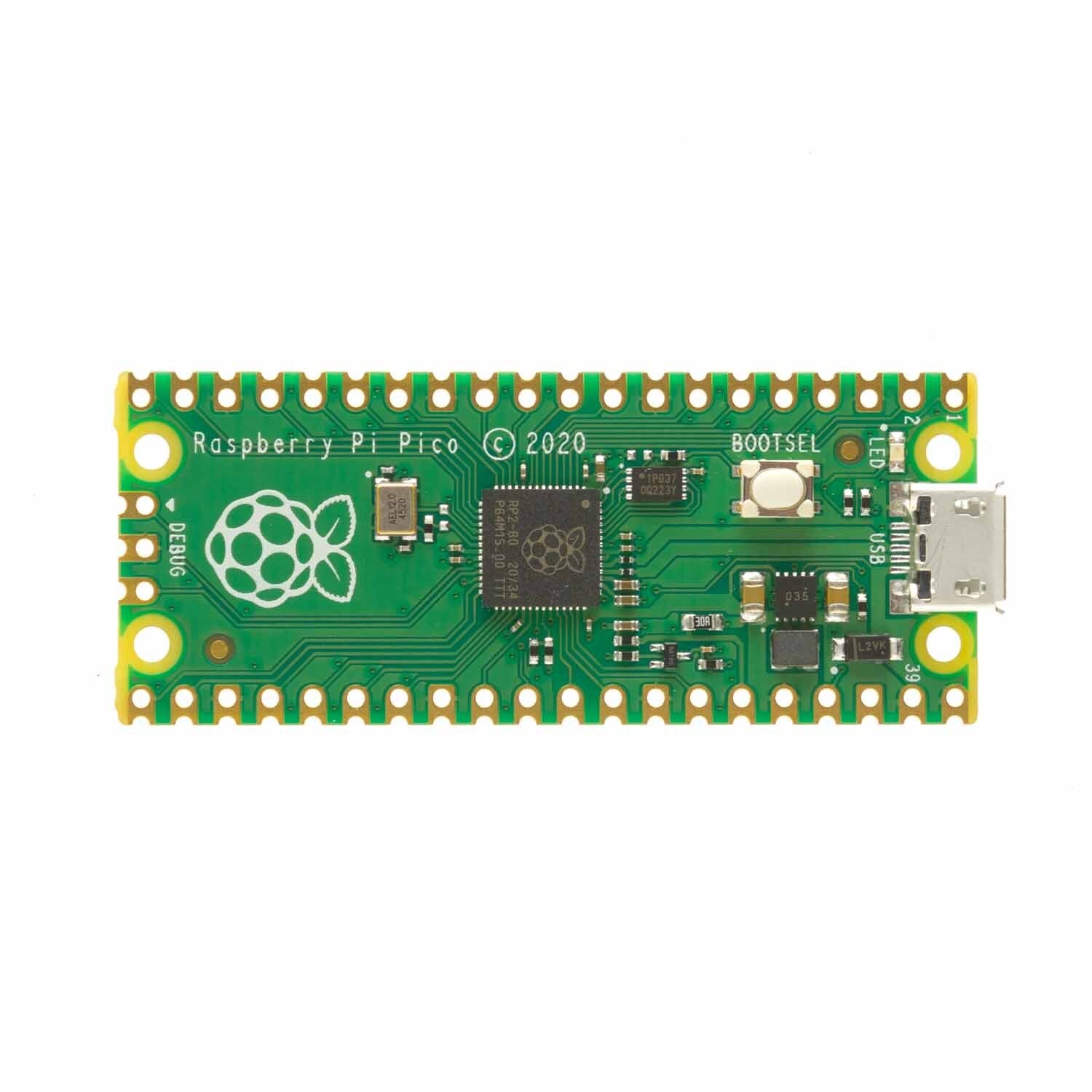

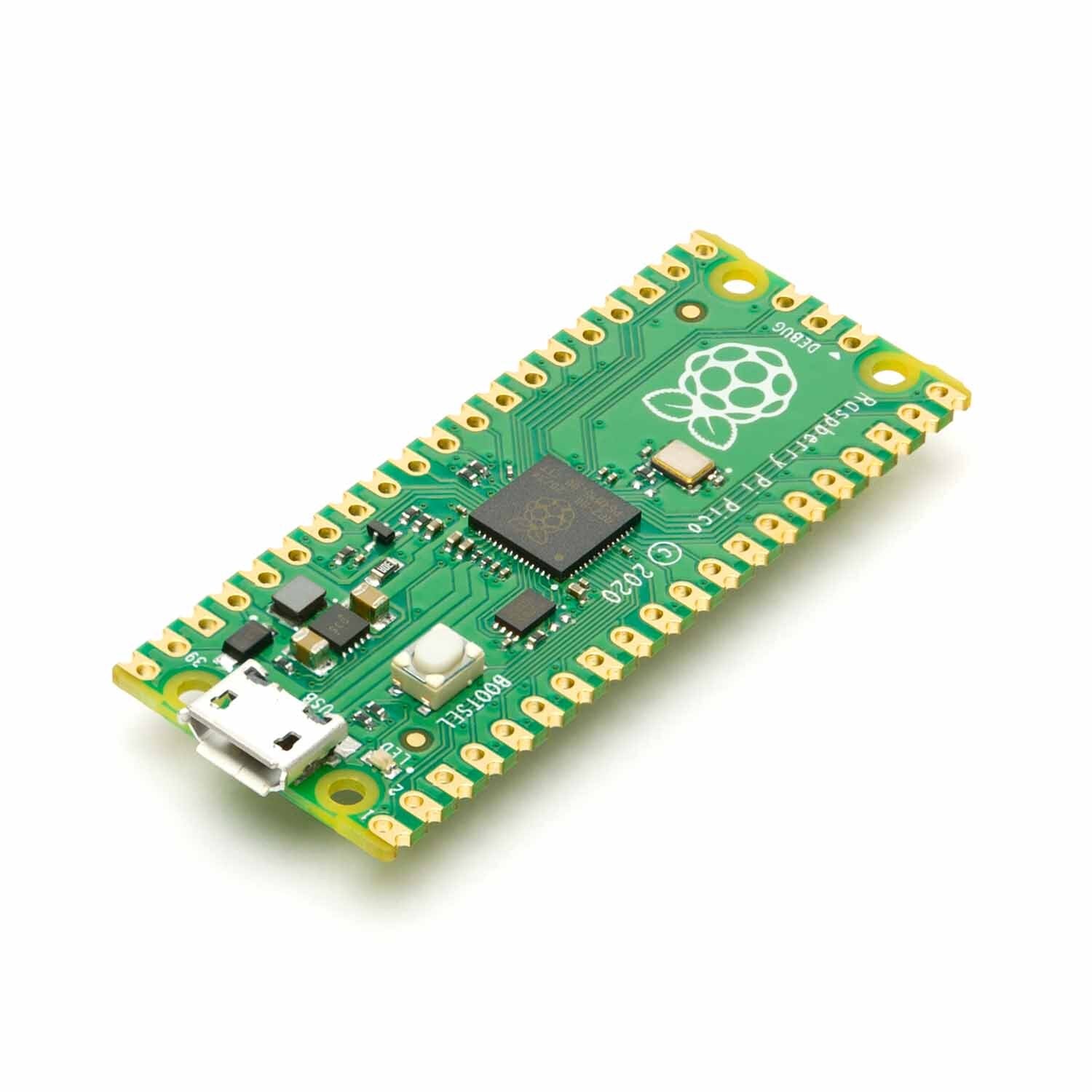

The Raspberry Pi Pico is Raspberry Pi's first microcontroller board, built around the custom-designed RP2040 chip. This compact, low-cost development platform brings the flexibility and ease-of-use of the Raspberry Pi ecosystem to microcontroller projects.
With a dual-core ARM Cortex-M0+ processor running at up to 133MHz, 264KB of SRAM, and 2MB of onboard flash, the Pico delivers impressive performance for its price. The unique Programmable I/O (PIO) subsystem enables custom peripherals and high-speed interfaces not possible with standard microcontrollers.
Key Features
- RP2040 Microcontroller – Raspberry Pi's custom dual-core ARM Cortex-M0+ chip
- Dual-Core Processing – Two cores running at up to 133MHz
- 264KB SRAM – Multi-bank high-performance memory
- 2MB Flash – Onboard QSPI flash with execute-in-place (XIP)
- 26 GPIO Pins – Including 3 analogue inputs (12-bit ADC)
- Programmable I/O (PIO) – Two PIO blocks for custom peripherals
- USB 1.1 – Device or host mode support
- Castellated Edges – Can be soldered directly as a module
Specifications
- Processor: Dual-core ARM Cortex-M0+ @ 133MHz
- Memory: 264KB SRAM, 2MB flash

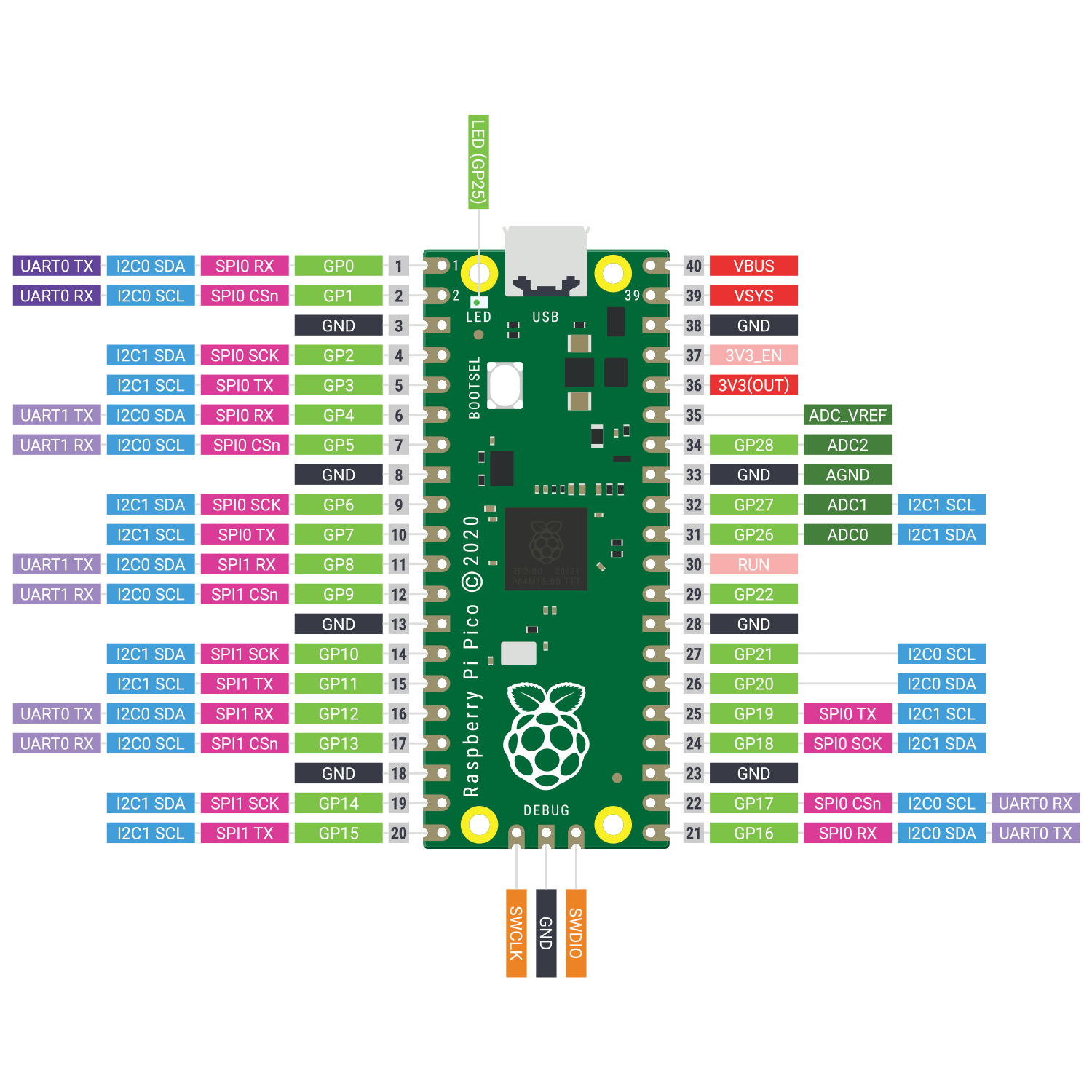

- GPIO: 26 pins (23 digital, 3 ADC-capable)
- ADC: 12-bit, 500ksps
- Peripherals: 2× UART, 2× I2C, 2× SPI, 16× PWM channels
- Debug: 3-pin ARM SWD port
- Power: Micro-USB or external 1.8–5.5V

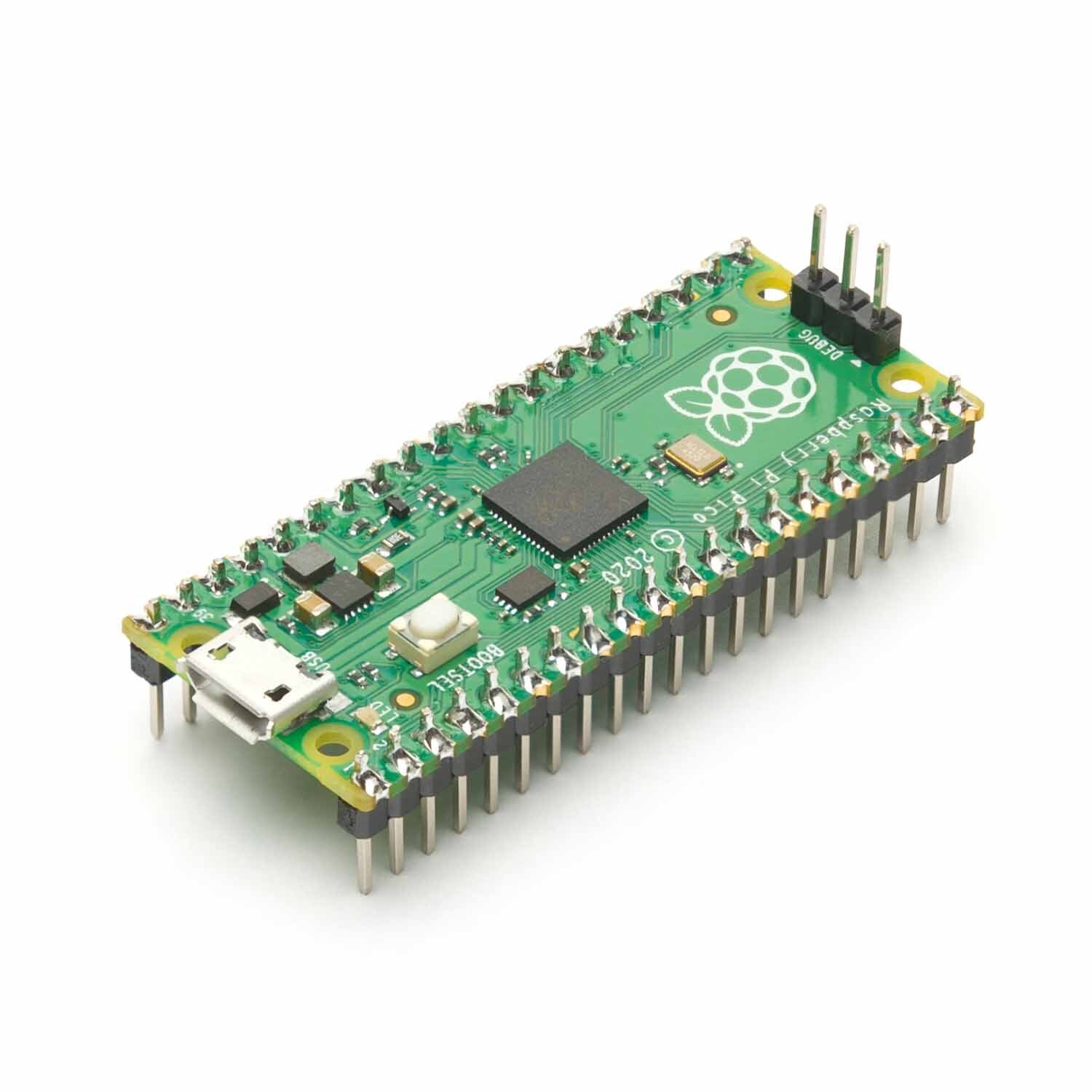

- Dimensions: 21 × 51mm with 0.1" through-hole pins
- I/O Voltage: 3.3V
Ideal For
- Microcontroller projects and embedded systems
- Learning embedded programming (C/C++ or MicroPython)
- Custom peripheral development with PIO
- Low-power and battery-powered applications
