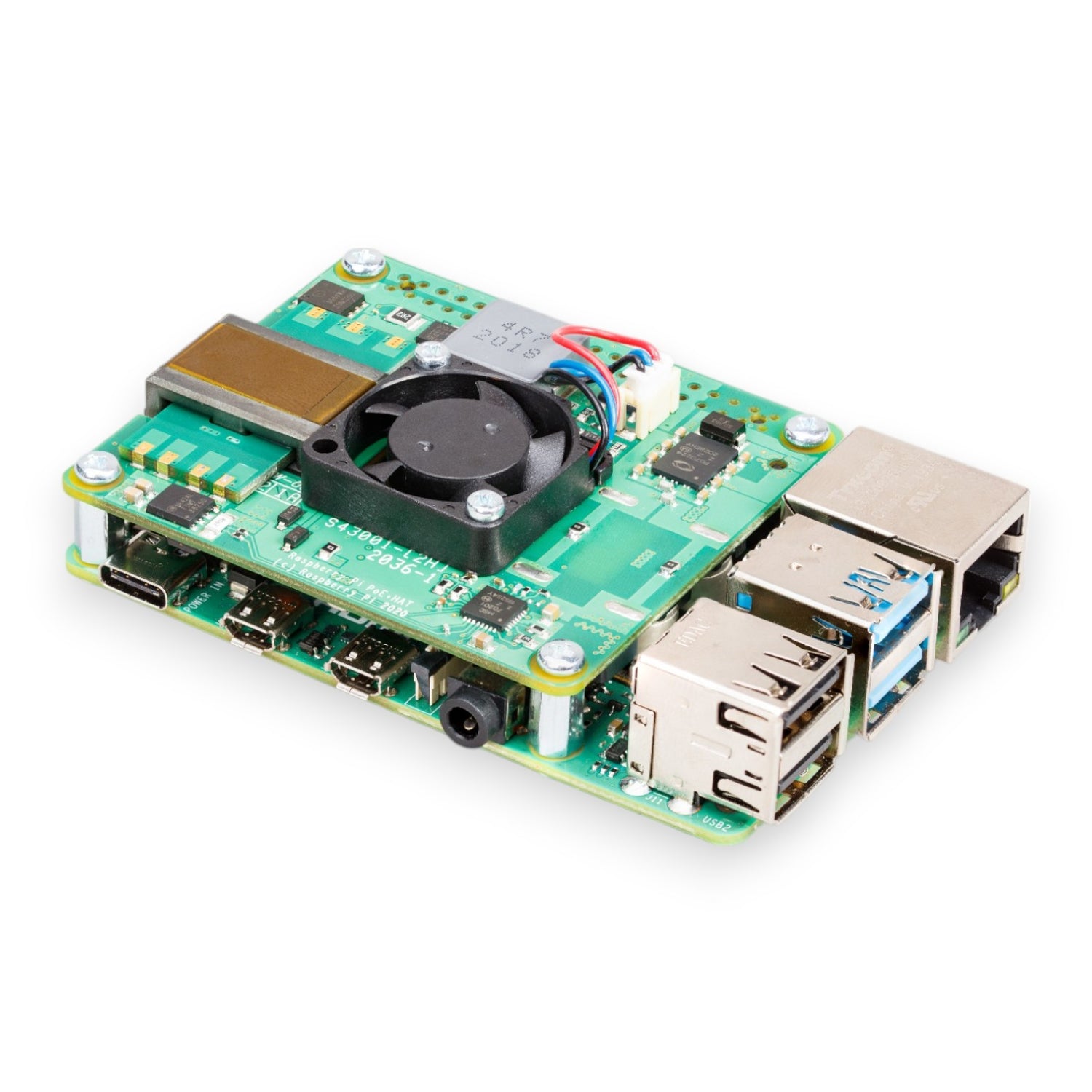

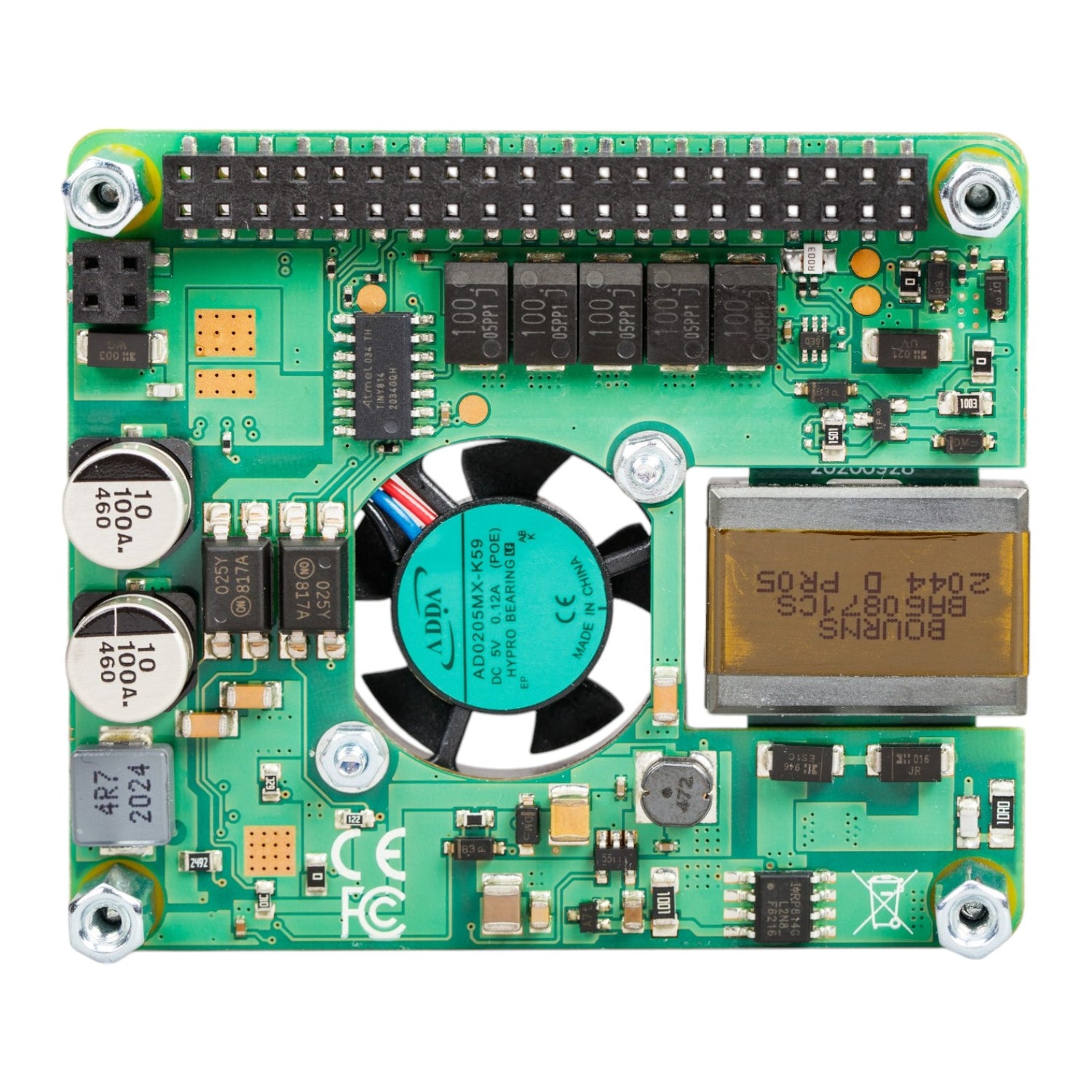

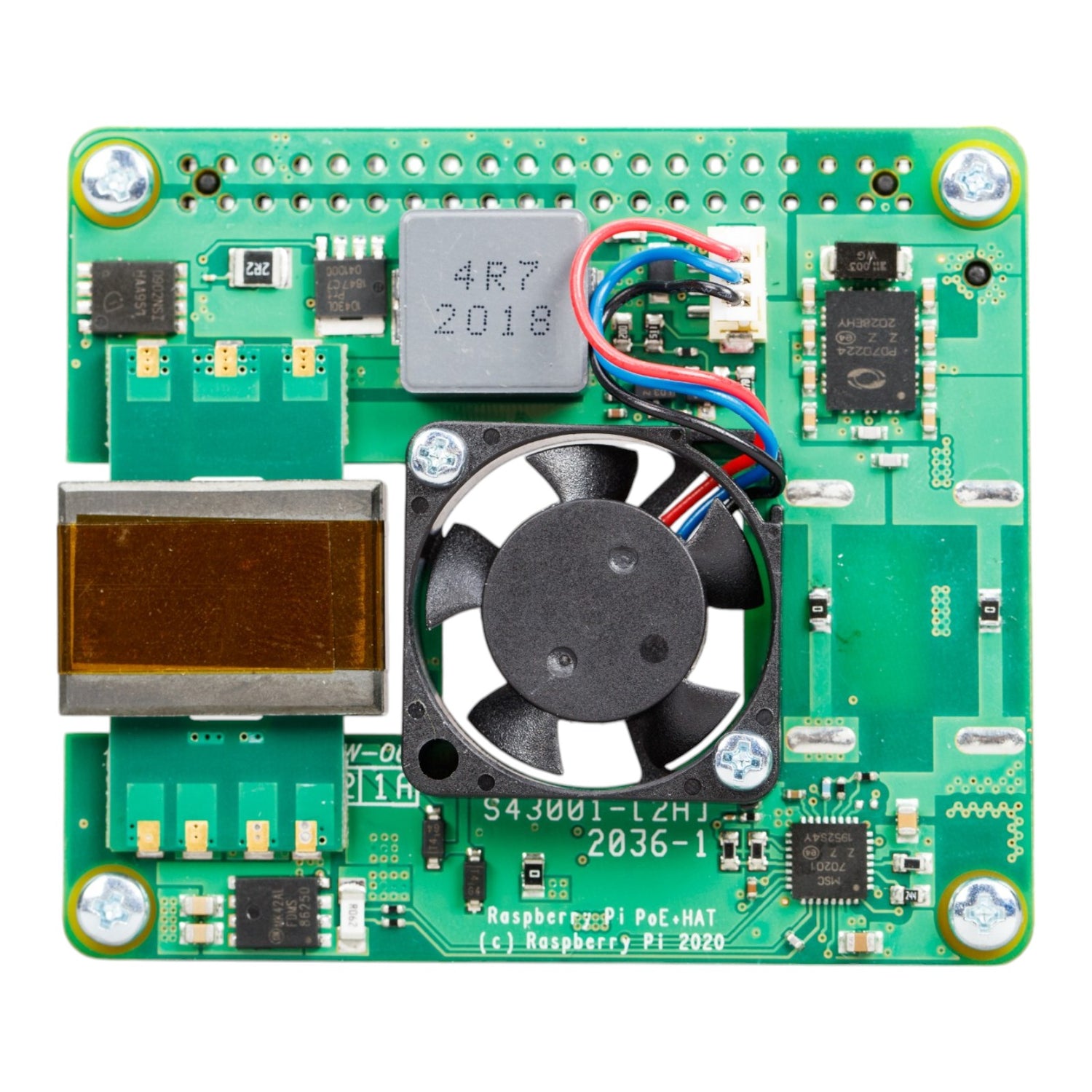

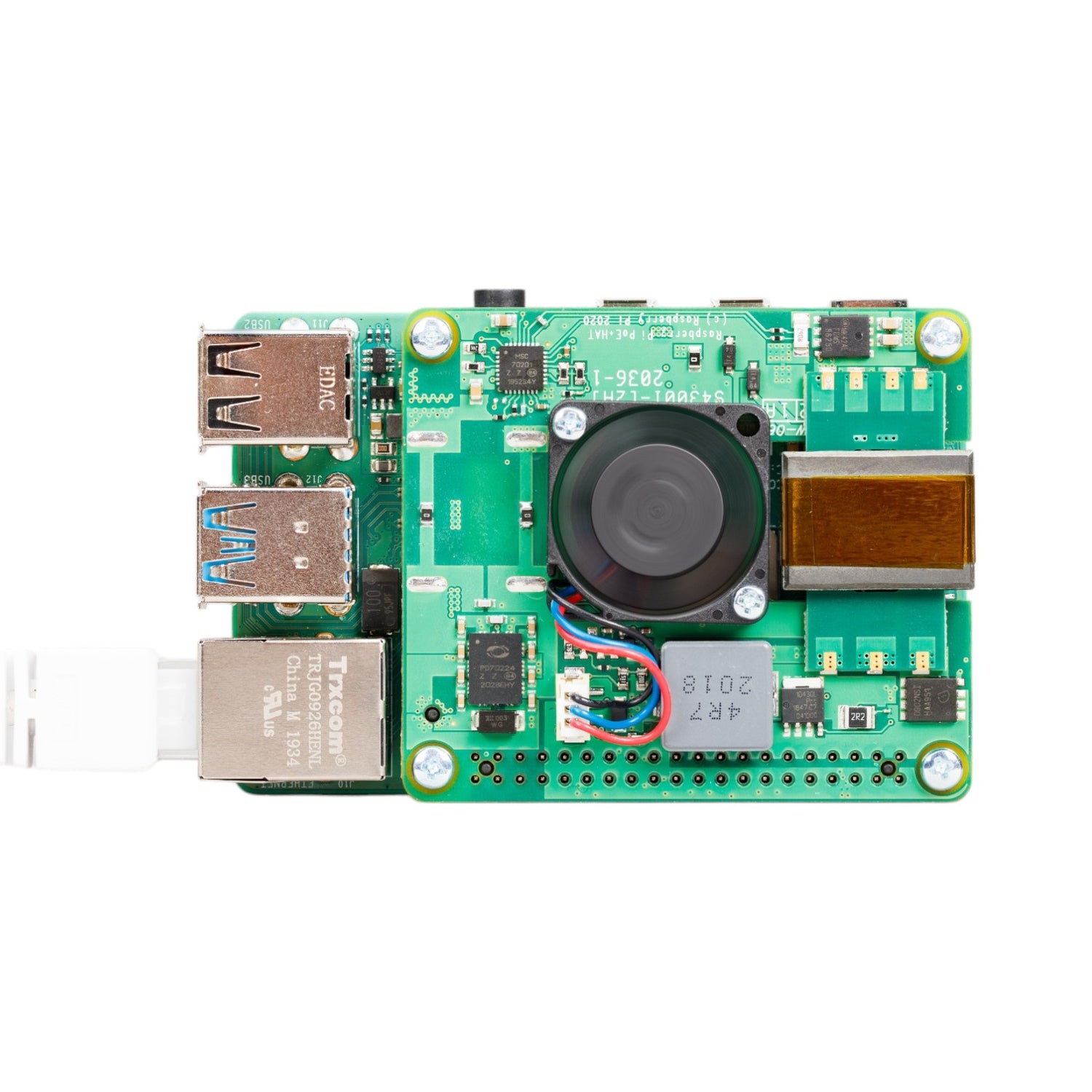

The Raspberry Pi PoE+ HAT powers your Raspberry Pi directly from a Power over Ethernet network, eliminating the need for a separate power supply. Meeting IEEE 802.3at Type 1 (PoE+) specifications, it delivers up to 25.5W over standard CAT5 cabling—enough to power your Pi and connected peripherals.
The HAT includes a temperature-controlled brushless fan that automatically adjusts speed based on processor temperature via I²C. No modification to your Raspberry Pi is required—simply attach the HAT, connect Ethernet, and you're powered.
Key Features
- PoE+ Compliant – IEEE 802.3at Type 1 (up to 25.5W available)
- 5V/3A Output – Ample power for Pi and peripherals
- Active Cooling – 25mm brushless fan with automatic temperature control
- Fully Isolated – Switch-mode power supply for safety
- I²C Fan Control – Software-controllable fan speed
- No Pi Modification – Direct connection via GPIO header
Specifications
- Input Voltage: 37–57V DC (Class 2 device)
- Output: 5V DC @ 3.0A
- Fan: 25mm × 25mm, 2.2 CFM airflow
- Standard: IEEE 802.3at Type 1 (PoE+)
Compatible With
- Raspberry Pi 5 (with adapter)
- Raspberry Pi 4 Model B
- Raspberry Pi 3 Model B+
Ideal For
- Network deployments with single-cable power and data
- Remote installations where AC power isn't convenient
- Clusters and server rooms with PoE switches
