Pi Australia  |  SKU: AF-2348

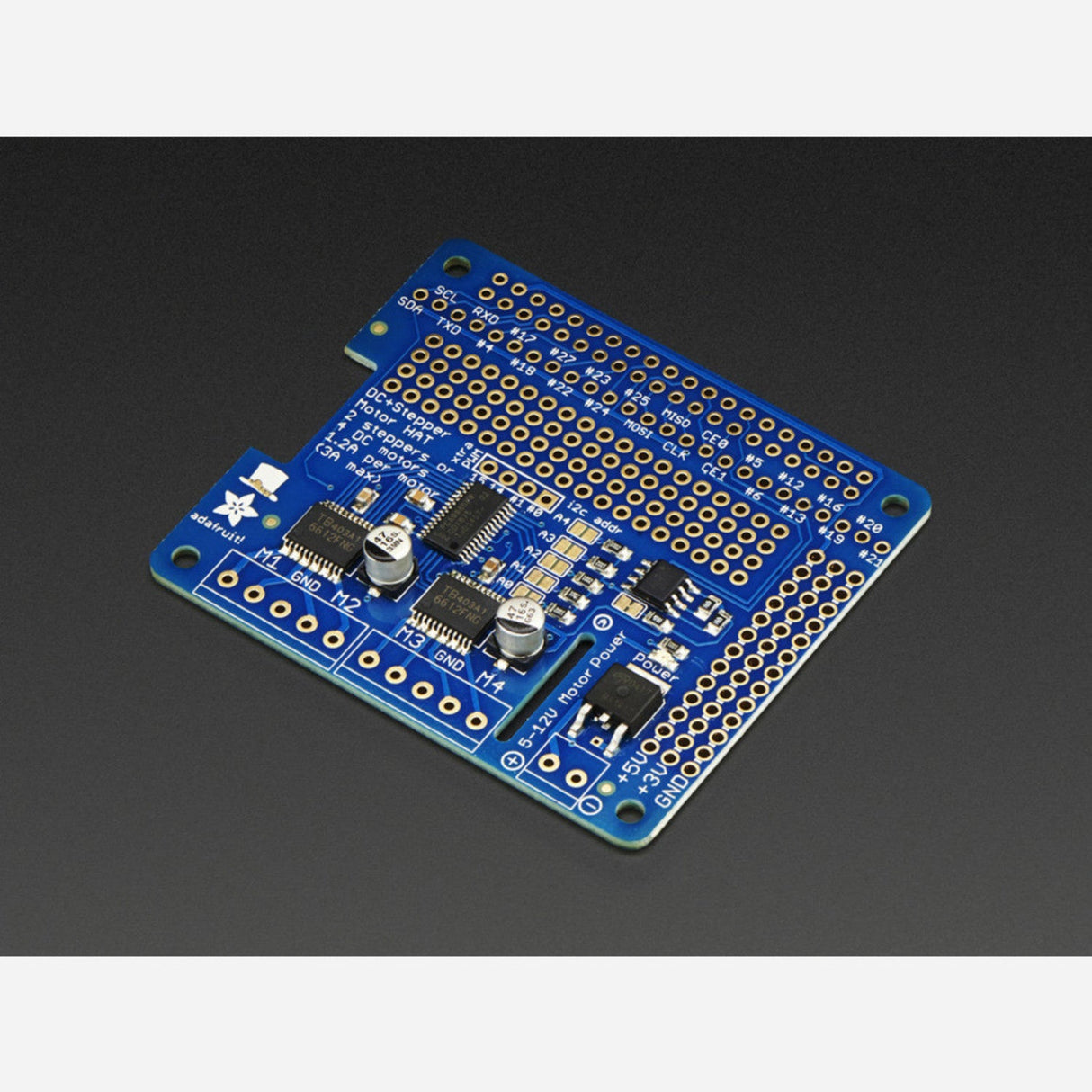

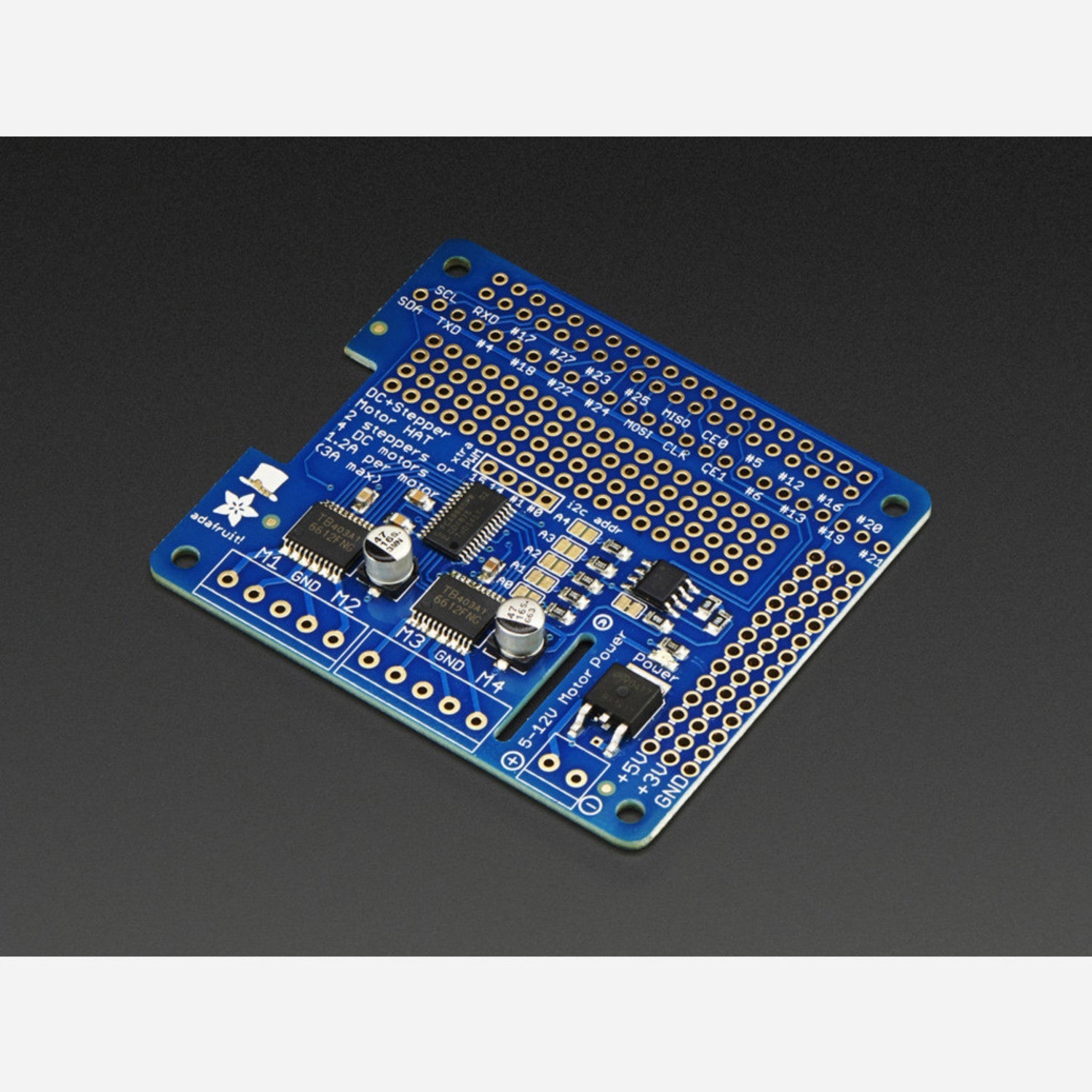

Adafruit DC & Stepper Motor HAT for Raspberry Pi - Mini Kit

$48.67
Tax included Shipping calculated at checkout.

Call us on 1300 240 817 between 10 AM and 4 PM on weekdays or email team@littlebird.com.au .

The Fastest Shipping

We ship faster because we built our own shipping 🤖 robot.

Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.

You can view shipping options and pricing at checkout without logging in.

For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.

We deliver across Australia, and here are the options (based on your location; view them on the cart page):

  • Standard Post: Starting at $7 (6+ business days, with tracking)
  • Express Post: Starting at $11 (2+ business days, with tracking)
  • Same Day Delivery: Available for Sydney orders.
  • Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.

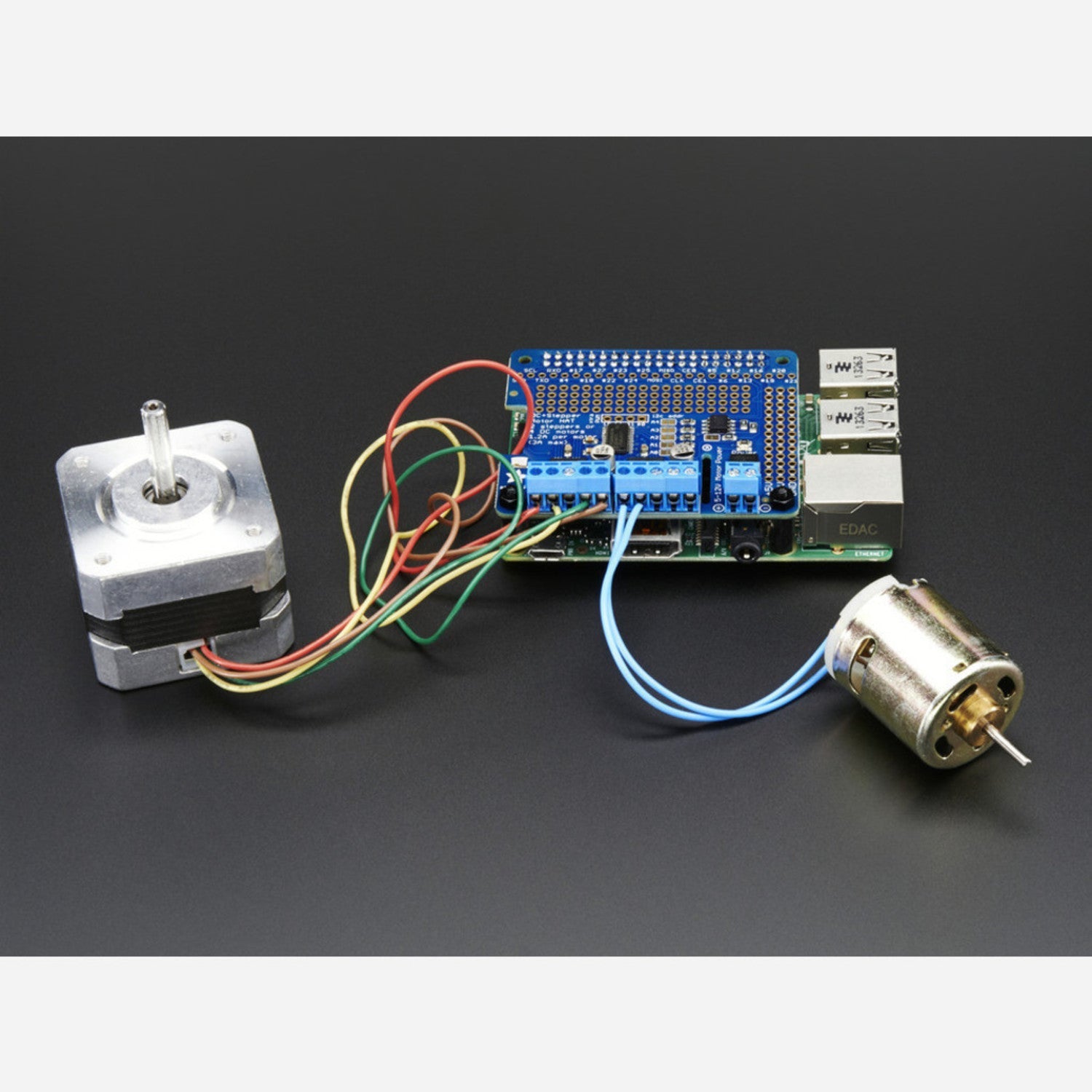

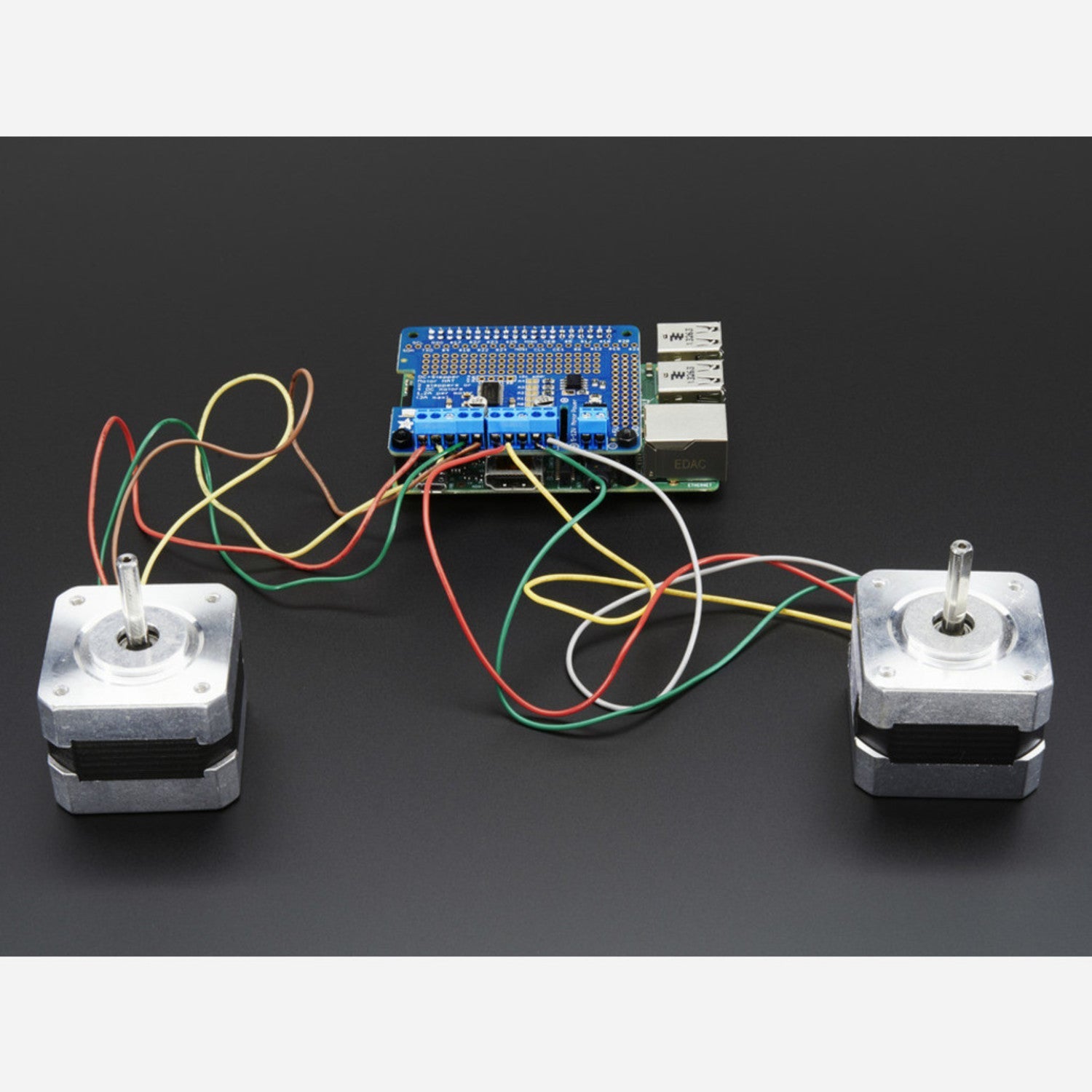

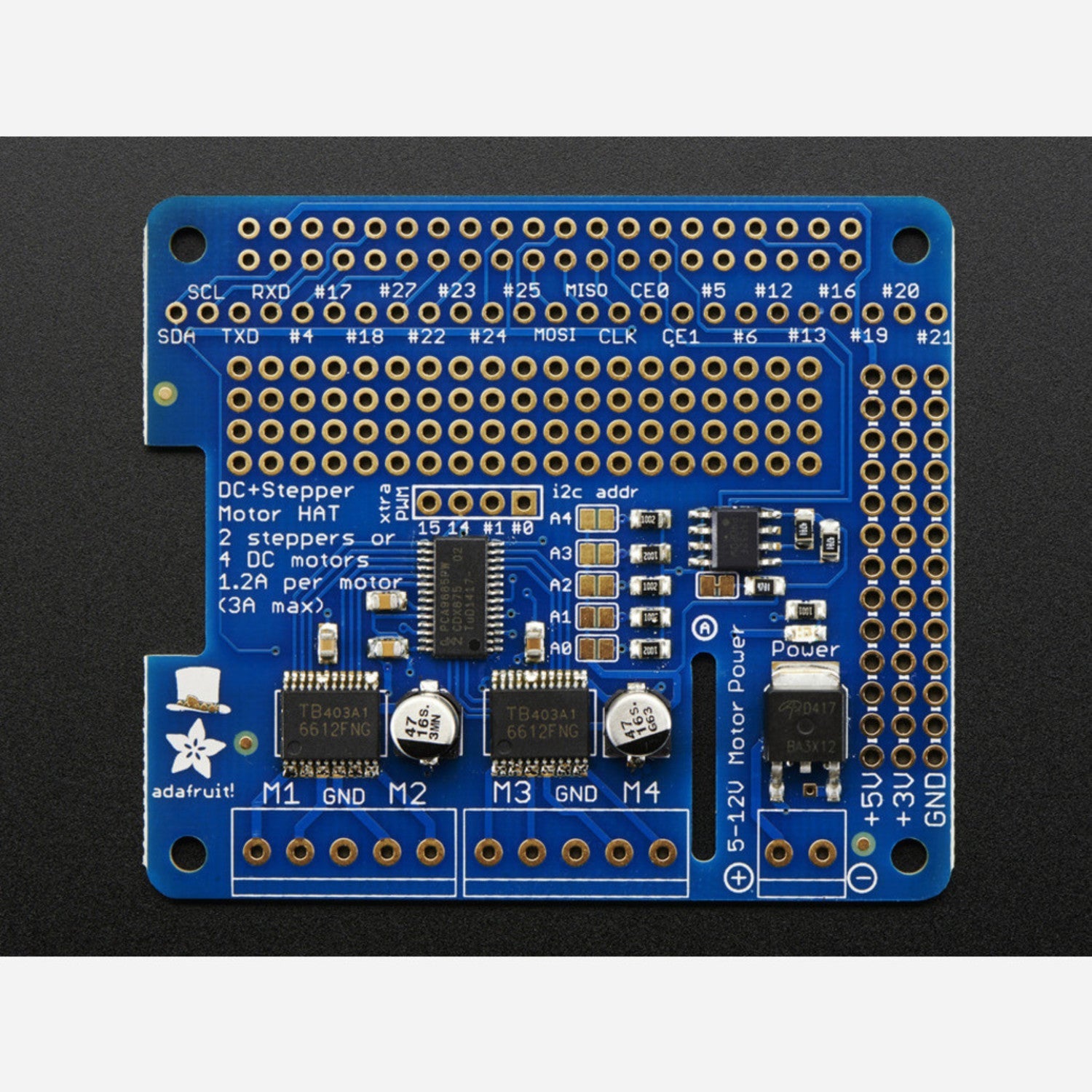

Drive up to 4 DC motors or 2 stepper motors from your Raspberry Pi with this motor driver HAT. Uses TB6612 MOSFET drivers with 1.2A per channel capacity and a dedicated PWM chip, requiring only two I2C pins for control.

Stackable design allows chaining multiple HATs for controlling even more motors—up to 32 HATs on a single Pi.

Key Features

  • 4 DC Motors or 2 Steppers – Flexible motor configuration
  • TB6612 Drivers – 1.2A per channel with 3A peak
  • PWM Speed Control – 8-bit resolution (~0.5% steps) for DC motors
  • Multiple Stepper Modes – Single coil, double coil, interleaved, micro-stepping
  • I2C Control – Uses only SDA and SCL pins
  • Stackable – Chain up to 32 HATs
  • Protection Built-in – Polarity protection, flyback diodes, thermal shutdown

Specifications

  • Motor Channels – 4 DC or 2 stepper
  • Current – 1.2A per channel (3A peak)
  • Motor Voltage – 4.5V to 13.5V DC
  • Interface – I2C
  • Wire Gauge – 18-26 AWG terminal blocks
  • Dimensions – 65 × 56 × 13mm
  • Weight – 24g

Ideal For

  • Robotics projects
  • CNC and 3D printer builds
  • Motorised camera sliders
  • Automated systems

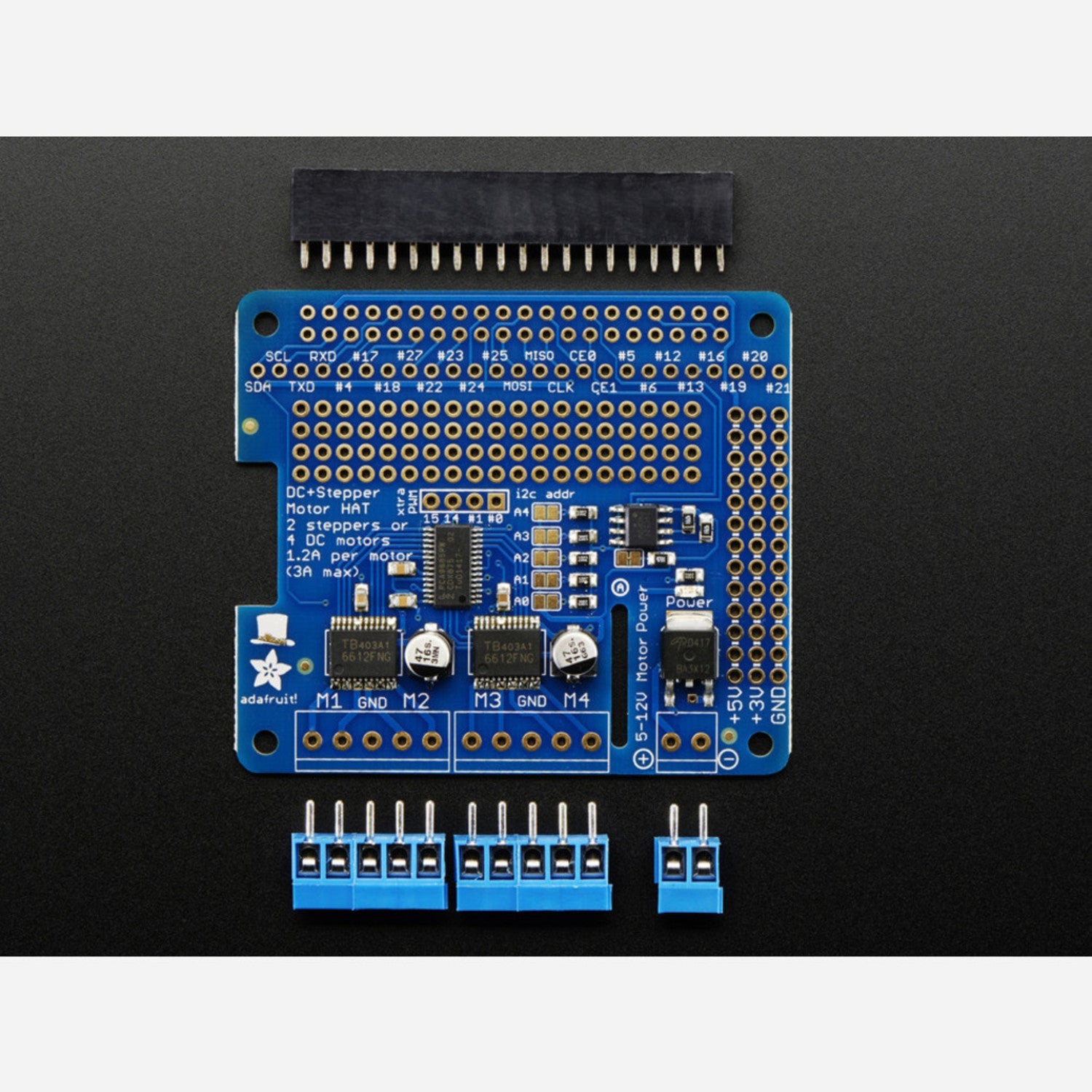

Note: Raspberry Pi, motors, and power supply sold separately. Kit includes pre-assembled HAT with terminal blocks.
