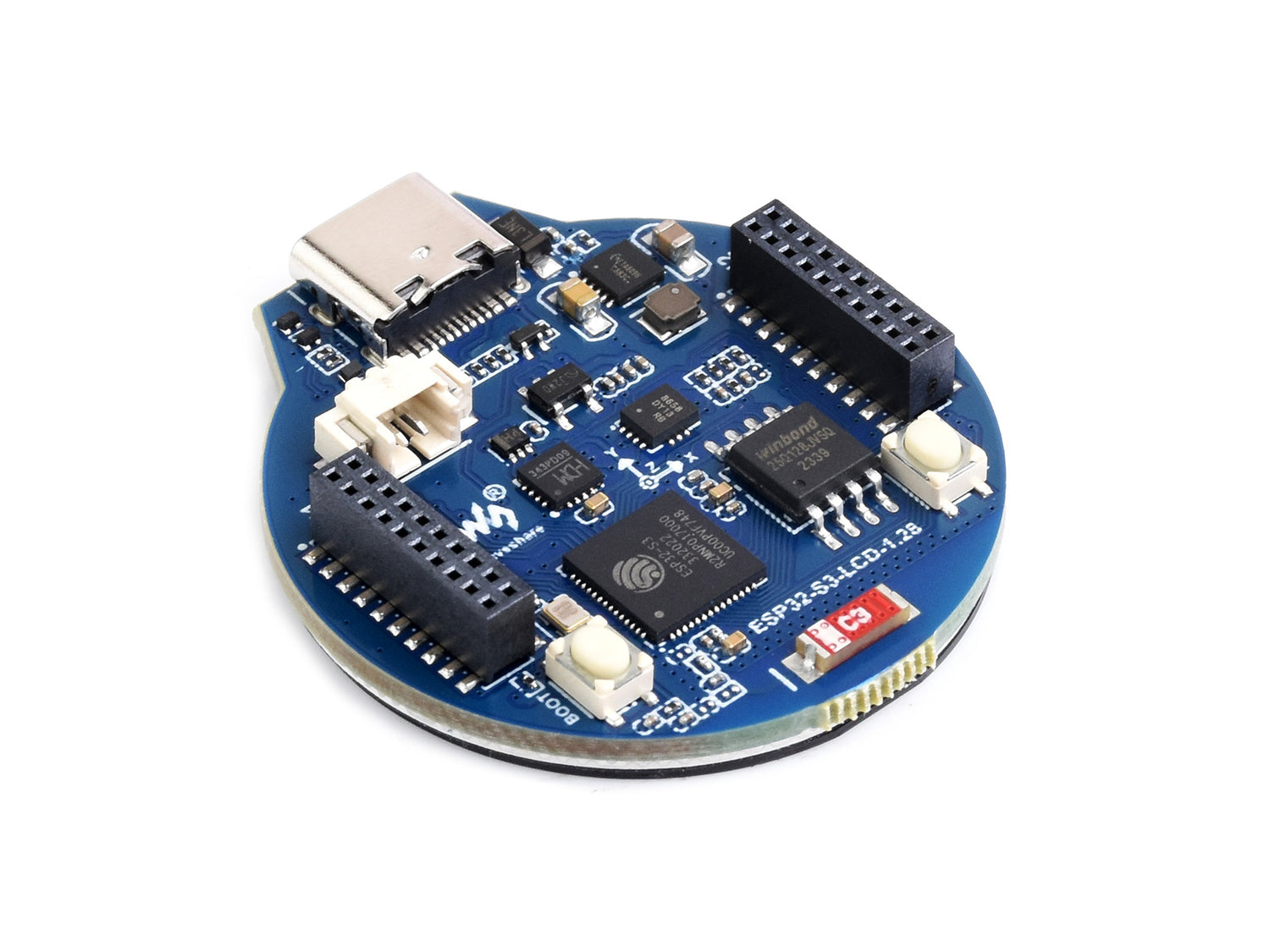

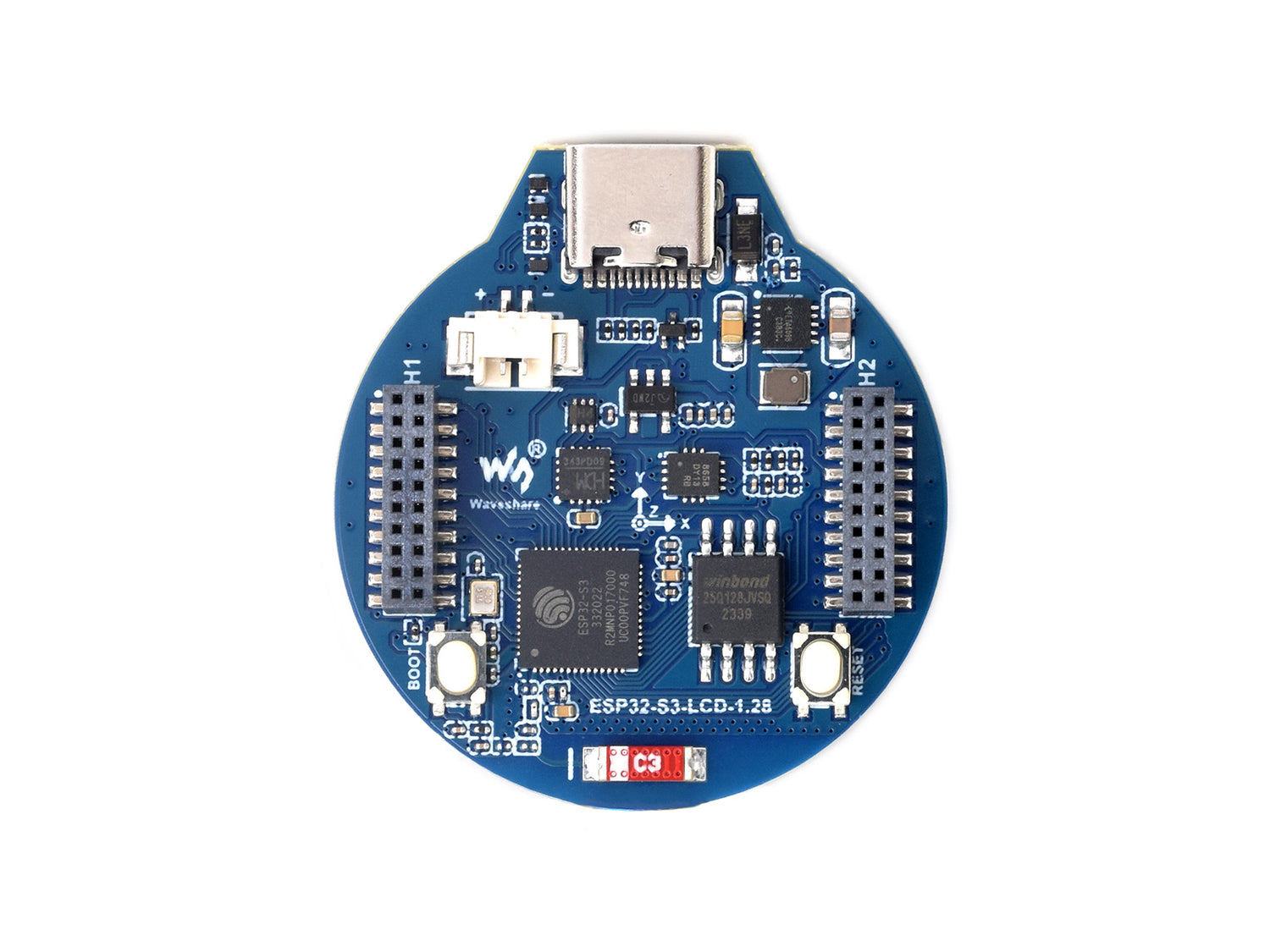

ESP32-S3 Dual-Core Dev Board with 1.28" Round IPS Display
An ESP32-S3 development board featuring a 1.28-inch round IPS LCD display, perfect for smartwatch-style projects, IoT dashboards, and wearable prototypes. The dual-core Xtensa LX7 processor runs at up to 240MHz with built-in Wi-Fi and Bluetooth 5 connectivity.
Includes a QMI8658 6-axis IMU for motion sensing, lithium battery charging circuit for portable projects, and 30 GPIO pins for flexible expansion. USB-C connection with built-in USB-to-UART chip means it's ready to program out of the box.
Key Features

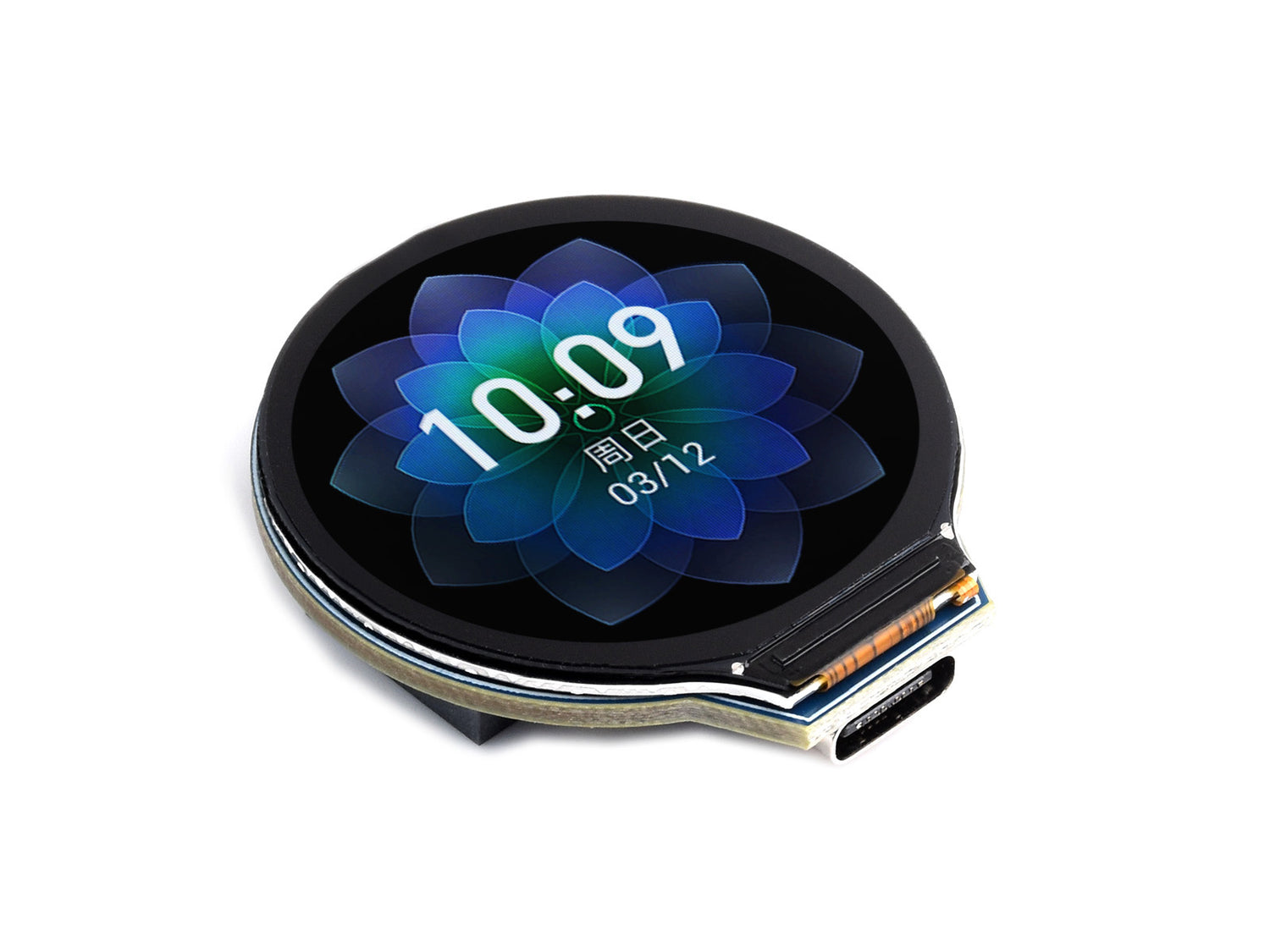

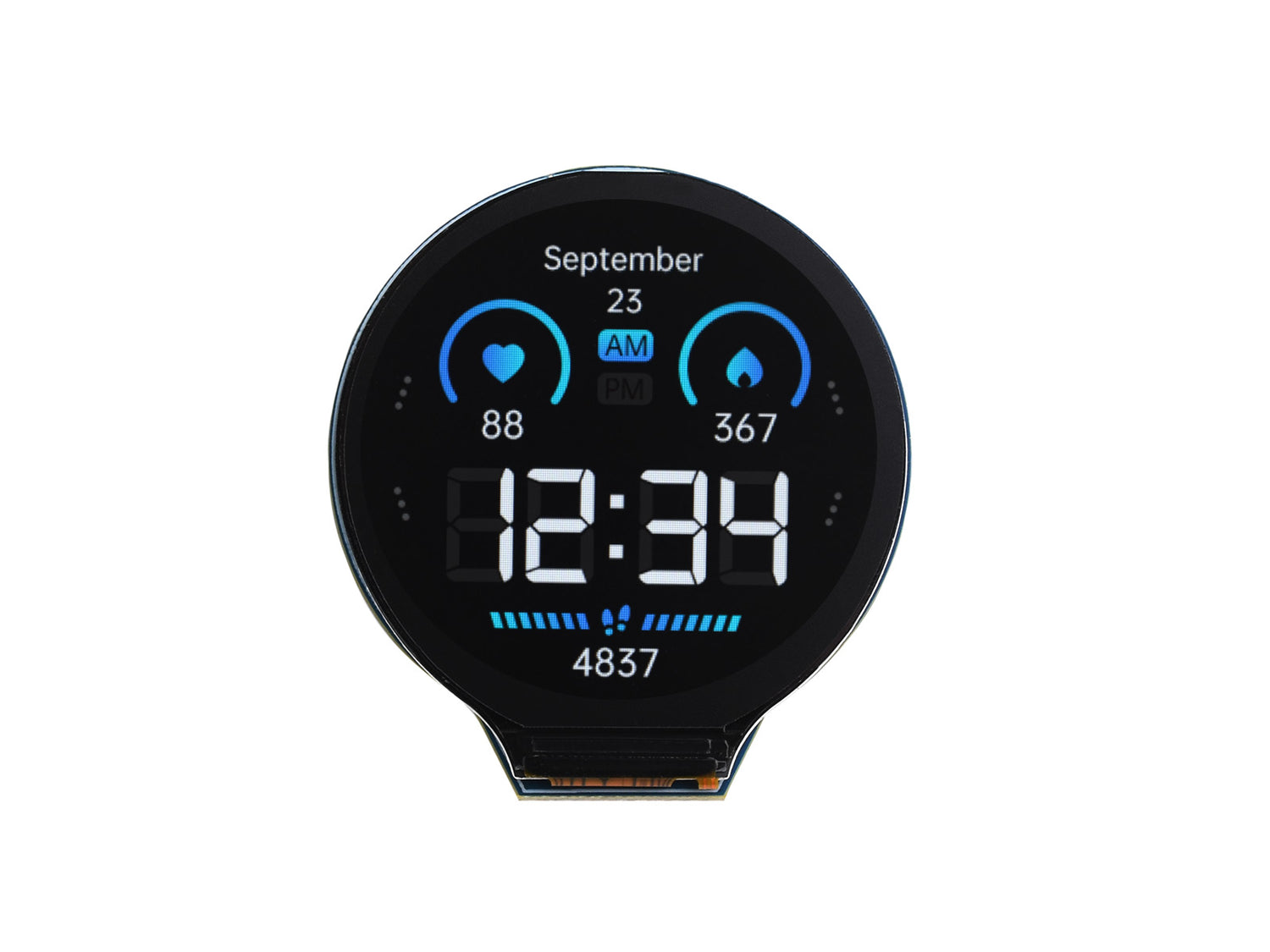

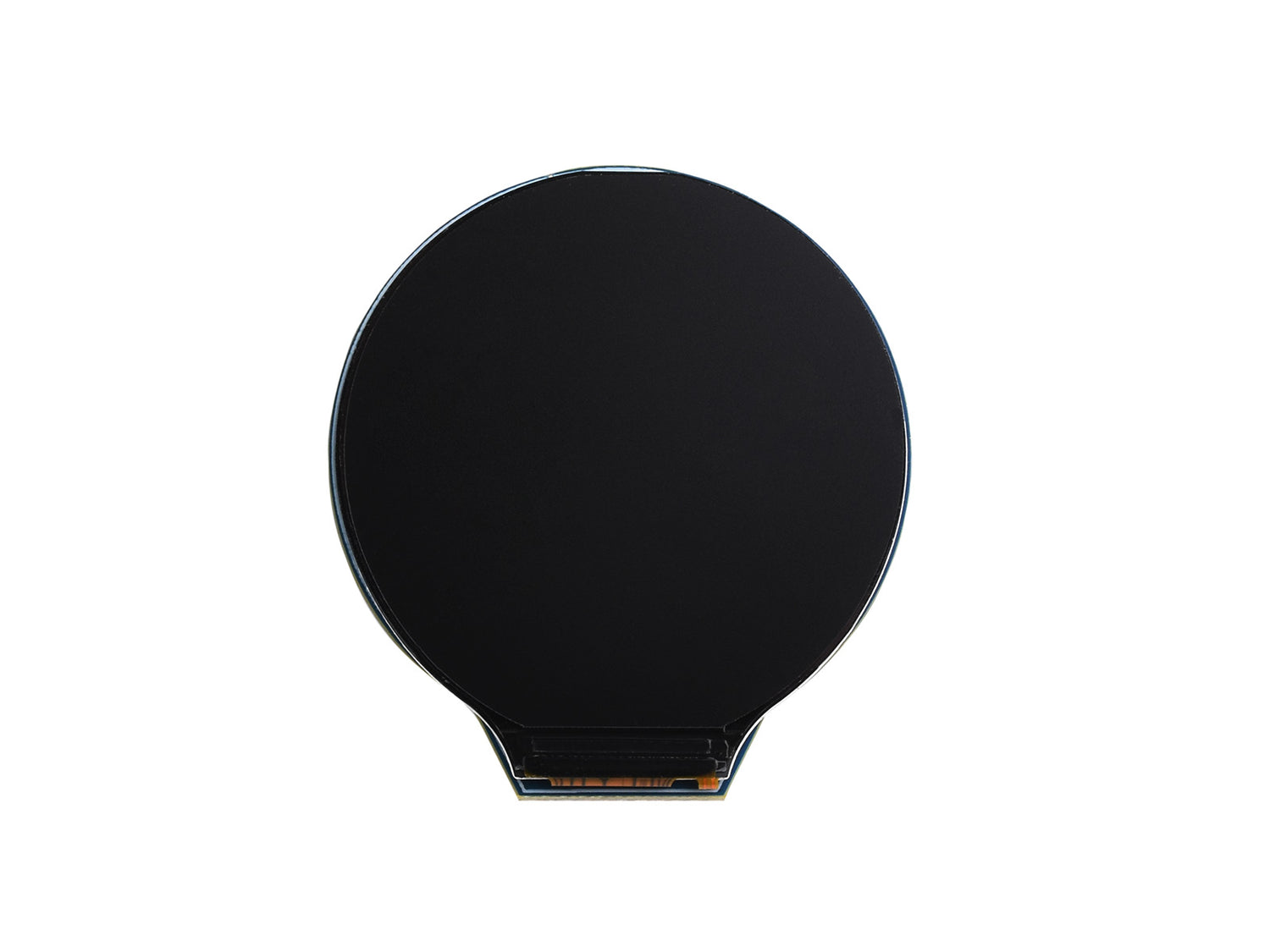

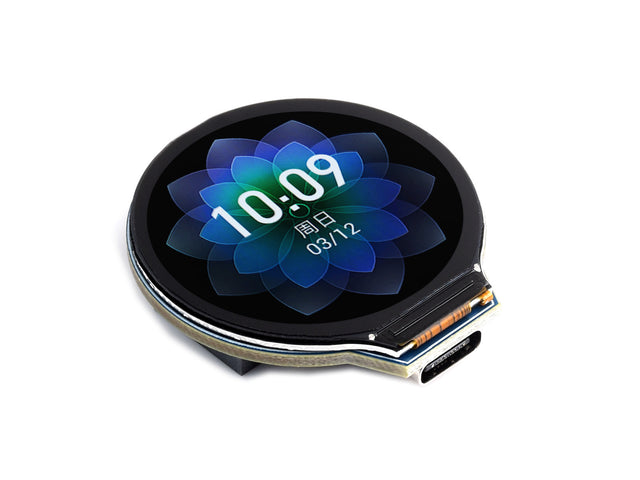

- 1.28" Round IPS Display – 240×240 resolution, 65K colours
- ESP32-S3 Dual-Core – Xtensa LX7 @ 240MHz
- Wi-Fi & Bluetooth – 2.4GHz 802.11 b/g/n + Bluetooth 5 (BLE)
- 6-Axis IMU – QMI8658 accelerometer + gyroscope
- Battery Charging – Onboard lithium battery manager (ETA6096)
- USB-C Connector – Modern connection with CH343P UART bridge
- 30 GPIO Pins – Flexible I/O expansion
- Onboard Antenna – No external antenna required
Specifications
- SoC: ESP32-S3R2
- CPU: Dual-core Xtensa LX7 @ 240MHz
- SRAM: 512KB
- ROM: 384KB
- PSRAM: 2MB
- Flash: 16MB (W25Q128JVSIQ)
- Display: 1.28" round IPS LCD, 240×240, 65K colours
- IMU: QMI8658 (3-axis accel + 3-axis gyro)
- Wireless: Wi-Fi 802.11 b/g/n, Bluetooth 5 BLE
- USB: Type-C with CH343P UART
- Power: ME6217C33M5G LDO (800mA)
- GPIO: 30 pins
- Weight: 9g
Ideal For
- Smartwatch and wearable prototypes
- IoT dashboard displays
- Motion-sensing projects
- Portable battery-powered devices
- Round gauge and dial interfaces
Package Contents
- 1× ESP32-S3-LCD-1.28 Development Board
