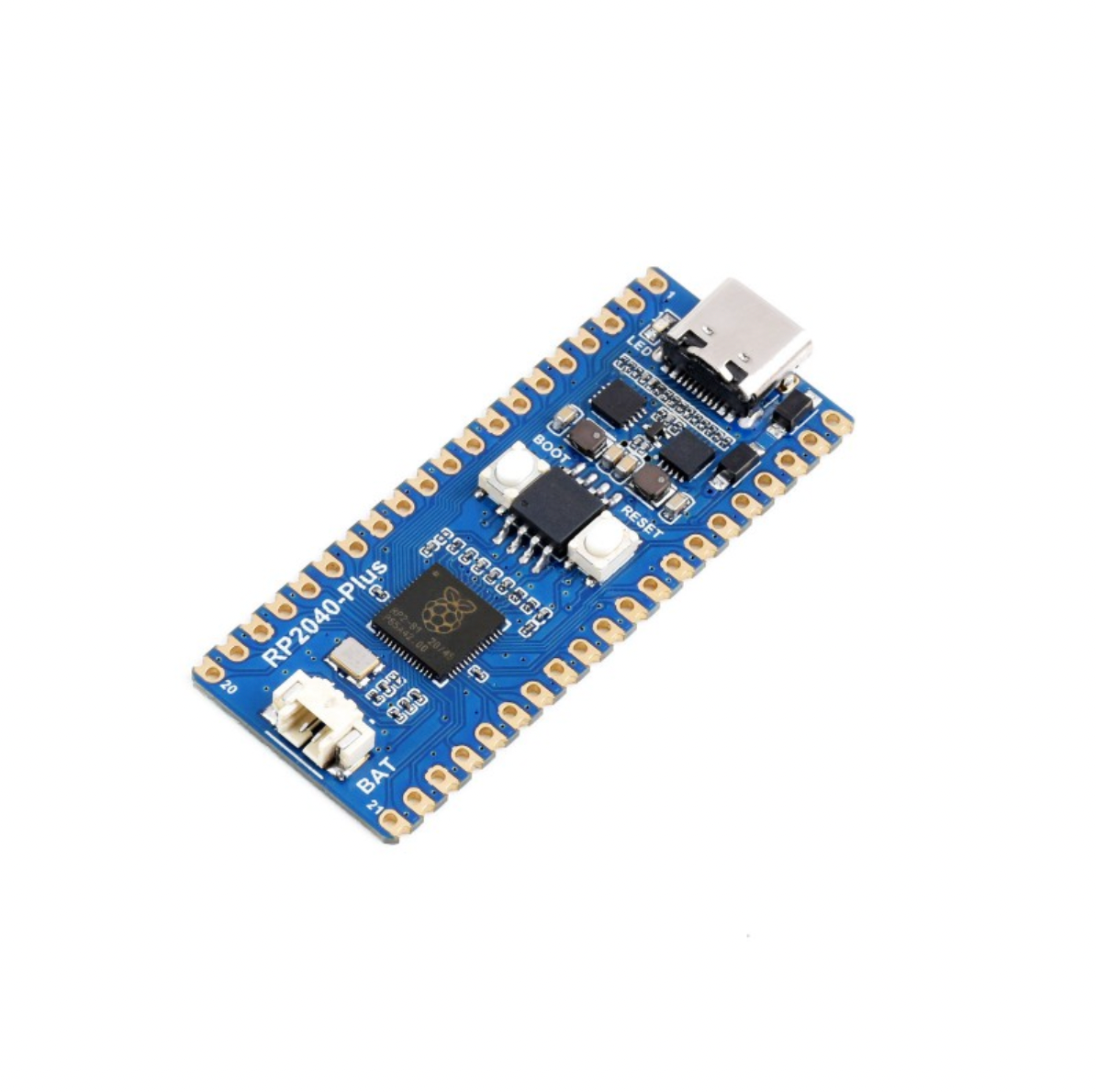

RP2040-Plus, a Pico-like MCU Board Based on Raspberry Pi MCU RP2040...
The RP2040-Plus is an enhanced Pico-compatible board that addresses common limitations of the original Raspberry Pi Pico. With 4MB of flash storage (double the Pico), USB-C connectivity, and lithium battery charging support, it's a drop-in upgrade for projects that need more storage or portable power.
The board maintains full compatibility with the Pico pinout and programming environment while adding a more capable power management system.
Key Features
- 4MB Flash – Double the storage of the standard Pico
- USB-C Connector – Modern, reversible connection for power and programming
- Battery Charging – Built-in lithium battery support for portable projects
- Higher Current DC-DC – TPS63000 chip provides up to 1.8A output
- Pico Compatible – Same pinout for drop-in replacement
- Drag-and-Drop Programming – Simple USB mass storage flashing
Specifications
- Processor – Dual-core Arm Cortex M0+ @ 133MHz
- Memory – 264KB SRAM, 4MB Flash
- GPIO – 26 multi-function pins
- Interfaces – 2× SPI, 2× I2C, 2× UART, 16× PWM
- ADC – 3× 12-bit channels
- PIO – 8 programmable state machines
- Power – USB-C, lithium battery charging
Programming
- C/C++ SDK
- MicroPython
- CircuitPython
Ideal For
- Projects requiring more flash storage
- Battery-powered applications
- Upgrading existing Pico projects
- Embedded systems needing higher current capacity
Resources
