Servo Driver Module for Raspberry Pi Pico, 16-ch Outputs, 16-bit Re...

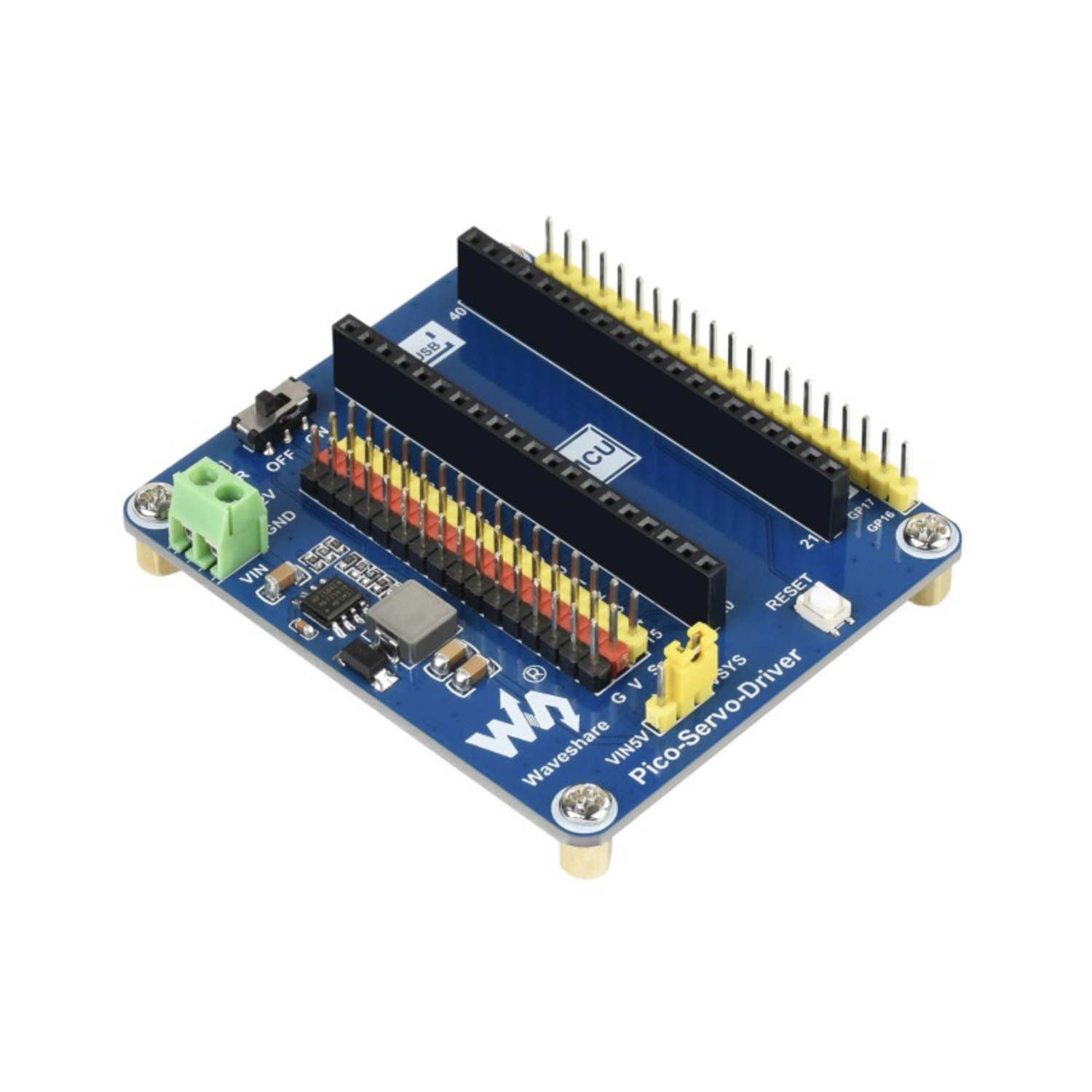

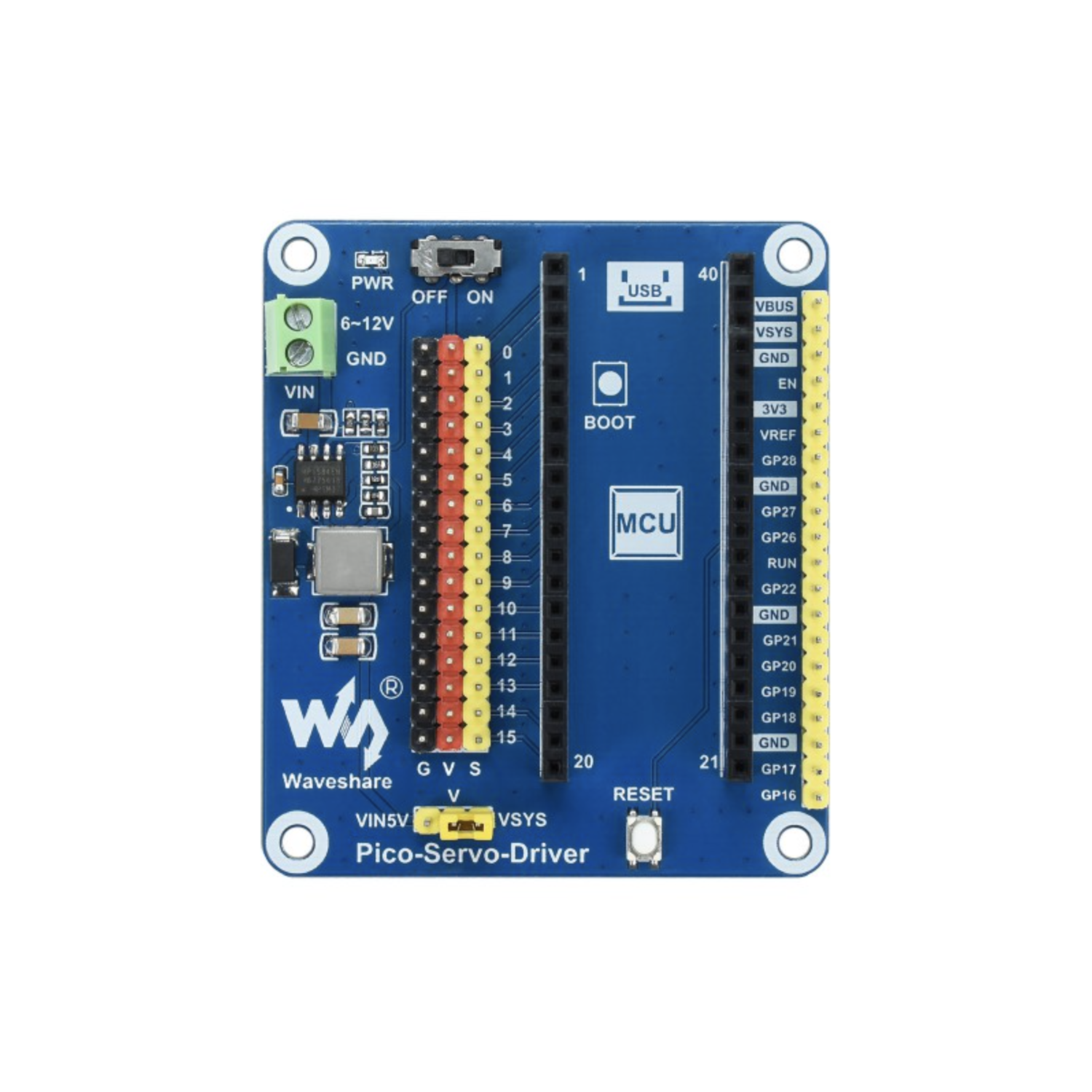

This servo driver module for Raspberry Pi Pico provides 16 channels of PWM output with 16-bit resolution, ideal for controlling robotic arms, hexapod walkers, and other multi-servo projects. The onboard 5V regulator supports up to 3A output, allowing battery power supply for mobile applications.

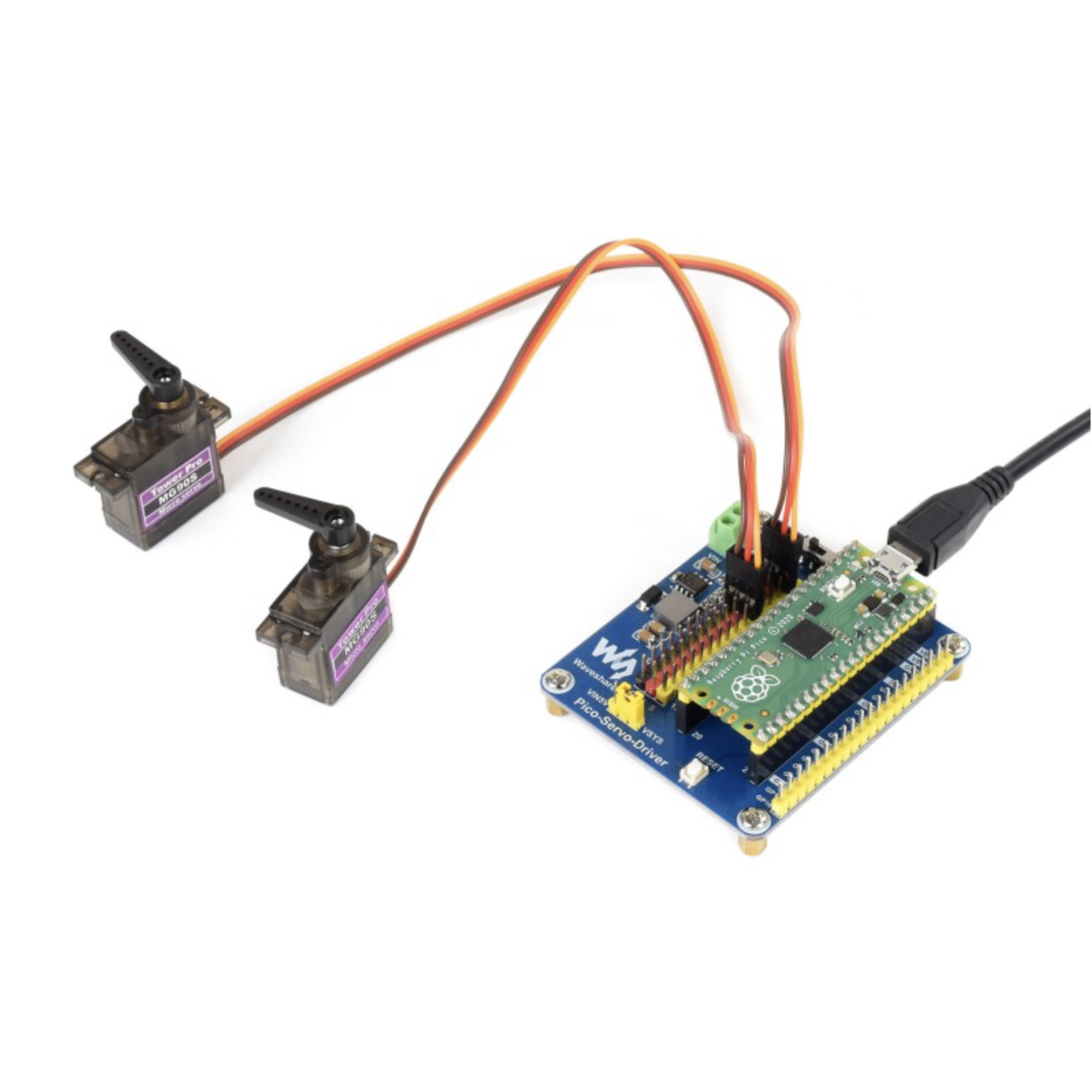

The module plugs directly onto a Raspberry Pi Pico via the female pin header, with unused Pico pins exposed for additional expansion. Development resources include C/C++ and MicroPython examples.
Key Features
- 16 Servo Channels – Control up to 16 servos simultaneously
- 16-Bit Resolution – Precise PWM control for smooth motion
- 5V Regulator – Up to 3A output for servo power
- Flexible Power Input – 5V from Pico or 6–12V via VIN terminal
- Standard Servo Interface – Compatible with SG90, MG90S, MG996R, and similar
- Pin Expansion – Unused Pico pins exposed for additional connections
Specifications
- Servo Channels: 16
- Resolution: 16-bit per channel
- Servo Voltage: 5V
- Logic Level: 3.3V
- Power Input: 5V (Pico) or 6–12V (VIN terminal)
- Max Current Output: 3A
- Dimensions: 65 × 56mm
- Mounting Holes: 3.0mm
Compatibility
- Raspberry Pi Pico
- Raspberry Pi Pico W
- Raspberry Pi Pico 2
Ideal For
- Robotic arms
- Hexapod and quadruped walkers
- Pan-tilt mechanisms
- Multi-servo robotics projects
