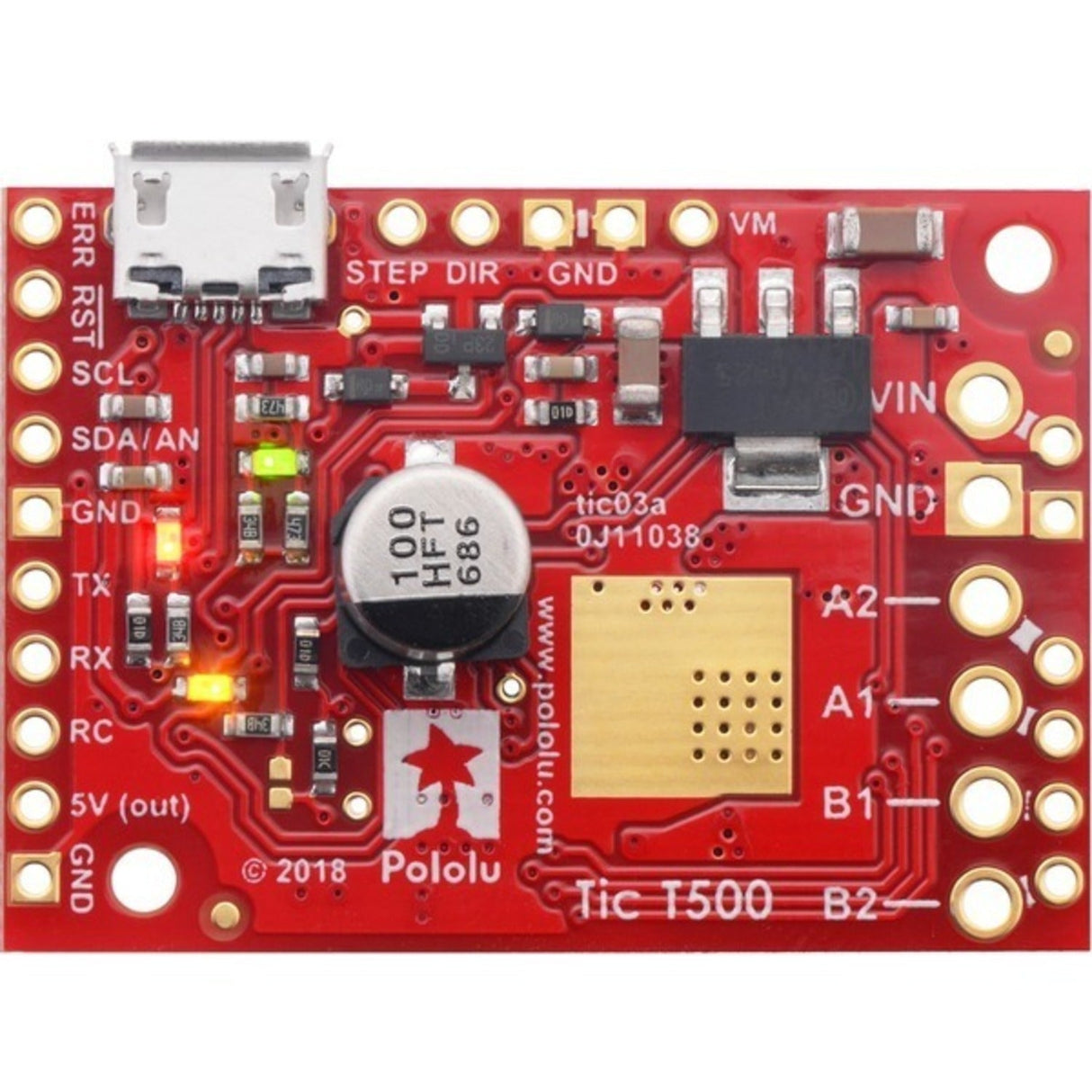

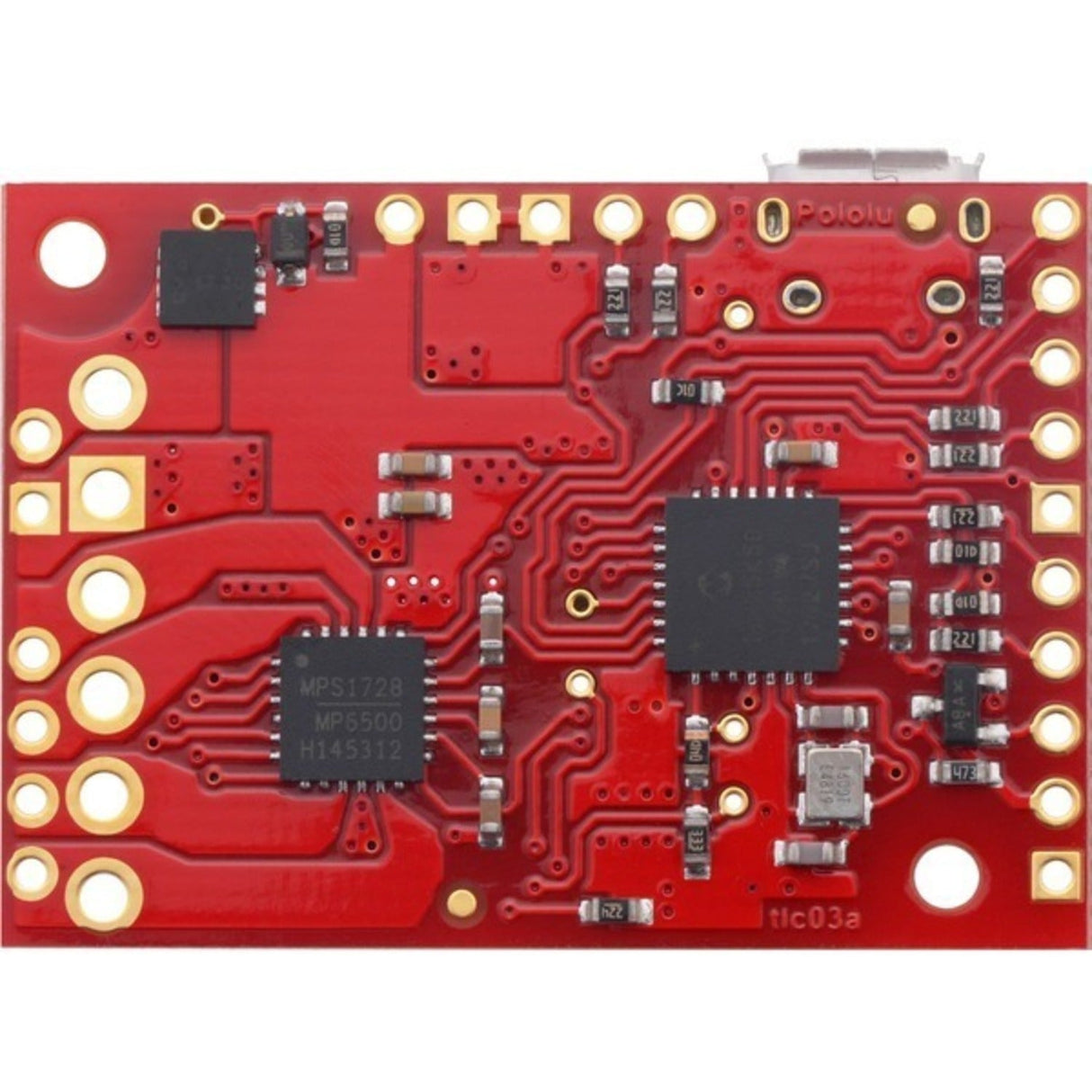

Tic T500 USB Multi-Interface Stepper Motor Controller
Tic T500 USB Multi-Interface Stepper Motor Controller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Call us on 1300 240 817 between 10 AM and 4 PM on weekdays or email team@littlebird.com.au .
The Fastest Shipping
The Fastest Shipping
We ship faster because we built our own shipping 🤖 robot.
Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.
You can view shipping options and pricing at checkout without logging in.
For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.
We deliver across Australia, and here are the options (based on your location; view them on the cart page):
- Standard Post: Starting at $7 (6+ business days, with tracking)
- Express Post: Starting at $11 (2+ business days, with tracking)
- Same Day Delivery: Available for Sydney orders.
- Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.

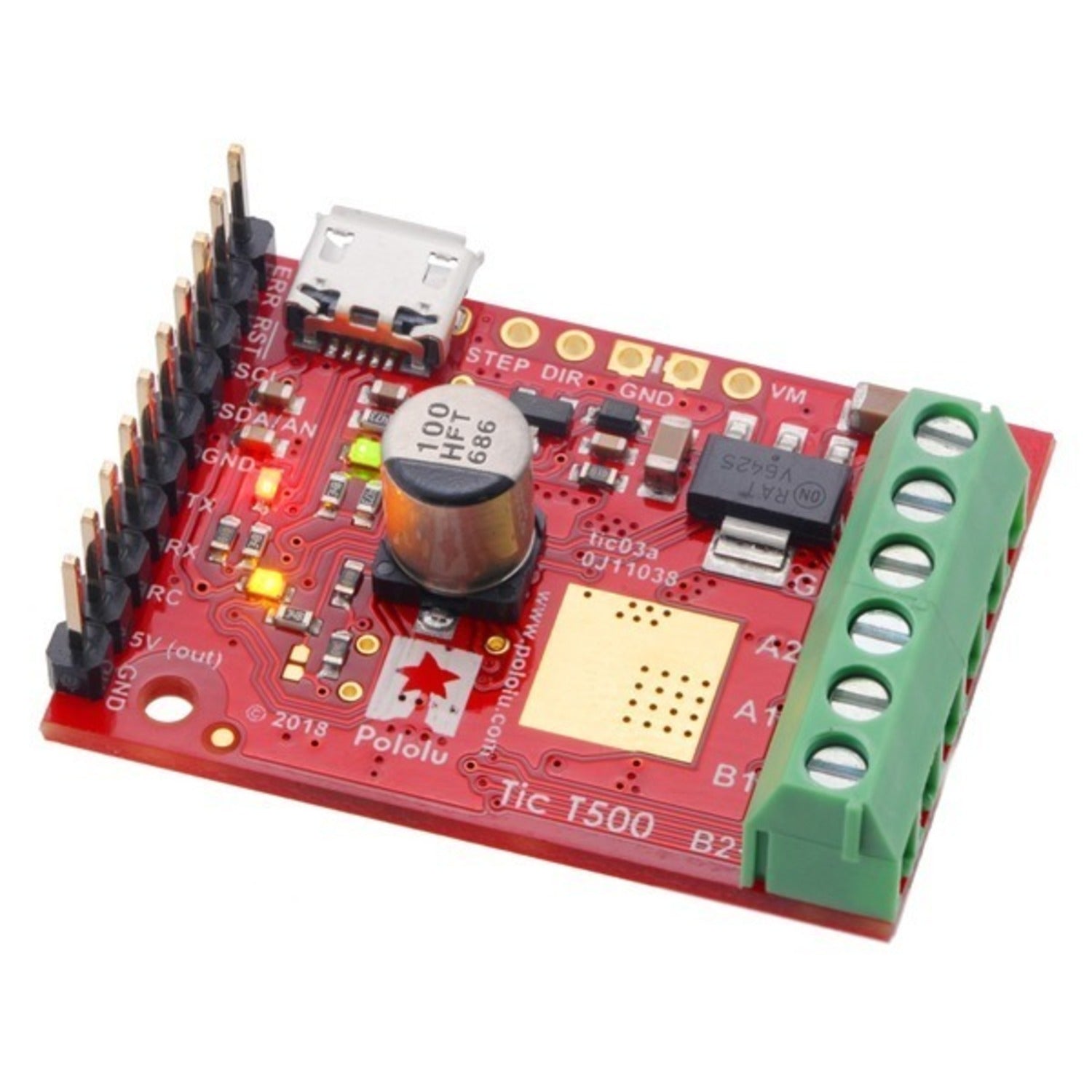

The Pololu Tic T500 is a versatile stepper motor controller that provides open-loop speed or position control for bipolar stepper motors. With multiple interface options including USB, serial, I²C, and analog inputs, it integrates easily into a wide range of projects.

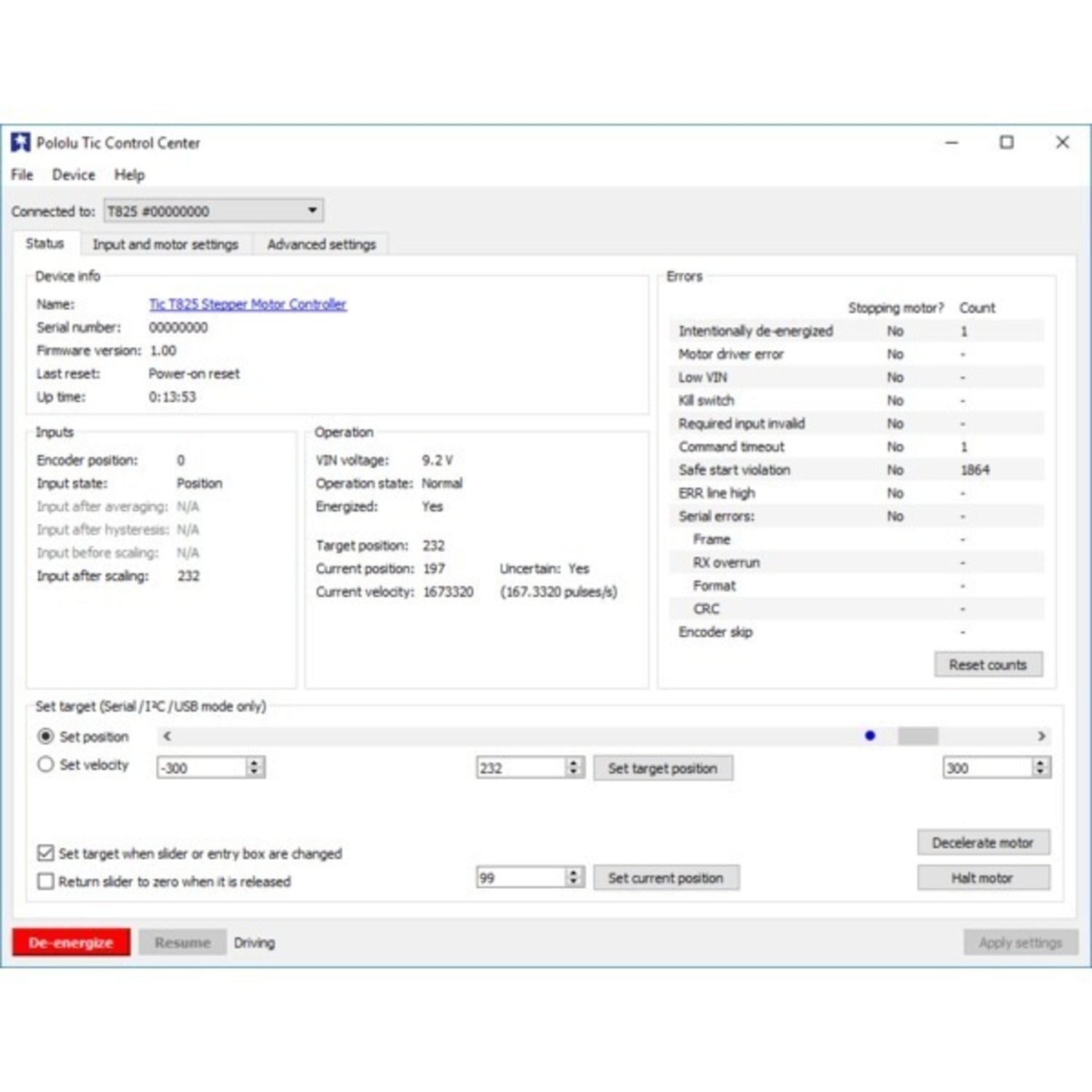

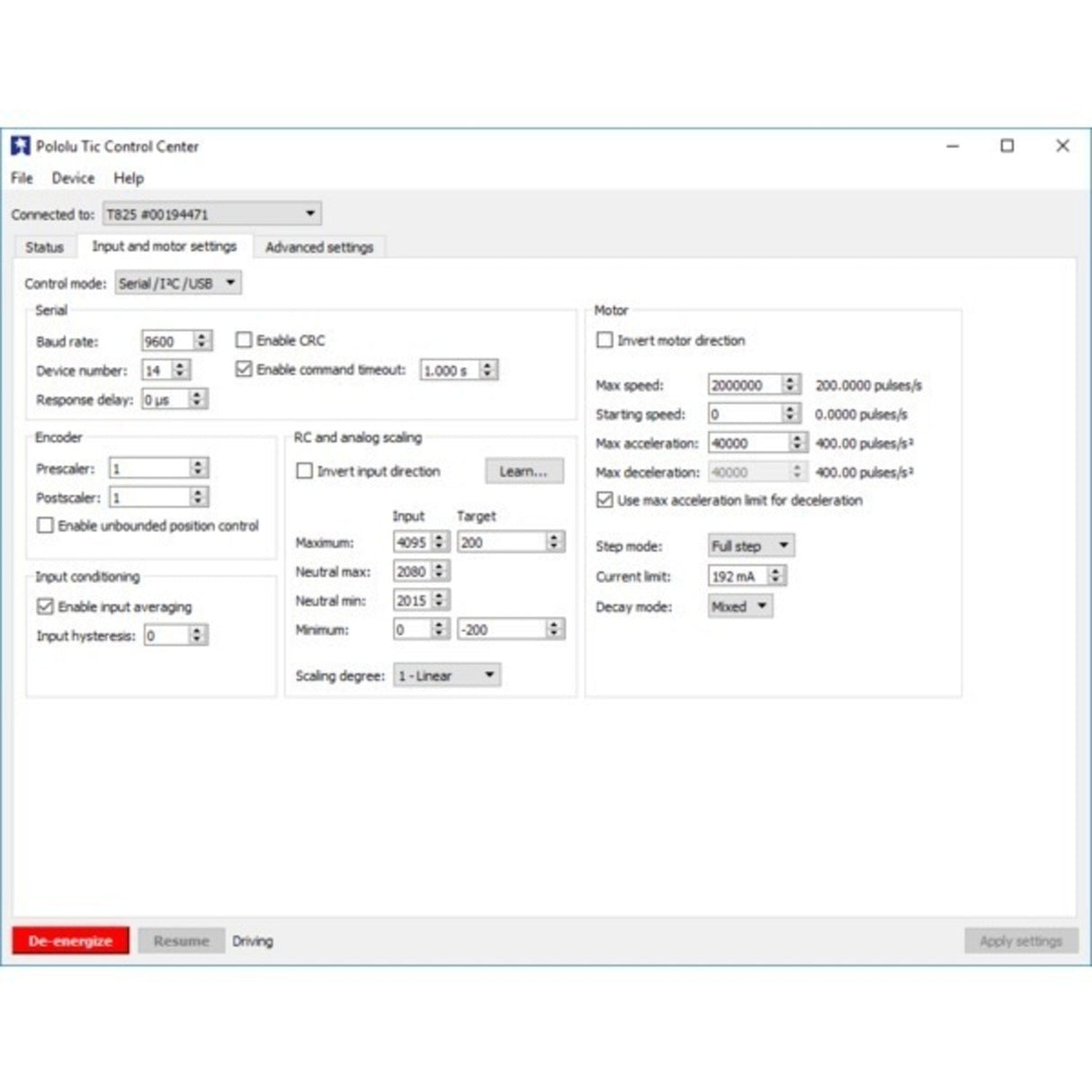

Configure settings using the free Tic Control Center software for Windows, Linux, and macOS. Features include acceleration/deceleration limiting and optional safety controls to prevent unexpected motor operation.
Key Features

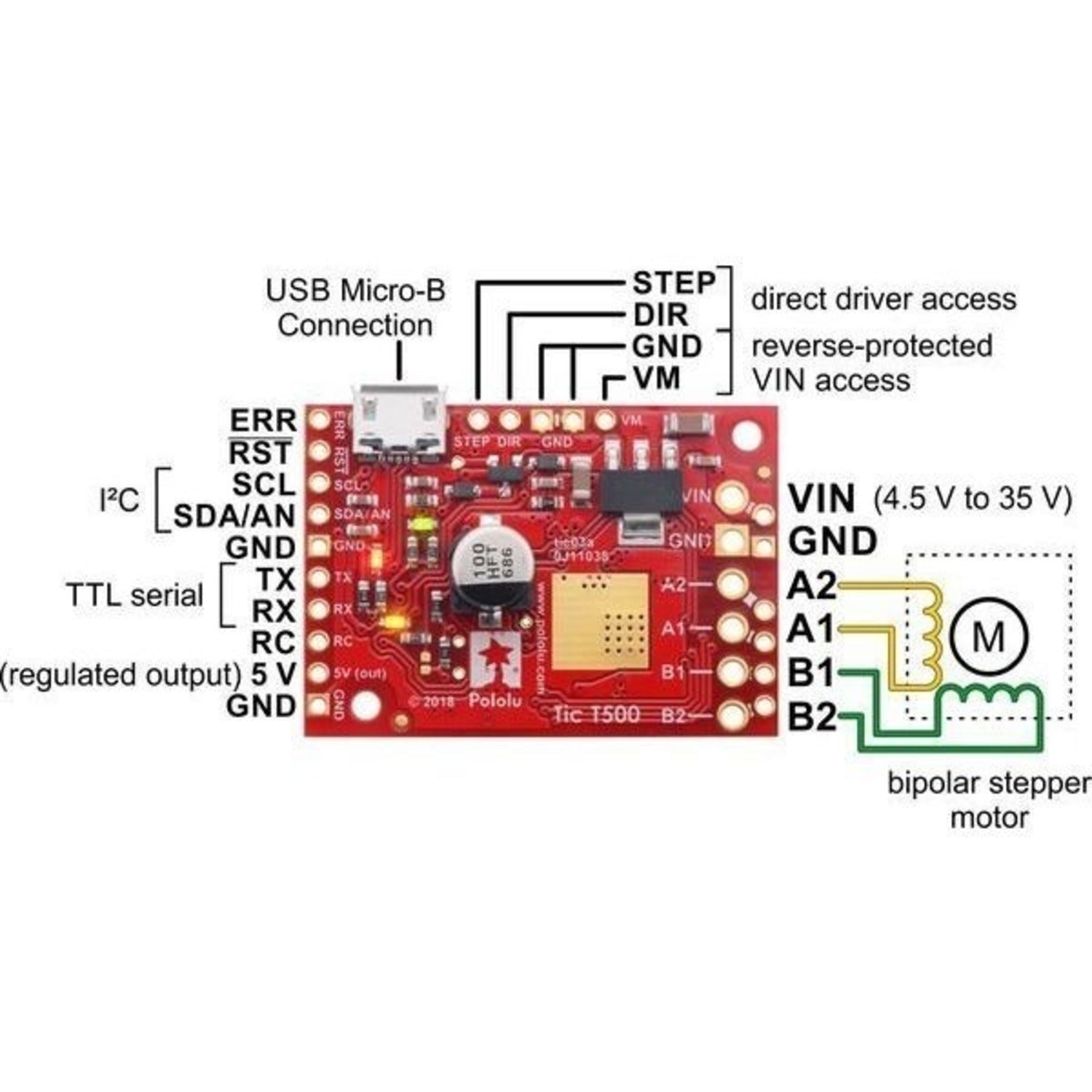

- Multiple Interfaces – USB, TTL serial, I²C, RC servo pulses, analog voltage, quadrature encoder
- Wide Voltage Range – 4.5V to 35V motor supply
- 1.5A Continuous Current – Per phase, no additional cooling required
- Microstepping – Full, half, 1/4, and 1/8 step resolutions
- High Speed – Up to 50,000 steps per second
- Precise Low Speed – Down to 1 step every 200 seconds
- Automatic Decay – MP6500 driver with automatic decay mode selection
- Safety Controls – Optional protections against unexpected motor power-up
Specifications
- Motor Supply Voltage – 4.5V to 35V
- Continuous Current – 1.5A per phase (no heatsink)
- Peak Current – 2.5A per phase
- Microstepping – Full, 1/2, 1/4, 1/8
- Max Speed – 50,000 steps/second
- Driver IC – MP6500 (Monolithic Power Systems)
Ideal For
- CNC machines and 3D printers
- Robotics and automation
- Camera sliders and motion control
- Position-controlled systems
- USB-controlled motor projects
