Waveshare  |  SKU: WS-34418

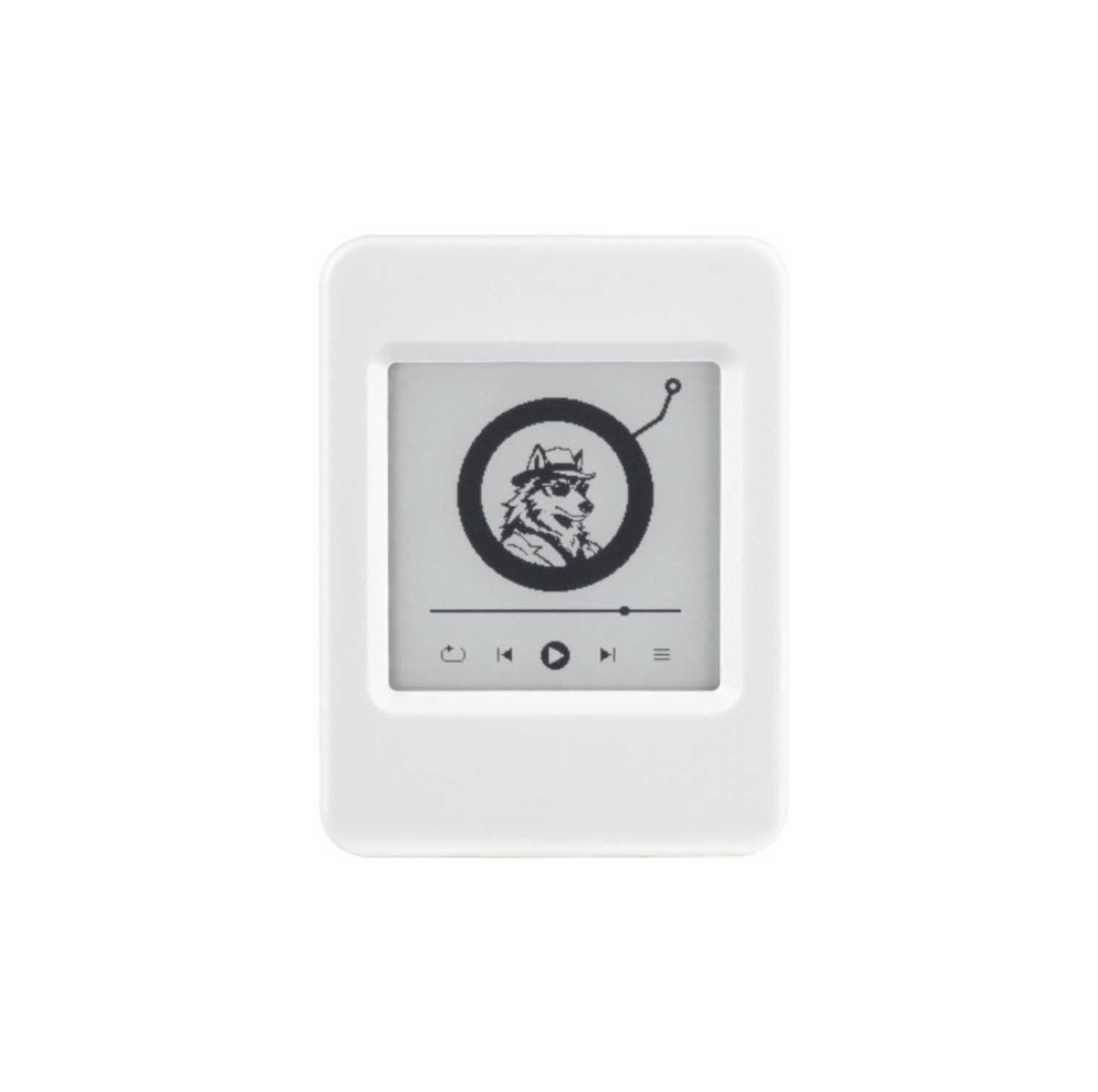

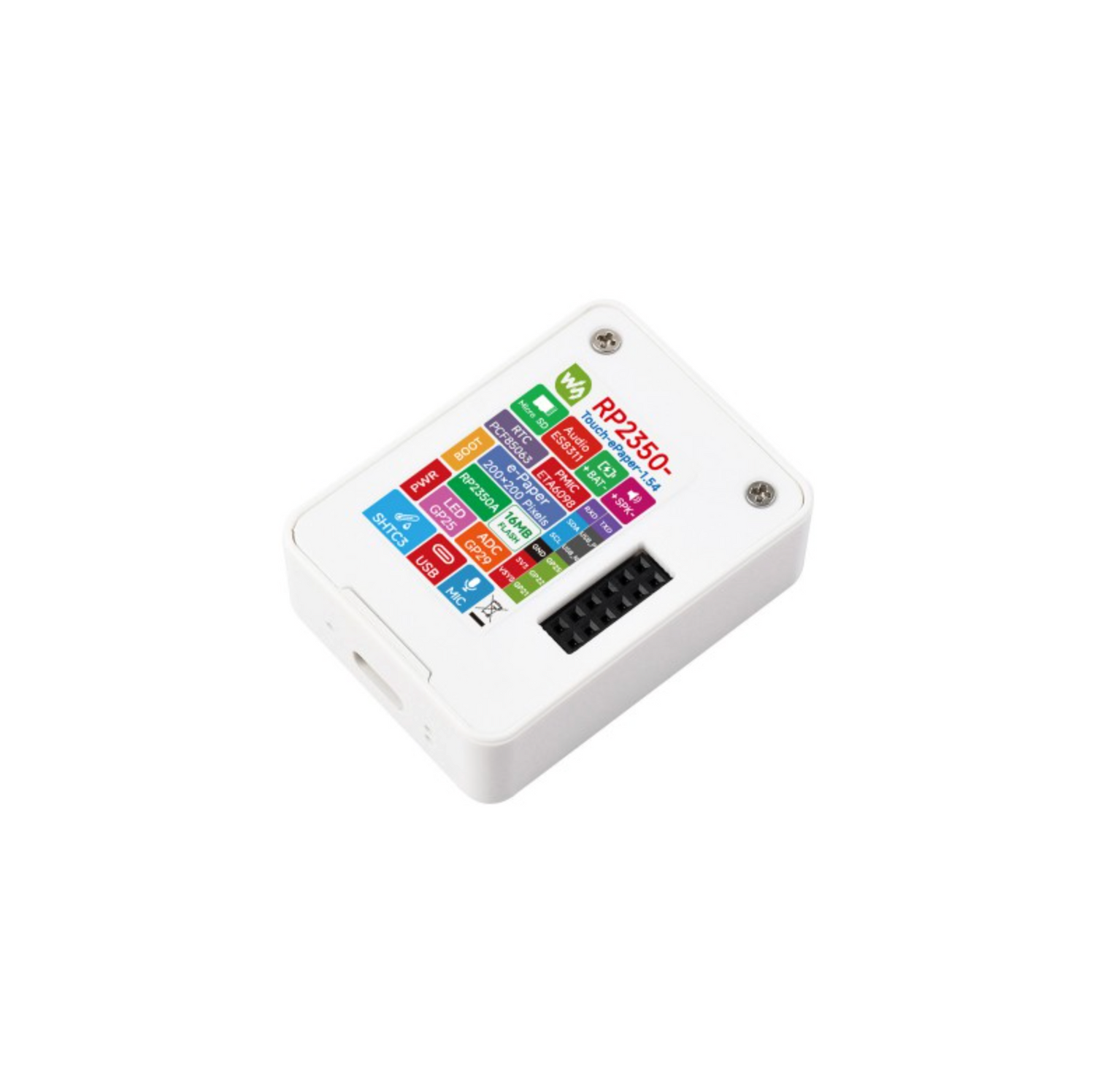

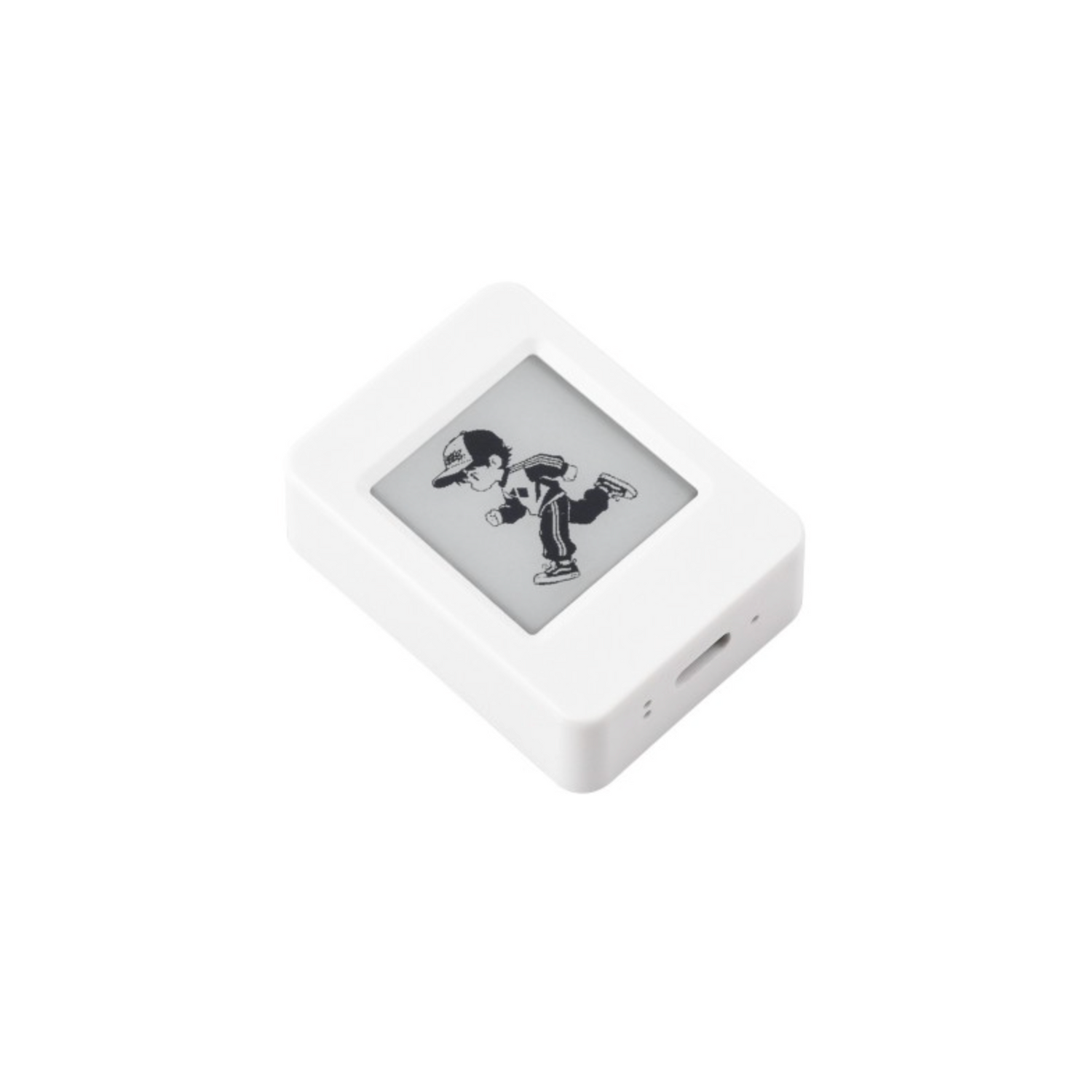

1.54inch E-Paper Display Development Board

$35.00
Tax included Shipping calculated at checkout.

Call us on 1300 240 817 between 10 AM and 4 PM on weekdays or email team@littlebird.com.au .

The Fastest Shipping

We ship faster because we built our own shipping 🤖 robot.

Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.

You can view shipping options and pricing at checkout without logging in.

For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.

We deliver across Australia, and here are the options (based on your location; view them on the cart page):

  • Standard Post: Starting at $7 (6+ business days, with tracking)
  • Express Post: Starting at $11 (2+ business days, with tracking)
  • Same Day Delivery: Available for Sydney orders.
  • Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.


The product is a high-performance, highly integrated microcontroller development board designed by Waveshare. It integrates high-capacity Flash and onboard 1.54inch e-paper display, features ultra-low power consumption and ambient light readability, suitable for portable devices and long-Batt-life scenarios. Integrated with an RTC chip, SHTC3 temperature and humidity sensor, TF card slot, low-power audio codec chip circuit, and Lithium Batt recharge and discharge management circuit. Reserved interfaces including USB, UART, I2C, and GPIO for easy functionality expansion and sensor connectivity, providing a flexible and reliable development platform for IoT terminals, electronic tags, portable displays, and other applications.
  • RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
  • Built-in 520KB Static RAM, with onboard 16MB Flash
  • Type-C port for easier use
  • Onboard 1.54inch e-paper display, 200 × 200 resolution, features high contrast and wide viewing angle
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • Adapting 7 × GPIO pins and USB+/- pins
  • 1 × I2C, 1 × UART, 2 × 12-bit ADC, 6 × controllable PWM channels
  • Accurate clock and timer on-chip
  • Built-in temperature sensor for real-time monitoring of chip temperature
  • 12 × programmable I/O (PIO) state machines for custom peripheral support

Specifications
display panel | e-paper displayDisplay size | 1.54inch
resolution | 200 × 200grey scale | 2
Communication interface | SPIfull refresh time | 2s
display color | black, whitepartial refresh time | 0.3s
Viewing Angle | >170°Display Type | Passively reflective
Onboard audio codec chip

Supports high-quality audio processing, providing clear and high-quality audio input and output
Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
Application Scenarios

Suitable for Desktop Temperature & Humidity Clock and e-Reader, etc

Desktop Temperature & Humidity Clock


E-Reader
dual-core, dual-architecture

The unique dual-core, dual-architecture capability of RP2350 allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, up to 150MHz operating frequency
Supports C/C++, MicroPython, Arduino

Comprehensive SDK, dev resources, and tutorials to help you easily get started

What's On Board
  1. RP2350
    Dual-core and dual-architecture design, up to 150 MHz operating frequency
  2. TF card slot
  3. BOOT button
  4. Batt recharge and discharge management chip
  5. PWR button
  6. SHTC3 temperature and humidity sensor
    provides ambient temperature and humidity measurement, enabling environmental monitoring function
  7. USB Type-C port
    for downloading programs, USB 1.1 with device and host support
  8. Microphone

  1. MX1.25 2PIN Lithium Batt header
    for 3.7V Lithium Batt, supports charging and discharging, up to 500mA peak charging current
  2. ES8311
    low power audio codec chip
  3. NS4150B
    audio power amplifier chip
  4. 2 × 6PIN 2.54mm pitch female pin header
  5. MX1.25 speaker header
  6. 16MB NOR Flash
  7. Touch panel connector
  8. Dual-color LED
    a programmable indicator and Batt charging indicator
  9. E-paper display connector
  10. PCF85063
    RTC chip with timekeeping function
Outline Dimensions
