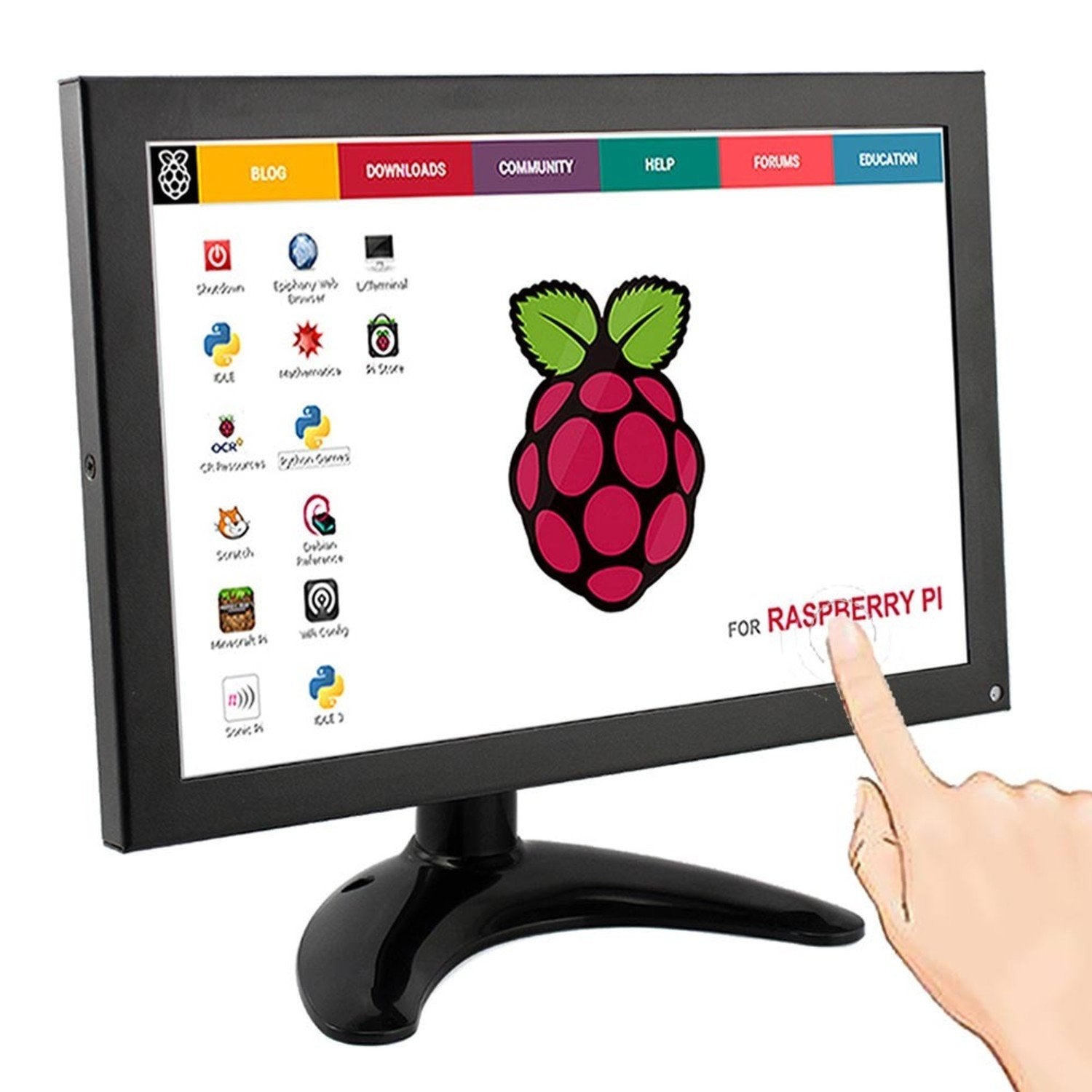

10.1 Inch Metal Shell IPS TFT 1280x800 Portable Monitor with Touch Function for Raspberry Pi

A premium 10.1" IPS touchscreen monitor with a durable metal shell, designed for Raspberry Pi and PC applications. The built-in speaker and 2-in-1 power design let you power your Raspberry Pi directly from the monitor, reducing cable clutter.

With 1280×800 resolution and wide viewing angles, this display delivers crisp visuals from any position. Control it via the capacitive touchscreen, rear-mounted buttons, or the included remote control.

Key Features

• IPS Display – Wide 85° viewing angles with accurate colour reproduction
• Capacitive Touchscreen – Responsive multi-touch input
• Metal Shell – Durable construction for long-term use
• Built-in Speaker – Audio output without external speakers
• Multiple Inputs – HDMI, VGA, and AV connections
• 2-in-1 Power – Powers Raspberry Pi directly from the monitor
• Remote Control – Adjust settings from a distance

Ideal For

• Raspberry Pi desktop setups
• Industrial automation displays
• Portable workstations
• Car reversing cameras
• Security monitoring

Raspberry Pi Setup

Install the touch driver on your Raspberry Pi:

git clone https://github.com/Elecrow-keen/Elecrow-LCD101.git
cd Elecrow-LCD101
sudo chmod +x Elecrow-LCD101
sudo ./Elecrow-LCD101

Specifications

• Screen Size: 10.1" diagonal
• Resolution: 1280×800 pixels
• Panel Type: IPS
• Viewing Angles: 85°/85°/85°/85°
• Contrast Ratio: 500:1
• Brightness: 300 cd/m²
• Input Voltage: 12V DC
• Dimensions: 243 × 163 × 40mm
• Weight: 1600g

Package Contents

• 1× 10.1" HDMI IPS LCD Monitor
• 1× 12V/2A power adapter
• 1× Remote control
• 1× HDMI cable
• 1× USB-A to USB-A cable
• 1× USB-A to Micro USB cable
• 1× Acrylic mounting board
• 4× Plastic screws, standoffs, and nuts
• 4× M4×10mm screws

Resources

• User Manual (PDF)
• Touch Calibration Guide (PDF)
