2.23inch OLED Display Module for Raspberry Pi Pico, 128×32, SPI/I2C

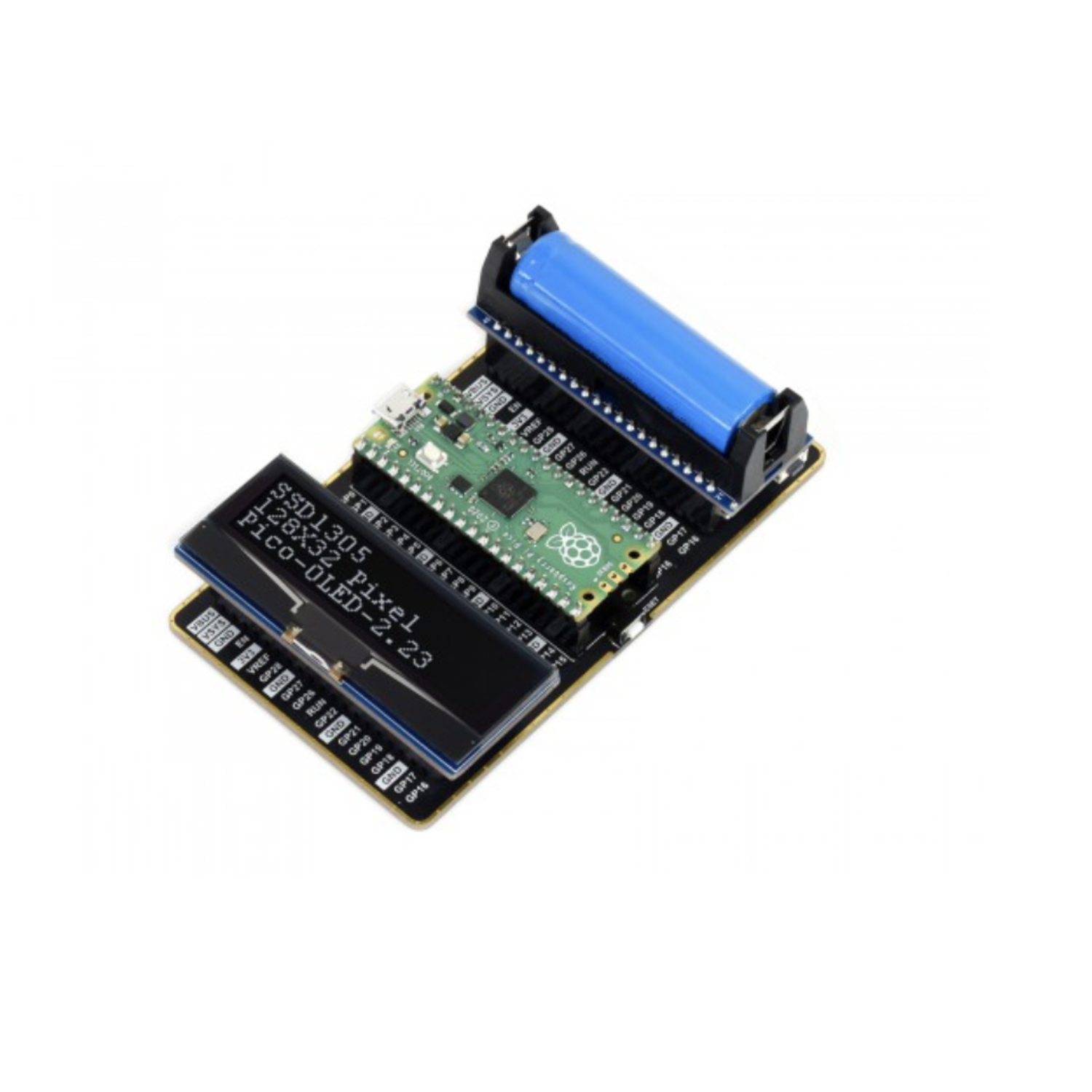

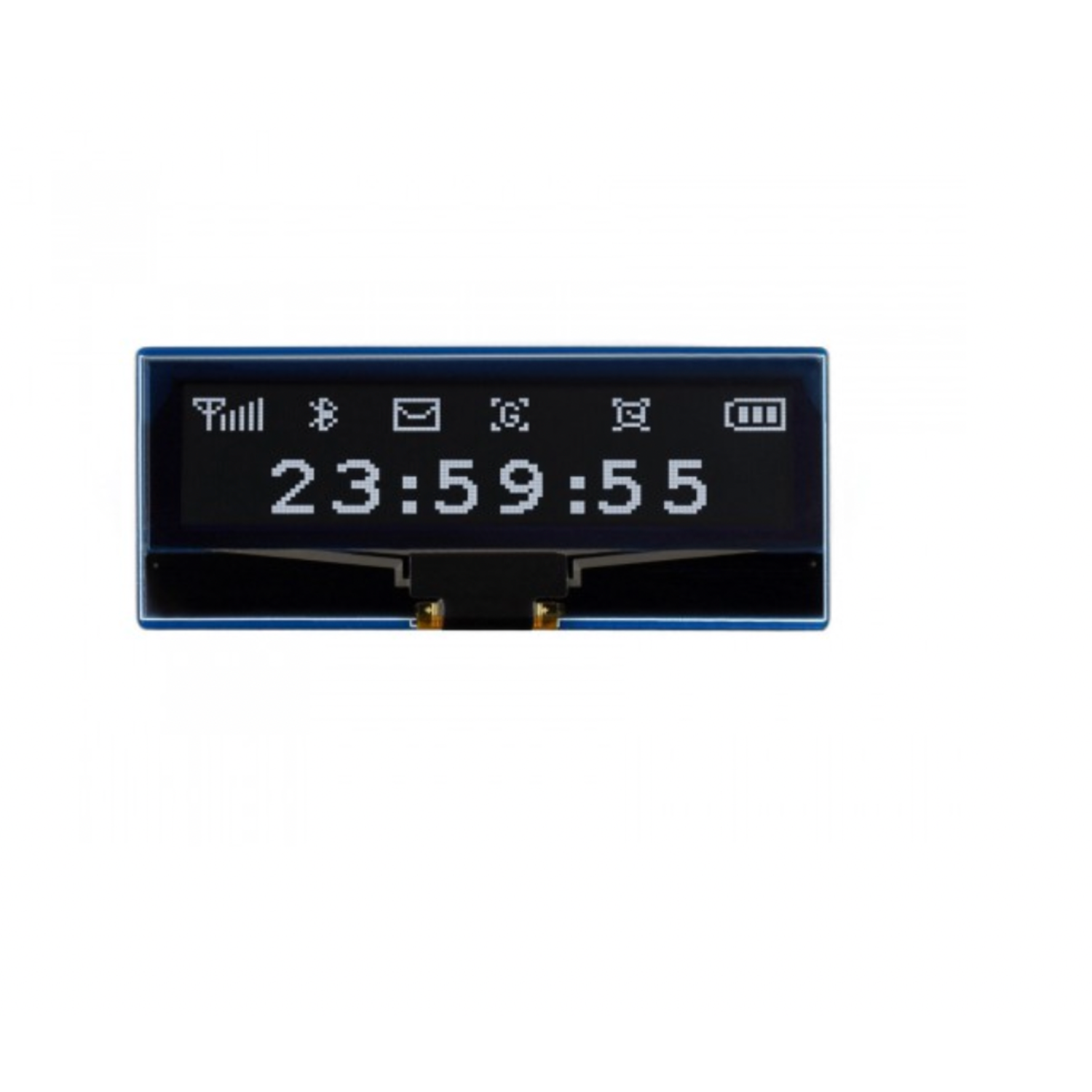

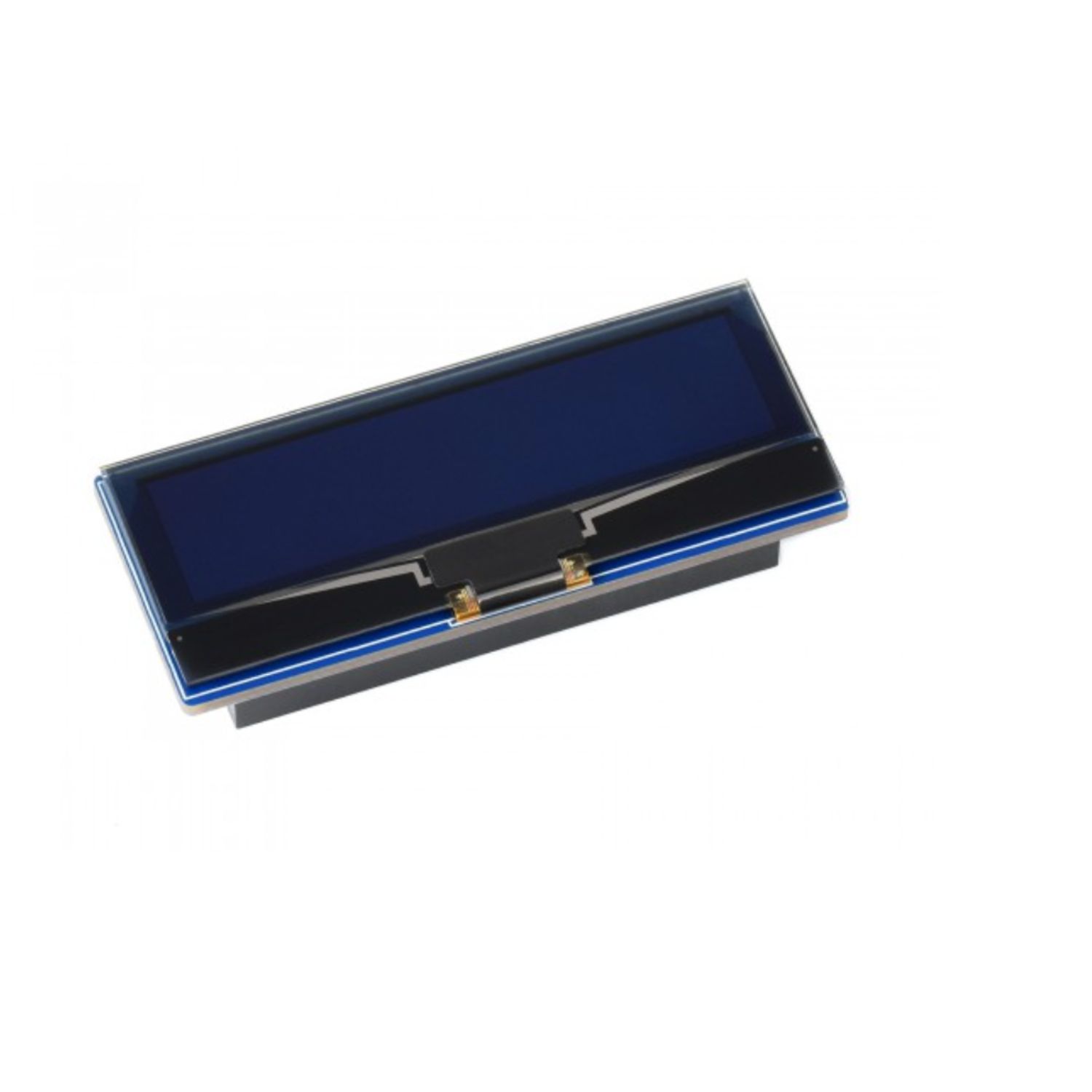

A compact 2.23" OLED display module designed to plug directly onto Raspberry Pi Pico. The 128×32 pixel monochrome display uses the SSD1305 driver and supports both SPI and I2C interfaces for flexible integration.
Comes with example code for C/C++ and MicroPython to get you started quickly. The wide viewing angle and crisp OLED contrast make it perfect for status displays, data readouts, and small UI projects.
Key Features
- 2.23" OLED Display – Crisp monochrome graphics
- 128×32 Resolution – Compact but readable
- Dual Interface – Supports both 4-wire SPI and I2C
- Direct Pico Mount – Female headers plug onto Pico pins
- Wide Viewing Angle – Over 160°
- Example Code Included – C/C++ and MicroPython demos
Ideal For
- Status and data displays
- Sensor readout projects
- Menu interfaces
- Wearable electronics
- Learning display programming
Specifications
- Display Size: 2.23 inches
- Resolution: 128 × 32 pixels
- Display Type: OLED (monochrome)
- Colour: White on black
- Driver: SSD1305
- Interface: 4-wire SPI / I2C
- Logic Voltage: 3.3V
- Operating Voltage: 3.3V / 5V
- Viewing Angle: >160°
- Display Area: 55.02 × 13.10mm
- Module Dimensions: 63 × 26mm
Compatibility
- Raspberry Pi Pico
- Raspberry Pi Pico W
- Raspberry Pi Pico 2
Package Contents
- 1× 2.23" OLED Display Module
