3.5inch Touch Display Module for Raspberry Pi Pico, 65K Colours, 48...

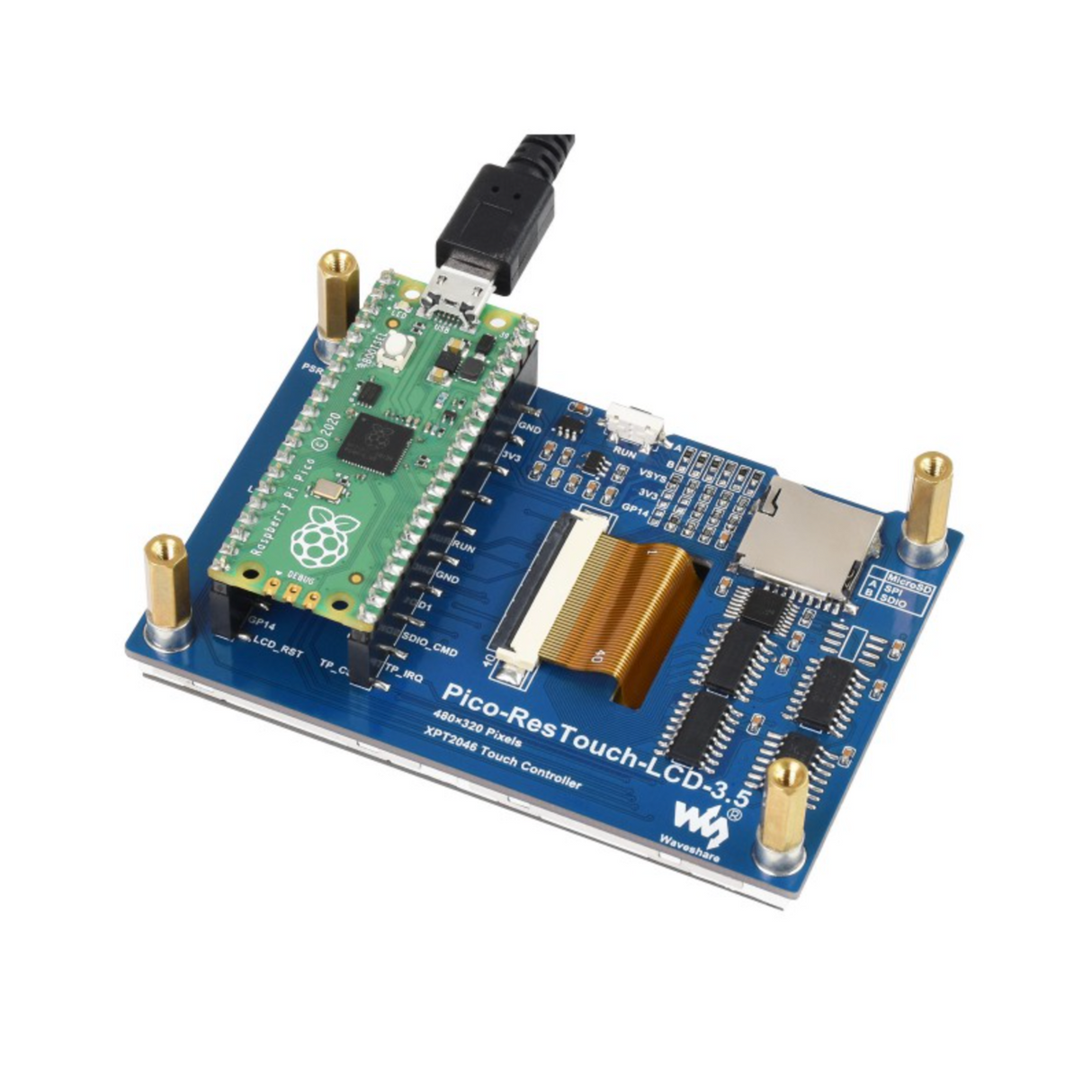

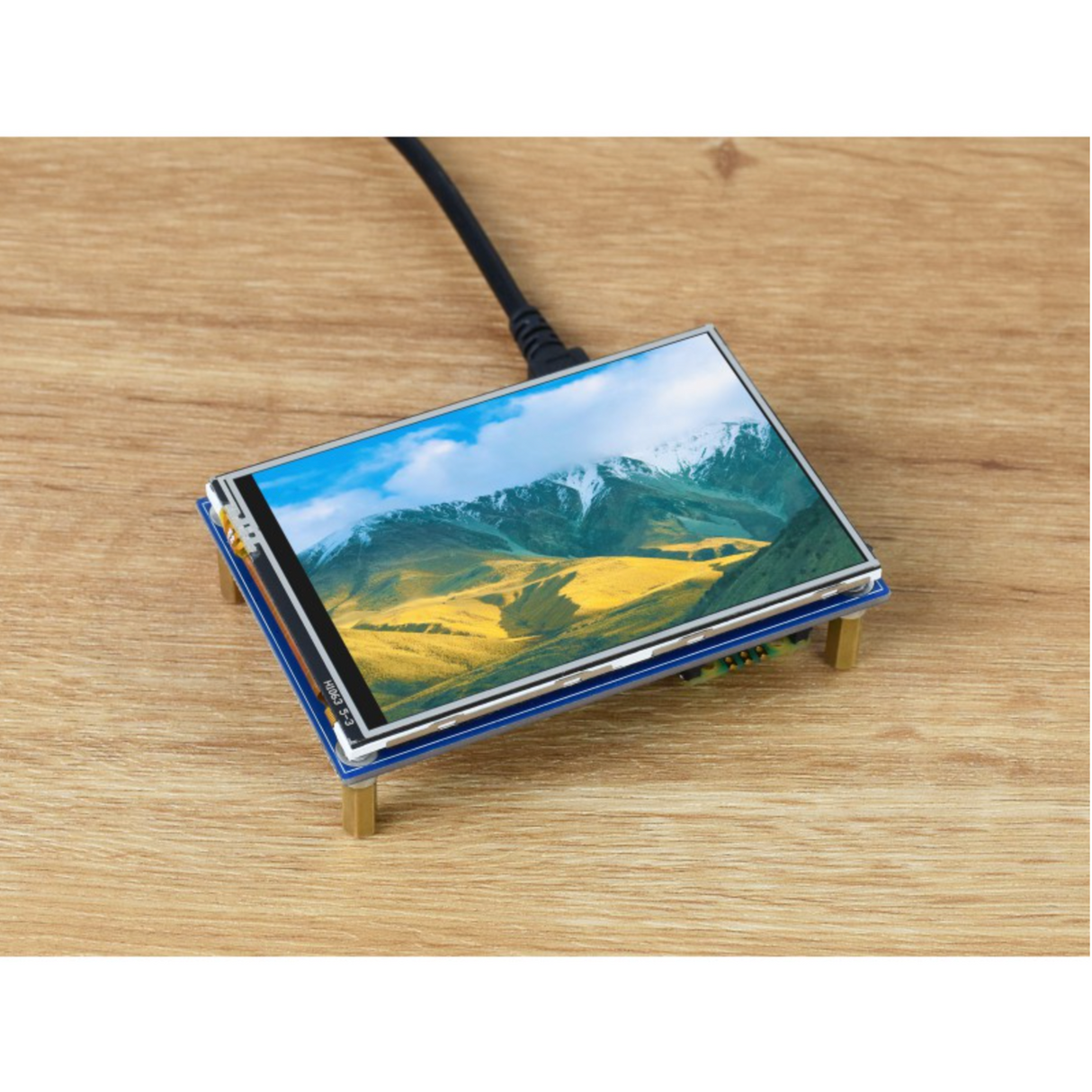

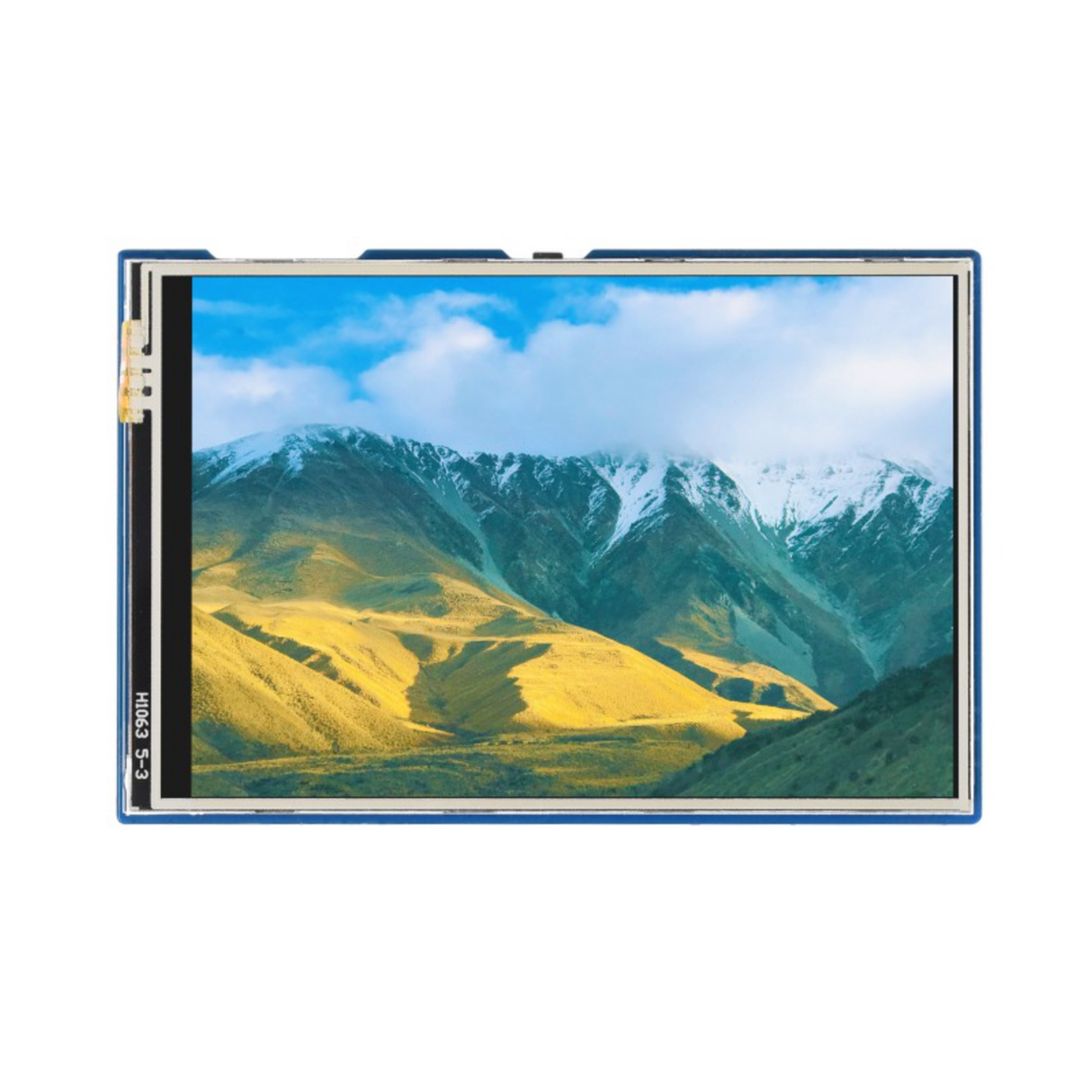

Add a large, touch-enabled display to your Raspberry Pi Pico with this 3.5-inch IPS LCD module. The 480×320 resolution and 65K colours deliver sharp, vibrant visuals, while the resistive touchscreen enables interactive control for your projects.
Features a dedicated XPT2046 touch controller for smooth, responsive input—far superior to AD-controlled solutions. Includes a MicroSD card slot for storing and displaying images, plus programmable backlight control for power-saving applications.
Key Features
- 3.5-Inch IPS Display – Wide viewing angles with 480×320 resolution
- Resistive Touchscreen – XPT2046 dedicated touch controller for smooth response
- 65K Colours – Vivid, colourful graphics via ILI9488 display driver
- MicroSD Card Slot – Store and display images directly from the card
- Programmable Backlight – Adjustable brightness for power saving
- SPI Interface – Efficient communication with minimal GPIO usage
- Plug-and-Play – Female header attaches directly to Pico
Specifications
- Display Size: 3.5 inch (73.44 × 48.96mm active area)
- Resolution: 480 × 320 pixels
- Pixel Size: 0.153 × 0.153mm
- Display Panel: IPS
- Colours: 65K
- Display Driver: ILI9488
- Touch Controller: XPT2046 (resistive)
- Interface: SPI
- Operating Voltage: 5V
- Module Dimensions: 86.00 × 57.20mm
Ideal For
- Touch-based user interfaces
- Image slideshows and photo frames
- Interactive sensor dashboards
- Menu-driven control systems
Package Contents
- 1× 3.5-inch Touch Display Module for Raspberry Pi Pico
