5 inch LCD HDMI Touch Screen Display for Raspberry Pi 4
A compact 5-inch HDMI touchscreen display designed for Raspberry Pi 4. The 800×480 resolution is ideal for embedded projects, control panels, and portable Pi builds. Plugs directly onto your Pi for a clean, integrated setup.
Touch functionality works via the GPIO header, while the display connects through the onboard HDMI connector. Compatible with Raspberry Pi OS, Ubuntu, and Windows 10 IoT.
Key Features
- 5-Inch TFT Display – 800×480 resolution
- Resistive Touchscreen – Touch control via SPI/GPIO

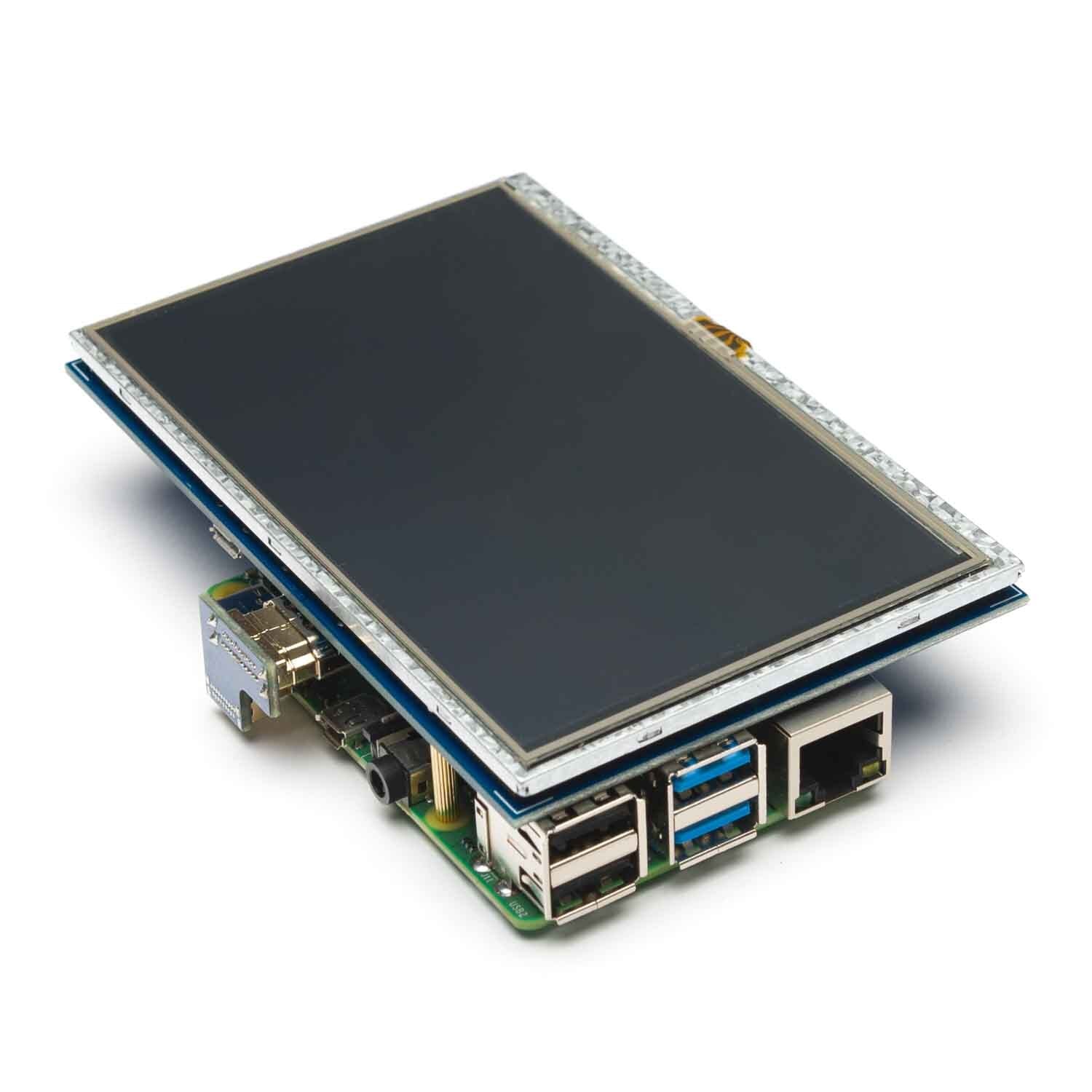

- Direct Pi Connection – Plugs onto GPIO header (no cables needed)
- HDMI Compatible – Works with other HDMI devices too
- GPIO-Powered – No separate power supply required
- Multi-OS Support – Raspberry Pi OS, Ubuntu, LinuxMint, Windows 10 IoT
Specifications
- Display Size: 5 inch TFT LCD
- Resolution: 800 × 480
- Touch: Resistive (SPI via GPIO)
- Power: 5V via Raspberry Pi GPIO
- Dimensions: 120 × 74 × 7mm
- Weight: 125g
Compatibility
- Raspberry Pi 4 (direct plug-in)
- Raspberry Pi 3B+/3B/2B (direct plug-in)
- Raspberry Pi 1 Model B (requires HDMI cable)
- Other HDMI devices (display only, no touch)

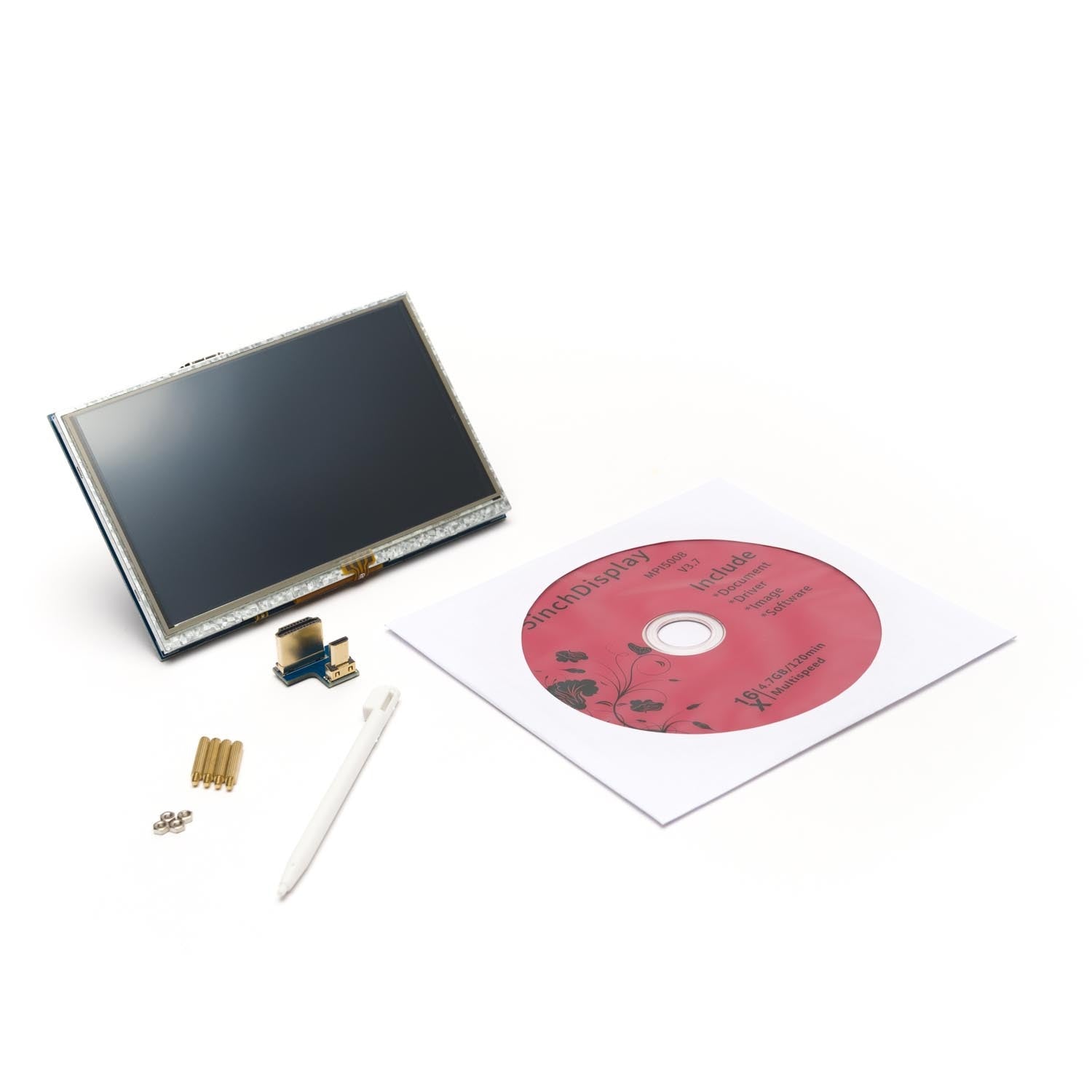

Package Contents
- 1× 5-inch HDMI LCD Module
- 1× HDMI Connector
- 1× Touch Pen (Stylus)
- 1× RPi Screw Pack (4 pcs)
Resources
