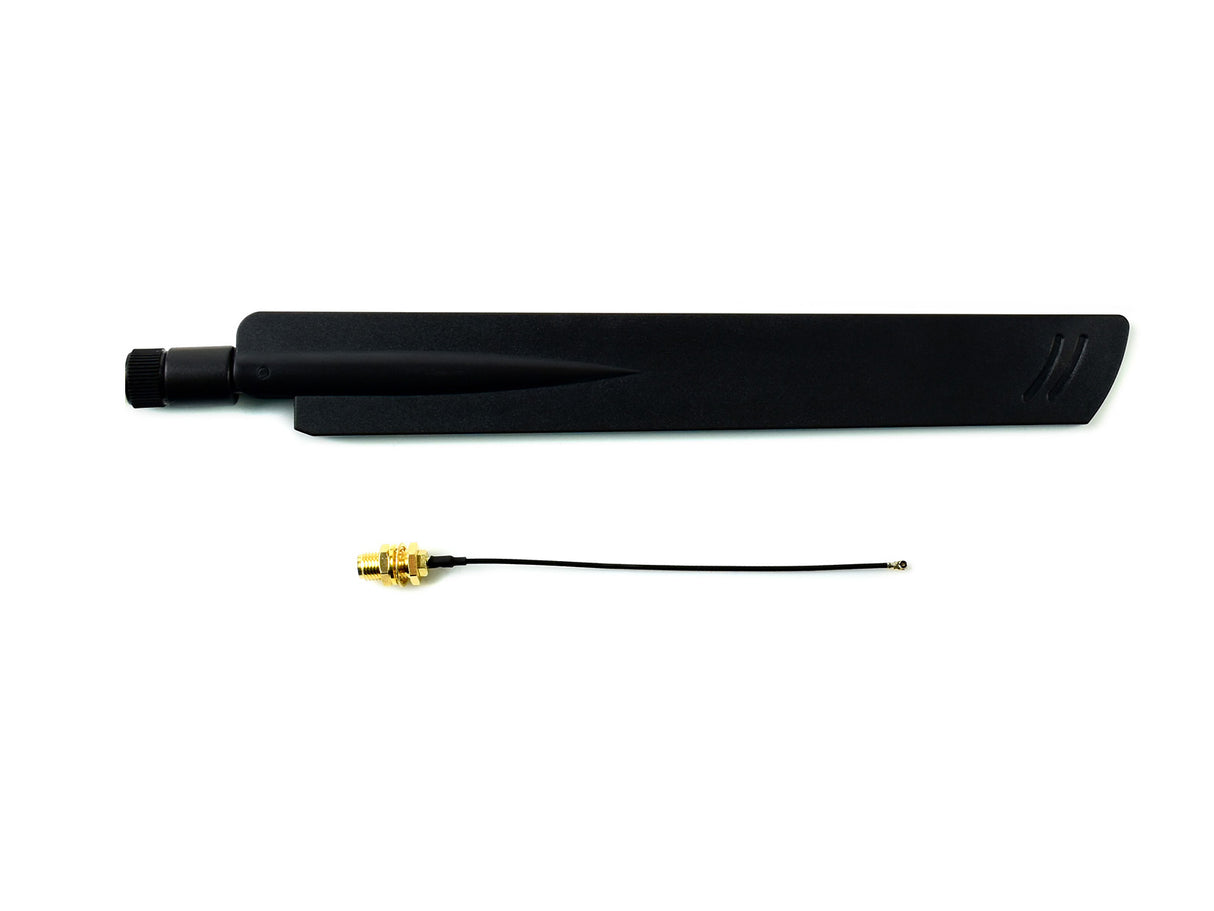

5G Omni-Directional High Gain Antenna with SMA to IPEX-4 Connector
5G Omni-Directional High Gain Antenna with SMA to IPEX-4 Connector is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Call us on 1300 240 817 between 10 AM and 4 PM on weekdays or email team@littlebird.com.au .
The Fastest Shipping
The Fastest Shipping
We ship faster because we built our own shipping 🤖 robot.
Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.
You can view shipping options and pricing at checkout without logging in.
For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.
We deliver across Australia, and here are the options (based on your location; view them on the cart page):
- Standard Post: Starting at $7 (6+ business days, with tracking)
- Express Post: Starting at $11 (2+ business days, with tracking)
- Same Day Delivery: Available for Sydney orders.
- Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.

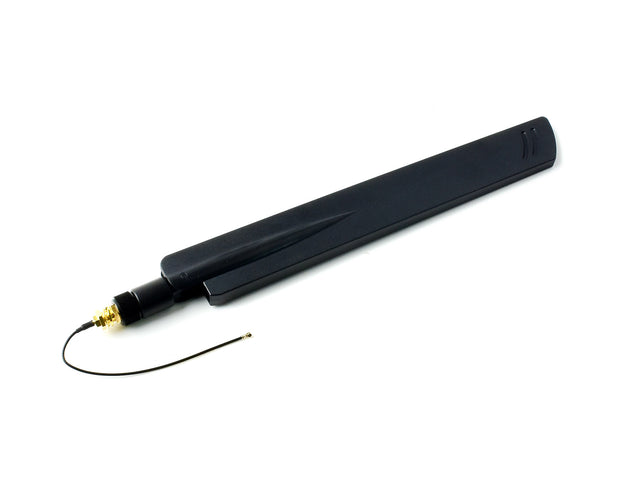

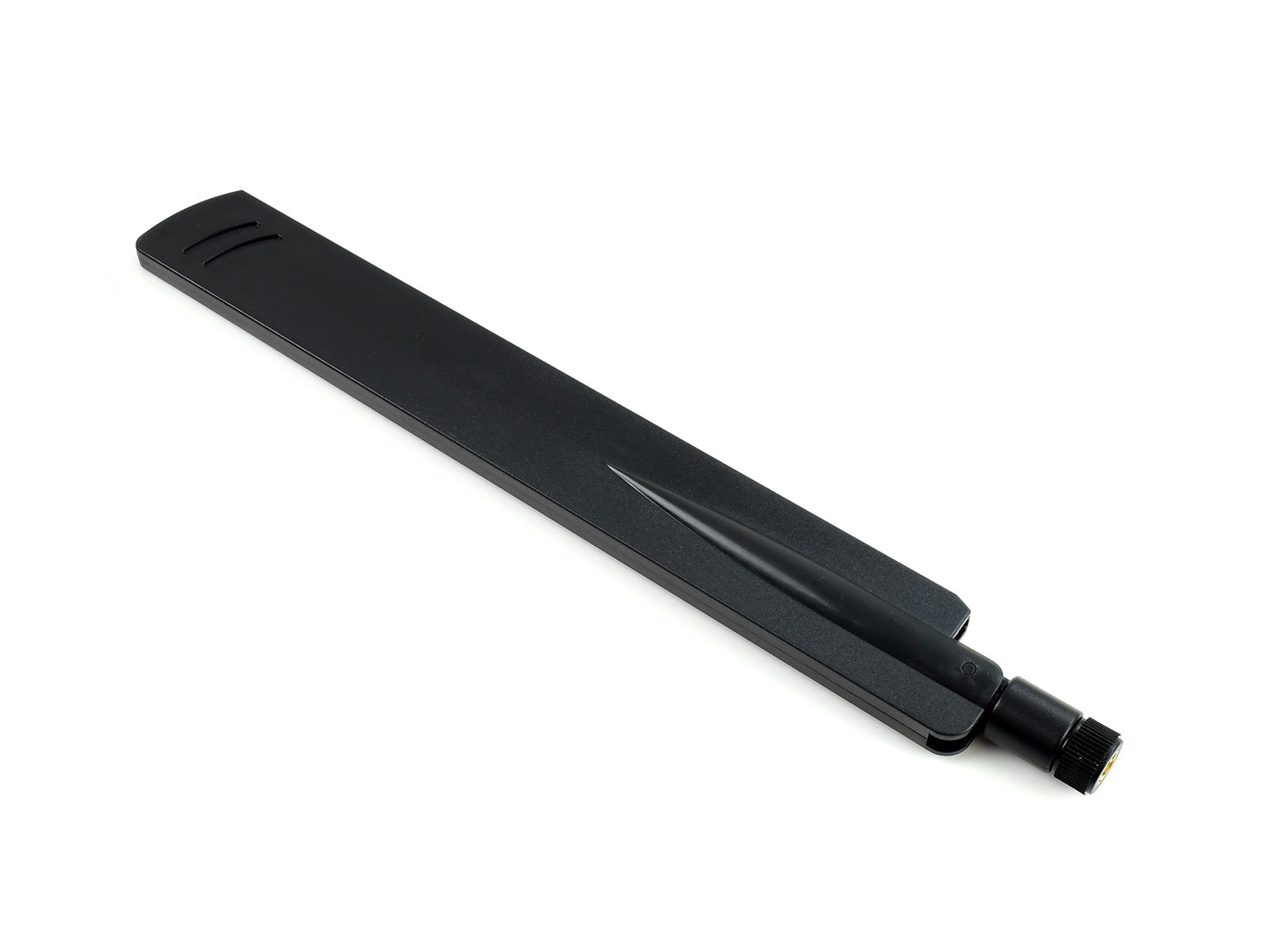

Boost your cellular connectivity with this high-gain omni-directional antenna supporting 5G, 4G, 3G, and GNSS networks. The impressive 18dBi gain significantly extends wireless range, making it ideal for IoT deployments, remote locations, and areas with weak signal coverage.
Features an SMA connector with IPEX-4 pigtail for easy connection to modules like the SIM8202G-M2 and Raspberry Pi 5G HAT. The omni-directional design provides consistent coverage in all directions without orientation adjustments.
Key Features
- 18dBi High Gain – Significantly extends wireless range and coverage
- Multi-Network Support – 5G, 4G, 3G, and GNSS compatible
- Wide Frequency Range – 600MHz to 6000MHz coverage
- Omni-Directional – 360° signal coverage, no aiming required
- SMA to IPEX-4 – Flexible connection for various modules
- Durable ABS Construction – Built for harsh conditions
Specifications
- Network Support: 5G/4G/3G/GNSS
- Frequency Band: 600–6000MHz
- Gain: 18dBi
- Impedance: 50Ω
- SWR: < 3.0
- Polarisation: Linear
- Connector: SMA (male pin) to IPEX-4
- Material: ABS
- Dimensions: 220 × 24mm
- Weight: 34g
- Operating Temperature: -20°C to +85°C
Compatible With
- SIM8202G-M2 5G Module
- Raspberry Pi 5G HAT
- Other 5G/4G/3G communication modules with IPEX-4
Ideal For
- IoT and M2M deployments
- Remote monitoring systems
- Areas with weak cellular signal
- Mobile communication projects
Package Contents
- 1× 5G/4G/3G/GNSS External Antenna with SMA to IPEX-4 cable
