Adafruit Perma-Proto HAT for Pi Mini Kit - No EEPROM

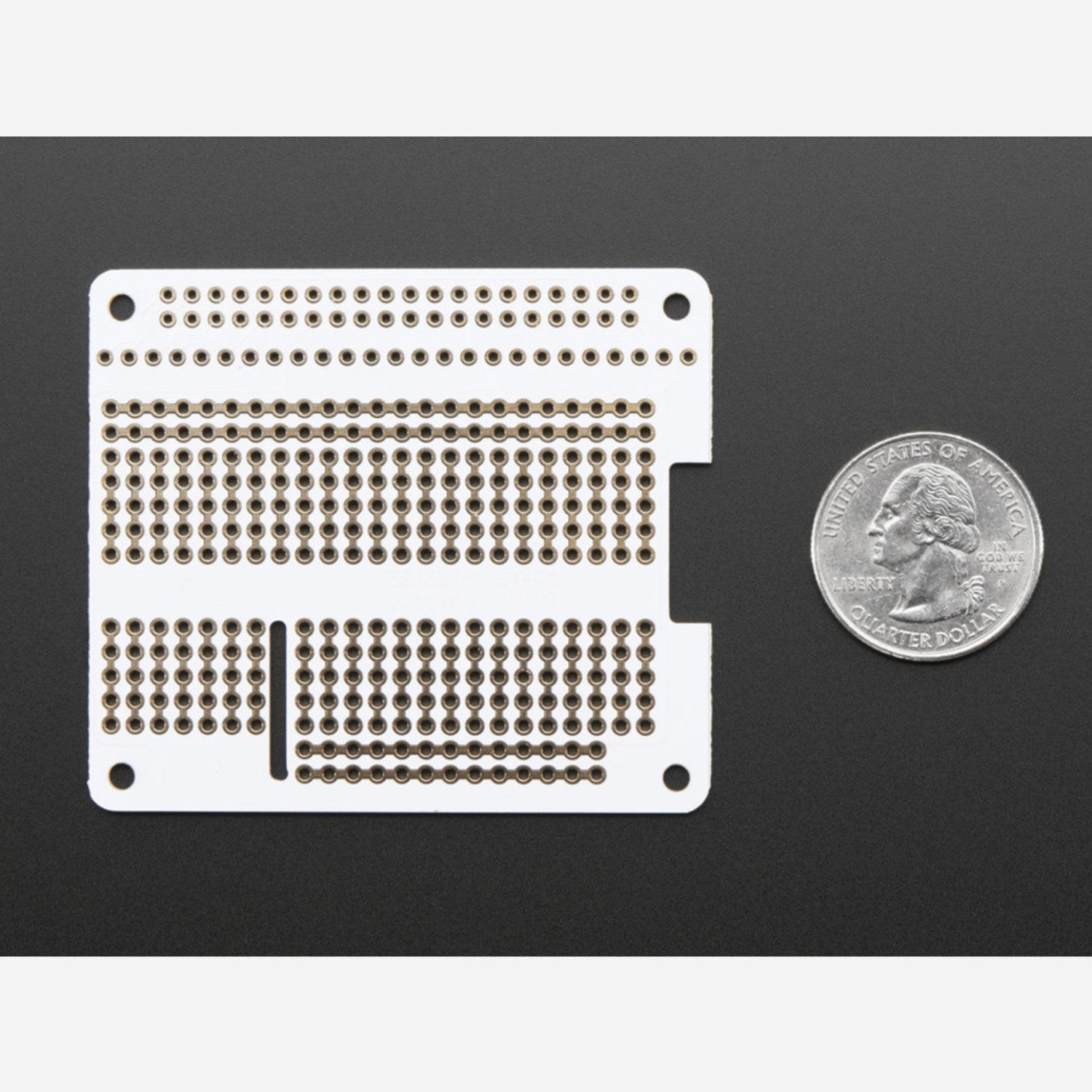

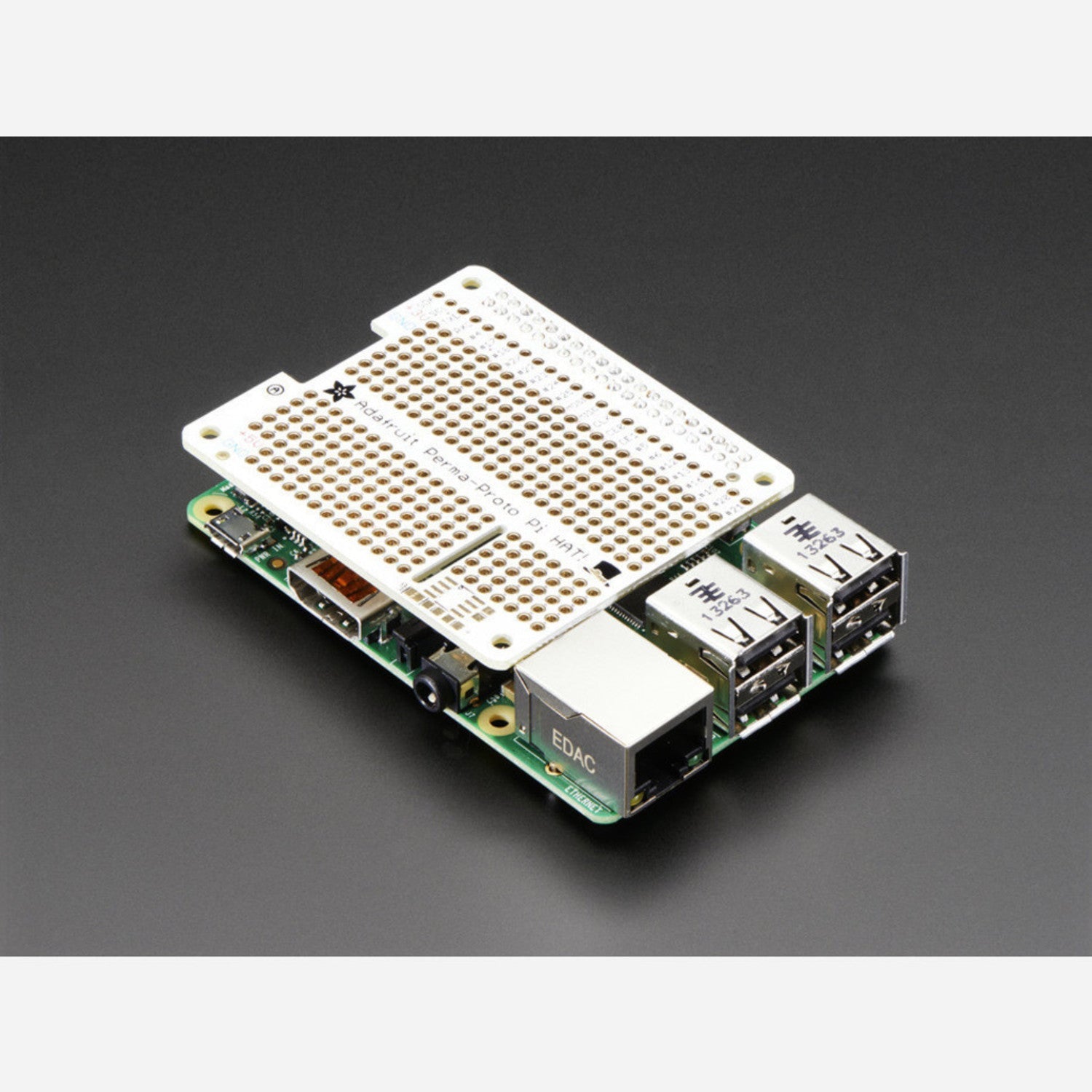

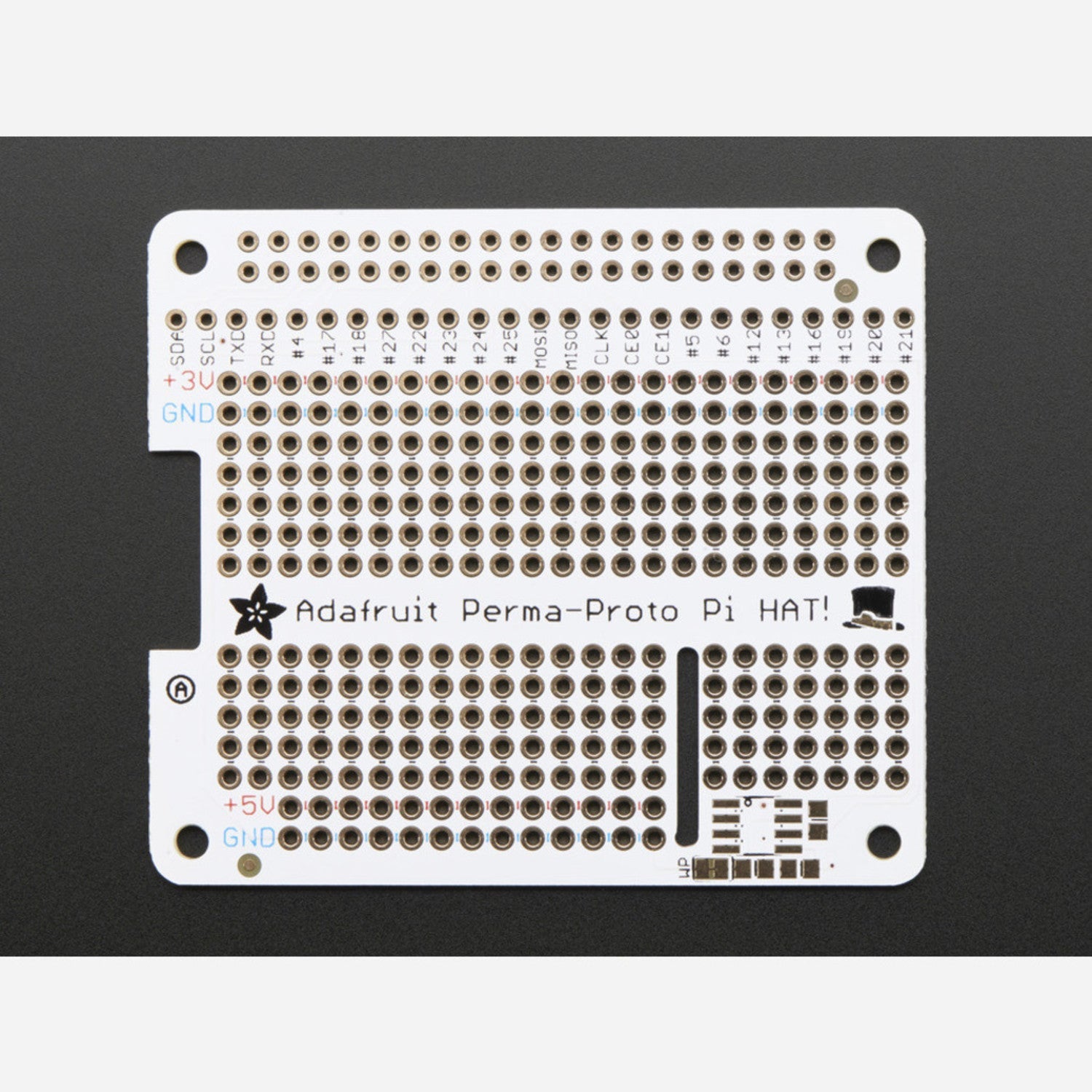

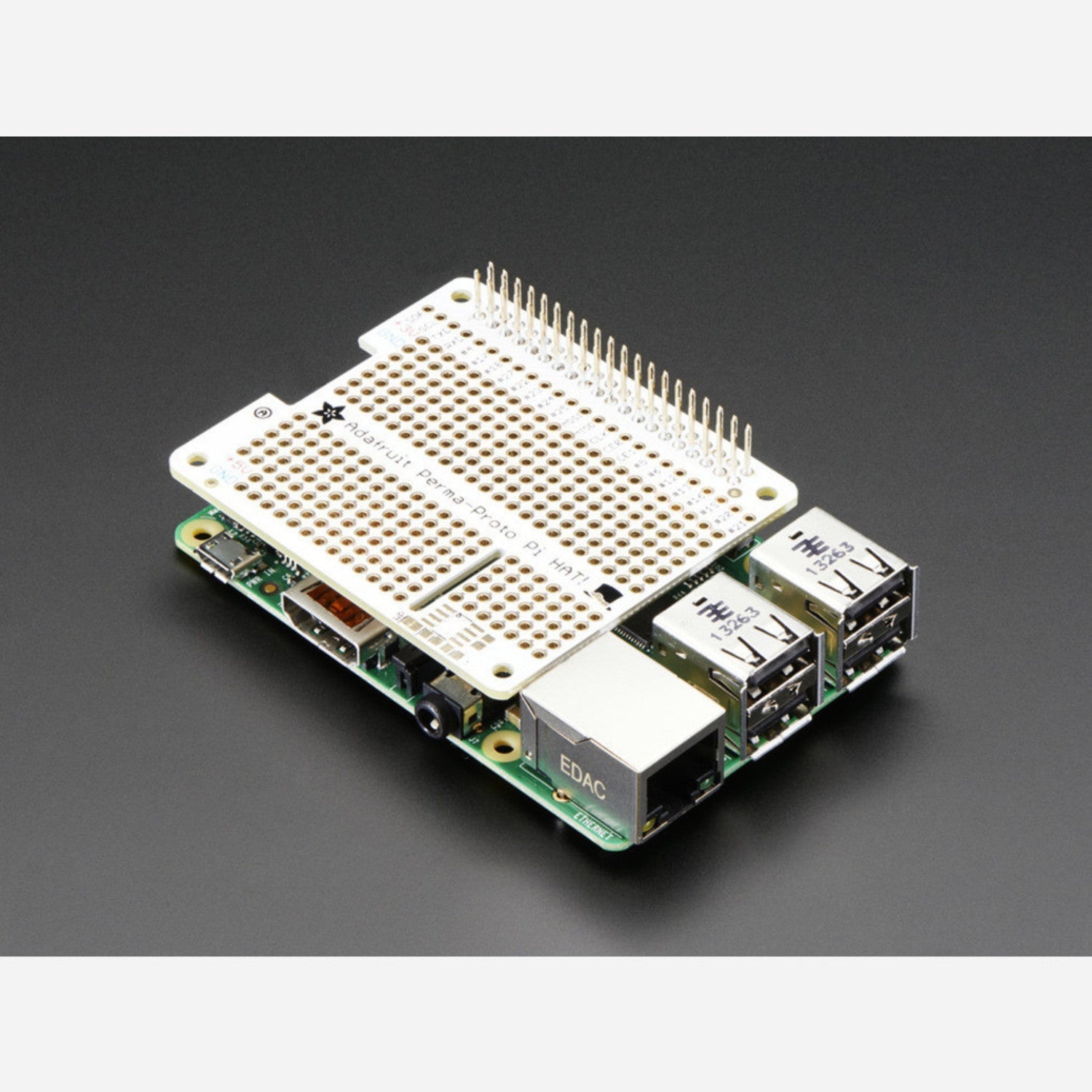

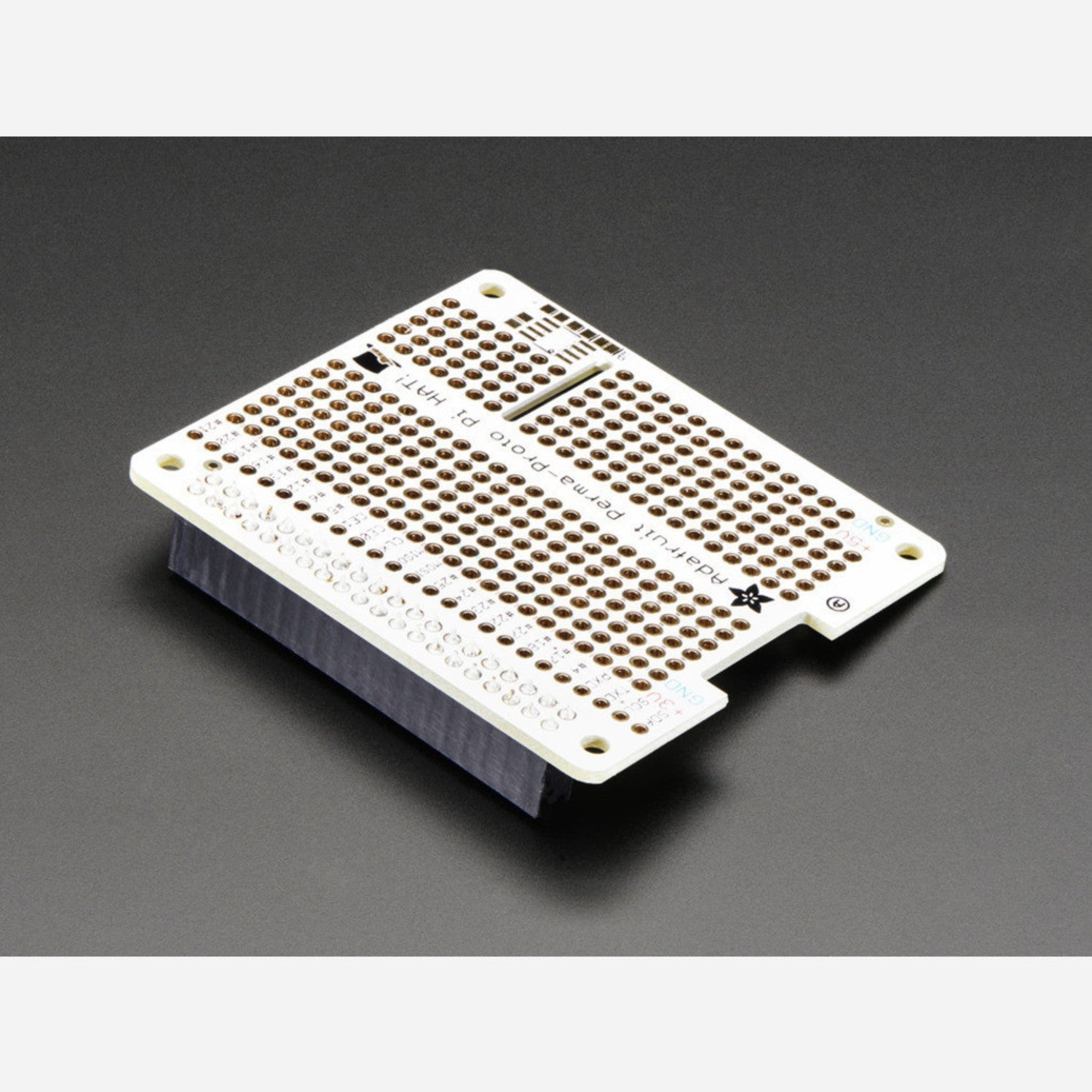

A prototyping HAT for Raspberry Pi that lets you build custom circuits in a permanent, solderable format. Features a grid of 0.1" holes with breadboard-style trace connections underneath, plus power rails for easy access to 3.3V, 5V, and ground.
This version has no EEPROM, so it won't conflict with other HATs when stacking.
Key Features
- Breadboard-Style Layout – Familiar trace pattern for easy circuit design
- Power Rails – Dedicated strips for +3.3V, +5V, and GND
- 26 GPIO Breakouts – Access to nearly all Pi GPIO pins
- No EEPROM – Stack with other HATs without address conflicts
- Standard 0.1" Holes – Fits DIP chips, resistors, LEDs, and more
- HAT Form Factor – Matches official Pi HAT dimensions
Compatibility
- Raspberry Pi Zero / Zero W / Zero 2 W
- Raspberry Pi A+ / B+
- Raspberry Pi 2 / 3 / 4

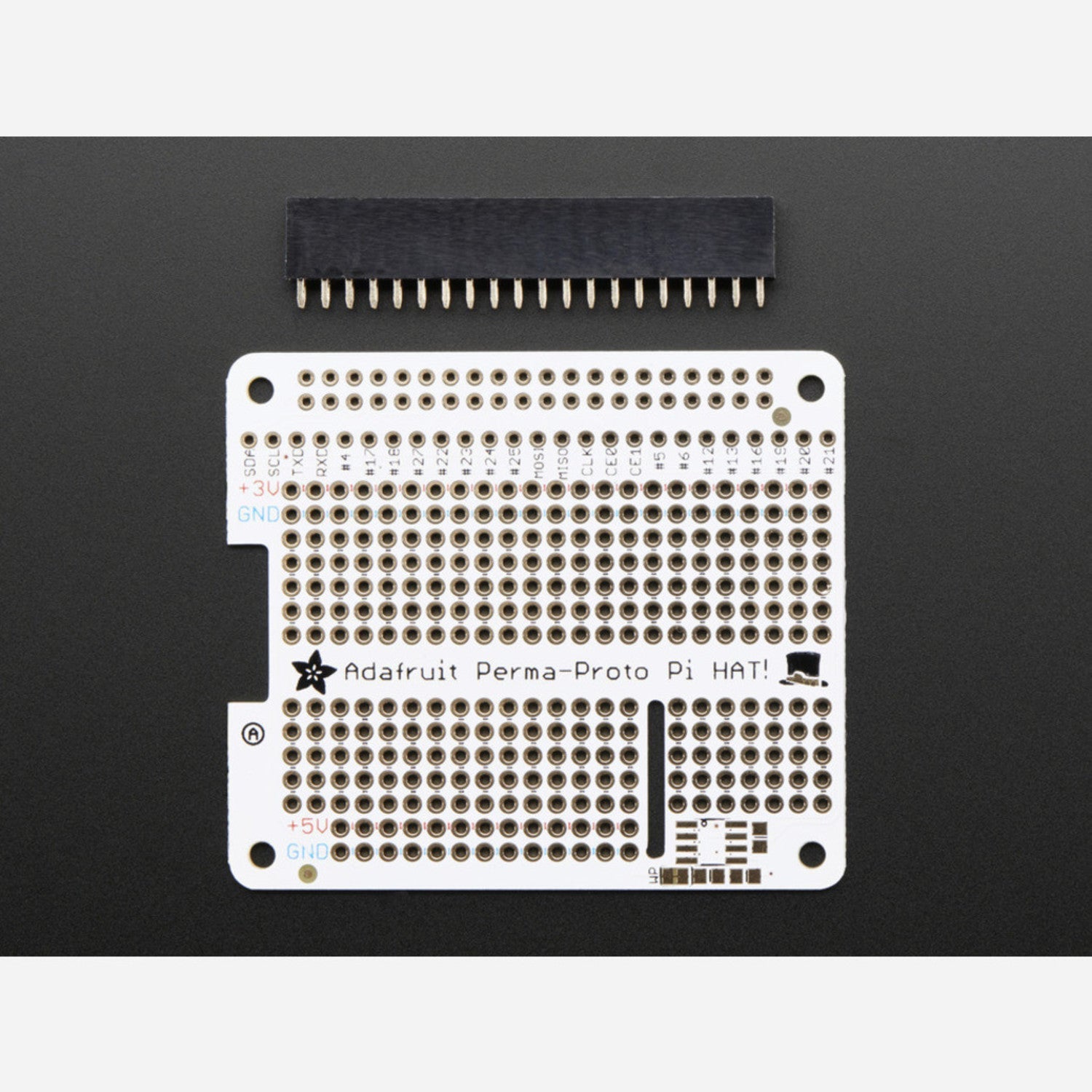

Package Contents
- 1× Perma-Proto HAT PCB
- 1× 2×20 GPIO Header
Ideal For
- Permanent circuit projects
- Custom HAT prototypes
- Moving from breadboard to PCB
- One-off sensor or interface boards
