Adafruit PiTFT 2.2 HAT Mini Kit - 320x240 2.2 TFT - No Touch

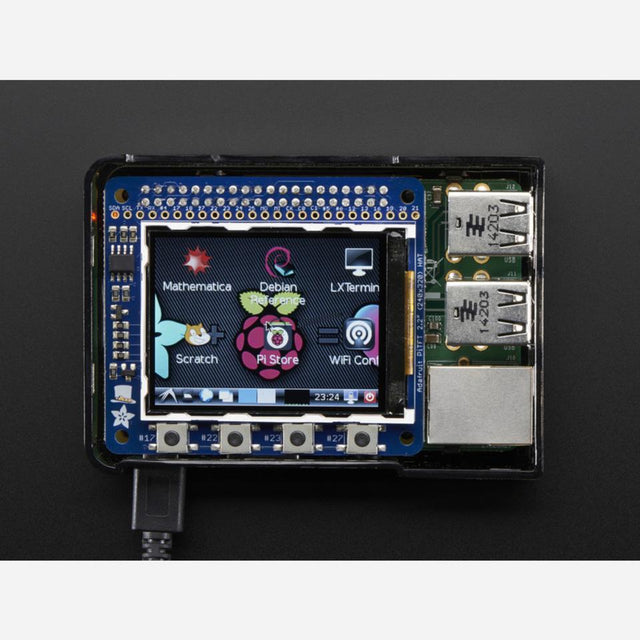

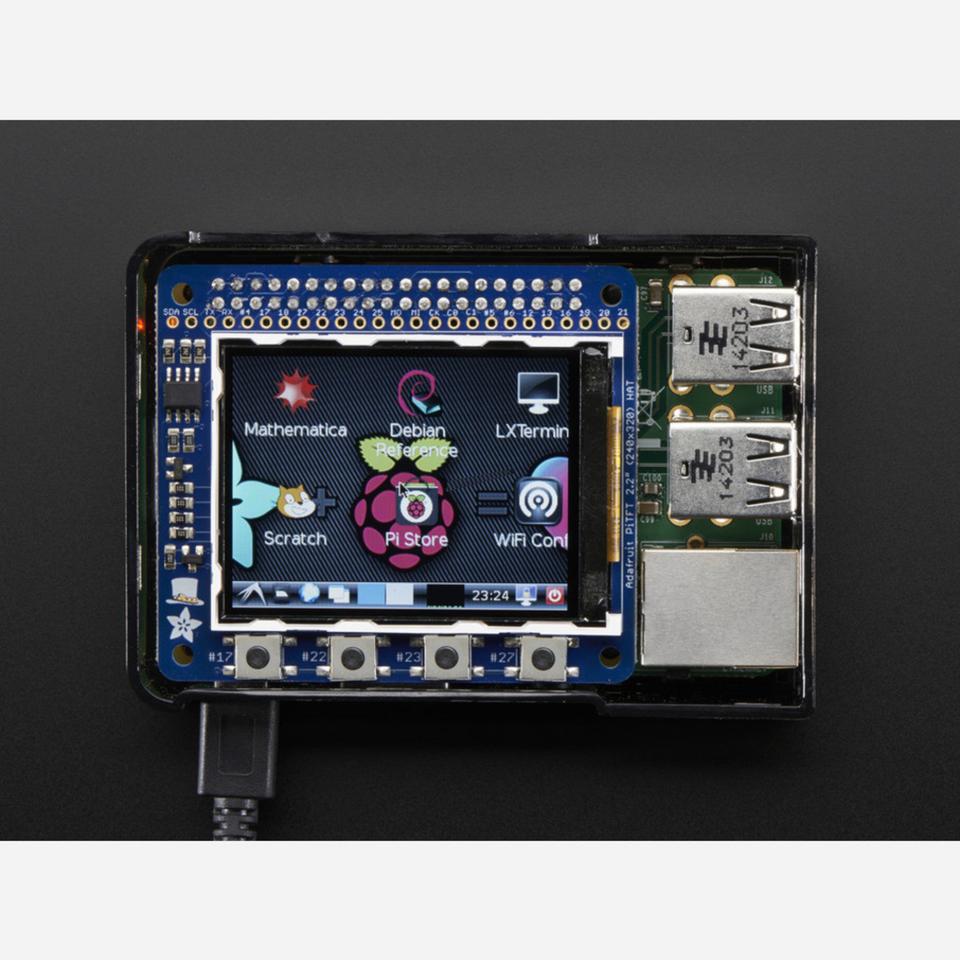

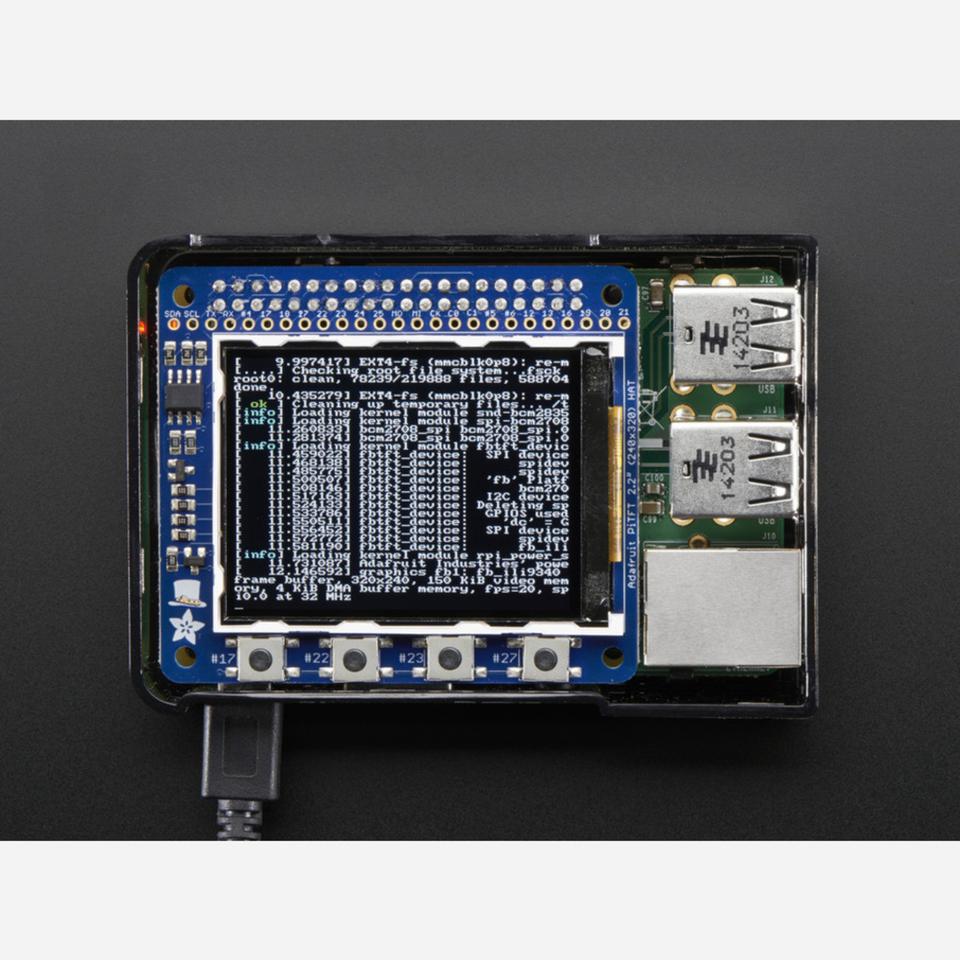

The Adafruit PiTFT 2.2" HAT is a compact colour display that plugs directly onto your Raspberry Pi. With a 320×240 pixel screen and high-speed SPI interface, it's perfect for console output, X windows, video playback, or custom interfaces—all without needing an external monitor.
This mini kit includes the display PCB and a 2×20 GPIO header (some soldering required). Four tactile buttons are wired to GPIOs for creating basic user interfaces like power control or menu navigation.
Key Features
- 2.2" TFT Display – 320×240 pixels, 16-bit colour
- SPI Interface – Fast updates via hardware SPI
- 4 Tactile Buttons – For custom UI controls
- HAT Form Factor – Plugs directly onto Pi A+, B+, Pi 2, Pi 3, Pi 4
- Breakout Header – 25 unused GPIO pins accessible
- ILI9340 Controller – Well-documented driver IC
Specifications
- Board Dimensions: 65mm × 57mm × 6mm
- Screen Dimensions: 55mm × 40mm
- Interface: SPI (SCK, MOSI, MISO, CE0, CE1) + GPIO #25
Ideal For
- Portable Pi projects (PiGRRL builds)
- System status displays
- Retro gaming handhelds
- Headless Pi setups needing local display

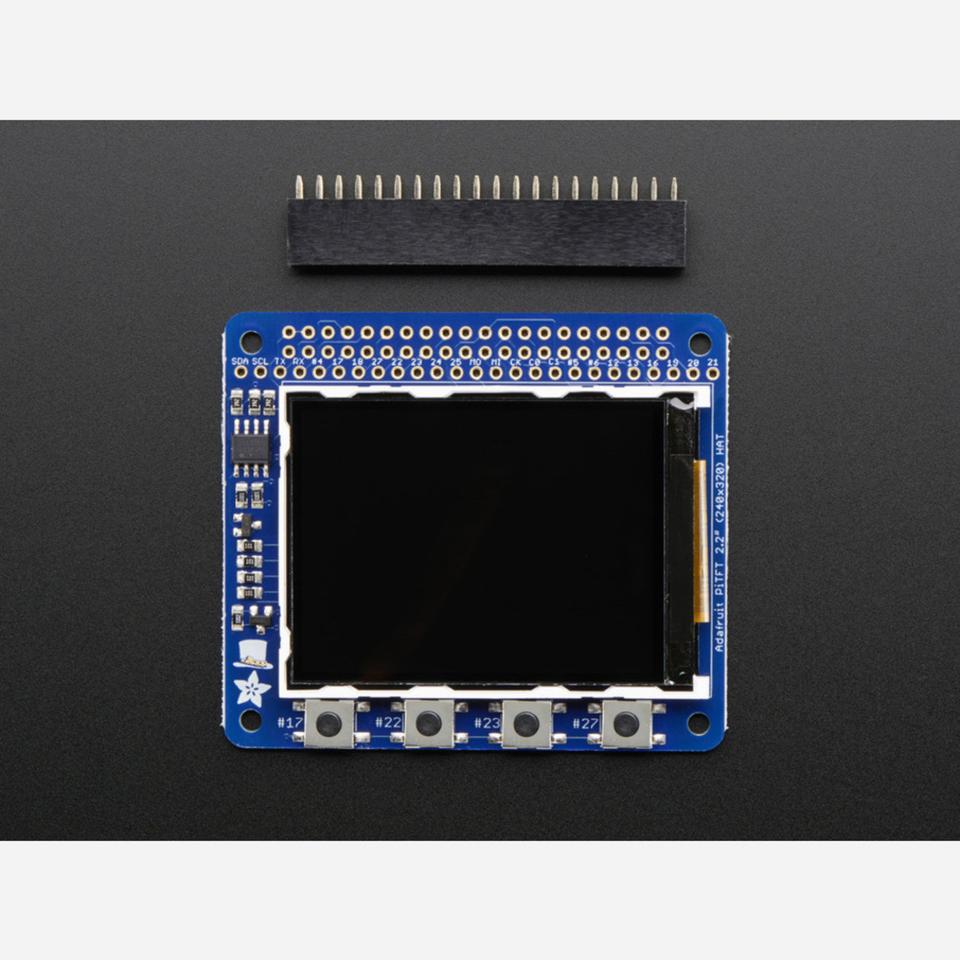

Package Contents
- 1× PiTFT 2.2" HAT (assembled display PCB)
- 1× 2×20 GPIO header (requires soldering)
