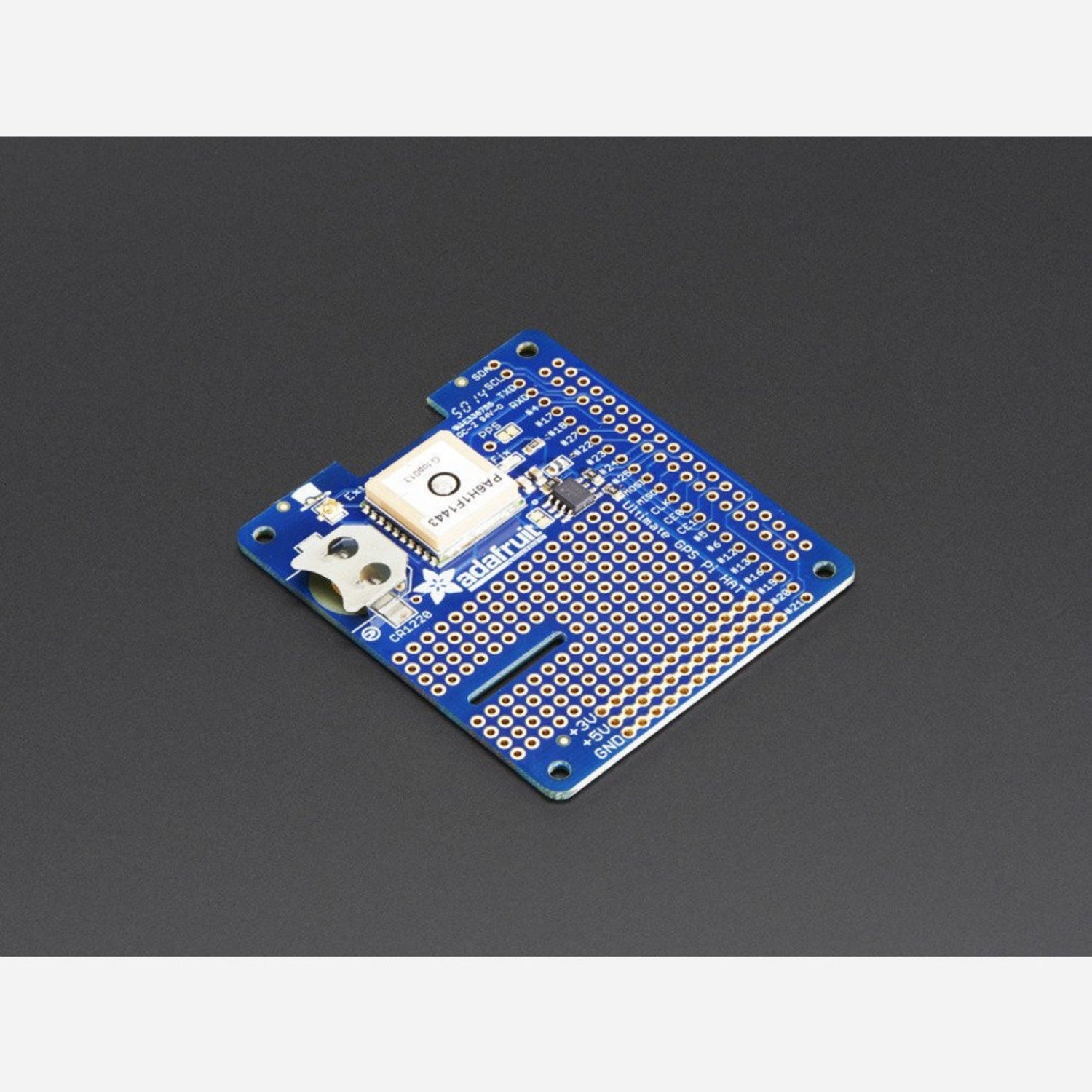

Add precision location and timing capabilities to your Raspberry Pi with this Ultimate GPS HAT. Featuring high-sensitivity GPS with GLONASS support, it delivers accurate positioning with 10 Hz updates across 99 search channels.

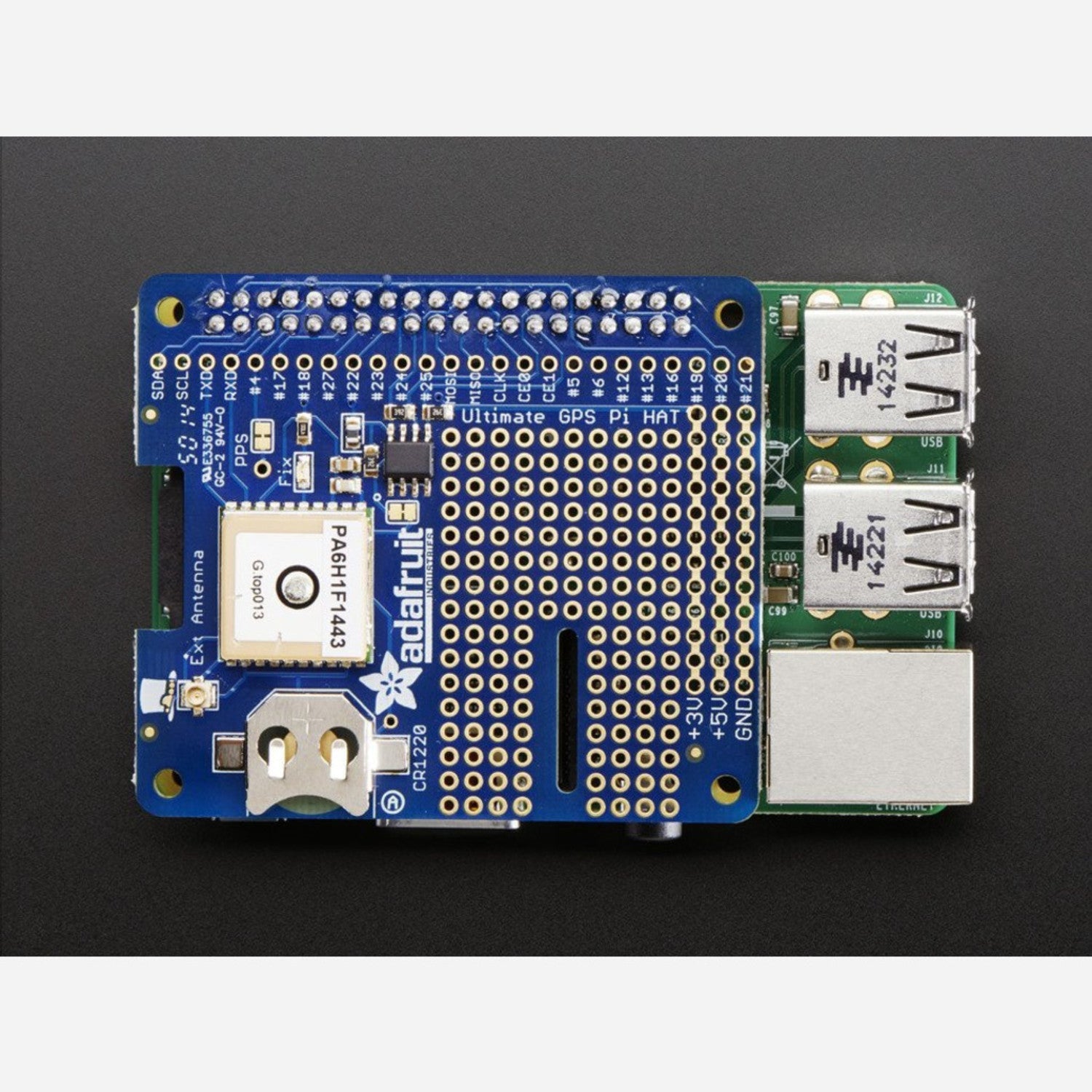

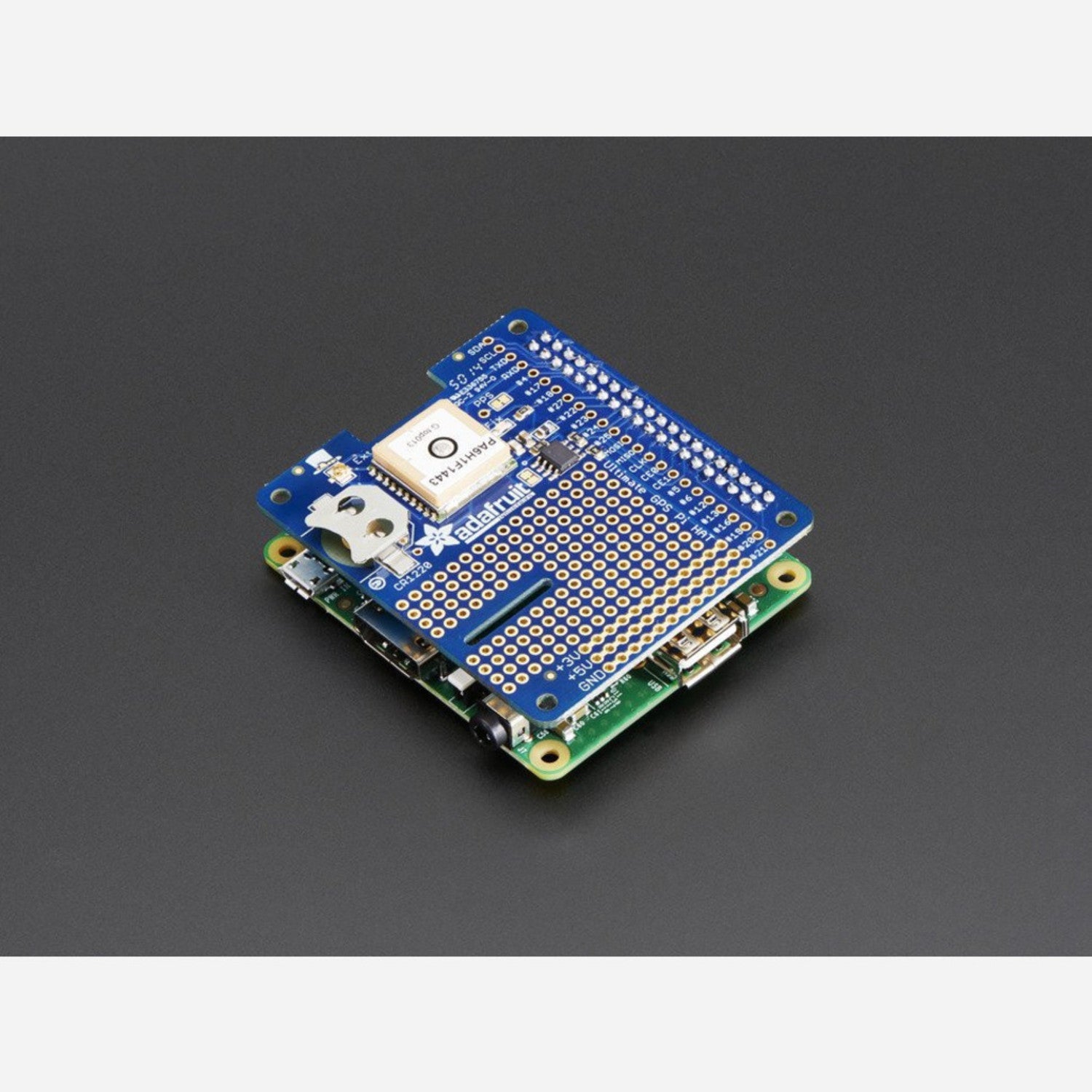

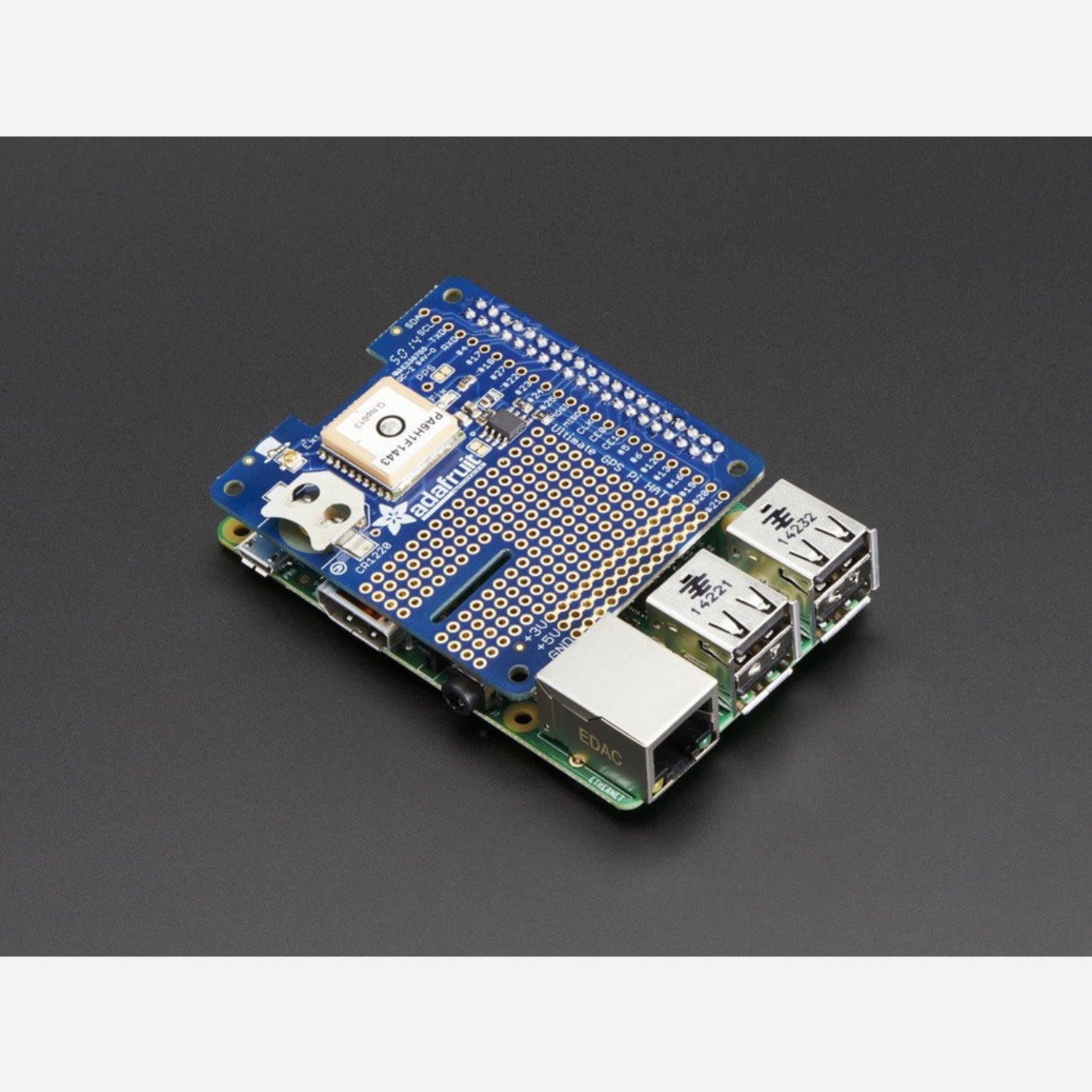

The HAT includes a built-in Real Time Clock (RTC) with coin-cell battery backup, allowing your Pi to keep accurate time even when powered off or without an internet connection. Compatible with Raspberry Pi A+, B+, Zero, Pi 2, 3, 4, and Pi 5.

Key Features

High Sensitivity GPS – -165 dBm sensitivity with 10 Hz update rate
GPS + GLONASS Support – Dual navigation system for enhanced accuracy
99 Search Channels – Fast satellite acquisition and tracking
Built-in RTC – Real Time Clock with CR1220 battery slot for 7+ years of timekeeping
Fix Status LED – Visual indicator blinks when GPS lock is acquired

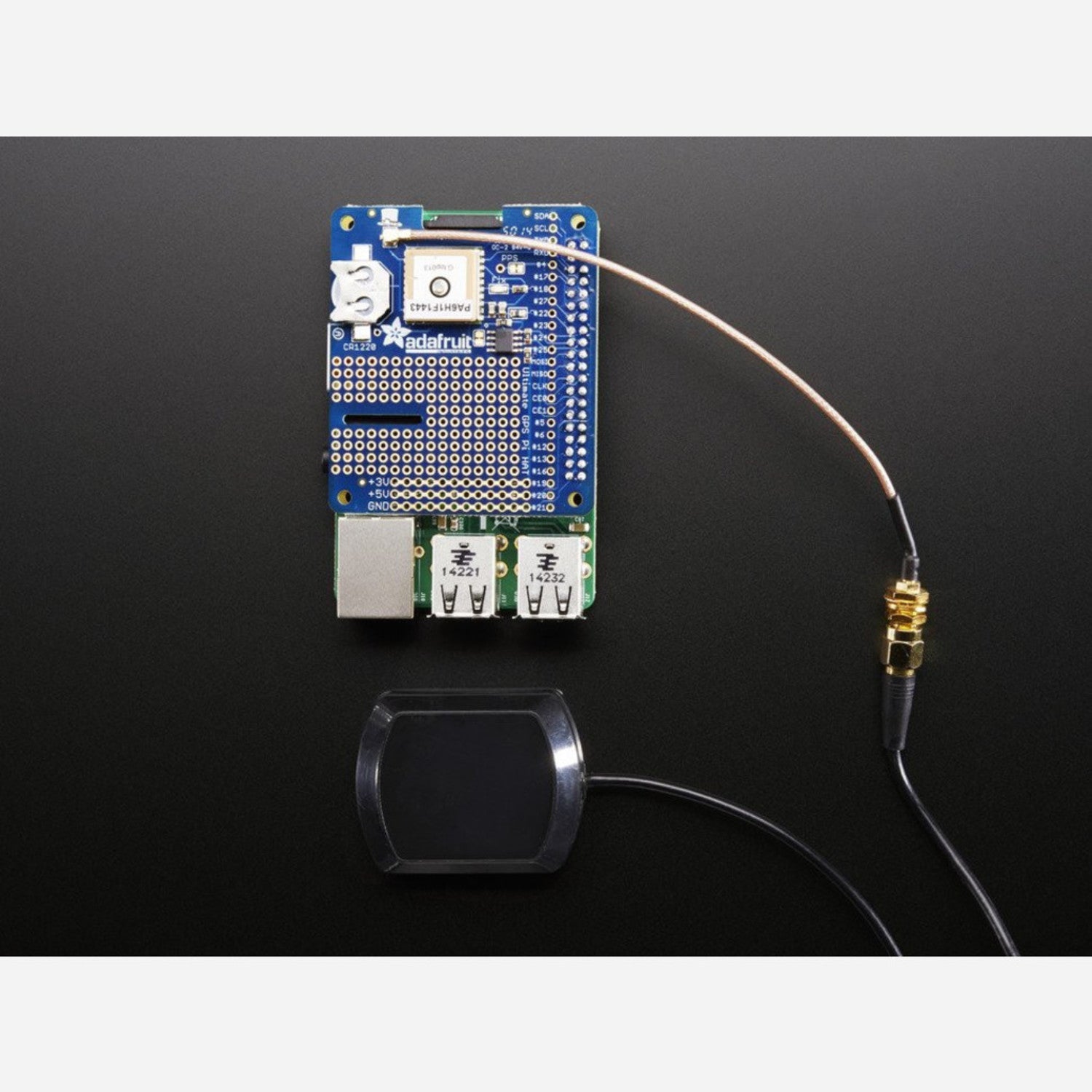

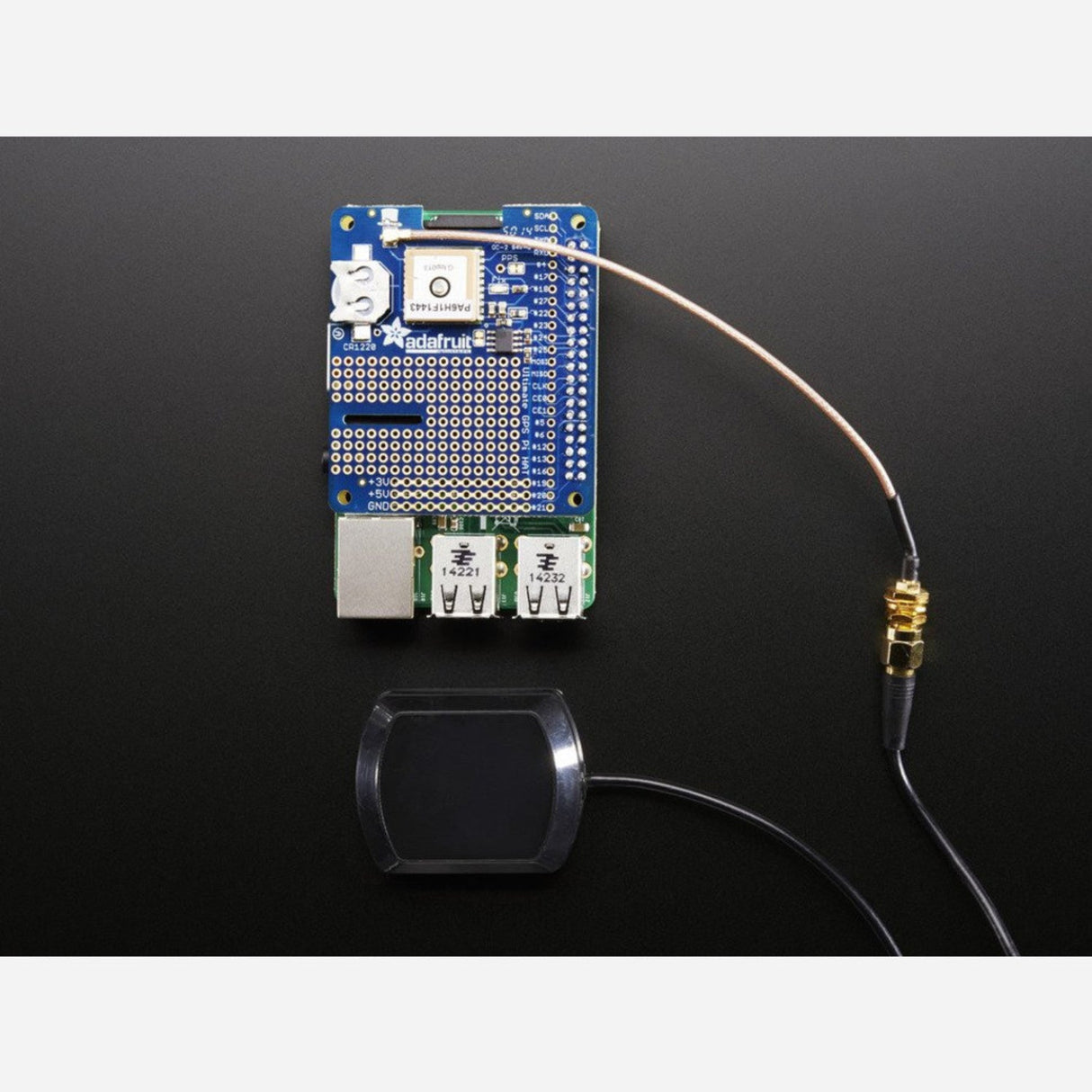

Dual Antenna Options – Internal patch antenna plus u.FL connector for external active antenna

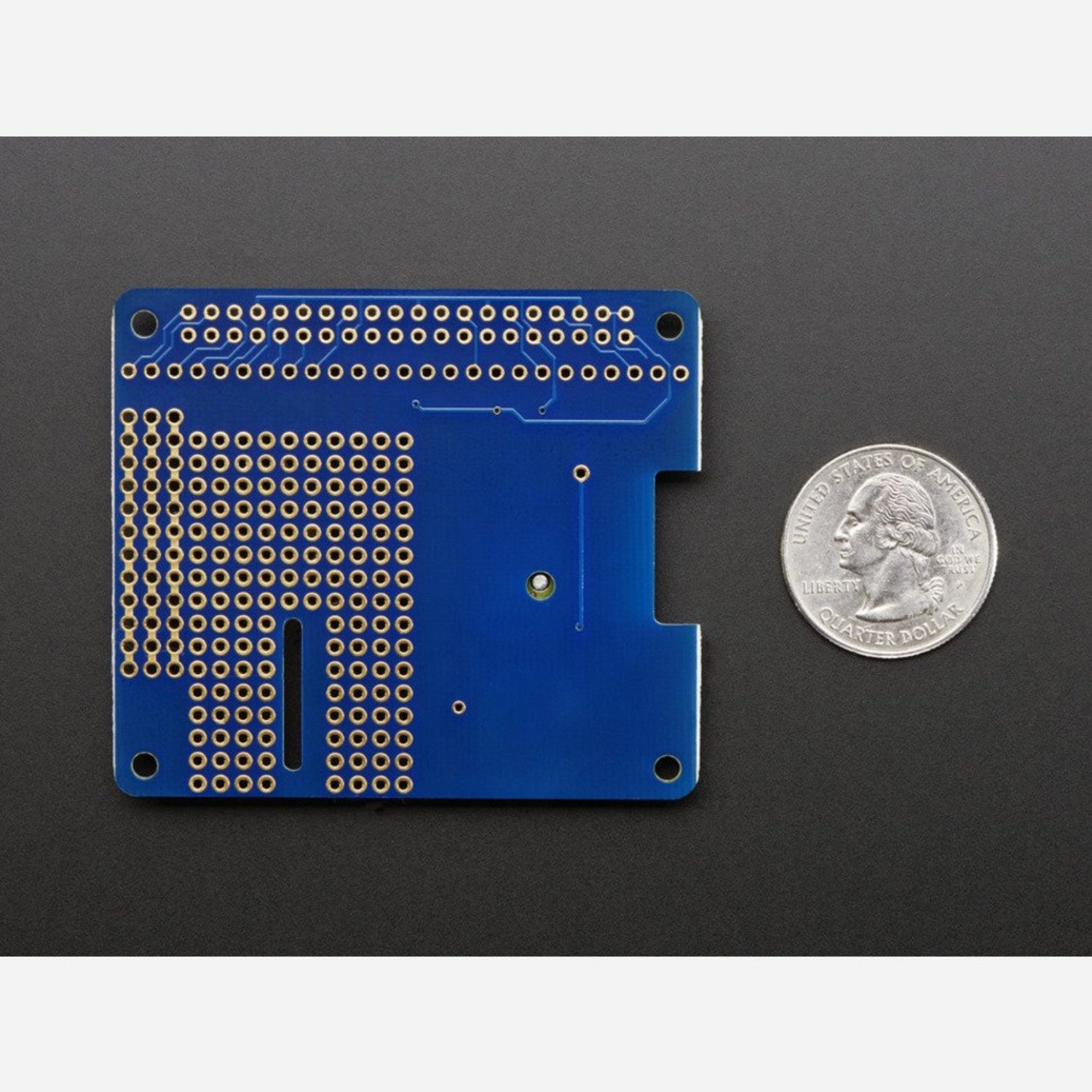

Compact Design – 65mm × 56mm × 7mm

Ideal For

GPS tracking and logging projects
Time synchronization without internet
Mobile and outdoor Raspberry Pi applications
Navigation and mapping projects

Package Contents

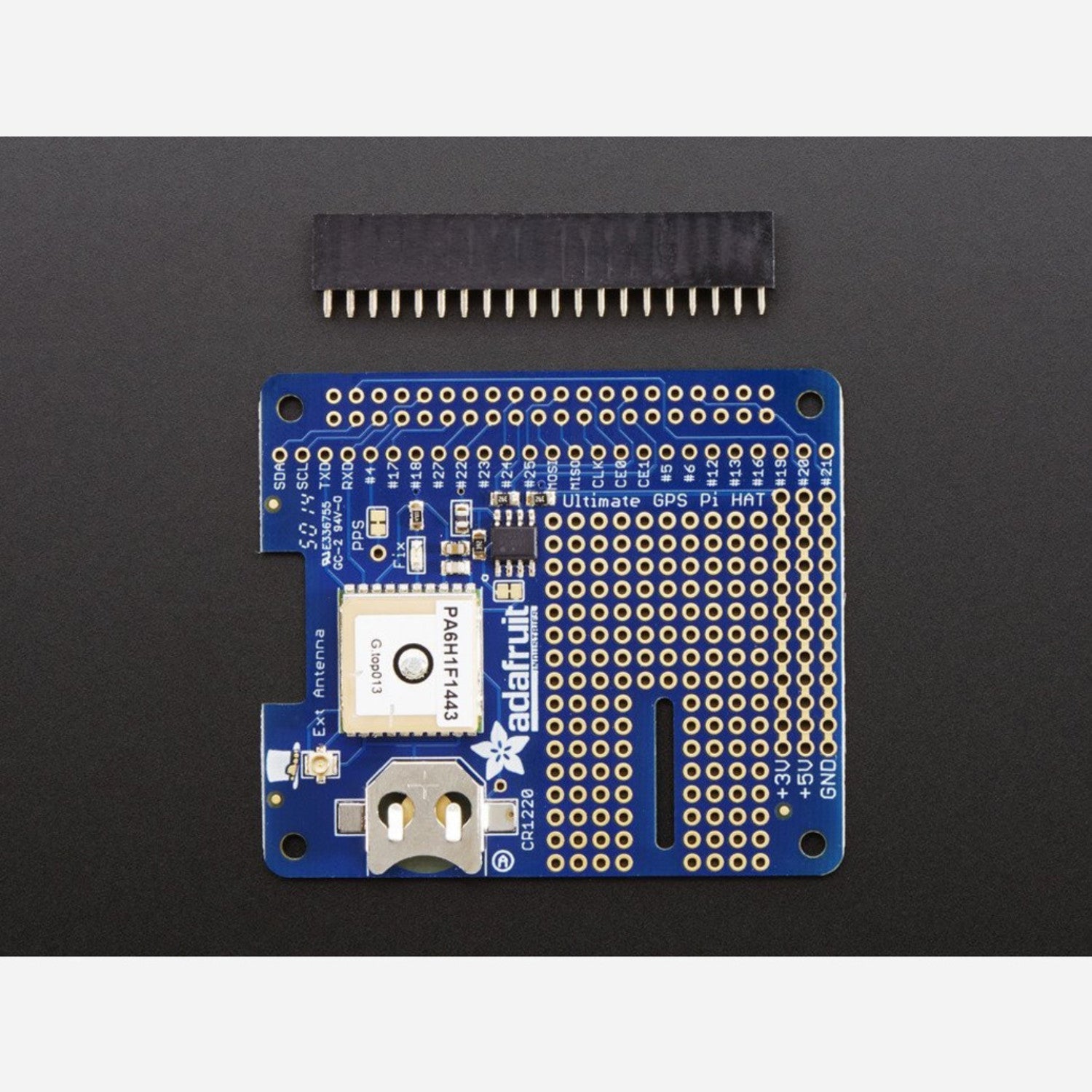

1× Fully assembled GPS HAT with PA1616D module
1× 2×20 GPIO header (requires soldering)

Note: The HAT uses the Raspberry Pi's hardware UART for GPS communication, which prevents simultaneous use with serial console cables via RX/TX pins. CR1220 coin battery for RTC backup sold separately.

Resources

Adafruit Learning Guide
