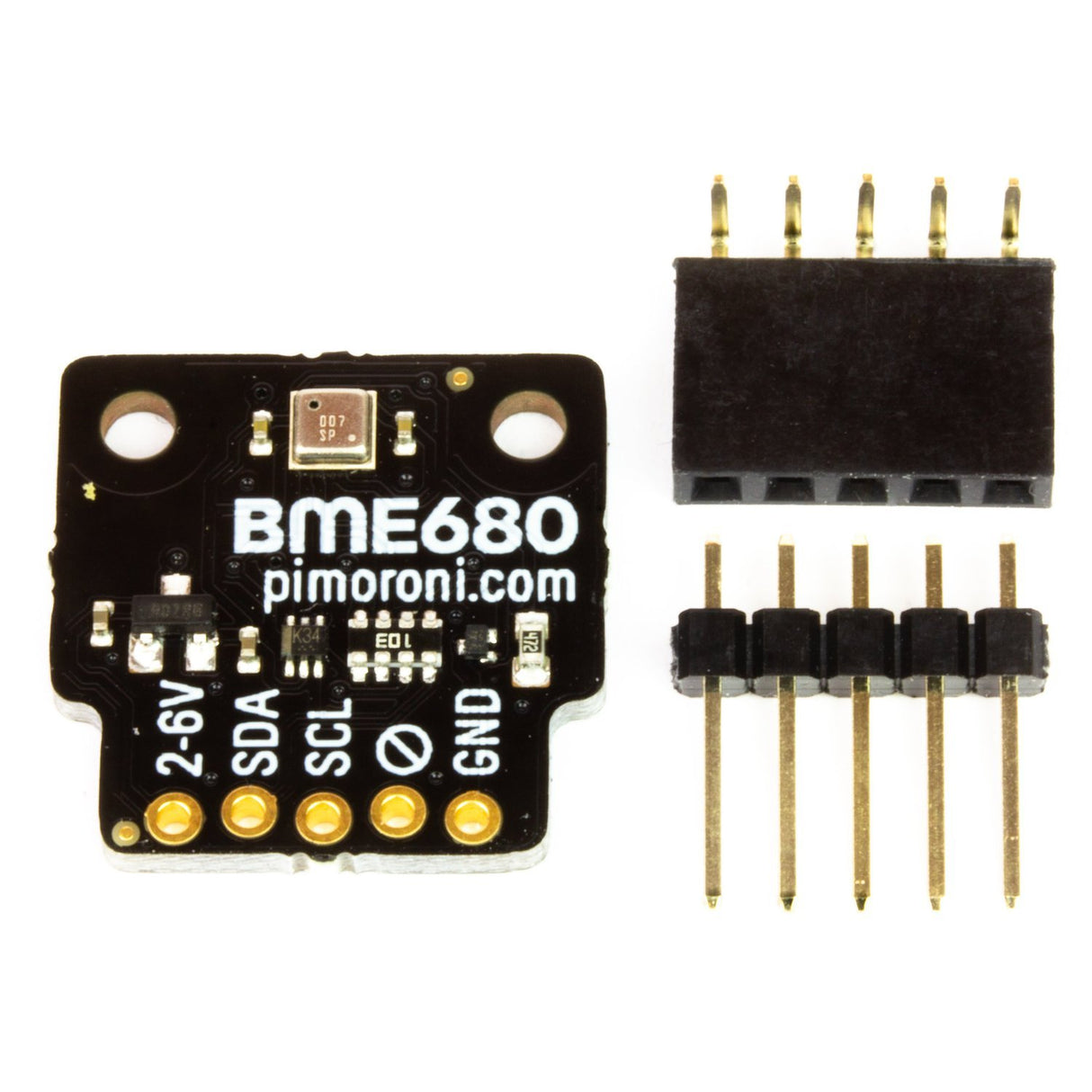

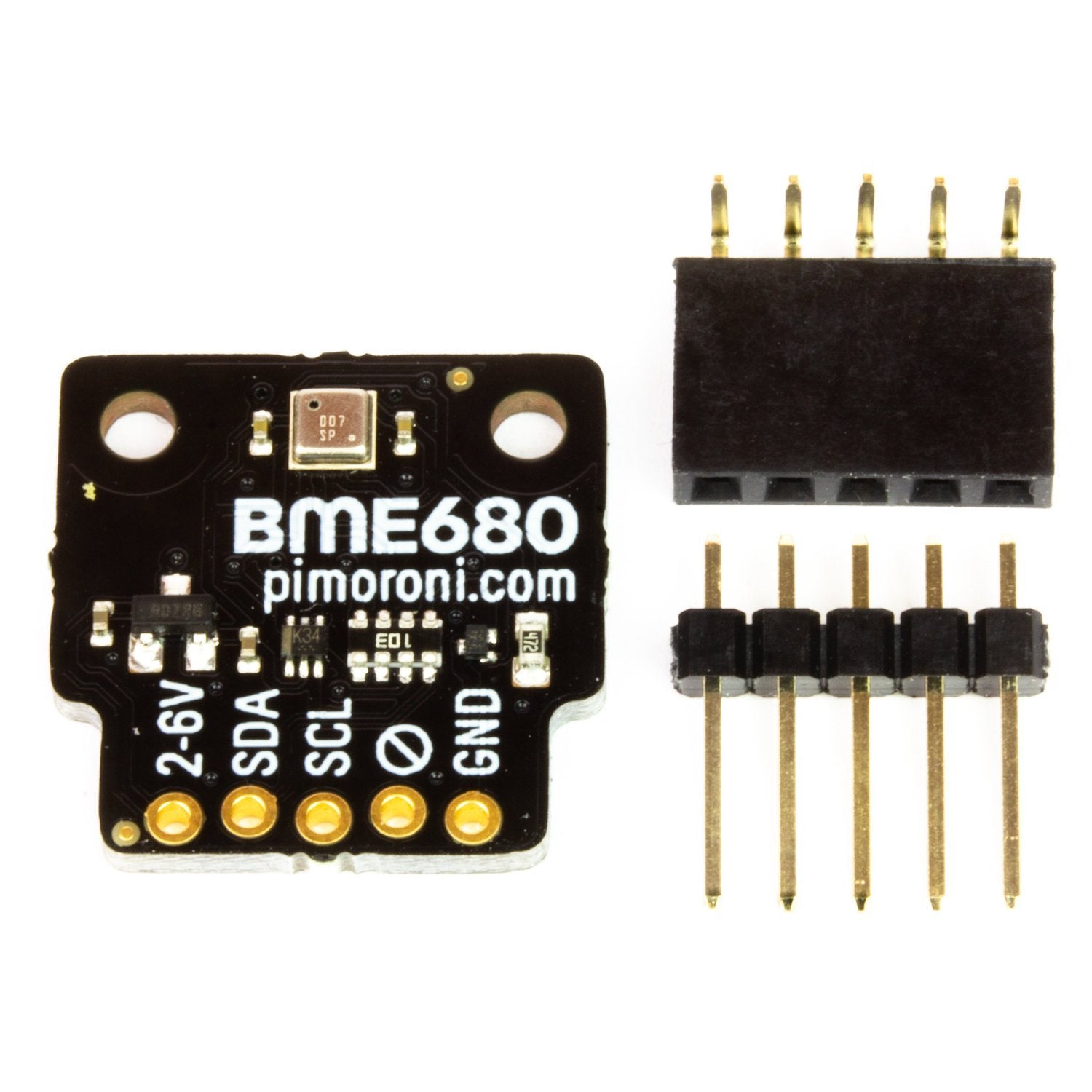

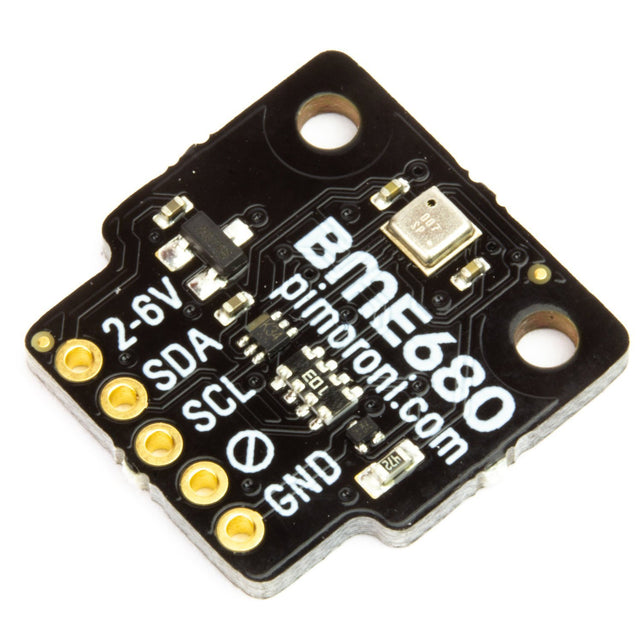

BME680 Breakout - Air Quality, Temperature, Pressure, Humidity Sensor
The state-of-the-art BME680 breakout measures temperature, pressure, humidity, and indoor air quality. Its gas resistance readings react to changes in volatile organic compounds (VOCs) and can be combined with humidity readings to assess indoor air quality.
Perfect for monitoring ventilation in bedrooms, workshops, or workplaces. Set up on a Pi Zero W to log sensor readings or stream live data to web services like adafruit.io. Also compatible with Breakout Garden for plug-and-play use.
Key Features
- 4-in-1 Environmental Sensor – Temperature, pressure, humidity, and air quality
- VOC Detection – Gas resistance responds to volatile organic compounds

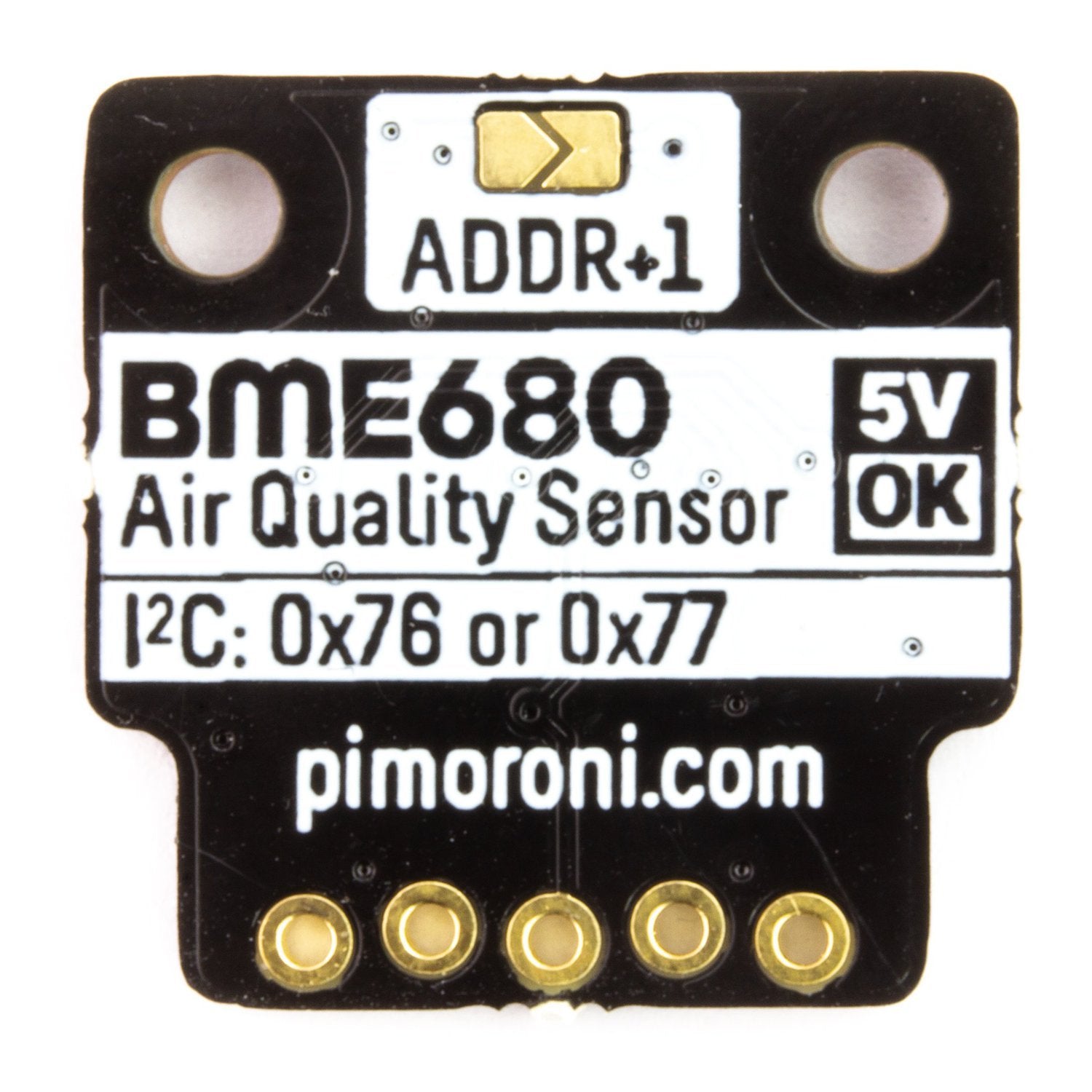

- I2C Interface – Address selectable via solder bridge (0x76 or 0x77)
- 3.3V or 5V Compatible – Works with various microcontrollers
- Reverse Polarity Protection – Guards against incorrect wiring
- Pi-Compatible Pinout – Connects to GPIO pins 1, 3, 5, 7, 9
Specifications
- Sensor: Bosch BME680
- Interface: I2C (address 0x76 default, 0x77 optional)
- Voltage: 3.3V or 5V
- Dimensions: 19mm × 19mm × 2.75mm
Compatibility
- Raspberry Pi 5, 4, 3B+, 3, 2, B+, A+, Zero, Zero W
- Breakout Garden HAT
- Arduino and other I2C-compatible microcontrollers
Package Contents
- 1× BME680 Breakout
- 1× 5-pin male header
- 1× 5-pin female right-angle header
Resources
