Pi Australia | SKU: PI-PIM716

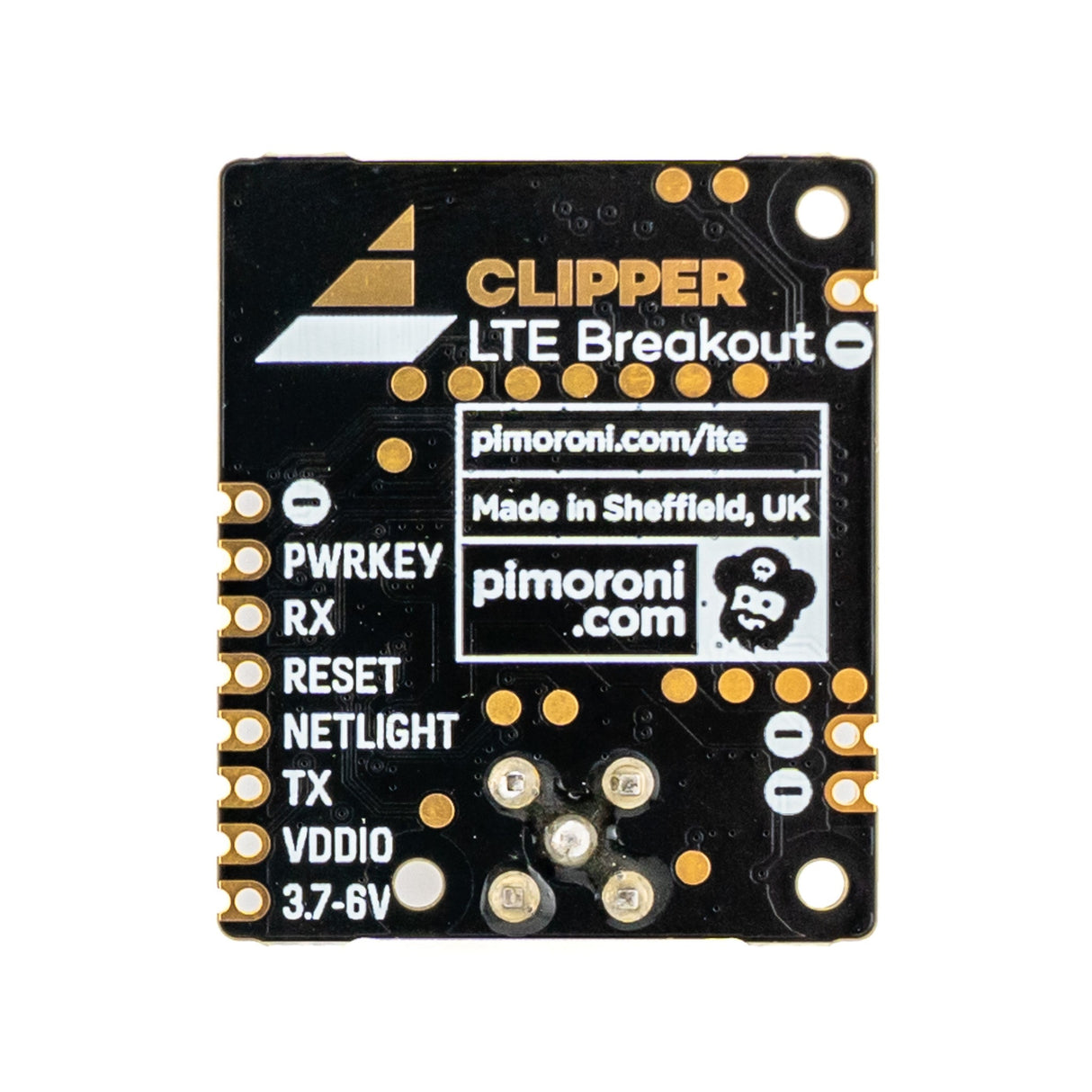

Clipper LTE 4G Breakout (SP/CE)

$45.00

Tax included Shipping calculated at checkout.

Variant

Board Only Starter Kit

Product variants

Call us on 1300 240 817 between 10 AM and 4 PM on weekdays or email team@littlebird.com.au .

The Fastest Shipping

We ship faster because we built our own shipping 🤖 robot.

Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.

You can view shipping options and pricing at checkout without logging in.

For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.

We deliver across Australia, and here are the options (based on your location; view them on the cart page):

Standard Post: Starting at $7 (6+ business days, with tracking)
Express Post: Starting at $11 (2+ business days, with tracking)
Same Day Delivery: Available for Sydney orders.
Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.

Clipper lets you receive and transmit data over 4G LTE cellular networks—perfect for remote or mobile projects where WiFi isn't available. Ideal for festival installations, garden sheds, beehive sensors, canal boats, or any project with a remote or transient location.

Features a SP/CE connector for easy cable connection to compatible microcontrollers, plus an SMA connector for antenna attachment. Transmitting sensor readings typically uses minimal data, so pay-as-you-go plans work well.

Key Features

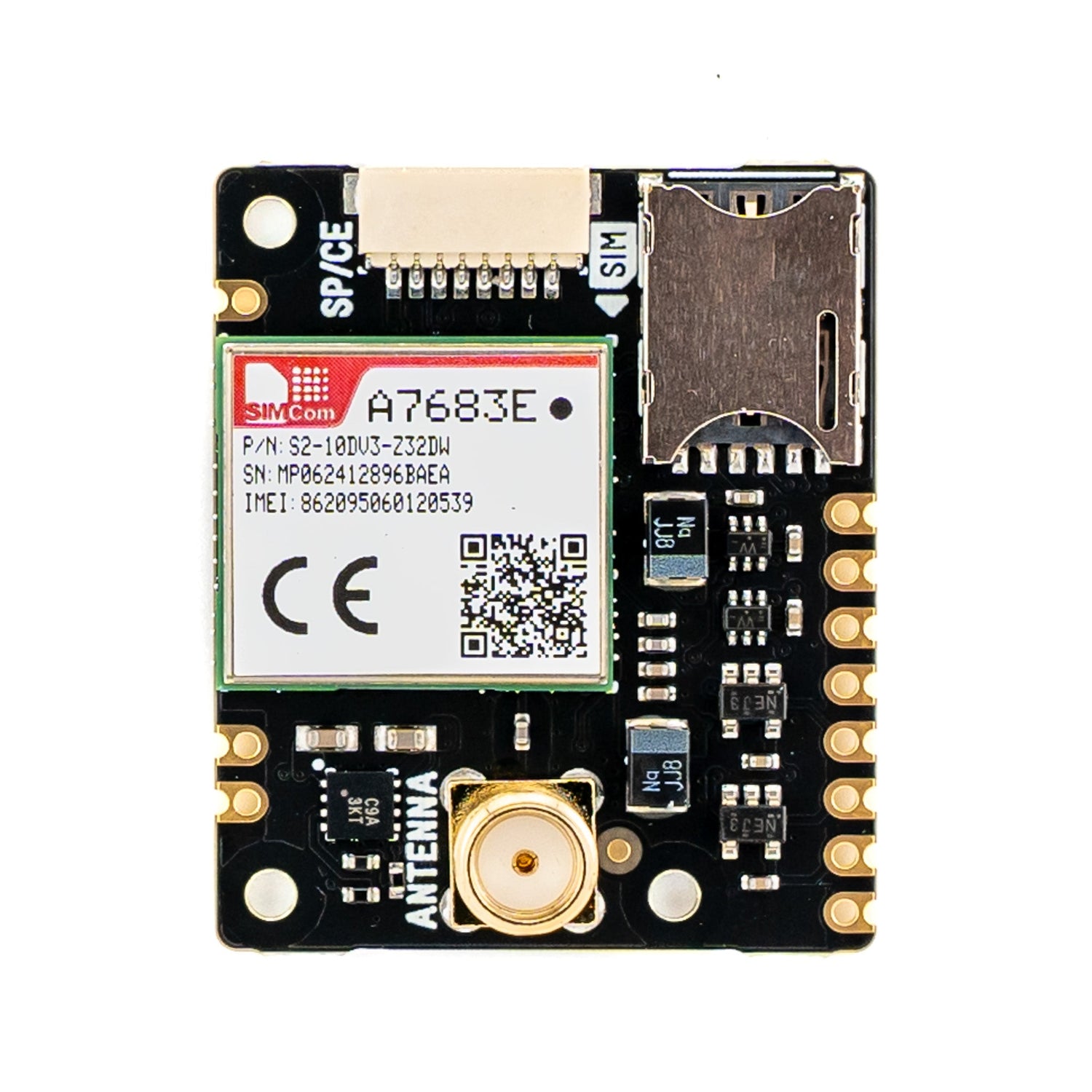

4G LTE Connectivity – SIMCom A7683E module
SP/CE Connector – 8-pin JST-SH for easy cable connection
SMA Antenna Port – Attach external antenna
SIM Card Slot – Use any compatible SIM
No Soldering Required – Connect via SP/CE cable
AT Command Control – Standard SIMCom AT commands

Specifications

Module: SIMCom A7683E
Frequency Bands: LTE-FDD B1/B3/B5/B7/B8/B20/B28
Dimensions: 35mm × 29mm × 5mm (antenna connector 11mm tall)
Power Input (VDD): 3.7V–6.0V
IO Voltage (VDDIO): 3.0V–3.6V
Current (idle): 17mA
Current (sleep): 0.12–1.63mA
Current (peak TX): 700mA (brief, capacitor-smoothed)

Starter Kit Contains

1× Clipper 4G LTE Breakout
1× SP/CE cable
1× Antenna (108mm)

Compatibility

Raspberry Pi Pico / RP2040 / RP2350
Raspberry Pi computers
Any SP/CE compatible microcontroller

Regional Note: Supports bands B1/B3/B5/B7/B8/B20/B28. Check your local carrier's 4G LTE bands before ordering—coverage may be limited in North America.
