Waveshare  |  SKU: WS-34213

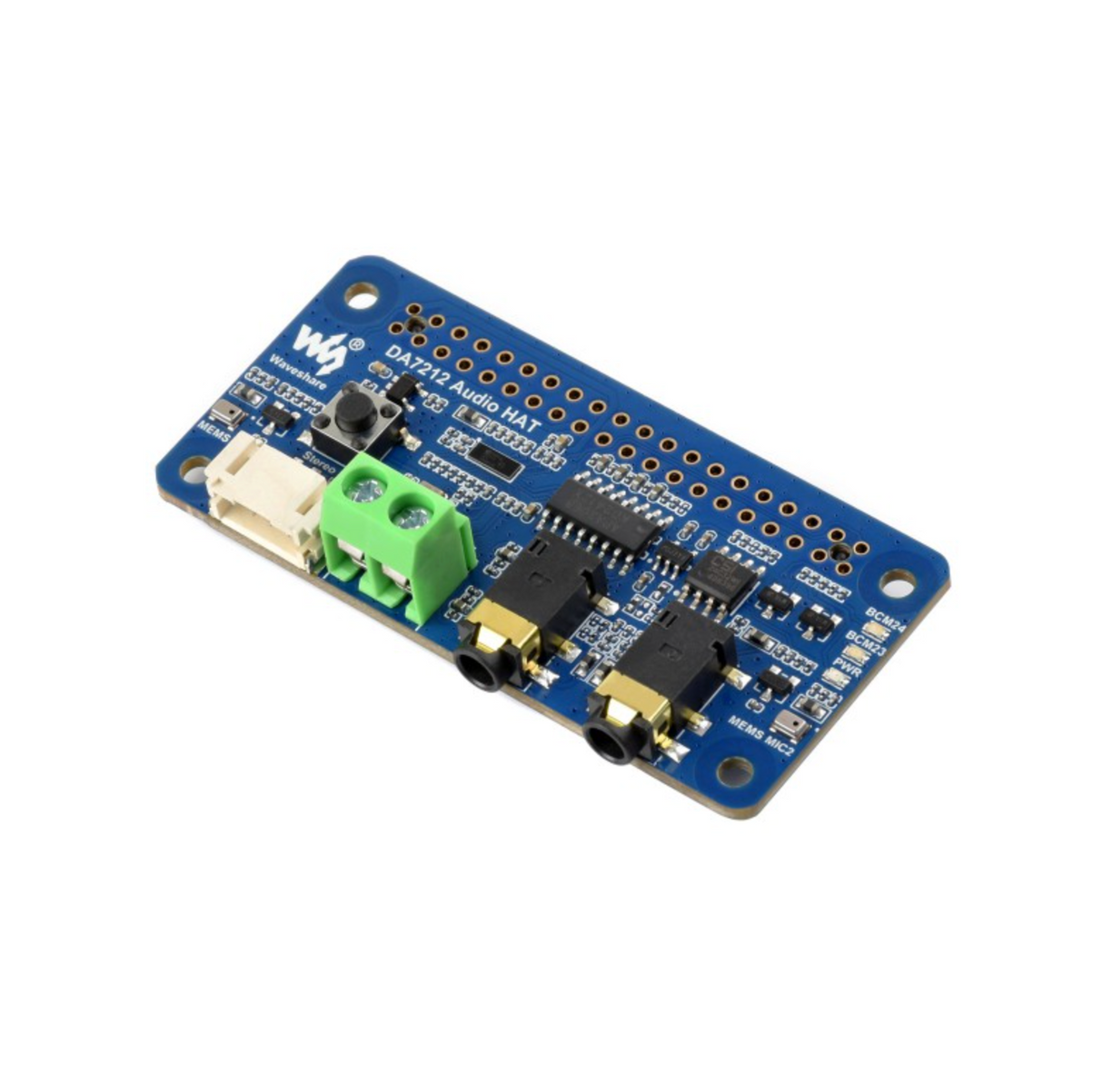

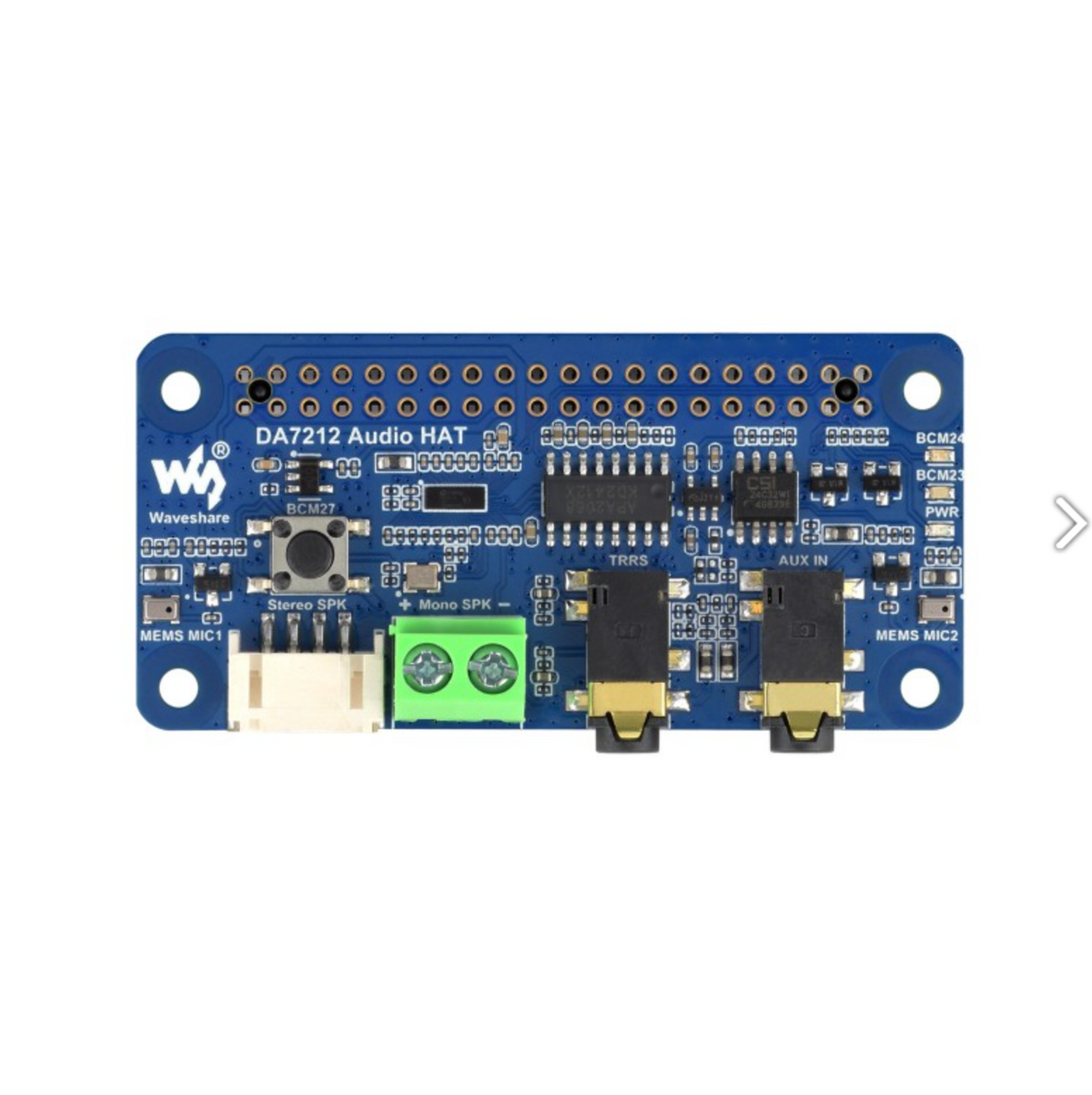

DA7212 I2S Audio Board For Raspberry Pi, Stereo Encoding/Decoding, Onboard Dual Microphones

$24.70
Tax included Shipping calculated at checkout.

Call us on 1300 240 817 between 10 AM and 4 PM on weekdays or email team@littlebird.com.au .

The Fastest Shipping

We ship faster because we built our own shipping 🤖 robot.

Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.

You can view shipping options and pricing at checkout without logging in.

For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.

We deliver across Australia, and here are the options (based on your location; view them on the cart page):

  • Standard Post: Starting at $7 (6+ business days, with tracking)
  • Express Post: Starting at $11 (2+ business days, with tracking)
  • Same Day Delivery: Available for Sydney orders.
  • Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.

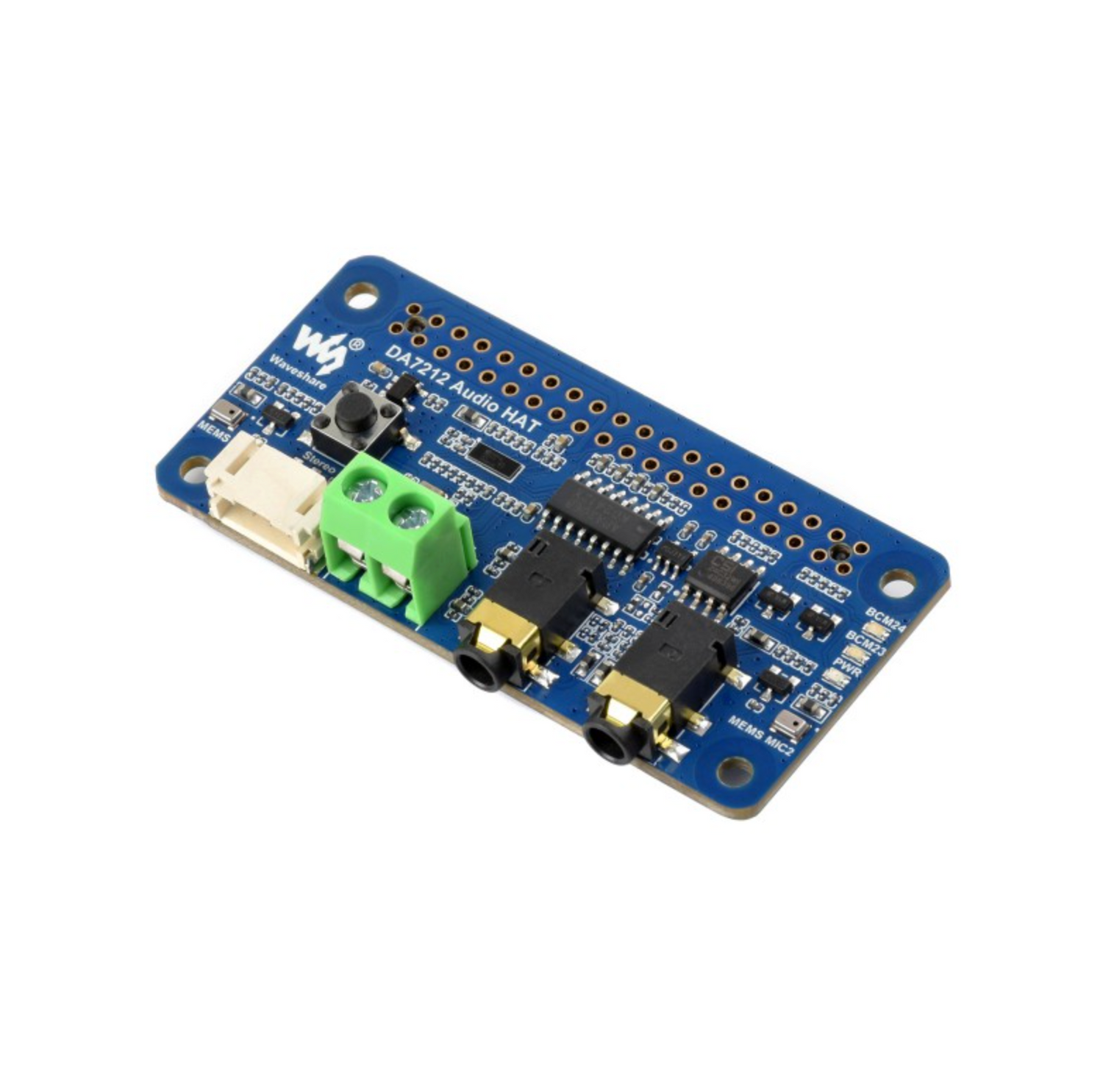

DA7212 I2S Audio Board
for Raspberry Pi

Supports stereo encoding/decoding and rich audio processing functions
Designed for the Raspberry Pi 40-pin GPIO header, this module is fully compatible with Raspberry Pi series boards. It features the high-quality DA7212 stereo DAC, controlled via I2C, with audio data transmitted over the I2S interface for reliable performance.
A standard 3.5mm headphone jack is included for convenient audio output, along with an onboard AUX input for connecting external audio sources. For speaker integration, the board provides both a screw terminal and dual-channel PH2.0 speaker headers, making it suitable for a wide range of applications.
Dual onboard microphones enable audio recording without the need for additional hardware, while a programmable button and status indicators allow for custom functionality and user interaction.
The module supports audio sampling rates up to 96kHz and delivers high-resolution sound with up to 24-bit audio data support.
Specifications
Audio Codec Chip | DA7212DAC SNR | 100dB
Power Supply | 5VADC SNR | 90dB
Logic Voltage | 3.3VHeadphone Driver | 160mW
(16Ω at 5V)
Control Interface | I2CSpeaker Driver | 2.6W per channel
(4Ω BTL)
Audio Interface | I2S
Designed for Raspberry Pi

Based on Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards

* for reference only, please refer to the package content for detailed part list.
DA7212 Audio Chip

Stereo decoder, controlled through I2C, with audio transmitted via I2S
Onboard multi-type audio interfaces

Onboard 3.5mm headphone jack, AUX input connector, and speaker header

* for reference only, please refer to the package content for detailed part list.
Onboard EEPROM Chip

Used for automatic driver loading in Raspberry Pi OS

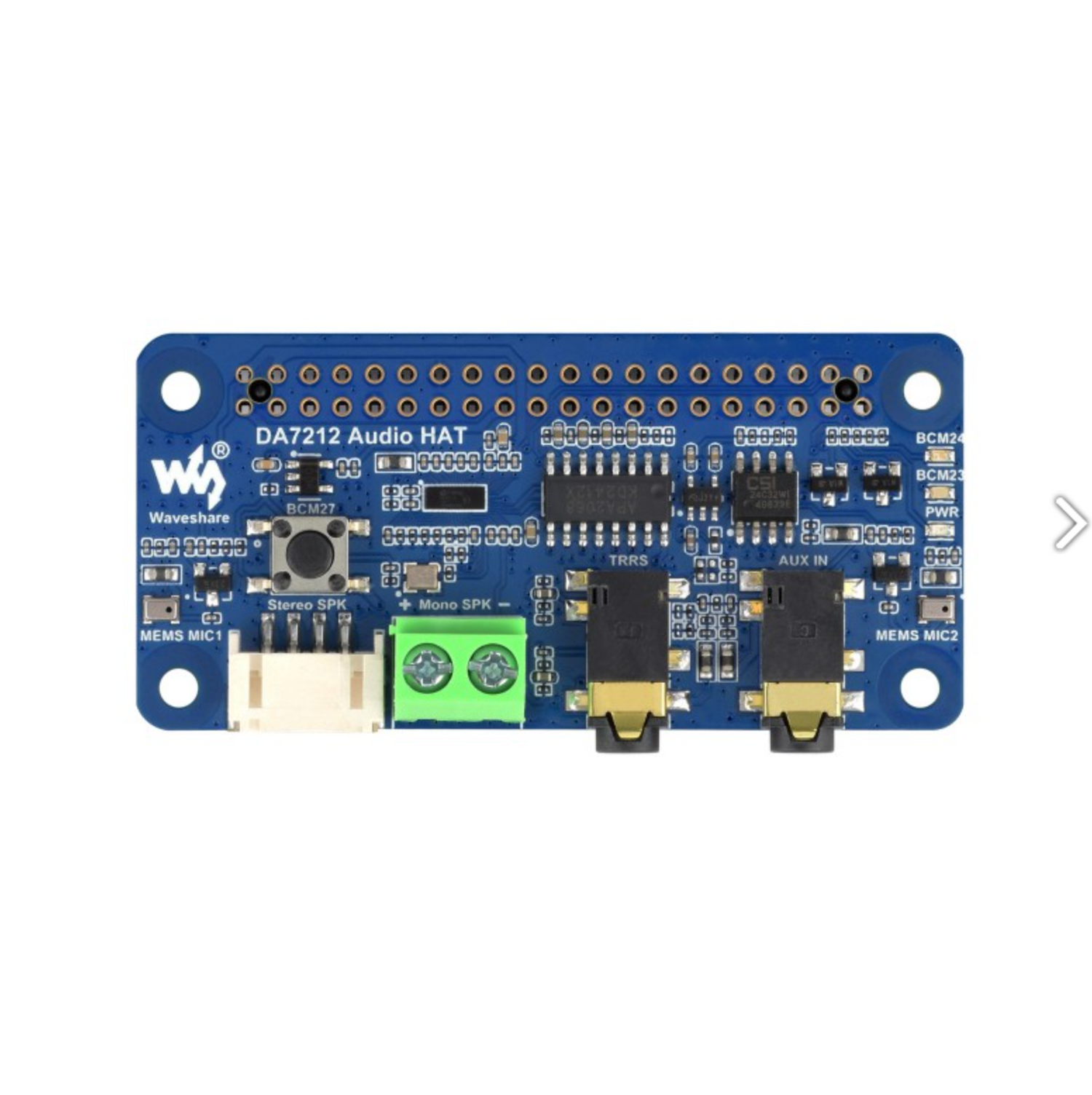

What's On Board
Pin definition
Outline dimensions
