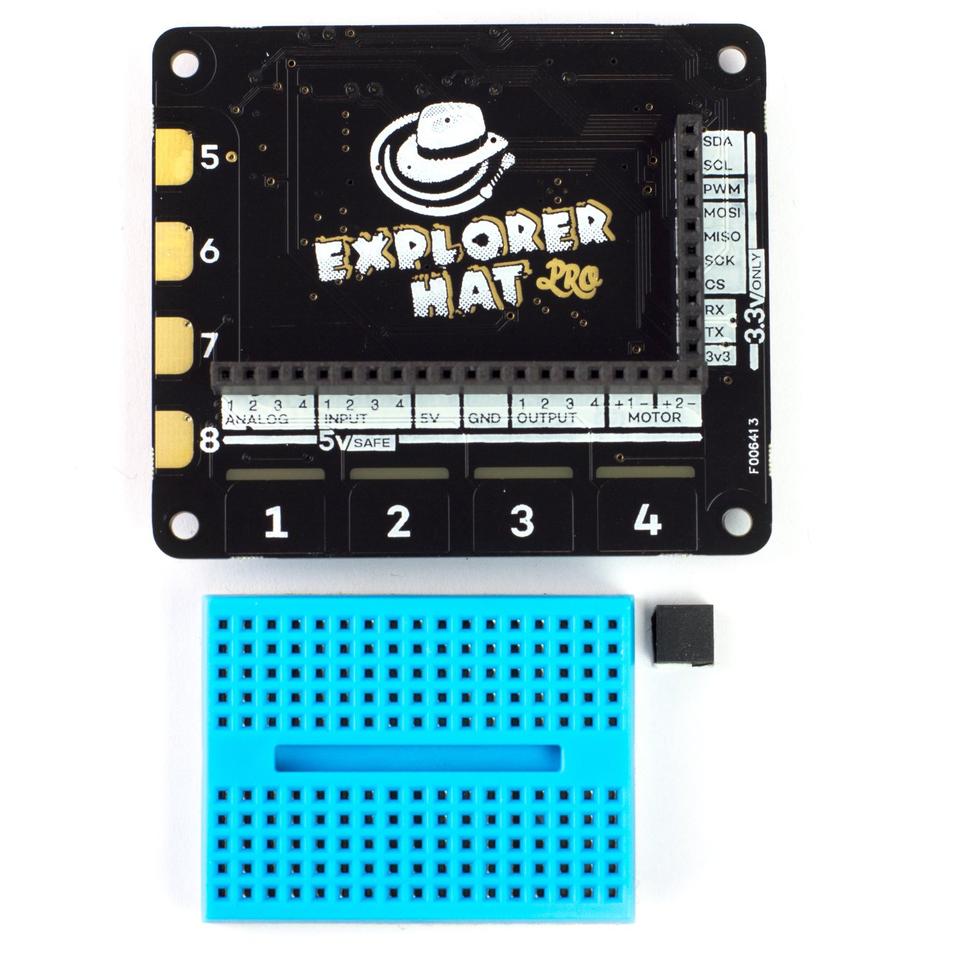

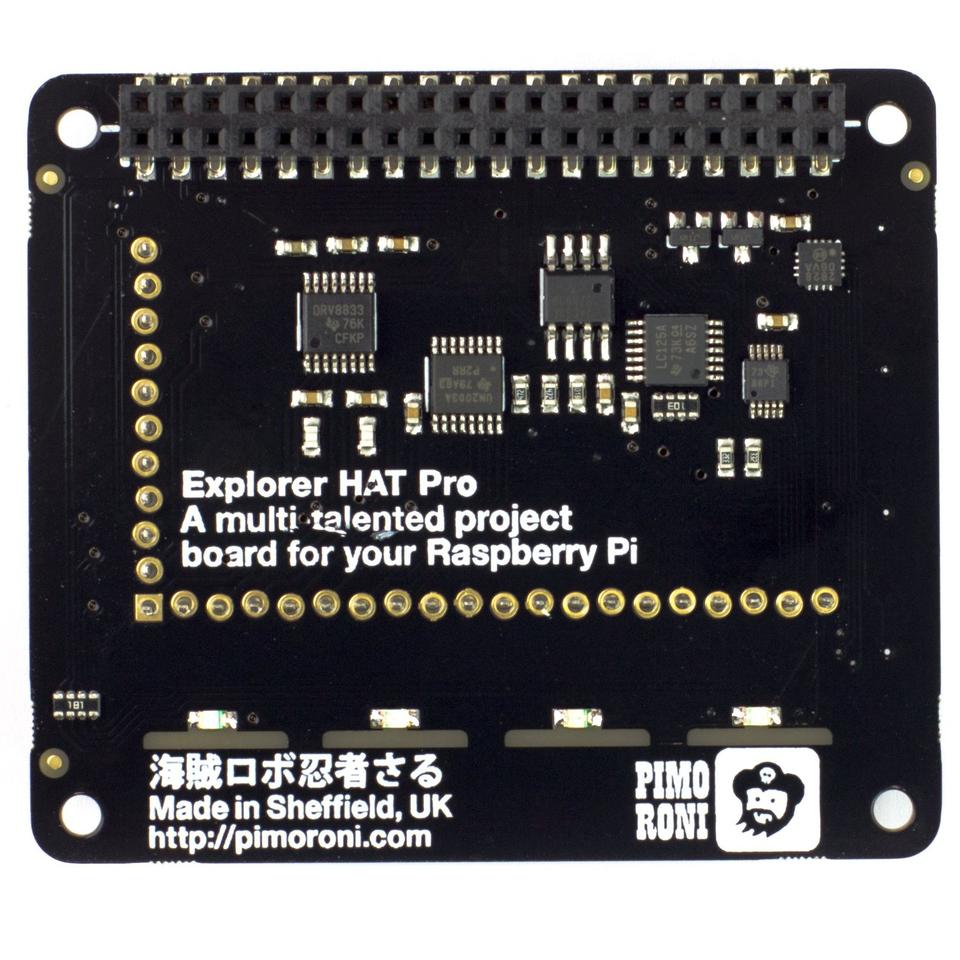

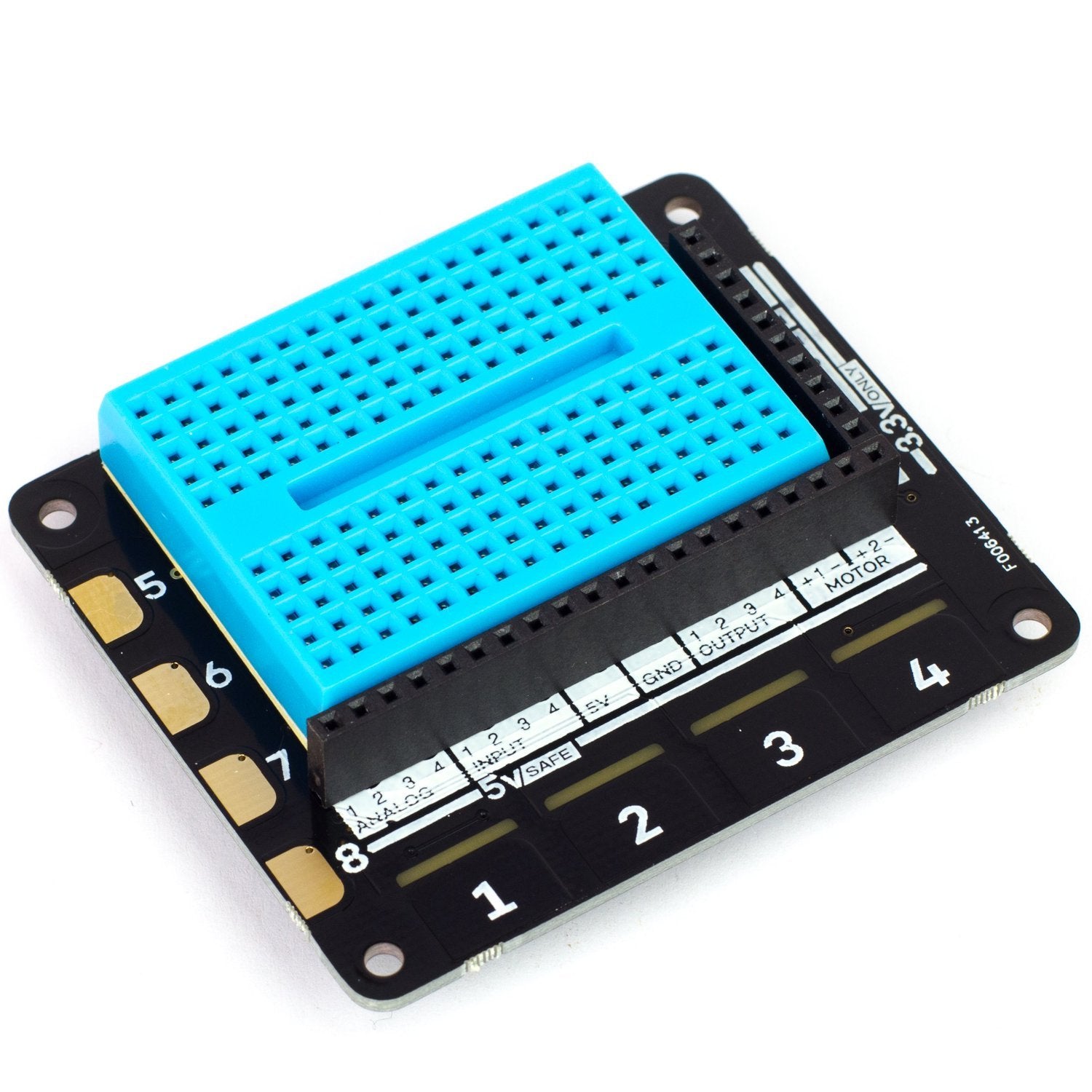

Explorer HAT Pro
Explorer HAT Pro adds powerful prototyping capabilities to your Raspberry Pi with digital I/O, capacitive touch, analog inputs, motor drivers, and a mini breadboard—all on one board. Perfect for building robots, games, science experiments, and electronic circuits.
Key Features
- 4× Digital Inputs – 5V tolerant buffered inputs (Arduino compatible)
- 4× Digital Outputs – Powered 5V outputs (up to 500mA total)
- 4× Capacitive Touch Pads – Labelled 1, 2, 3, 4
- 4× Crocodile Clip Pads – Capacitive touch pads 5, 6, 7, 8
- 4× Coloured LEDs – Red, green, blue, and yellow
- 4× Analog Inputs – For reading sensors and potentiometers
- 2× H-Bridge Motor Drivers – Up to 200mA per channel with PWM control
- Mini Breadboard – 170 points (17×5 per half) for prototyping
- 3.3V GPIO Access – Exposed GPIO pins for additional connections
Specifications
- Input Logic: 2V-5V accepted as high
- Output Current: Up to 500mA total (5V outputs)
- Motor Current: Up to 200mA per channel
- Breadboard: 170 tie points
Compatibility
- Raspberry Pi 4, 3B+, 3, 2, B+, A+
- Raspberry Pi Zero / Zero W
Ideal For
- Small robot projects
- Science experiments
- Electronic circuit exploration
- Interactive games and toys
- Learning GPIO and electronics
Package Contents
- 1× Explorer HAT Pro (fully assembled)
Resources
