FTDI Serial TTL-232 USB Cable

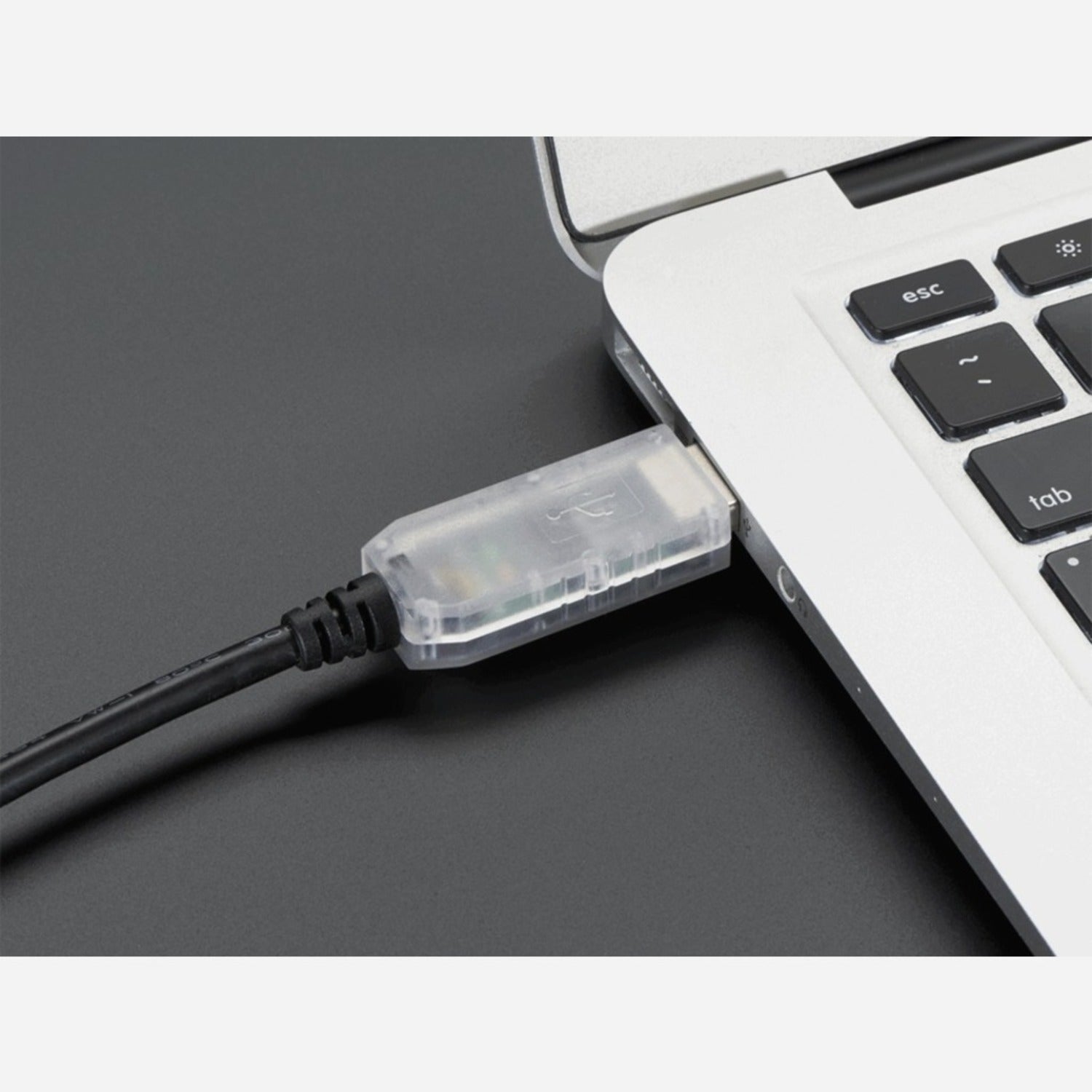

A USB to TTL serial cable with a genuine FTDI FT232RL chip embedded in the connector head. Perfect for debugging, bootloading, programming, and serial communication with microcontrollers and other TTL devices.
Features a translucent body with TX/RX LEDs that blink during data transfer, making it easy to monitor communication. The 6-pin socket provides 5V power and 3.3V logic signals, and is 5V-logic compliant for use with both 3.3V and 5V devices.
Key Features
- Genuine FTDI Chip – Uses authentic FT232RL for reliable operation
- TX/RX LEDs – Visual indication of data transfer
- 3.3V Logic – Data signals at 3.3V, 5V-logic compliant
- 5V Power – Power line provides 5V output
- 6-Pin Header – GND, CTS, VCC, TX, RX, RTS
Specifications
- Chip: FTDI FT232RL (genuine)
- Logic Level: 3.3V (5V tolerant)
- Power Output: 5V
- Connector: 6-pin 0.1" pitch female header
Ideal For
- Arduino and compatible boards (Boarduino, clones)
- Raspberry Pi serial console
- XBee modules
- ESP8266/ESP32 programming
- General TTL serial debugging
