Little Bird  |  SKU: LB-LS3938

GPIO Terminal Block Breakout Board Module for Raspberry Pi

$19.55
Tax included Shipping calculated at checkout.

Call us on 1300 240 817 between 10 AM and 4 PM on weekdays or email team@littlebird.com.au .

The Fastest Shipping

We ship faster because we built our own shipping 🤖 robot.

Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.

You can view shipping options and pricing at checkout without logging in.

For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.

We deliver across Australia, and here are the options (based on your location; view them on the cart page):

  • Standard Post: Starting at $7 (6+ business days, with tracking)
  • Express Post: Starting at $11 (2+ business days, with tracking)
  • Same Day Delivery: Available for Sydney orders.
  • Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.

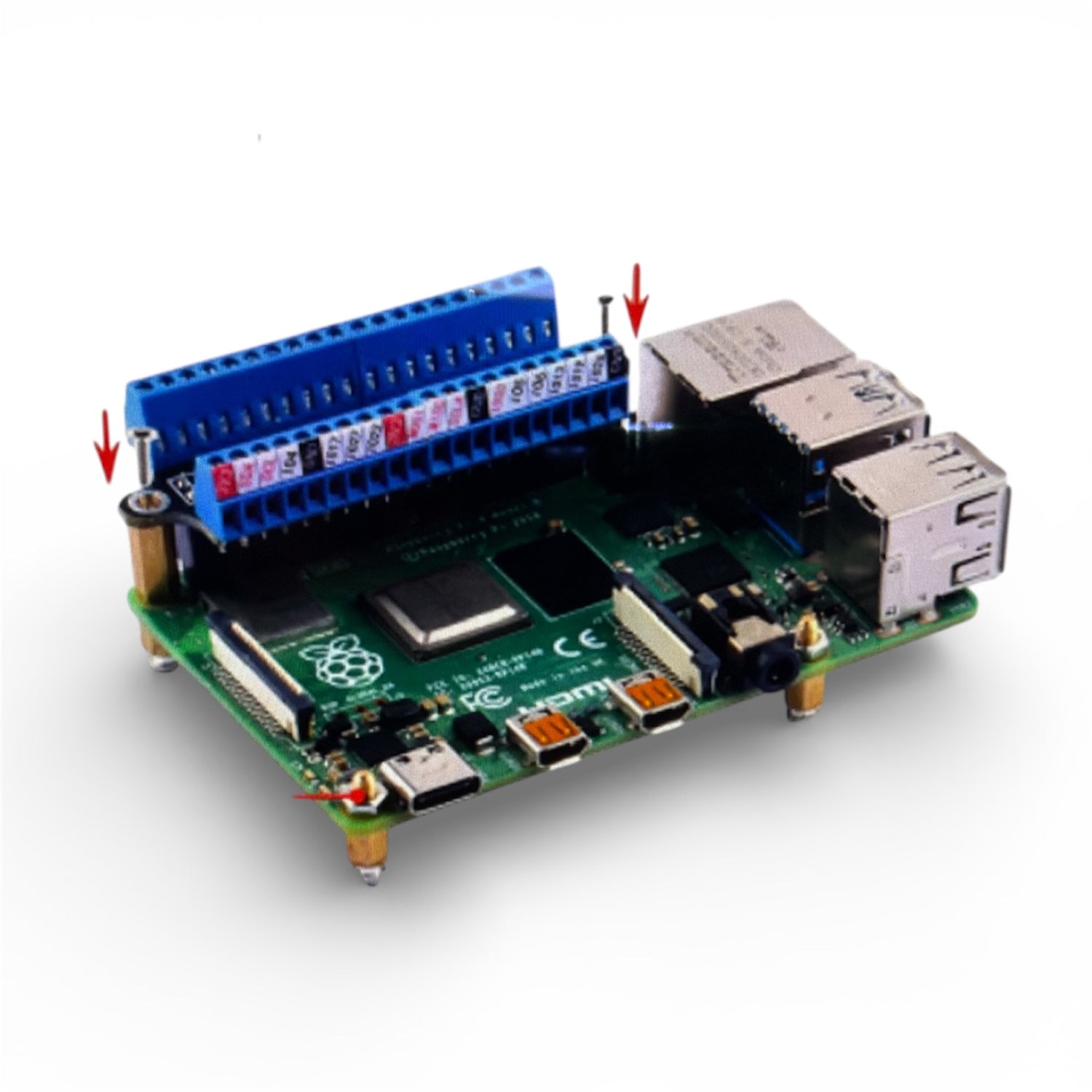

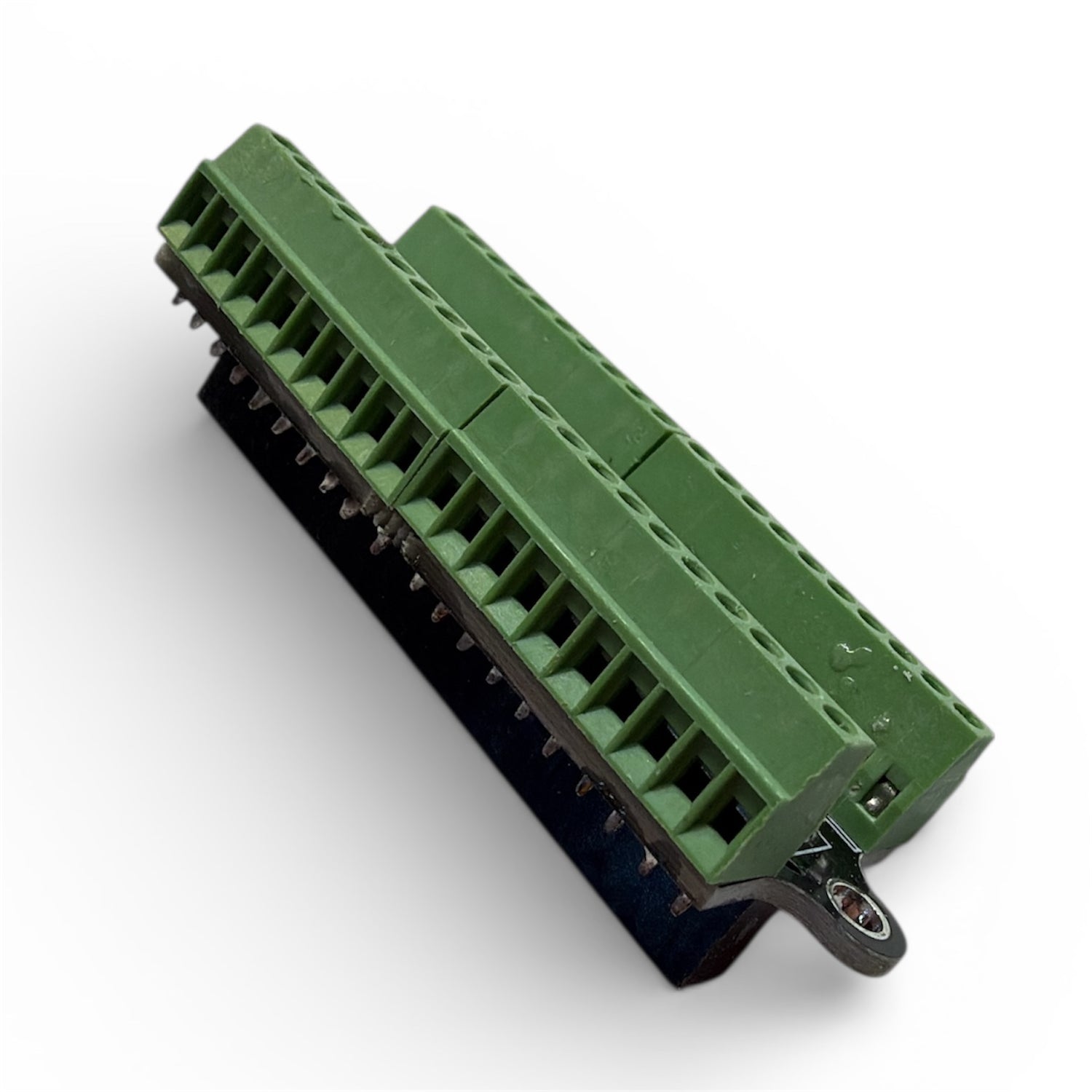

This terminal block breakout module comes fully assembled and soldered, ready for use with Raspberry Pi boards.
It is compatible with Raspberry Pi 1 Model B+, Pi 2 Model B, Pi 3 Model B, Pi 3 Model B+, Pi 4 Model B, Pi Zero, and Pi Zero W.
The module features 2.54 mm (0.1″) pitch terminal blocks supporting wire sizes from 28 AWG to 18 AWG, with a 4.5 mm strip length. It uses M1.6 steel screws, copper pin headers, and copper terminal cages. The PCB is made from FR-4 fiberglass with dual copper layers for durability and reliable connections.
A 2×20 pin header connects directly to the Raspberry Pi GPIO.

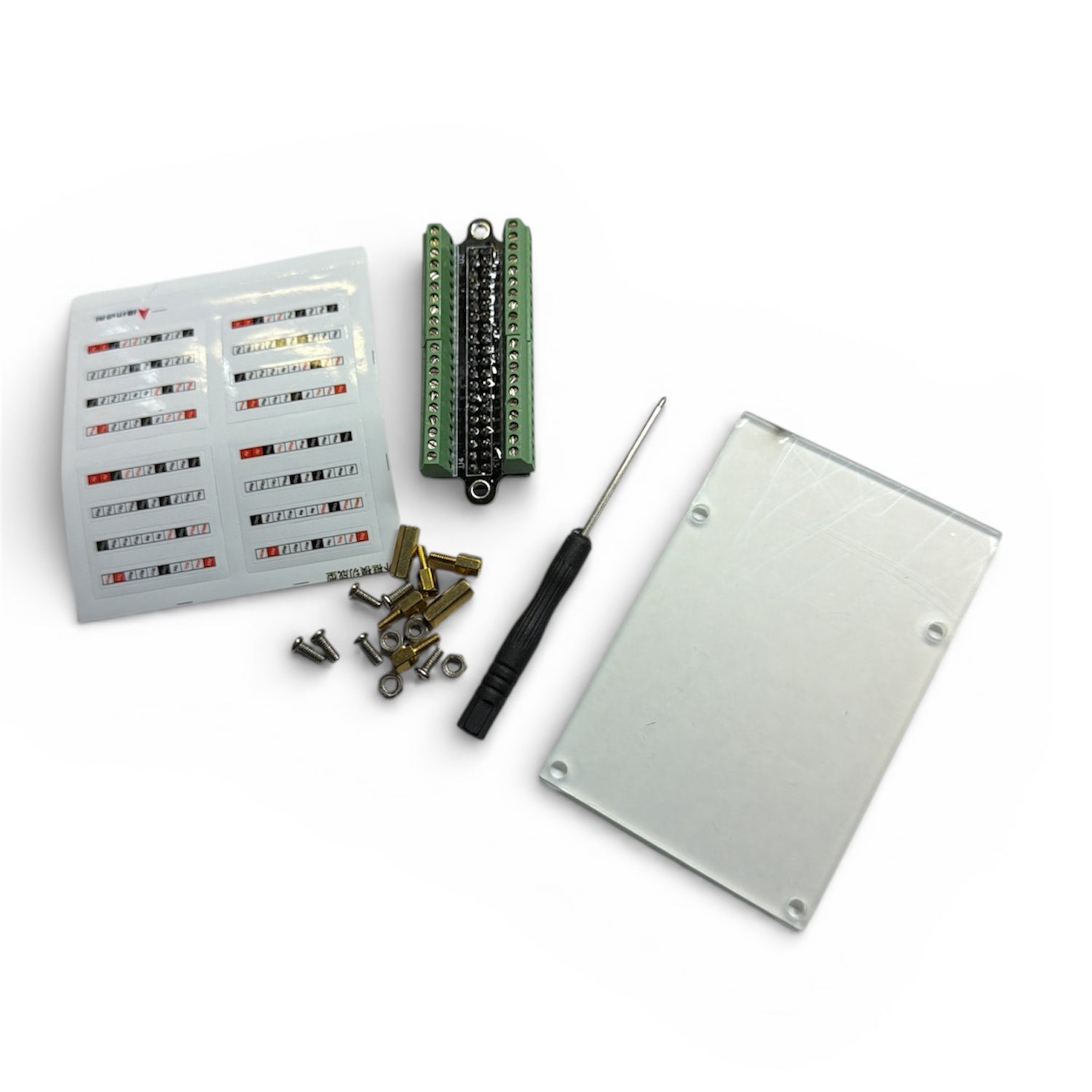

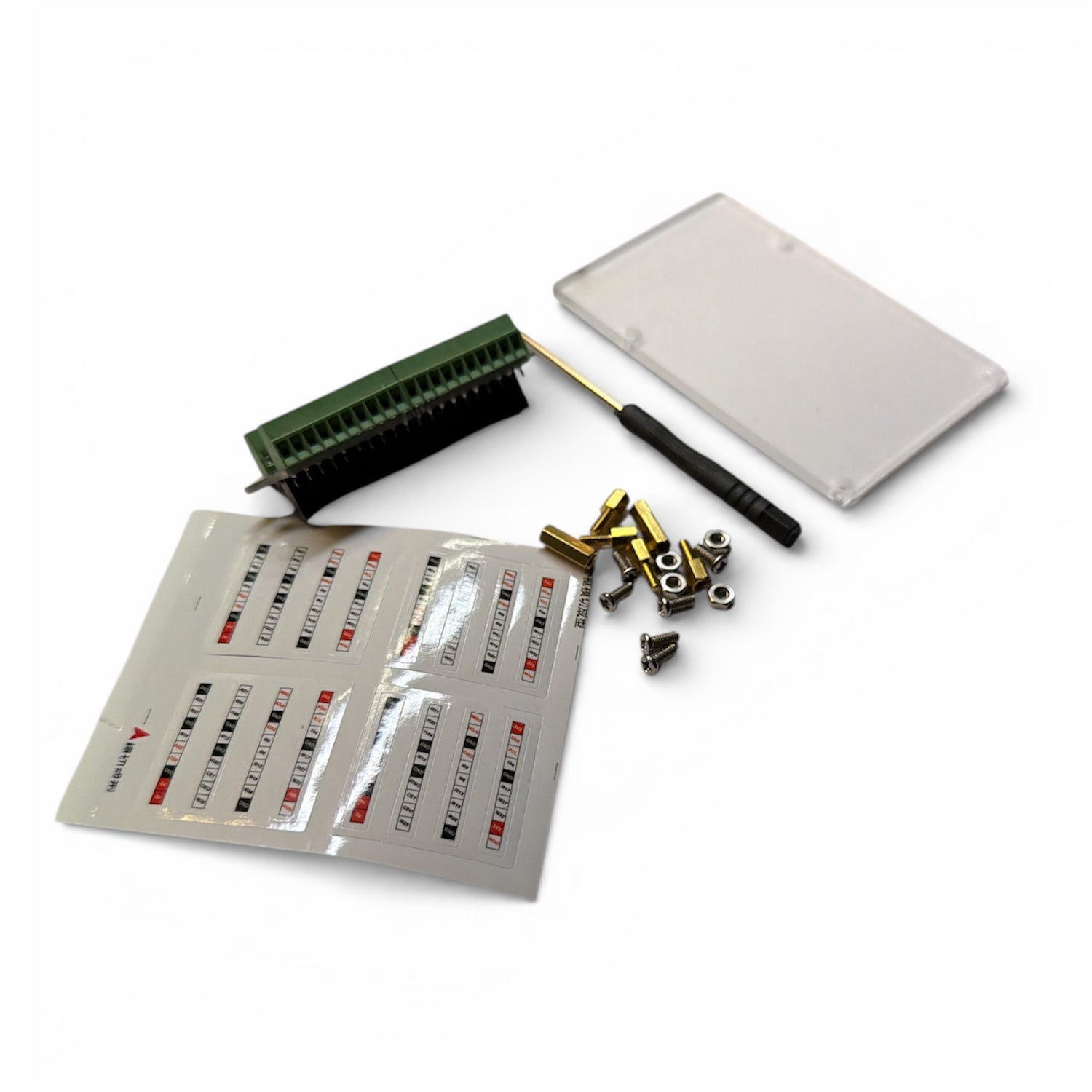

Packing list
  • 1 × Terminal block breakout module
  • 4 × M2.5 × 6 mm screws
  • 4 × 10 mm nylon standoffs
  • 2 × 11.5 mm brass standoffs
  • 1 × Small slotted screwdriver
Note: Raspberry Pi board not included.
